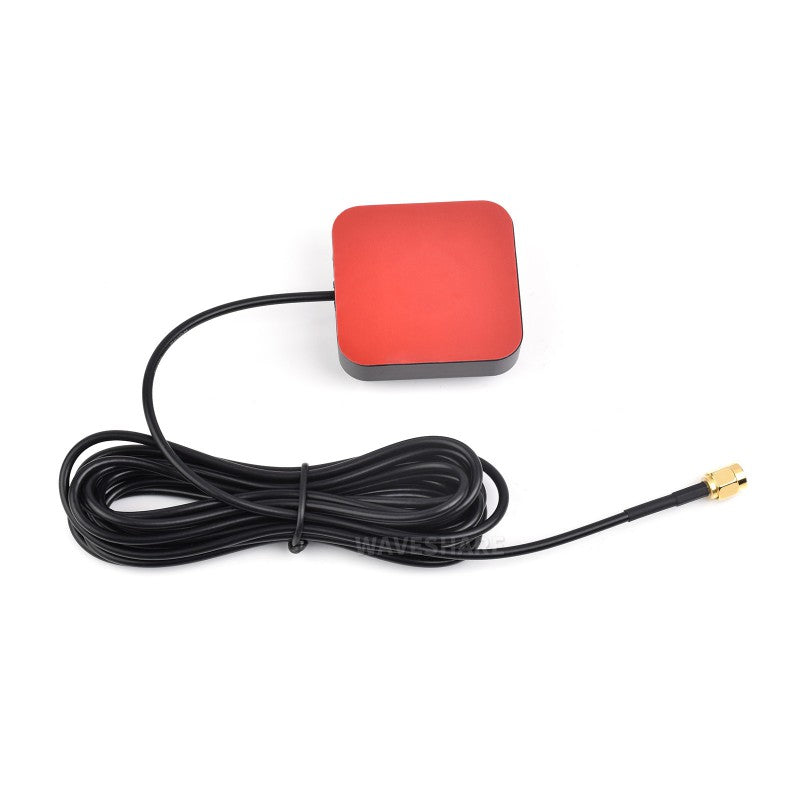

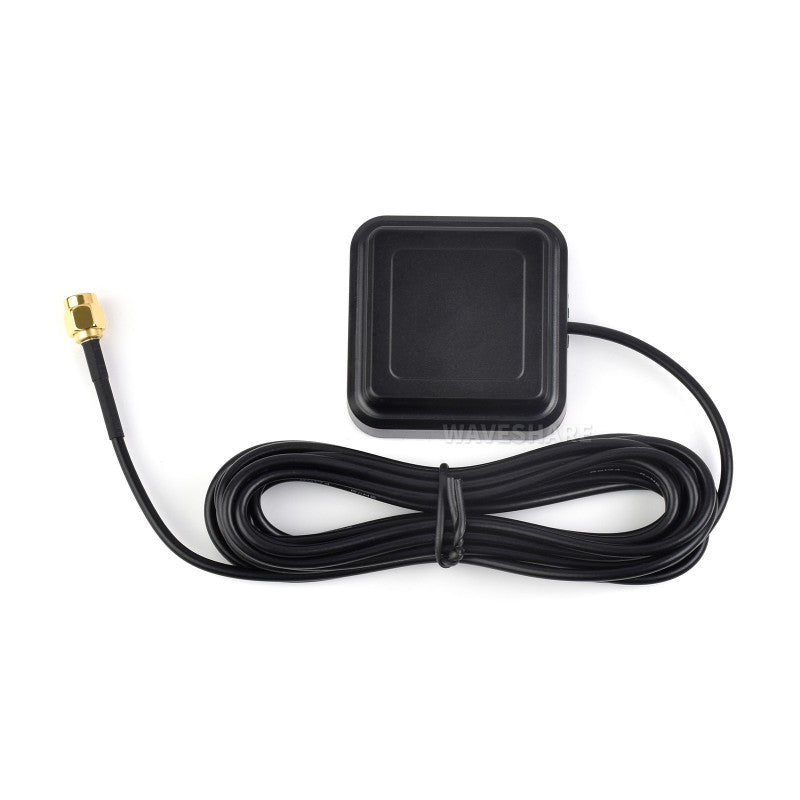

GNSS L1+L5 Dual-frequency Active Antenna

SKU: WVSH0187

₹ 2,399.99 ₹ 2,499.99

Out of stock · Available in 2 weeks

📦 Min order 1

Enter your email or your WhatsApp number.
Chat with us on WhatsApp We reply quickly! Contact Us
GNSS L1+L5 Dual-frequency Active Antenna₹ 2,399.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini



GNSS L1+L5 Dual-Frequency Active Antenna

Supports Multiple GNSS Such As BD, GPS, Galileo, QZSS, IRNSS, Etc.





Specifications

FREQUENCY RANGE BDS B1I/B1C/B2a
GPS L1/L1C/L5C
GALILEO E1/E5a
QZSS L5
IRNSS S-L5		 PHASE CENTER ERROR ±2mm
LNA GAIN 28±2dB POLARISATION Right-Hand Circular Polarization
GAIN 2dBi CONNECTOR SMA-J
VSWR ≤2.0 ANTENNA SIZE 50.0×50.0×19.1mm
OUTPUT IMPEDANCE 50Ω CABLE RG174
WORKING CURRENT ≤20mA CABLE LENGTH 3m
WORKING VOLTAGE DC 3.0~18.0V WORKING TEMPERATURE -40~85˚C
AXIAL RATIO ≤3.0dB STORAGE TEMPERATURE -55~85˚C
NOISE FIGURE ≤2dB MOUNTING Magnetic base/Double-sided tape

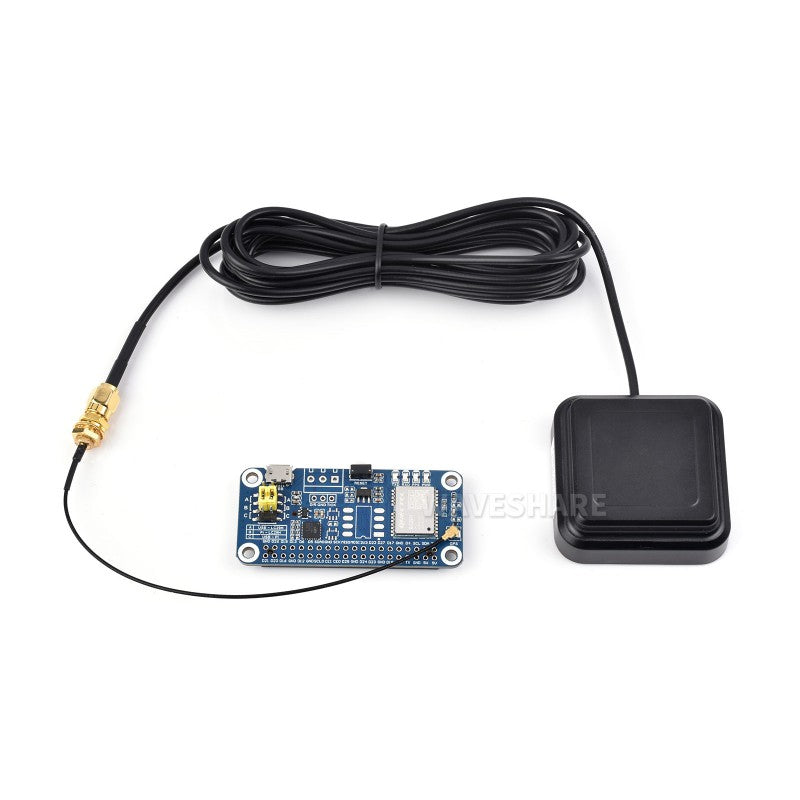

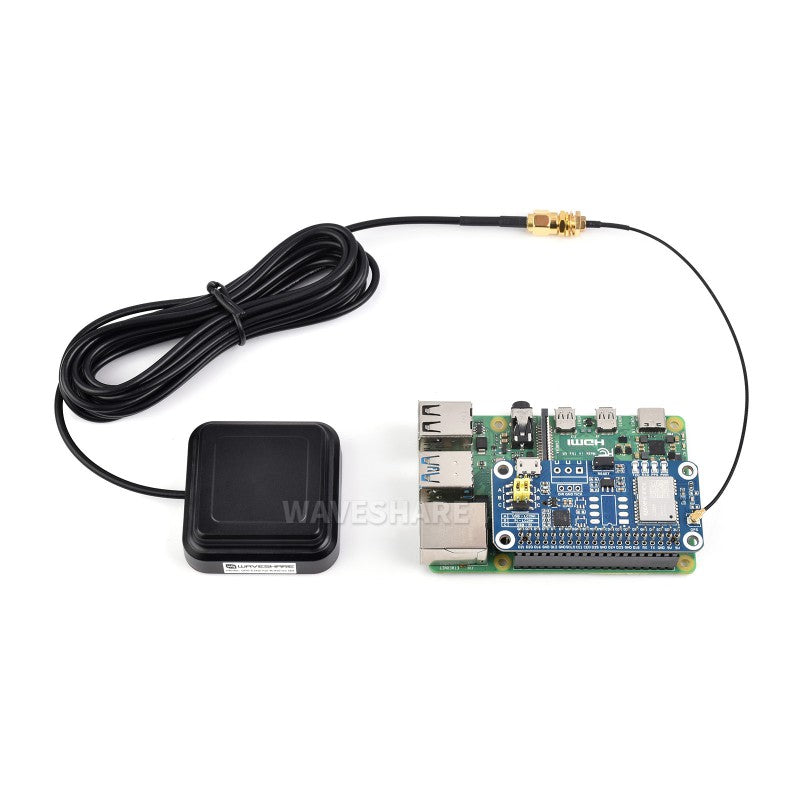

Application Example

* for reference only, the Raspberry Pi board and GPS HAT are NOT included



Application Scenarios



Antenna Performance Parameters




Outline Dimensions

Note: supports mass customization for cable length and antenna connector

Which GNSS systems are supported by this antenna?
It supports multiple GNSS including BD B1I B1C B2a, GPS L1 L1C L5, Galileo E1 E5a, QZSS L5 and IRNSS S L5.
What are the key electrical and connector specifications?
The antenna has 50 ohm impedance and uses a SMA J connector with RG174 cable. It operates on DC 3.0 to 18.0 V, draws up to 20 mA, and provides 28 plus or minus 2 dB LNA gain with VSWR up to 2.0.
What are the mounting options and physical dimensions?
The housing measures 50.0 by 50.0 by 19.1 mm and can be mounted with a magnetic base or double sided tape.
What are the operating and storage temperature ranges and performance parameters?
Operating temperature is minus 40 to 85 degrees C and storage is minus 55 to 85 degrees C. Axial ratio is at most 3.0 dB and the noise figure is at most 2 dB.
Can the cable length or antenna connector be customized and is it compatible with Raspberry Pi projects?
Yes mass customization is available for cable length and antenna connector. The Raspberry Pi board and GPS HAT are not included and the antenna is intended for embedded projects.
A
Admin
Welcome to the discussion thread for GNSS L1+L5 Dual-frequency Active Antenna
Feel free to ask questions, share tips or report issues.
Add Post

For more discussion Click Here

Discover More In:

GPS, GSM, RFID → Waveshare | Official Page → Wifi, Bluetooth & Network Modules →

Category: View similar items (GNSS)

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini



GNSS L1+L5 Dual-Frequency Active Antenna

Supports Multiple GNSS Such As BD, GPS, Galileo, QZSS, IRNSS, Etc.





Specifications

FREQUENCY RANGE BDS B1I/B1C/B2a
GPS L1/L1C/L5C
GALILEO E1/E5a
QZSS L5
IRNSS S-L5		 PHASE CENTER ERROR ±2mm
LNA GAIN 28±2dB POLARISATION Right-Hand Circular Polarization
GAIN 2dBi CONNECTOR SMA-J
VSWR ≤2.0 ANTENNA SIZE 50.0×50.0×19.1mm
OUTPUT IMPEDANCE 50Ω CABLE RG174
WORKING CURRENT ≤20mA CABLE LENGTH 3m
WORKING VOLTAGE DC 3.0~18.0V WORKING TEMPERATURE -40~85˚C
AXIAL RATIO ≤3.0dB STORAGE TEMPERATURE -55~85˚C
NOISE FIGURE ≤2dB MOUNTING Magnetic base/Double-sided tape



Application Example

* for reference only, the Raspberry Pi board and GPS HAT are NOT included



Application Scenarios



Antenna Performance Parameters




Outline Dimensions

Note: supports mass customization for cable length and antenna connector

FAQ
Which GNSS systems are supported by this antenna?
It supports multiple GNSS including BD B1I B1C B2a, GPS L1 L1C L5, Galileo E1 E5a, QZSS L5 and IRNSS S L5.
What are the key electrical and connector specifications?
The antenna has 50 ohm impedance and uses a SMA J connector with RG174 cable. It operates on DC 3.0 to 18.0 V, draws up to 20 mA, and provides 28 plus or minus 2 dB LNA gain with VSWR up to 2.0.
What are the mounting options and physical dimensions?
The housing measures 50.0 by 50.0 by 19.1 mm and can be mounted with a magnetic base or double sided tape.
What are the operating and storage temperature ranges and performance parameters?
Operating temperature is minus 40 to 85 degrees C and storage is minus 55 to 85 degrees C. Axial ratio is at most 3.0 dB and the noise figure is at most 2 dB.
Can the cable length or antenna connector be customized and is it compatible with Raspberry Pi projects?
Yes mass customization is available for cable length and antenna connector. The Raspberry Pi board and GPS HAT are not included and the antenna is intended for embedded projects.
