The SIM7600G-H-M.2 series is the LTE Cat 4 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 150Mbps downlink rate and 50Mbps uplink rate.Ā

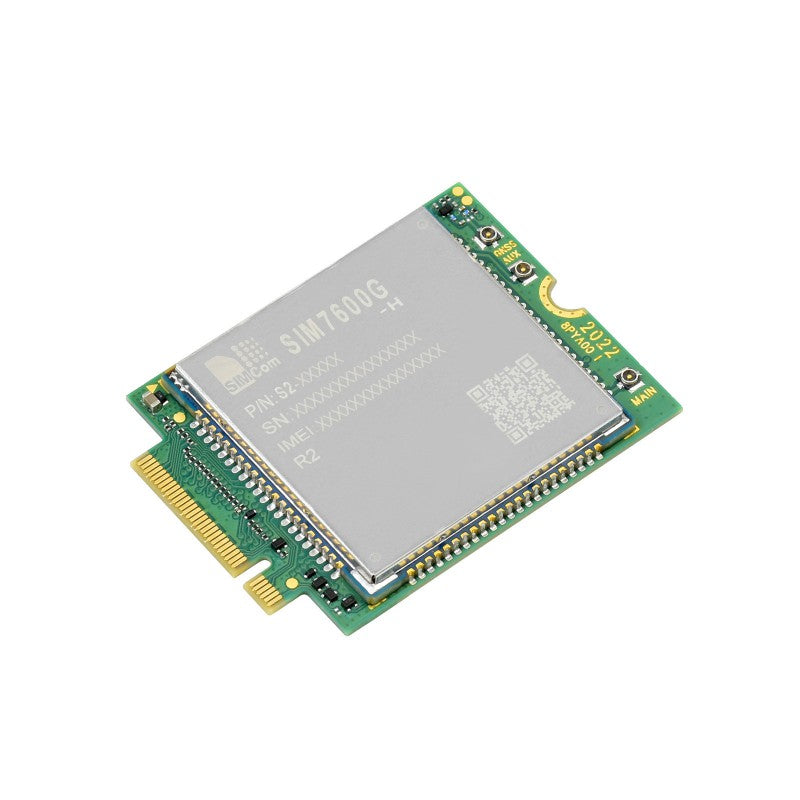

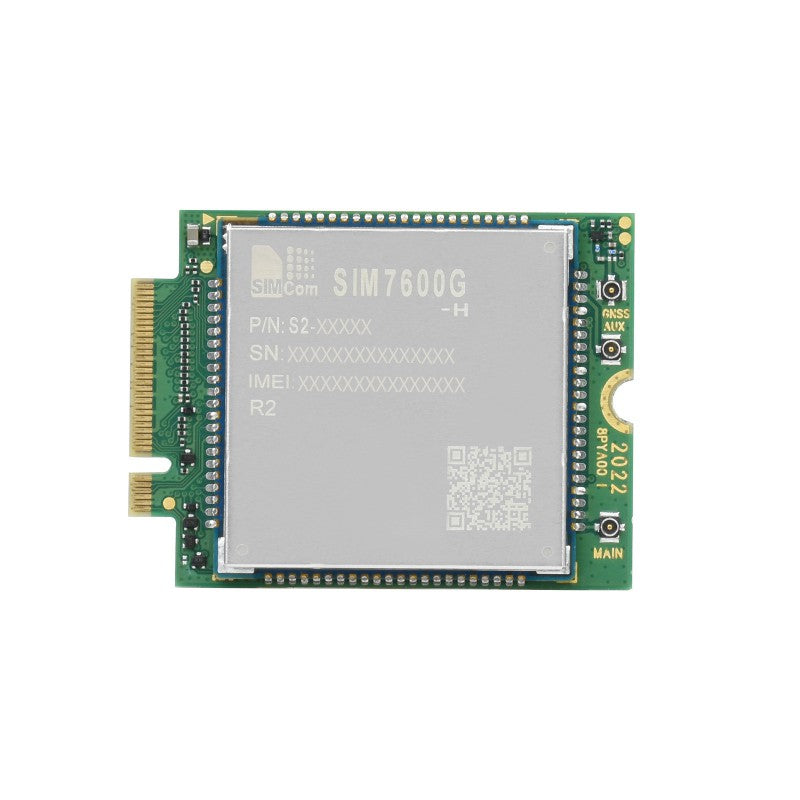

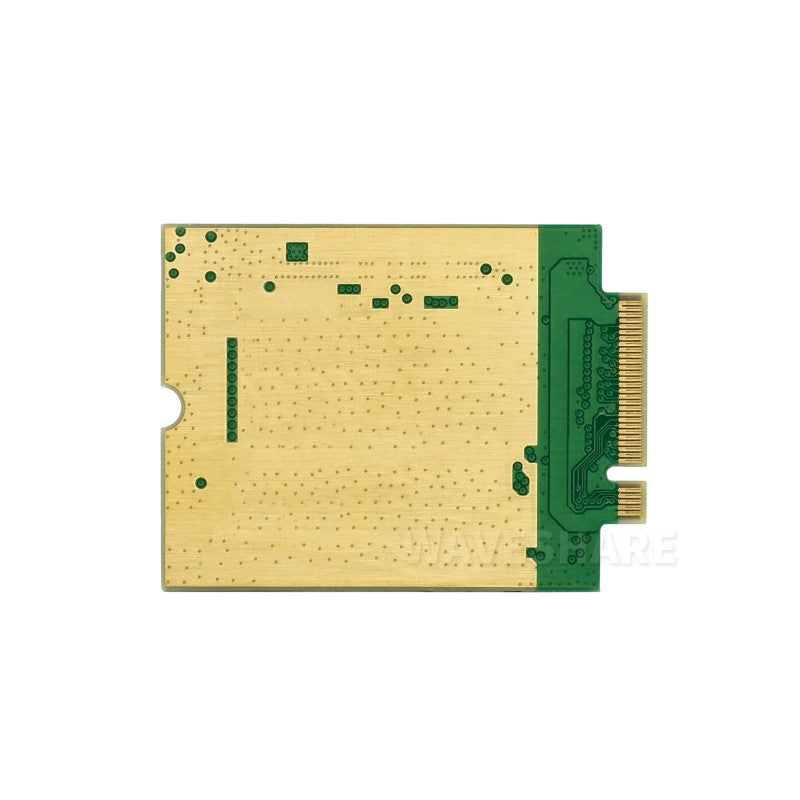

The SIM7600G-H-M.2 series adopts M.2 form factor and consists of a SIM7600-H series module and a M.2 adapter board. It is easy for customers to integrate.Ā
The SIM7600G-H-M.2 series integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600 series modules.Ā
Meanwhile the SIM7600G-H-M.2 series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.
Product Advantages
-
M.2 interface with strong compatibility
-
Multi-constellation GNSS receiver support
-
Suitable for LTE, UMTS and GSM networks with global coverage
-
Abundant software functions: FOTA, LBS, TLS
-
AT commands of the SIM7600-H-M2 series are compatible with the SIM7500/SIM7600 series modules
Specifications
|
Frequency Band |
||||||
|
LTE-FDD |
B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66 |
|||||
|
LTE-TDD |
B34, B38, B39, B40, B41 |
|||||
|
WCDMA |
B1, B2, B4, B5, B6, B8, B19 |
|||||
|
GSM |
850, 900, 1800, 1900MHz |
|||||
|
GNSS |
GPS, Beidou, GLONASS, GALILEO, QZSS |
|||||
|
Data Transfer |
||||||
|
LTE |
150 Mbps (DL) Ā /Ā 50 Mbps (UL) |
|||||
|
HSPA+ |
42 Mbps (DL) Ā /Ā 5.76 Mbps (UL) |
|||||
|
WCDMA |
384 Kbps (DL) Ā /Ā 384 Kbps (UL) |
|||||
|
EDGE |
236.8 Kbps (DL) Ā /Ā 236.8 Kbps (UL) |
|||||
|
GPRS |
85.6 Kbps (DL) Ā /Ā 85.6 Kbps (UL) |
|||||
|
Software Features |
||||||
|
Operating system |
Windows/Linux/Android |
|||||
|
Protocol |
TCP, IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS |
|||||
|
SMS |
Supports MT, MO, CB, Text, PDU |
|||||
|
Firmware upgrade |
USB/FOTA |
|||||
|
Hardware Specifications |
||||||
|
SIM card |
1.8V/3.0V |
|||||
|
Antenna interface |
IPEX-4 connector (LTE main antenna + LTE diversity antenna + GNSS antenna) |
|||||
|
Power supply |
3V ~ 4.2V |
|||||
|
Form factor |
M.2 B KEY |
|||||
|
Dimensions |
42.0 Ć 31.4 Ć 3.8mm |
|||||
|
Operating temperature |
-40ā ~ +85ā |
|||||
|
Applications |
||||||
|
Applicable regions |
global coverage |
|||||
|
Examples |
Healthcare, smart payment, Internet talk, environmental monitoring, energy monitoring, fleet management, smart industry, intelligent agriculture, etc. |
|||||
PACKAGE CONTENT
- SIM7600G-H-M.2 x1
What networks and data rates are supported by the module?
It supports LTE-FDD, LTE-TDD, WCDMA/HSPA+, GSM/GPRS/EDGE with downlink up to 150 Mbps and uplink up to 50 Mbps.
What is the form factor and how is it intended to be integrated?
It uses an M.2 form factor with an adapter board and provides UART, USB and GPIO interfaces for easy integration.
Which GNSS systems are supported for positioning?
The module supports multi constellation GNSS including GPS, Beidou, GLONASS, GALILEO and QZSS.
What software and driver support is available?
USB drivers are available for Windows, Linux and Android and AT commands are compatible with the SIM7500/SIM7600 series modules.
What are the power and environmental specifications and what is included in the package?
The module operates from 3.0 to 4.2 V and supports -40 C to 85 C. The package includes one SIM7600G-H-M.2 module.
