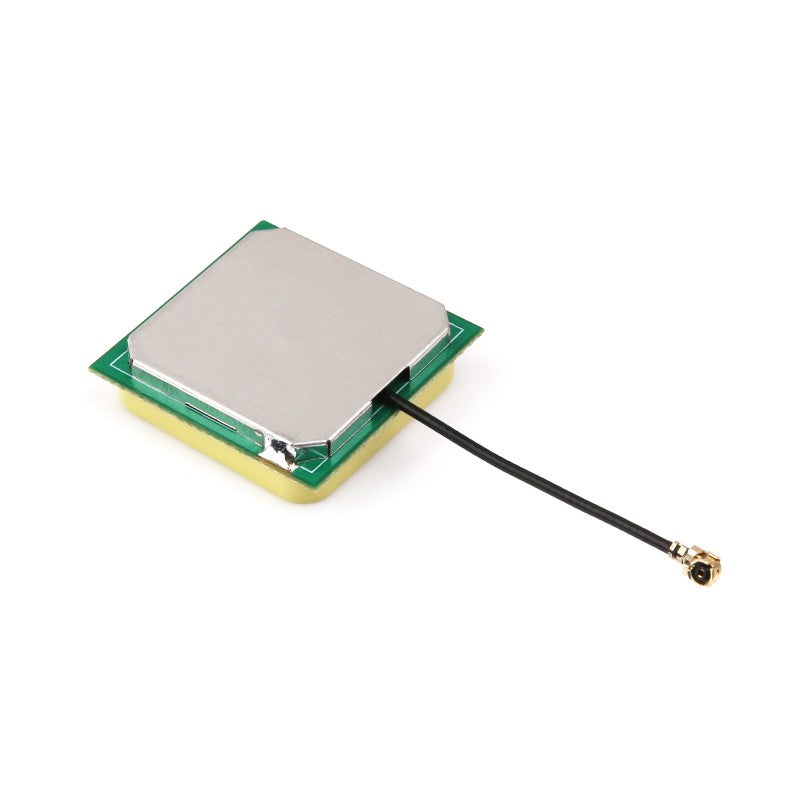

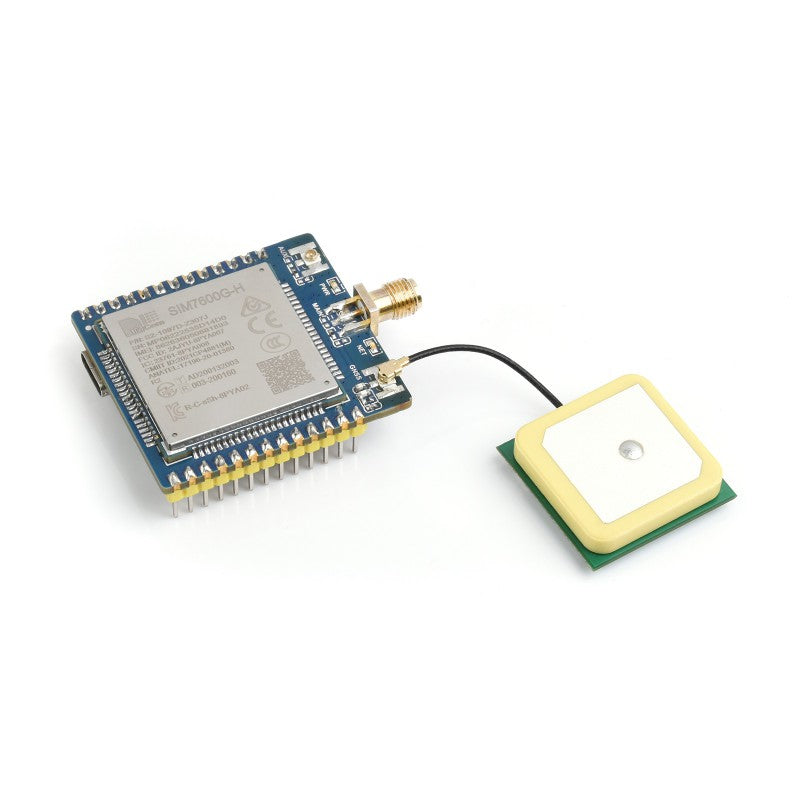

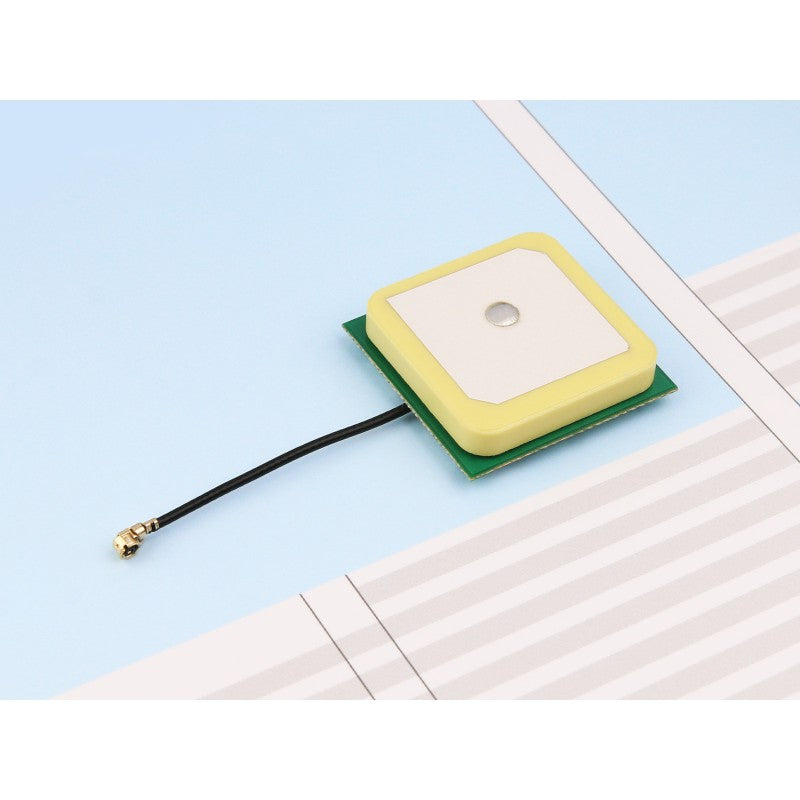

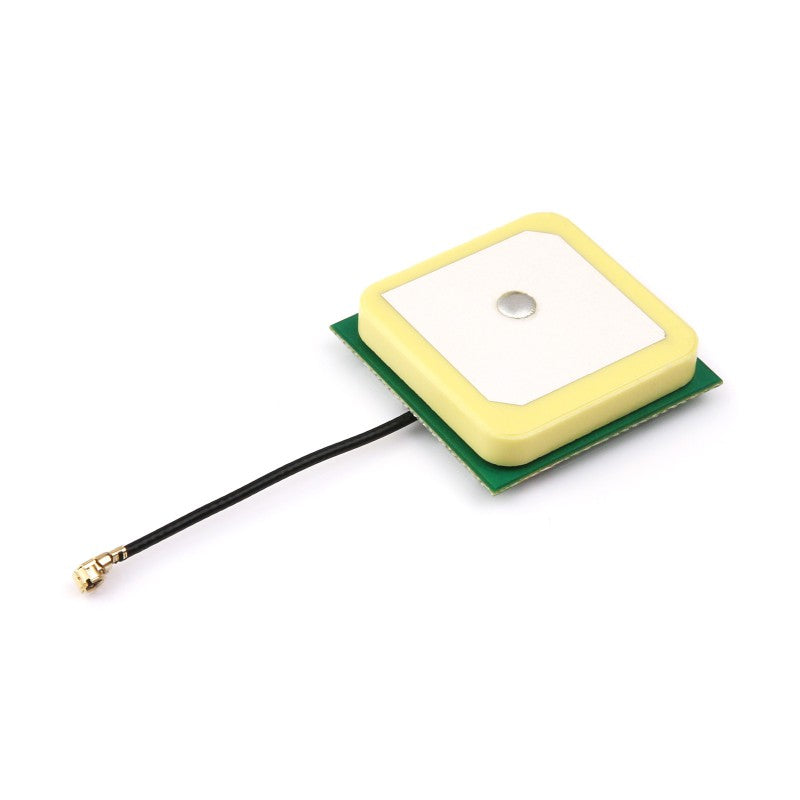

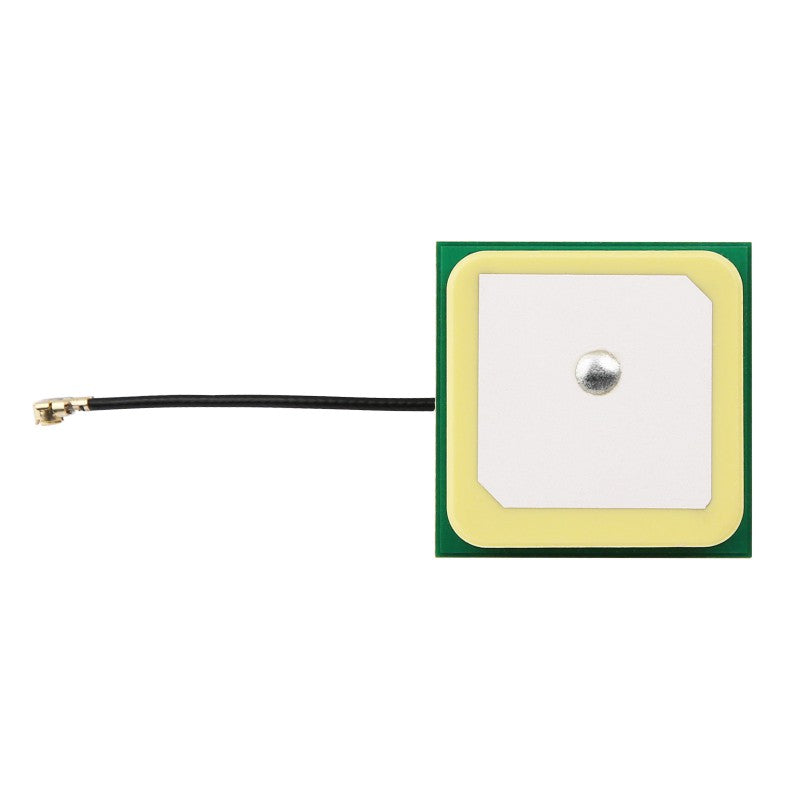

GNSS Active Ceramic Positioning Antenna

Supports Multiple Satellite Positioning Systems Such As BD, GPS, GLONASS

Specifications

CENTER FREQUENCY	1575.42±2MHz / 1561±2MHz / 1602.56±2MHz	OUTPUT IMPEDANCE	50Ω
GAIN	21dBi±2	CONNECTOR	IPEX 1
CABLE LENGTH	~ 35mm	CERAMIC DIMENSION	25 × 25mm
CURRENT CONSUMPTION	<10mA	POLARIZATION	R.H.C.P
POWER SUPPLY	DC 3.3 ~ 5.0V	NOISE FIGURE	≤1.5dB
AXIAL RATIO	3dB	INPUT POWER (MAX)	50W
RADIATION DIRECTION	Omni-directional	OPERATING TEMP.	-20 ~ +65˚C

Product Show

Outline Dimensions

Note: supports mass customization for cable length and antenna connector

Which satellite navigation systems are supported by this antenna?

It supports BD, GPS and GLONASS satellite systems for multi constellation positioning.

What are the main RF and electrical specifications?

Center frequencies are 1575.42 plus minus 2 MHz, 1561 plus minus 2 MHz and 1602.56 plus minus 2 MHz. Impedance is 50 ohm and gain is 21 dBi plus minus 2. The polarization is RHCP and the noise figure is less than or equal to 1.5 dB with an axial ratio of 3 dB. Maximum input power is 50 W.

What are the physical dimensions and connectors?

Ceramic dimension is 25 by 25 mm, connector is IPEX 1, cable length is approximately 35 mm, and radiation is omni directional.

Is customization available for cable length or antenna connector?

Yes, mass customization for cable length and antenna connector is supported.

What are the power, current and operating temperature?

Power supply is DC 3.3 to 5.0 V with current under 10 mA and operating temperature range is -20 to +65 C.
