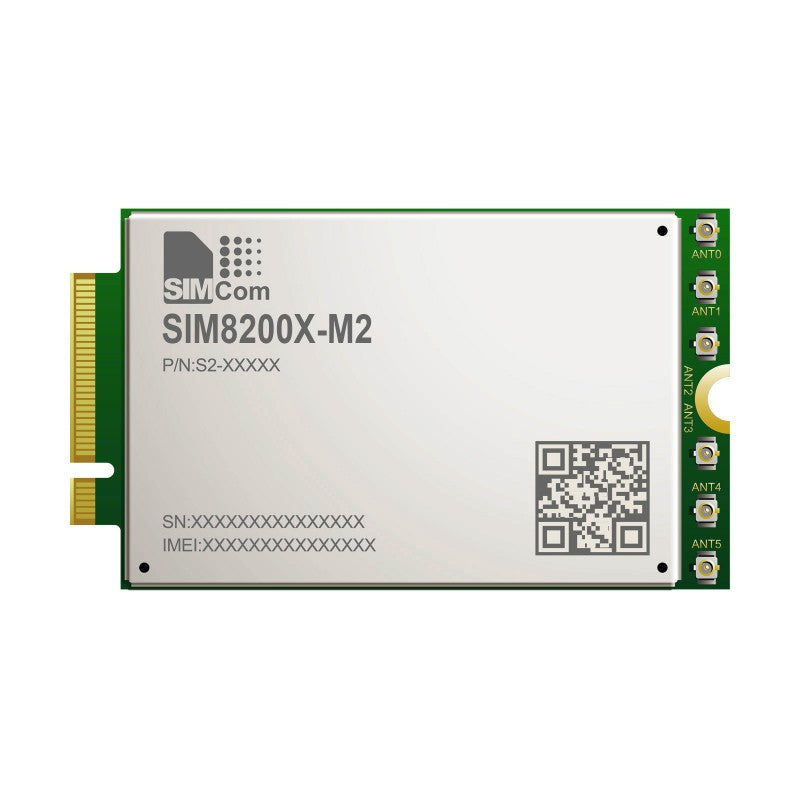

IM8200-M2 SIMCom Original 5G Module
M.2 Form Factor, High Throughput Data Communication
The SIM8200-M2 series is the Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module which supports R15 5G NSA/SA up to 2.4Gbps data transfer.
It has strong extension capability with rich interfaces including UART,PCIe,USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's application.
The SIM8200-M2 series adopts M.2 form factor, TYPE 3052-S3-B. AT commands of SIM8200-M2 series are compatible with SIM7912G/SIM8300G-M2 series modules. This also minimizes the investments of customers, and enables a short time-to-market.
It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.
Product Advantages
- Standard M.2 interface.
- High throughput data communication.
- AT commands ofĀ the SIM8200-M2 series are compatible with SIM7912G/SIM8300G-M2 series modules
Wiki: SIM8200EA-M2_5G_HAT
Ā
Specifications
| PRODUCT | SIM8200EA-M2 |
|---|---|
| FREQUENCY BAND | |
| Sub-6G (SA) | n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n77, n78 |
| Sub-6G (NSA) | n41, n77, n78 |
| LTE-FDD | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 |
| LTE-TDD | B34, B38, B39, B40, B41, B42, B43, B48 |
| WCDMA | B1, B2, B3, B4, B5, B8 |
| GNSS | GPS, GLONASS, Beidou, Galileo, and QZSS |
| DATA RATE | |
| Sub-6G | 2.4 Gbps (DL) Ā /Ā 500 Mbps (UL) |
| LTE | 1 Gbps (DL) Ā /Ā 200 Mbps (UL) |
| HSPA | 42 Mbps (DL) Ā /Ā 5.76 Mbps (UL) |
| SOFTWARE FUNCTIONS | |
| Operating systems | Windows/Linux/Android |
| Communication protocols | TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0 |
| SMS | Supports MT, MO, CB, Text, PDU |
| Firmware upgrade | Supports firmware upgrade via USB port |
| HARDWARE INFO | |
| SIM card | 1.8V/3.0V |
| Antenna connector | 6x IPEX-4 connector, for 3G/4G/5G/GNSS |
| Power supply | 5V 3A |
| Form factor | M.2 |
| Dimensions | 52.0 Ć 30.0 Ć 2.3mm |
| Operating temperature | -30ā ~ +70ā |
| APPLICATIONS | |
| Applicable regions | China, US, Japan, South Korea, Europe, the Middle East, Latin America, etc. |
| Application examples | CPE, Smart gateway, Drone, Live streaming, Remote medical treatment, Intelligent security |
What interfaces and connectors are available on the module?
The module provides UART, PCIe, USB 3.1 and GPIO interfaces, plus 6x IPEX-4 antenna connectors for 3G 4G 5G and GNSS.
What networks and data rates does it support?
It supports multi band 5G NR/LTE-FDD/LTE-TDD/HSPA+. Sub-6G downlink up to 2.4 Gbps, LTE downlink up to 1 Gbps, and HSPA downlink up to 42 Mbps.
Is the AT command set compatible with other SIMCom modules?
Yes the AT commands of the SIM8200 M2 series are compatible with SIM7912G and SIM8300G M2 series modules.
Which operating systems are supported and can the firmware be upgraded?
Supported OSes include Windows Linux and Android. Firmware upgrades are supported via a USB port.
What are the physical dimensions and power requirements for use?
The module uses a M.2 form factor 52.0 x 30.0 x 2.3 mm with a 5 V 3 A power supply.
No reviews yet. Be the first to share your experience!
