Tattu 14.8V 4S Lipo Battery Pack is designed specifically for the demands of the latest Unmanned Aircraft Vehicle, which can be used in military, security, survey and aerial filming. Such as DJI, Cinestar, Droidworx and other UAV drones.
Features:
- Stable automatic stacking technology enables single-cell capacities of 30000mAh.
- Higher capacity than comparable size packs
- Longer Cycle Life, almost double that of standard lipoly technology
- Superior Japan and Korea Lithium Polymer raw materials
Specifications:

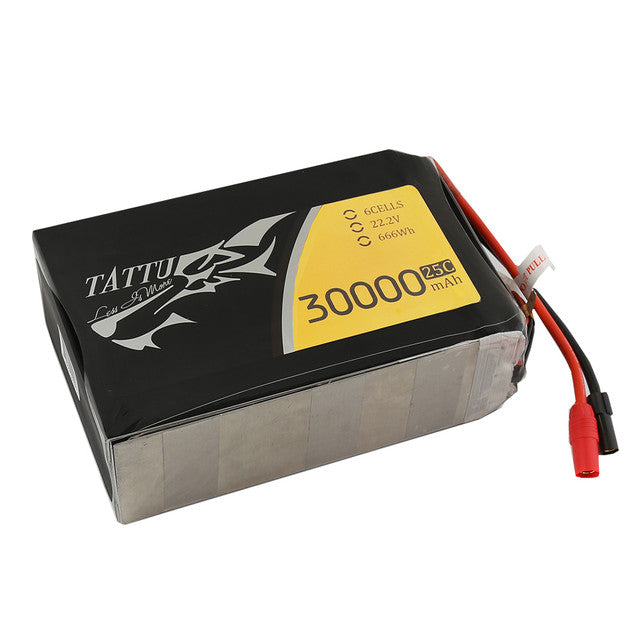

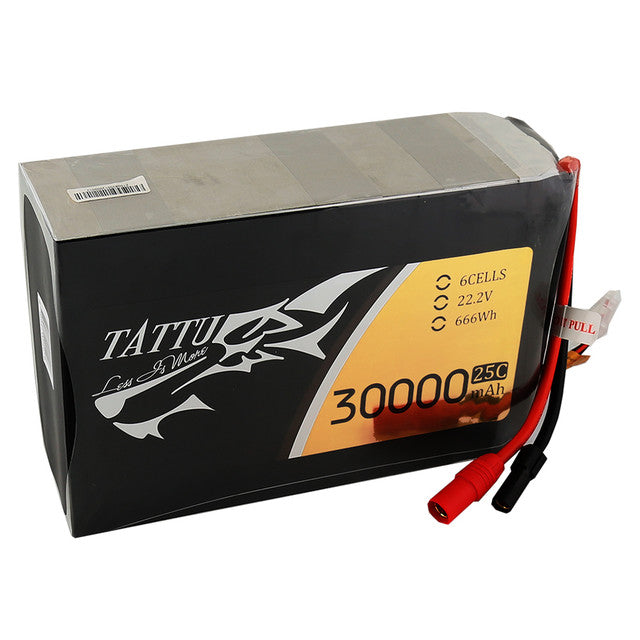

- 30,000mAh 25C
- Minimum Capacity: 30,000mAh
- Configuration: 6S1P / 22.2V / 6 cells
- Discharge Rate: 25C
- Max Burst discharge Rate: 50C
- Net Weight(±20g): 3228g
- Dimensions: 218mm x 120.50mm x 60.50mm (L x W x H)
- Output Connector: AS150

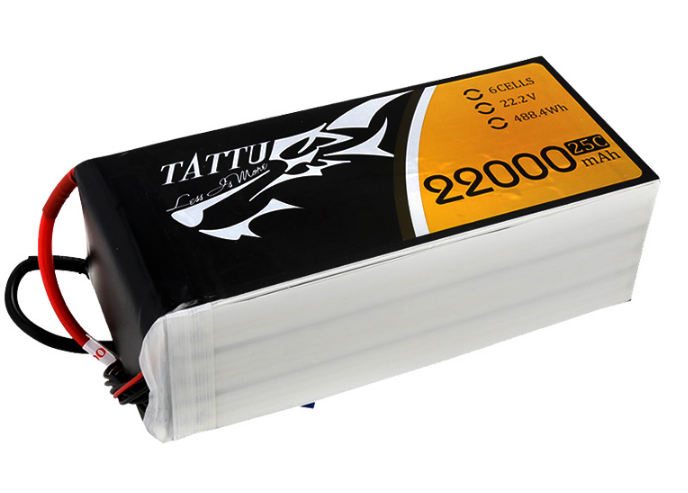

- 22,000mAh 25C
- Minimum Capacity: 22,000mAh
- Configuration: 6S1P / 22.2V / 6 cells
- Discharge Rate: 25C
- Max Burst discharge Rate: 50C
- Net Weight(±20g): 2650g
- Dimensions: 200.3mm x 92mm x 64mm (L x W x H)
- Output Connector: XT90
- Charge Rate: 1-3C Recommended, 5C Max
- Charge Plug: JST-XH

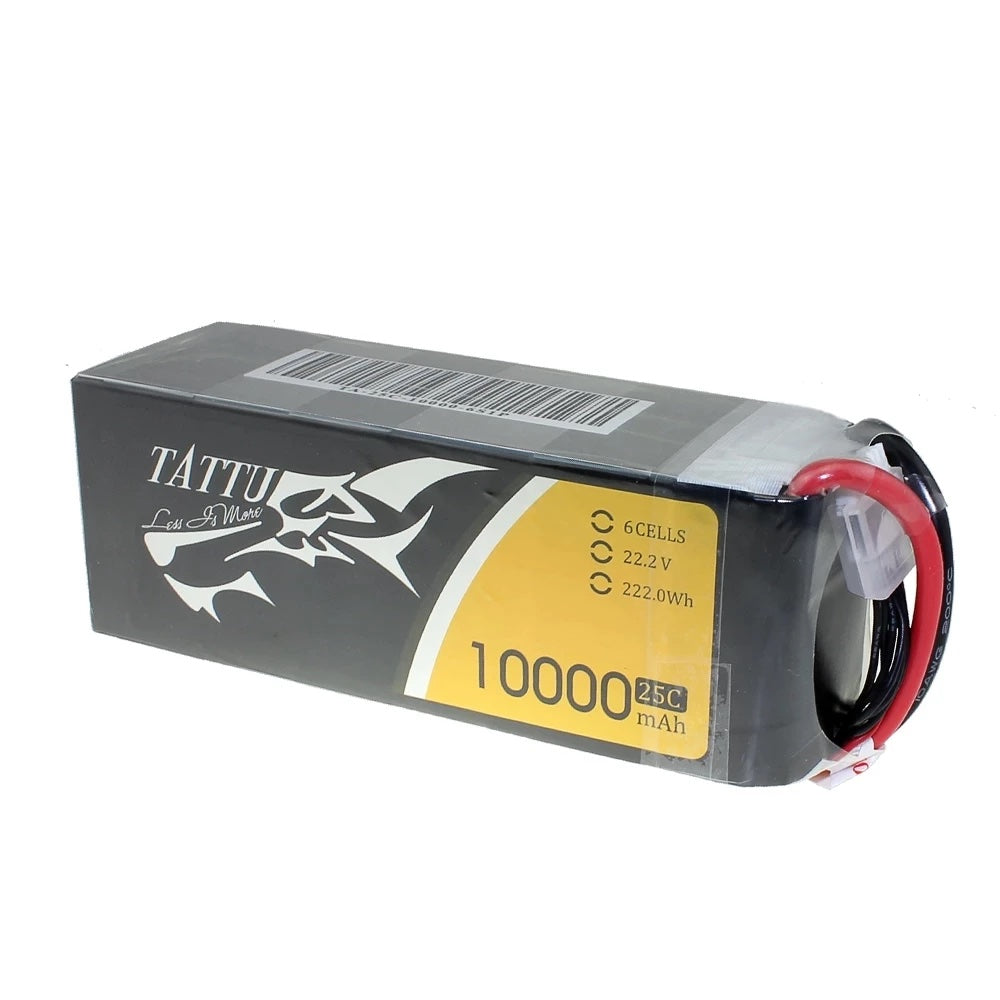

- 10,000mAh 25C
- Minimum Capacity: 10,000mAh
- Configuration: 6S1P / 22.2V / 6 cells
- Discharge Rate: 25C
- Max Burst discharge Rate: 50C
- Net Weight(±20g): 1382g
- Dimensions: 168mm x 64mm x 59mm (L x W x H)
- Output Connector: XT90
- Charge Rate: 1-3C Recommended, 5C Max
- Charge Plug: JST-XH
Compatible with
Tattu 22.2V 6S1P Lipo Battery Pack is compatible with most UAV, drone, multirotor, DJI, Cinestar, Droidworx, multicopter etc.
Note: All Tattu LiPos are packed with vibration-proof & fire-proof material and our luxury battery box ensuring you get your battery in perfect condition. An automatic procedure & Computer system battery cell matching process ensures the batteries stability and quality. Different from the original Gens Ace series, TATTU is specialized for the UAV & UAS market, with their industrial quality (since Gens Ace is based on the Hobby area), their slogan "less is more", "more" means more flight time, more enjoyment, and more satisfaction, and "less" means less weight, simple design. Tattu always develops their products according to these 2 directions giving you a high-quality battery.
What is the capacity and discharge rate of this battery pack?
The pack features 30000mAh capacity, 22.2V 6S1P, with a continuous discharge rate of 25C and a max burst of 50C.
Is this battery compatible with DJI and other UAV drones?
Yes, it is compatible with most UAVs including DJI and Cinestar, using the appropriate connector for the 30k mAh variant (AS150).
Is there a warranty or return policy for this battery?
Warranty and return policy details are not provided in the product description.
How should I charge this LiPo pack and what is the supported charge rate?
Charge rate is recommended at 1-3C, with a maximum of 5C.
What are the dimensions and weight of the 30,000mAh version?
The 30,000mAh version weighs about 3228 g and measures 218 mm x 120.50 mm x 60.50 mm.
Description
Tattu 14.8V 4S Lipo Battery Pack is designed specifically for the demands of the latest Unmanned Aircraft Vehicle, which can be used in military, security, survey and aerial filming. Such as DJI, Cinestar, Droidworx and other UAV drones.
Features:
- Stable automatic stacking technology enables single-cell capacities of 30000mAh.
- Higher capacity than comparable size packs
- Longer Cycle Life, almost double that of standard lipoly technology
- Superior Japan and Korea Lithium Polymer raw materials
Specifications:
- 30,000mAh 25C
- Minimum Capacity: 30,000mAh
- Configuration: 6S1P / 22.2V / 6 cells
- Discharge Rate: 25C
- Max Burst discharge Rate: 50C
- Net Weight(±20g): 3228g
- Dimensions: 218mm x 120.50mm x 60.50mm (L x W x H)
- Output Connector: AS150
- 22,000mAh 25C
- Minimum Capacity: 22,000mAh
- Configuration: 6S1P / 22.2V / 6 cells
- Discharge Rate: 25C
- Max Burst discharge Rate: 50C
- Net Weight(±20g): 2650g
- Dimensions: 200.3mm x 92mm x 64mm (L x W x H)
- Output Connector: XT90
- Charge Rate: 1-3C Recommended, 5C Max
- Charge Plug: JST-XH
- 10,000mAh 25C
- Minimum Capacity: 10,000mAh
- Configuration: 6S1P / 22.2V / 6 cells
- Discharge Rate: 25C
- Max Burst discharge Rate: 50C
- Net Weight(±20g): 1382g
- Dimensions: 168mm x 64mm x 59mm (L x W x H)
- Output Connector: XT90
- Charge Rate: 1-3C Recommended, 5C Max
- Charge Plug: JST-XH
Compatible with
Tattu 22.2V 6S1P Lipo Battery Pack is compatible with most UAV, drone, multirotor, DJI, Cinestar, Droidworx, multicopter etc.
Note: All Tattu LiPos are packed with vibration-proof & fire-proof material and our luxury battery box ensuring you get your battery in perfect condition. An automatic procedure & Computer system battery cell matching process ensures the batteries stability and quality. Different from the original Gens Ace series, TATTU is specialized for the UAV & UAS market, with their industrial quality (since Gens Ace is based on the Hobby area), their slogan "less is more", "more" means more flight time, more enjoyment, and more satisfaction, and "less" means less weight, simple design. Tattu always develops their products according to these 2 directions giving you a high-quality battery.
FAQ
What is the capacity and discharge rate of this battery pack?
The pack features 30000mAh capacity, 22.2V 6S1P, with a continuous discharge rate of 25C and a max burst of 50C.
Is this battery compatible with DJI and other UAV drones?
Yes, it is compatible with most UAVs including DJI and Cinestar, using the appropriate connector for the 30k mAh variant (AS150).
Is there a warranty or return policy for this battery?
Warranty and return policy details are not provided in the product description.
How should I charge this LiPo pack and what is the supported charge rate?
Charge rate is recommended at 1-3C, with a maximum of 5C.
What are the dimensions and weight of the 30,000mAh version?
The 30,000mAh version weighs about 3228 g and measures 218 mm x 120.50 mm x 60.50 mm.
