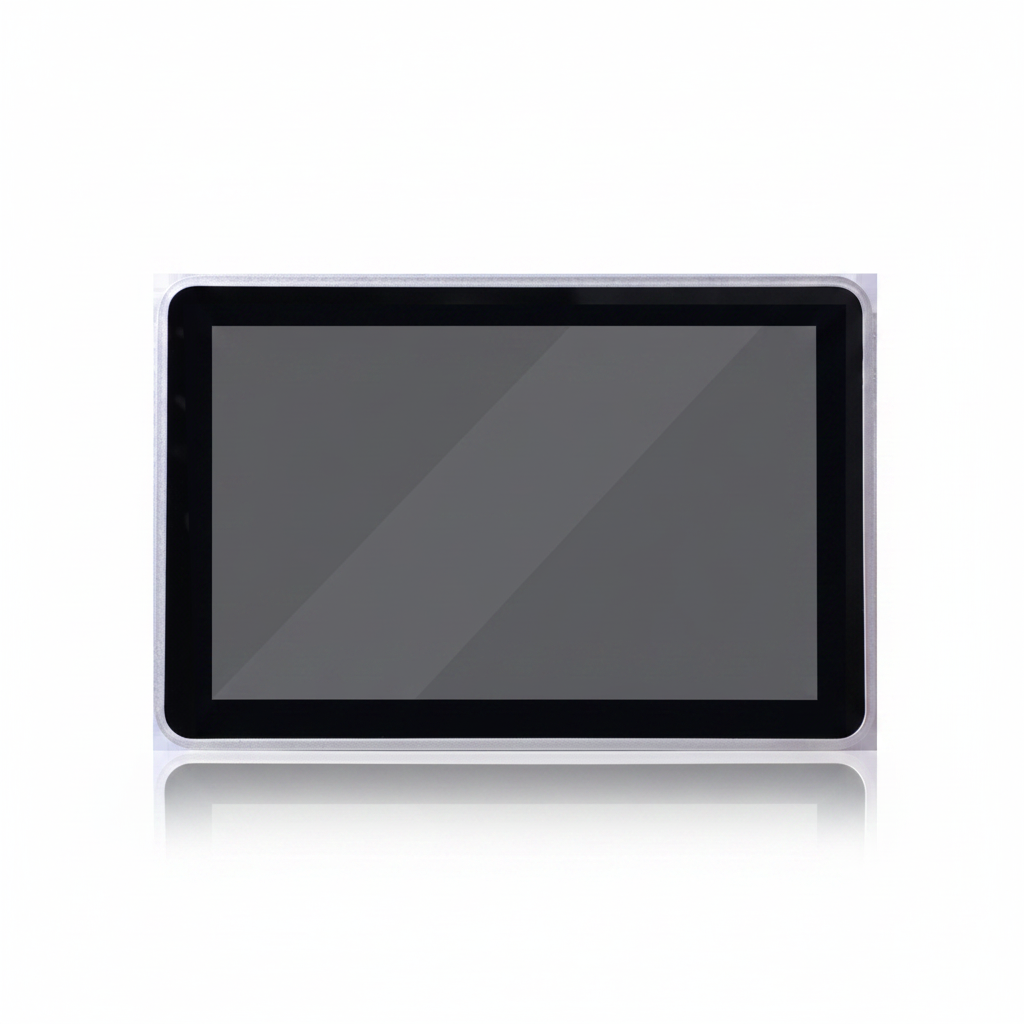

The USR-SH800 is a high - perf 10.1 - industrial panel pc touch screen. Powered by RK3568 (quad - core 64 - bit ARM CPU, 2.0GHz max), it has built - in WukongEdge for edge computing & local configuration. Its NPU offers 1.0 TOPS AI performance.
Ā
Edge Computing, PLC Programming, Local Configuration
Ā
Industrial Panel PC Touch Screen with the built-inĀ Web Configuration acts as the control center ofĀ the IoT system.
Ā
Industrial Panel PC Adopting the RK3568 industrial-grade chip;Ā ARM architecture, quad-core 64-bit Cortex-A55,Ā with a maximum main frequency of up to 2.0GHz.
Ā
Linux Ubuntu system. Supports programming in C, C++,Ā etc. Comes pre-installed with the latestĀ Node-RED and allows Docker application installation.
Ā

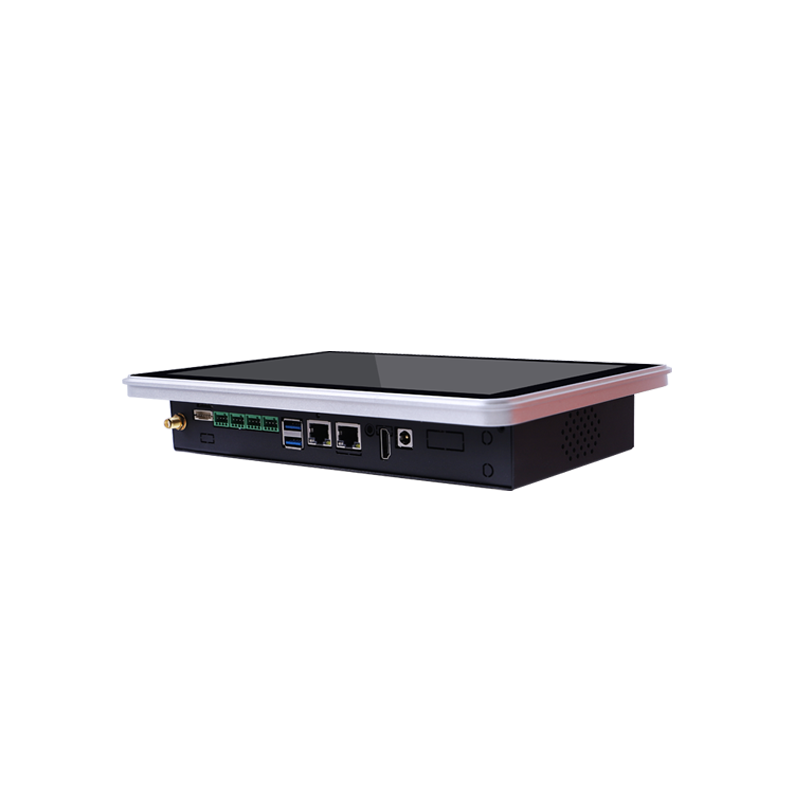

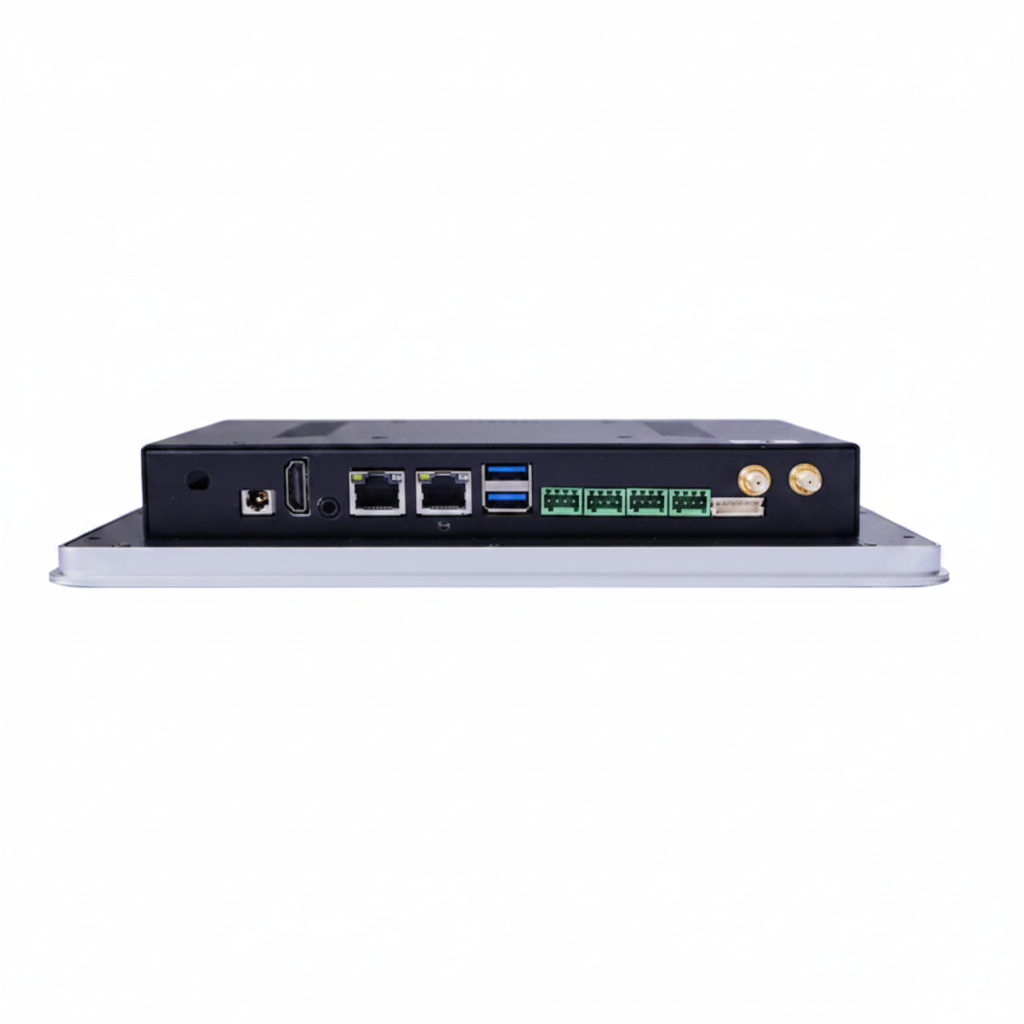

2*RS485, 2*RS232, 2*Ethernet, 2*USBĀ Combined with edge computing, it can process data efficiently.
Ā

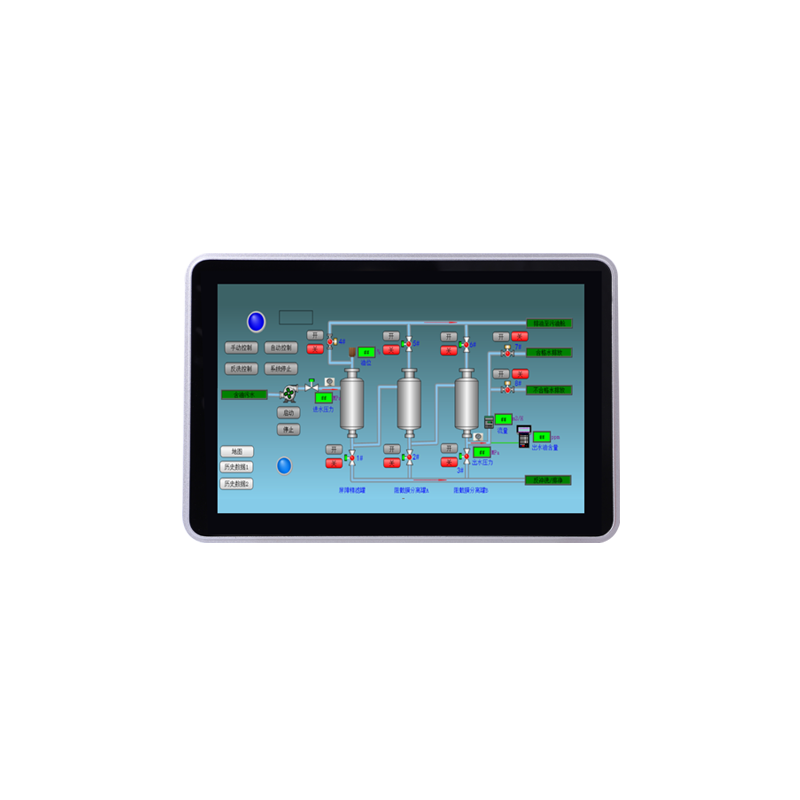

High - efficiency integration of data collection andĀ configuration editing to achieve local dataĀ configuration monitoring
Ā
Edge data collection, Edge computing, Edge reporting,Ā Linkage controlĀ configuration monitoring
Ā
Ā
Built - in OpenPLC, compliant with IEC61131 - 3 standard,Ā supports five types of PLC programming designs
Ā
Ā
Remotely open the management background forĀ operations like parameter configuration
Ā
Ā
Ā
| Processor CPU | Rockchip RK3568 ARM quad-core 64-bit processor, clocked up to 2.0GHz |
| Graphics Processor GPU | ARM G52 2EE GPU Supports OpenGLES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 Embedded high-performance 2D acceleration hardware |
| NPU | Built-in NPU, 1.0 TOPS @ INT8 Supports Caffe / MXNet / TensorFlow / TFLite / ONNX / Darknet |
| Operating System | Linux Ubuntu 20.04 |
| Memory | DDR4 4GB |
| Storage | eMMC 32GB |
| Touch Screen | 10.1 inch 800 Ć 1280 resolution Capacitive touch |
| Network | 2 Ć Ethernet (10/100 Mbps) 2.4GHz Wi-Fi 802.11 b/g/n 4G supported (default factory version, Wi-Fi-only version not supported) |
| GPS | Built-in GPS/BD module Sensitivity: -162dBm Frequency: 1575.42MHz Channels: 20 Accuracy: <10m (Only GL version supported) |
| SIM | Nano SIM card slot |
| Display Interface | 1 Ć HDMI 2.0 OUT Supports 4K @ 60fps |
| Audio | 1 Ć Headset output |
| RTC | Built-in RTC battery Supports scheduled power on/off |
| USB | 1 Ć USB 3.0 HOST 1 Ć USB 3.0 OTG (default HOST) |
| Key | 1 Ć Upgrade key |
| Serial Port | 2 Ć RS232, 2 Ć RS485 |
| Power Input | DC 12V (5.5mm / 2.1mm) 2Aā5A Surge <18V, ripple <100mV Supports auto power-on |
| Operating Temperature | 0Ā°C to 50Ā°C |
| Storage Temperature | -20Ā°C to 80Ā°C |
| Operating Humidity | 10% ā 80% |
| Size | 160 Ć 85 Ć 28 mm |
| Multimedia | 4K 60fps H.265/H.264 decoding 1080P 100fps encoding 8MP ISP, HDR supported |
| Language | Default English Supports additional language downloads |
| Input Method | Standard Android keyboard Supports third-party input methods |
Ā
| [Quick Operating Manual] USR-SH800 -V1.0.0 | Download |
| [Linux Development Materials] EG+SH Series.zip | DownloadĀ |
| [Linux Development Manual] SH800 | DownloadĀ |
| [Datasheet] USR-SH800 DataSheet V1.0.1-EN | DownloadĀ |
