Waveshare SIM7600G-H 4G for Jetson Nano

SKU: SBC2032

Regular price ₹ 6,449.99
Sale price ₹ 6,449.99 Regular price
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

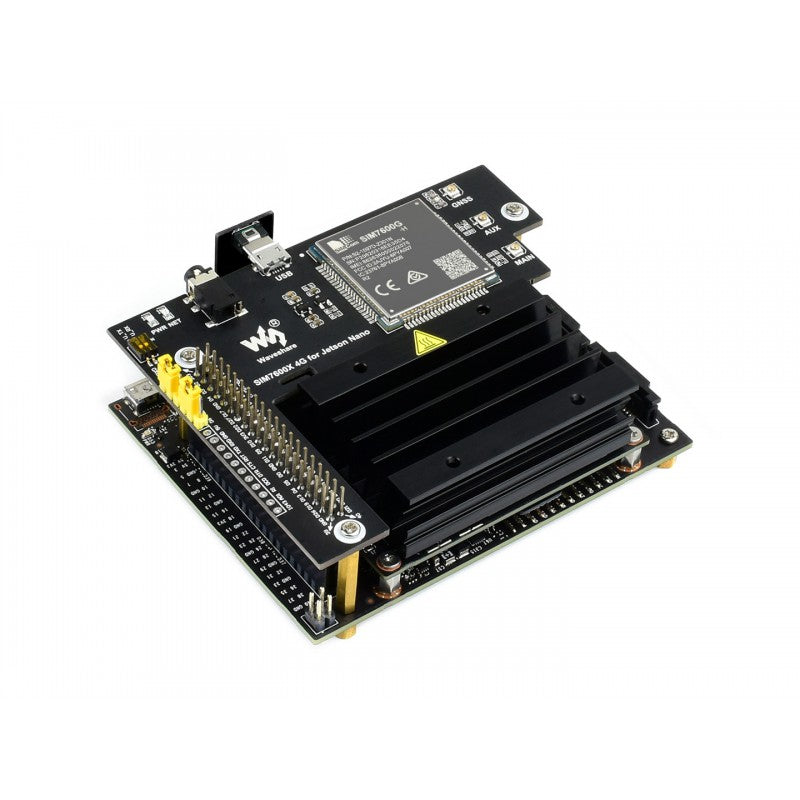

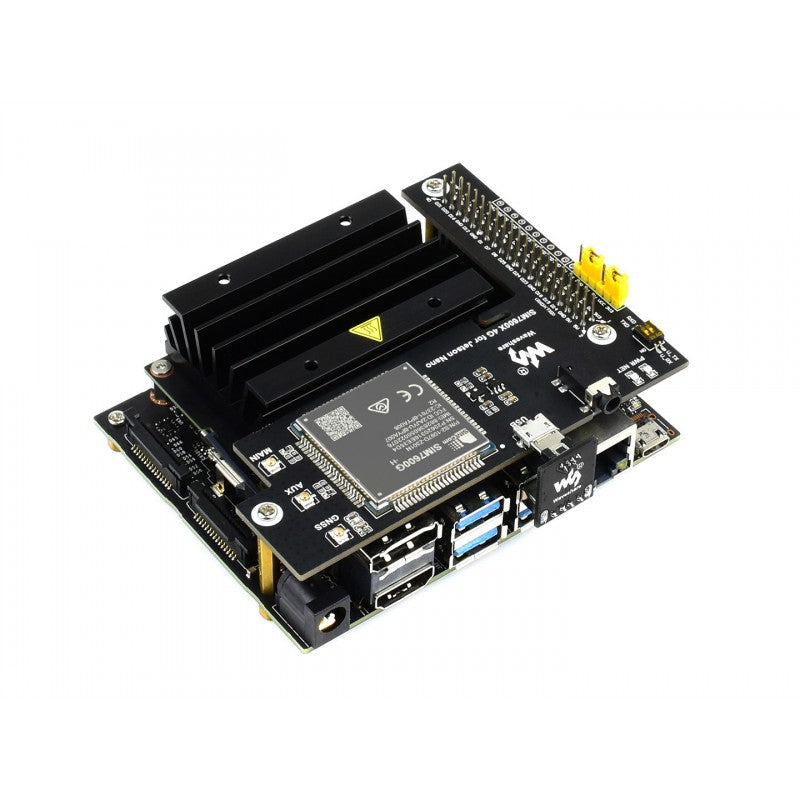

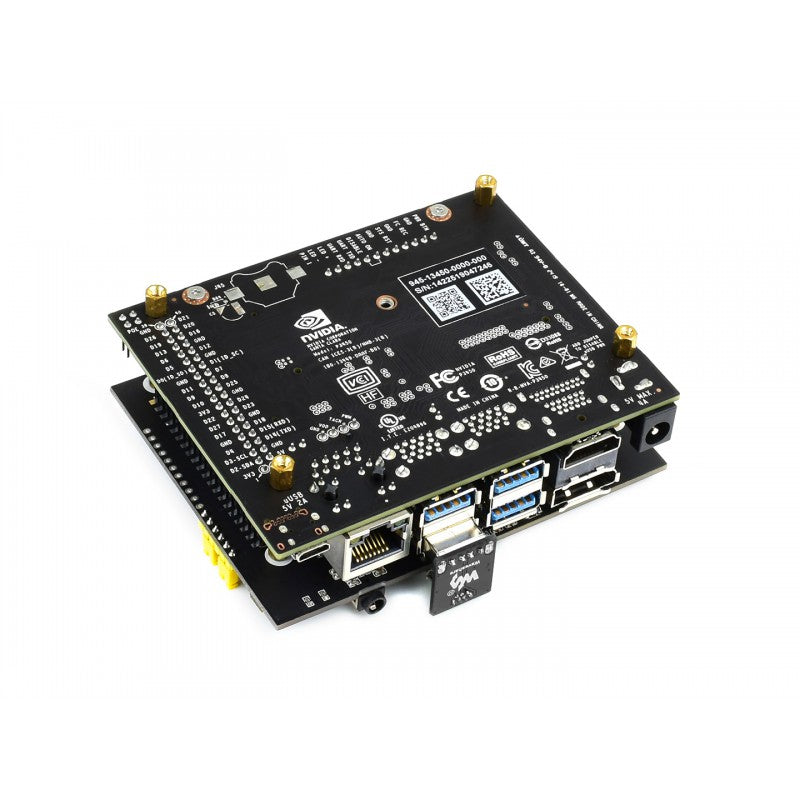

4G/3G/2G/GNSS Expansion Board For Jetson Nano, Based On SIM7600G-H, Global

This is a 4G/3G/2G communication and GNSS positioning module designed for Jetson Nano, it supports global LTE CAT4 up to 150Mbps for downlink data transfer, with pretty low power consumption.

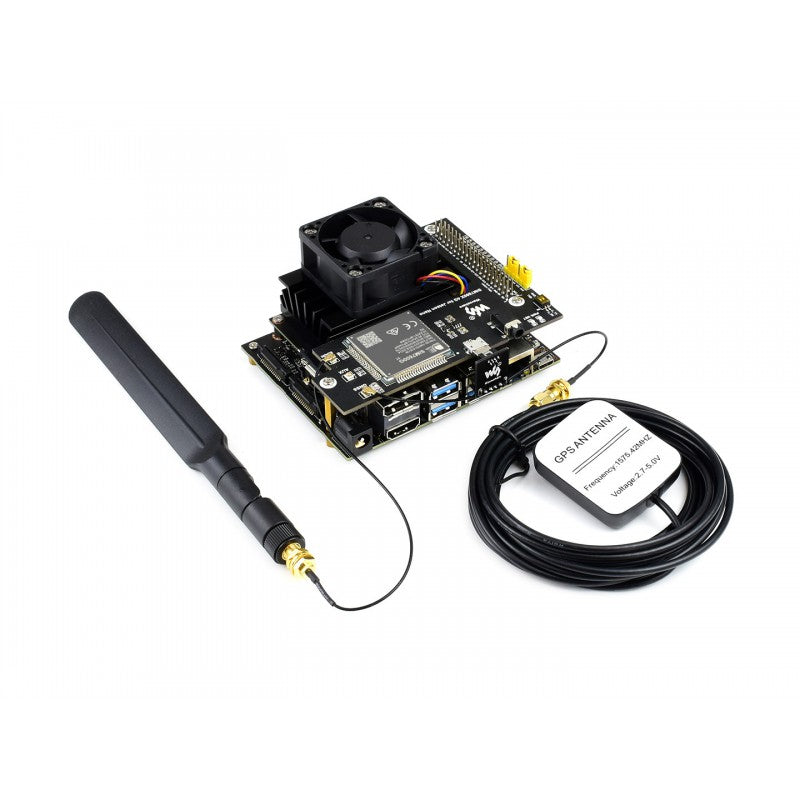

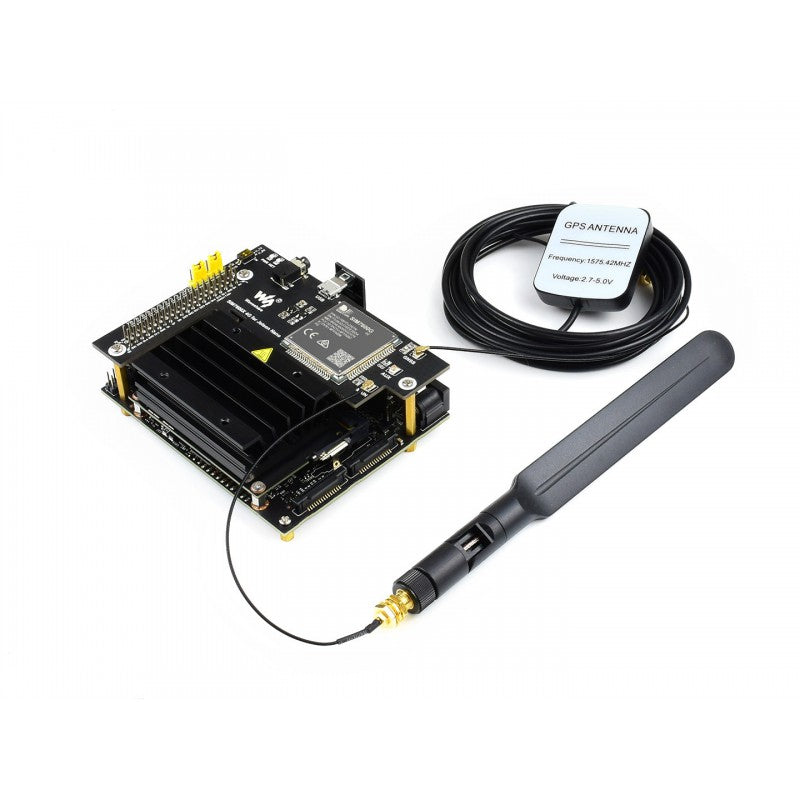

Just attach it onto the Jetson Nano Developer Kit, easily enable functions like 4G high speed connection, wireless communication, remote video monitoring, making telephone call, sending SMS, global positioning, and so on.

Features

  • 40PIN GPIO extension header for connecting Jetson Nano
  • Supports dial-up, telephone call, SMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.
  • Supports GPS, BeiDou, Glonass, LBS base station positioning
  • Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
  • Breakout UART control pins, to connect with host boards like Arduino/STM32
  • SIM card slot, supports 1.8V/3V SIM card
  • Onboard 3.5mm audio jack with earphone and mic support, for making telephone call
  • 2x LED indicators, easy to monitor the working status
  • Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
  • Baudrate: 300bps ~ 4Mbps (default: 115200bps)
  • Autobauding baudrate: 9600bps ~ 115200bps
  • Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
  • Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
  • Comes with development resources and manual (examples for Jetson Nano/Raspberry Pi/Arduino/STM32)

Communications Specifications

  LTE WCDMA / TD-SCDMA / CDMA 2000     EDGE GSM/GPRS
Band LTE-TDD B34/B38/B39/B40/B41
LTE-FDD B1/B2/B3/B4/B5/B7/B8
/B12/B13/B18/B19/B20/B25/B26/B28/B66
UMTS/HSDPA/HSPA+ B1/B2/B4/B5/B6/B8/B19 GSM/GPRS/EDGE 850/900/1800/1900MH
Emitting power 0.25W 0.5W@EGSM900
0.4W@DCS1800
2W@GSM900
1W@DCS1800
Data Speed LTE CAT 4
Uplink≤50 Mbps
Downlink≤150 Mbps
UMTS
Uplink≤384Kbps
Downlink≤384Kbps

HSPA+
Uplink≤5.76Mbps
Downlink≤42Mbps
TD-SCDMA
Uplink≤128Kbps
Downlink≤384Kbps

TD-HSDPA/HSUPA
Uplink≤2.2Mbps
Downlink≤2.8Mbps
CDMA2000/EVDO
Uplink≤1.8Mbps
Downlink≤3.1Mbps
EDGE
Uplink≤236.8kbps
Downlink≤236.8kbps
GPRS
Uplink≤85.6kbps
Downlink≤85.6kbps
SIM Card Normal SIM (Not Included)
Applicable Region Global 4G/3G/2G


GNSS Specifications

  • Receiver type
    • 16-channel
    • C/A code
  • Sensitivity
    • Tracking: -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BD)
    • Cold starts: -148 dBm
  • Time-To-First-Fix (open air)
    • Cold starts: <35s
    • Hot starts: <1s
  • Accuracy
    • Position: <2.5m CEP

SMS and Audio Specifications

  • SMS
    • Supported types: MT, MO, CB, Text, PDU
    • Storage: USIM card and ME (default)
  • Audio feature
    • Supports echo cancellation
    • Supports noise reduction

Other Specifications

  • Power supply: 5V
  • Operating voltage: 5V/3.3V (configured via jumper)
  • Operating temperature: -30°C ~ 80°C
  • Storage temperature: -45°C ~ 90°C

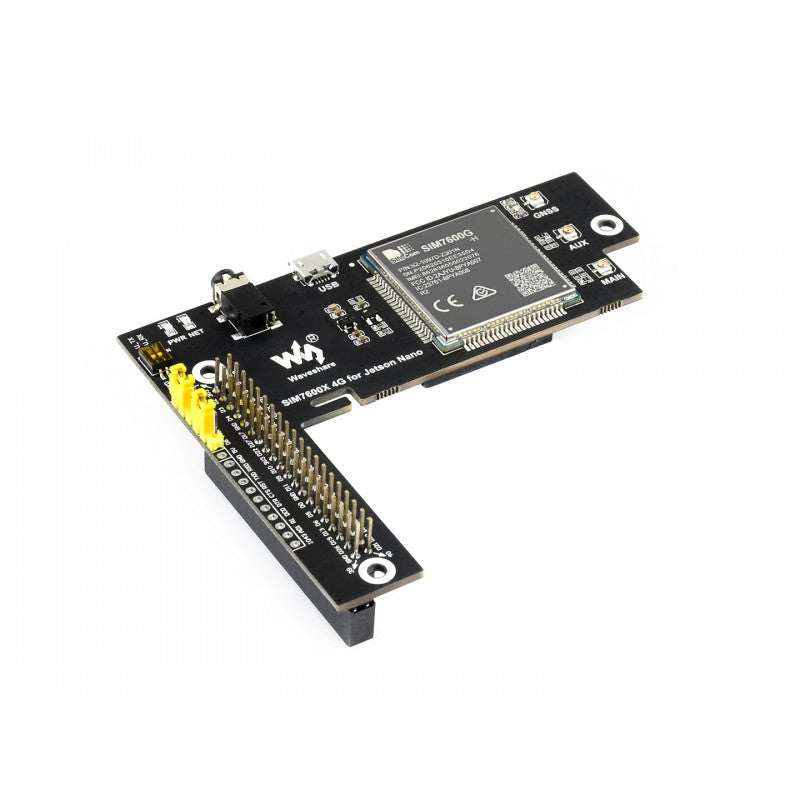

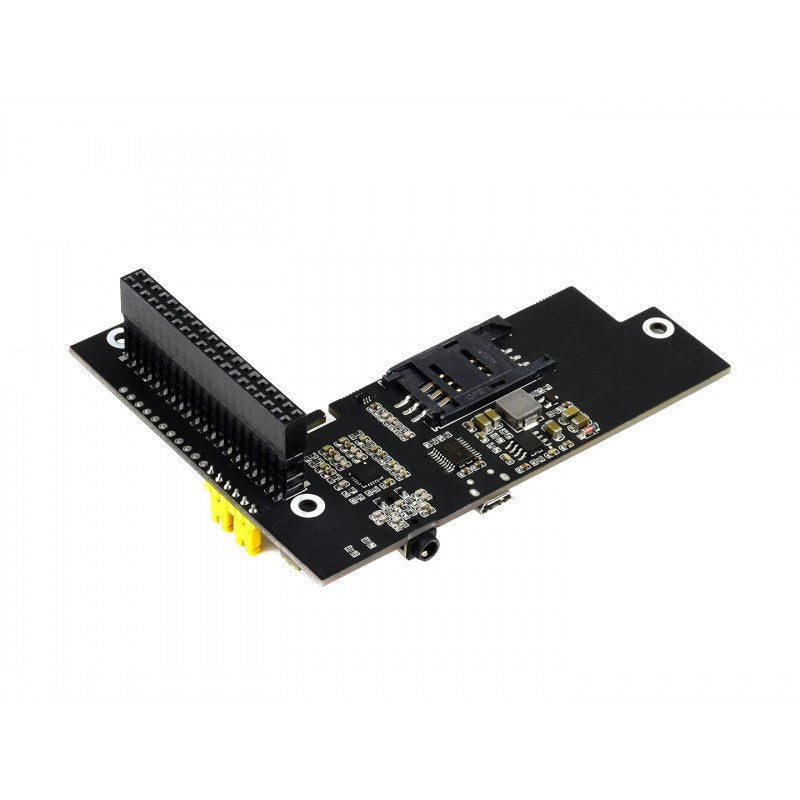

What's on Board

  1. SIM7600G-H
  2. NAU8810 audio decoder
  3. TXS0108EPWR voltage translator: translates 3.3V/5V into 1.8V
  4. MP1482 power chip
  5. RT9193-33 voltage translator: translates 5V into 3.3V
  6. 40PIN GPIO header: for connecting with Jetson Nano Developer Kit
  7. SIM card slot: supports 1.8V/3V SIM card
  8. USB interface: for testing AT Commands, getting GPS positioning data, etc.
  9. 3.5mm earphone/mic jack
  10. MAIN antenna connector
  11. AUX antenna connector
  12. GNSS antenna connector
  13. Network status indicator
  14. Power indicator
  15. UART enable switch:
    ON: connect UART ports of SIM7600 and Jetson Nano
    OFF: disconnect UART ports of SIM7600 and Jetson Nano
  16. Operating voltage selection jumper:
    VCC - 3.3V: set operating voltage as 3.3V
    VCC - 5V: set operating voltage as 5V
  17. PWR control config:
    PWR - 5V: SIM7600 auto startup on power up
    PWR - D6: SIM7600 will be turned on/off by D6 pin of Jetson Nano

Dimensions

Resources

Wiki : SIM7600G-H_4G_for_Jetson_Nano

Note: Jetson Nano is NOT included.

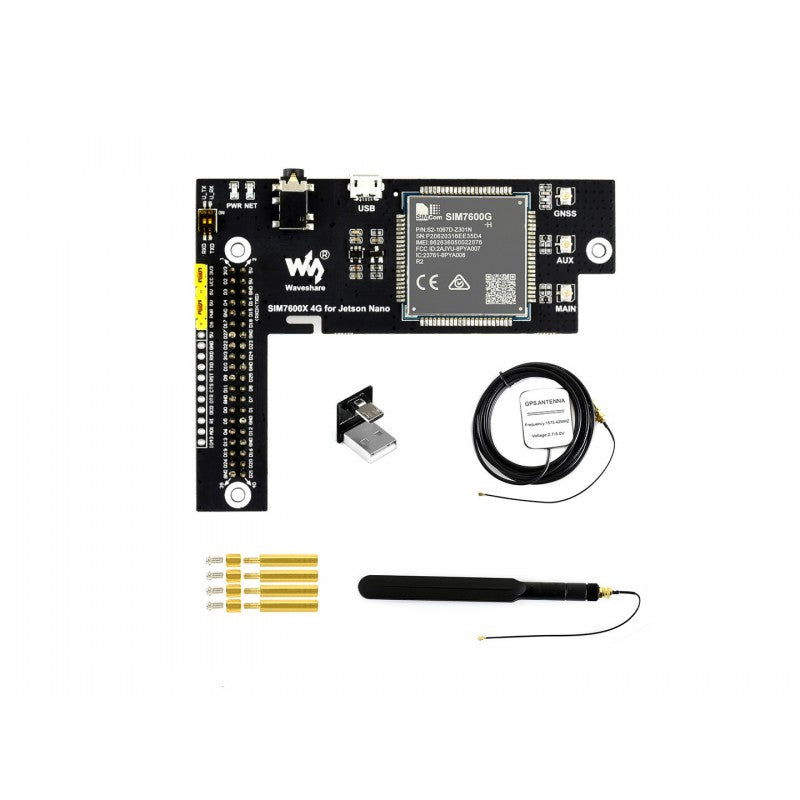

Package Contains:
