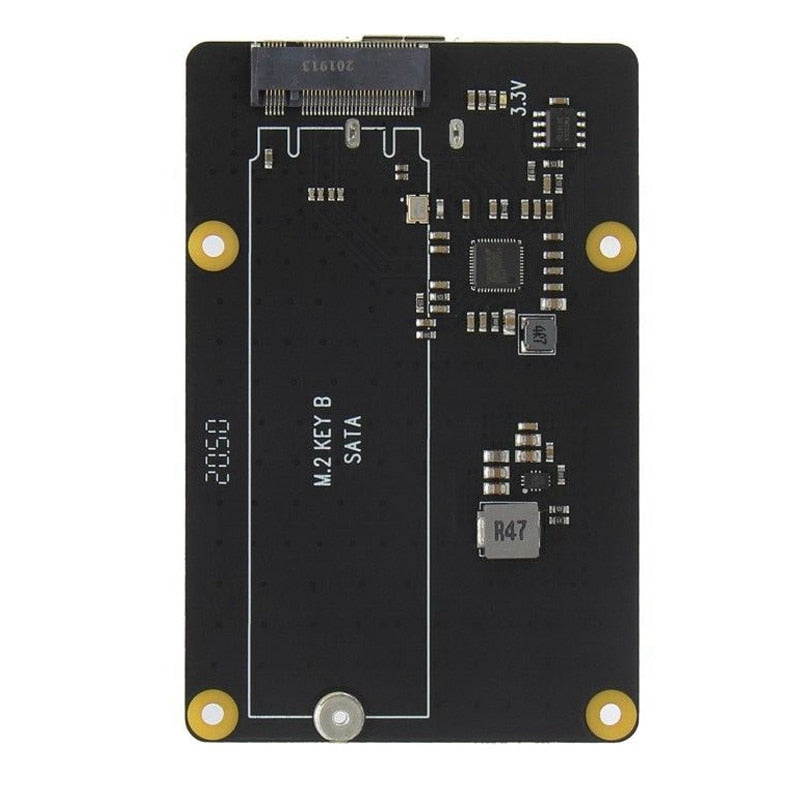

X862 V1.0 M.2 NGFF SATA SSD Storage Expansion Board for Raspberry Pi

X862 is an extended version of M.2 NGFF SATA SSD for Raspberry Pi 4 B, which provides a complete storage solution. It supports a variety of M.2 NGFF SSD lengths, including: 2280, 2260, 2242, 2230 perfect storage solution only for Raspberry Pi 4-M.2 NVMe SSD Shield.

Supports up to 2TB M.2 NVMe SSD solid state drive

Allows you to boot the operating system from HDD/SSD to open applications faster, perform network services and copy large files. USB3.1 Gen1 5Gb/s connection can provide plug and play function on Raspberry Pi 4

Super fast data transfer from PC or Mac (USB3.1 Gen2 10Gb/s, Gen1 5Gb/s, USB2.0 480Mb/s). Integrated USB 3.1 Gen2 to PCIe Gen3x2 10Gb/s bridge controller

• Integrated high-efficiency step-down converter, maximum 3.3V, maximum 3.5A, can supply power to SSD
• External self-powered or USB bus powered
• Onboard DC 55x25 jack and XH2.54 connector for additional SSD power supply
• The red indicator LED indicates the power status, and the blue indicator indicates the drive status
• A special USB3.1 jumper can be connected to Raspberry Pi-no wiring required!
• Compatible with X735, provide intelligent power management and cooling function
• Compatible with X710, provide wide input voltage (6-36V) and intelligent power management function
• Compatible with X765, provide POE and wide voltage power supply function (POE, 5V 5A)
• Compatible with X725, provide intelligent power management, remote power on/wake up, safe shutdown function (18650 UPS, 5.1V 8A, WOL)
• Compatible with X728, provide uninterrupted power supply (18650 UPS, 5.1V 8A, intelligent power management)

Power supply: 5Vdc +/- 5%, powered by Raspberry Pi via USB port. Provide 5Vdc via DC power jack or XH2.5 connector for additional power supply for SSD

Ports and Features:

• USB socket-USB 3.0 Type A x1
• Power input jack 5.5 x 2.5mm x1
• XH2.54 SSD power input connector x1
• 67-pin M.2 connector P = 0.5mm, H3.2mm, key B x1
• Colour: black
• Material: PCB+metal
• Size: 9.5 x 6.7 x 0.6cm

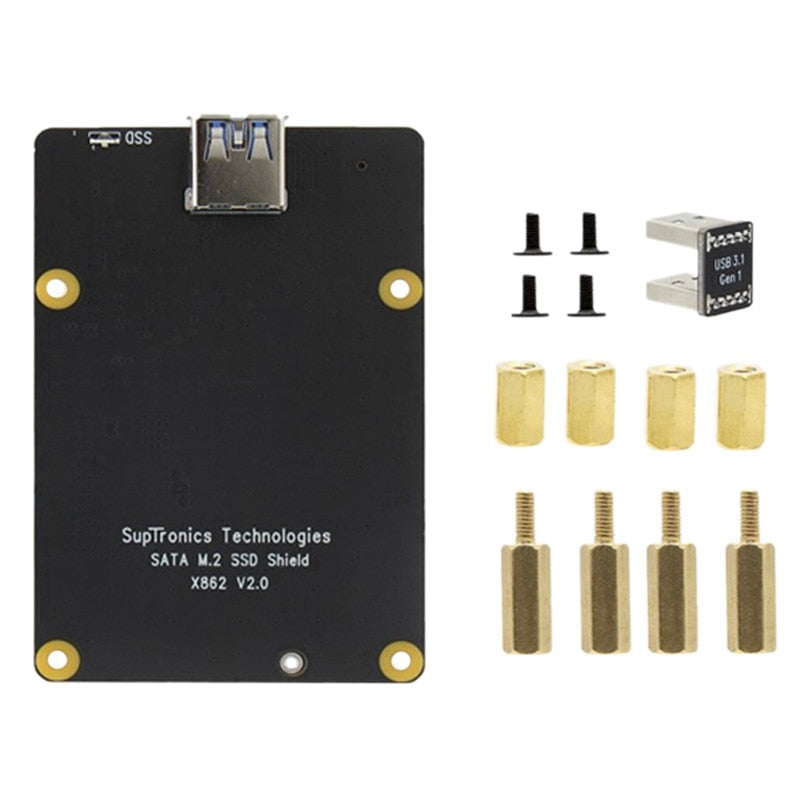

Package Contents:

• 1x expansion board
• 1x pack of accessories
