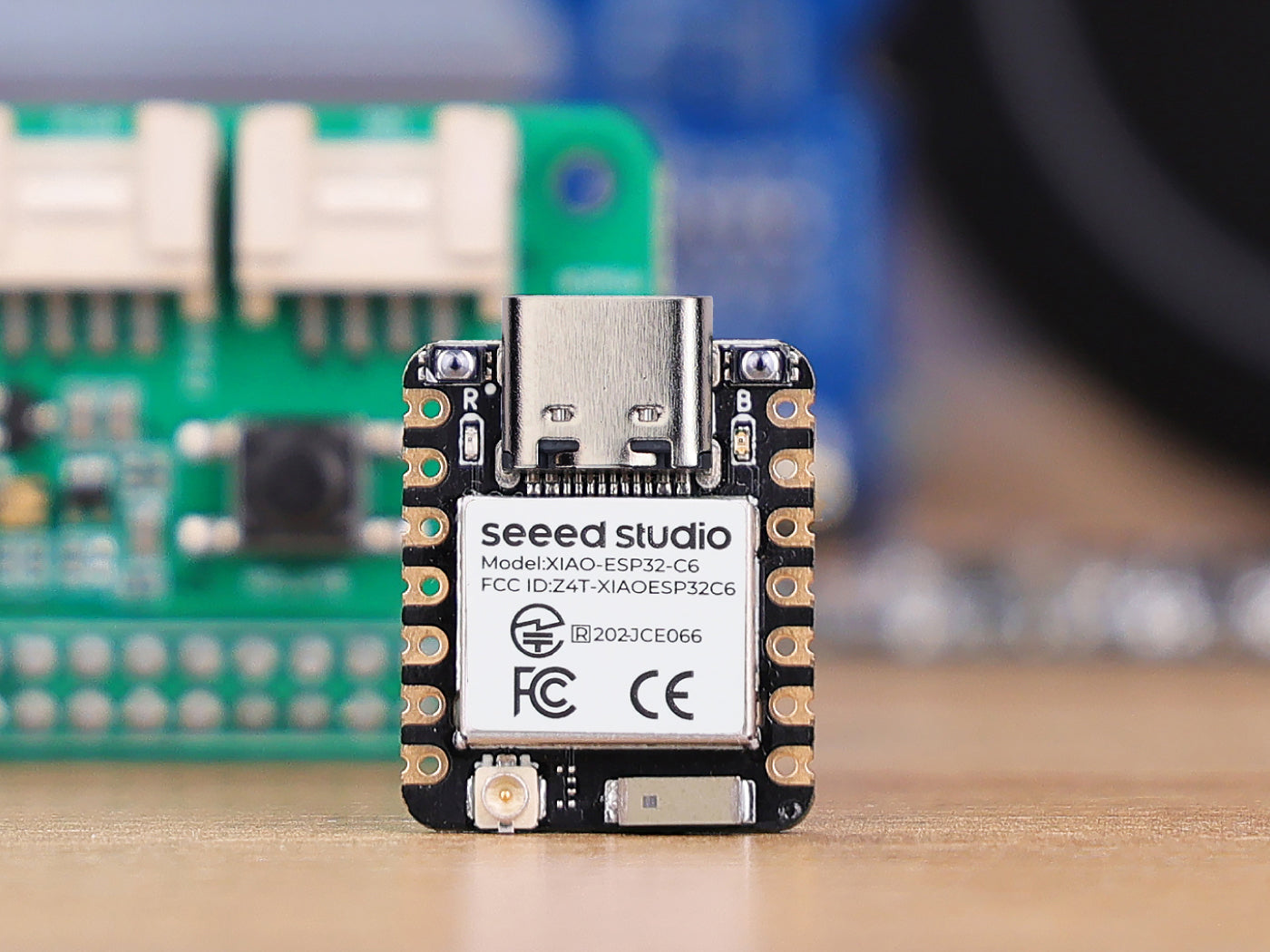

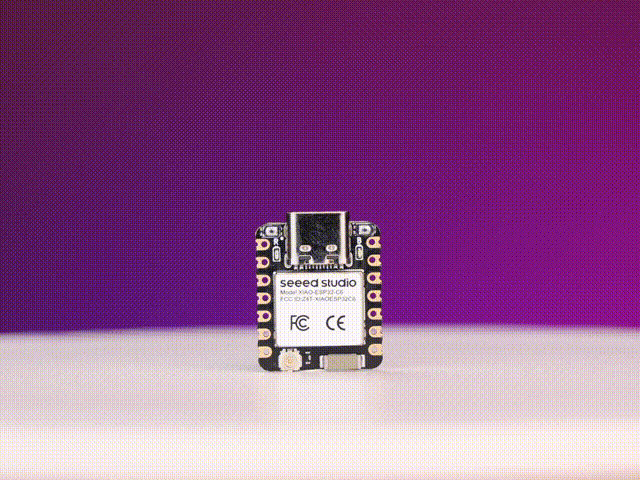

XIAO ESP32C6 is a cost-effective MCU based on Espressif’s ESP32-C6. This compact MCU excels in Matter-compliant smart home applications with its support for various wireless connectivity (2.4GHz Wi-Fi 6, BLE 5.0, Zigbee, and Thread). Designed with the thumb-size footprint and a single-sided mount of the XIAO Series, it's perfect for space-limited projects. Encrypted on the chip, the XIAO ESP32C6 ensures a desired level of security streamlined development experience, and swift market entry by integrating easily with major IoT Cloud platforms.
- Enhanced Connectivity: Combines 2.4GHz Wi-Fi 6 (802.11ax), Bluetooth 5(LE), and IEEE 802.15.4 radio connectivity, allowing you to apply the Thread and Zigbee protocols.

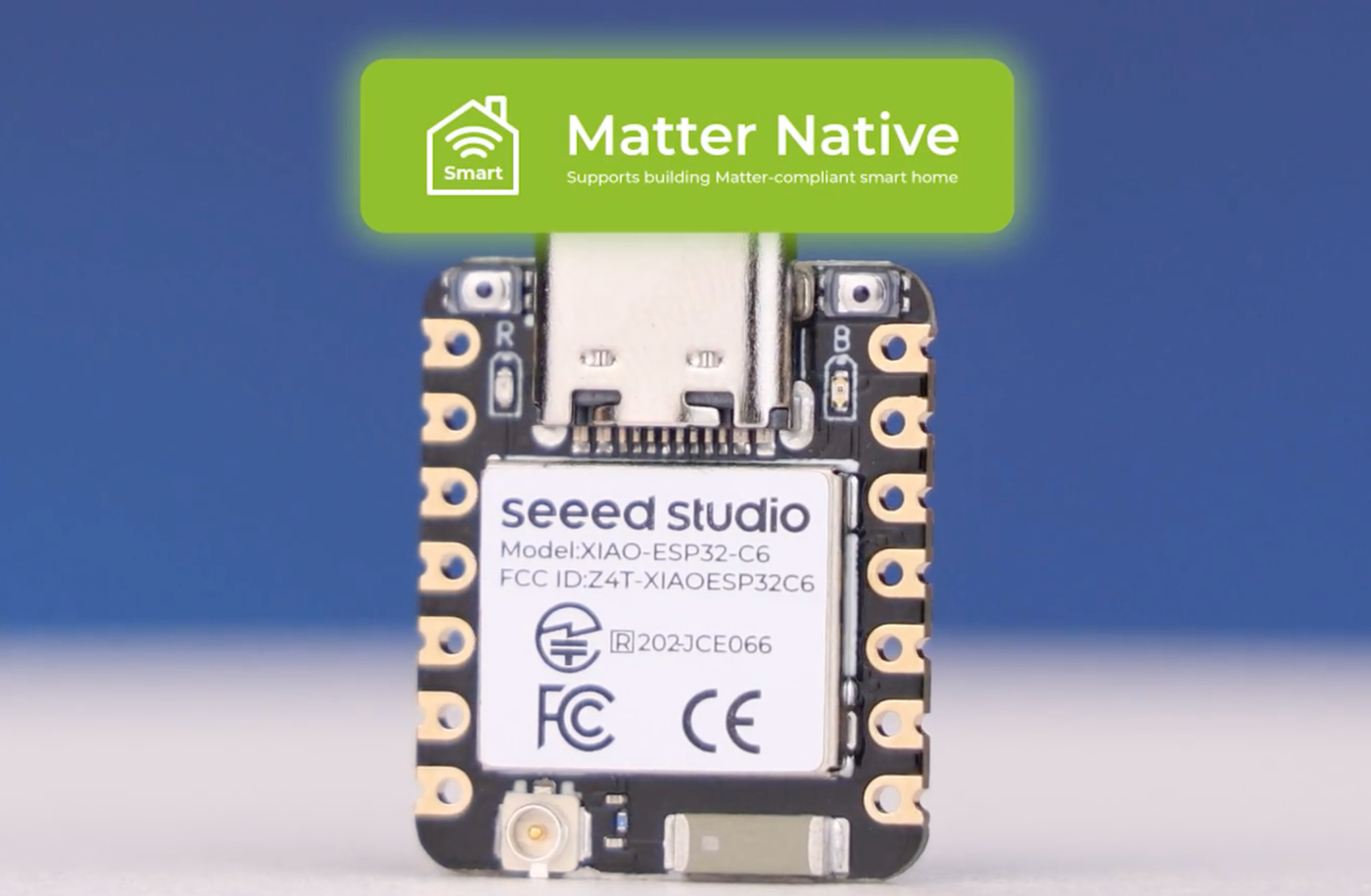

- Matter Native: Supports building Matter-compliant smart home projects thanks to its enhanced connectivity, achieving interoperability
- Security Encrypted on Chip: Powered by ESP32-C6, it brings enhanced encrypted-on-chip security to your smart home projects via secure boot, encryption, and Trusted Execution Environment (TEE)
- Outstanding RF performance: Has an on-board antenna with up to 80m BLE/Wi-Fi range, while reserving an interface for external UFL antenna
- Leveraging Power Consumption: Comes with 4 working modes, with the lowest being 15 μA in deep sleep mode, while also supporting lithium battery charge management.
- Dual RISC-V Processors: Incorporates two 32-bit RISC-V processors, with the high-performance processor running up to 160 MHz, and the low-power processor clocking up to 20 MHz

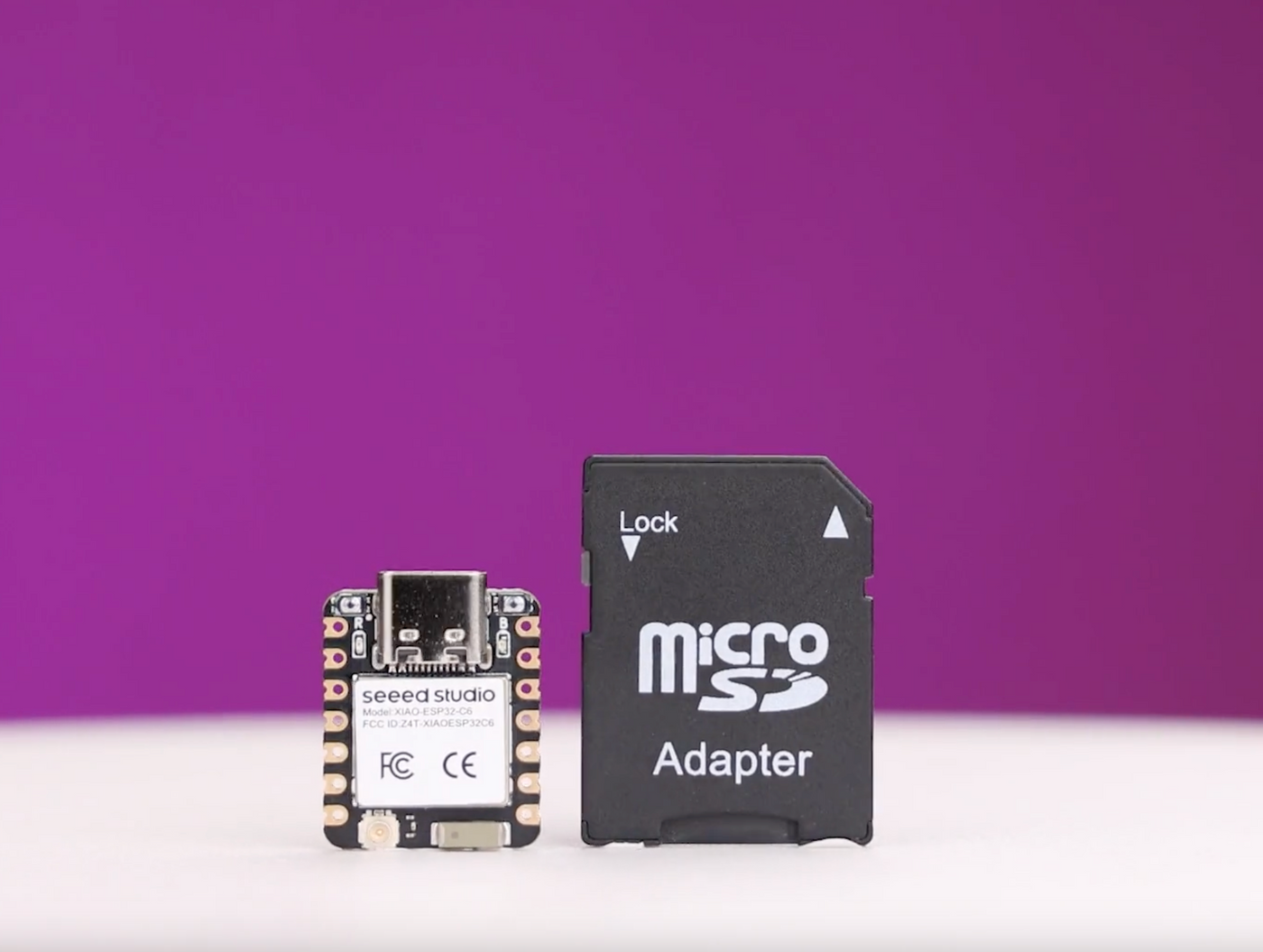

- Classic XIAO Designs: Remains the classic XIAO designs of the thumb-size form factor of 21 x 17.8mm, and single-sided mount, making it perfect for space-limited projects such as wearables
- Seamless integration with mainstream Cloud Platforms: ESP Rain Maker, AWS IoT, Microsoft Azure, and Google Cloud
Note: XIAO SoM User Manual open-sources all hardware and software materials of XIAO, providing professional product design guidelines to help you accelerate ideas off the ground, streamline product design, providing a seamless experience from module selection to mass production. You can check here to see more info.
Specification
|
Product |
XIAO ESP32C6 |
XIAO ESP32C3 |
XIAO ESP32S3 |
|
Processor |
Espressif ESP32-C6 SoC |
Espressif ESP32-C3 SoC |
Espressif ESP32-S3R8 |
|
two 32-bit RISC-V processors, with the high-performance one running up to 160 MHz, and the low-power one clocking up to 20 MHz |
RISC-V single-core 32-bit chip processor with a four-stage pipeline that operates at up to 160 MHz |
Xtensa LX7 dual-core, 32-bit processor running up to 240 MHz
|
|
|
Wireless |
Complete 2.4GHz Wi-Fi 6subsystem |
Complete 2.4GHz Wi-Fi subsystem |
Complete 2.4GHz Wi-Fi subsystem |
|
BLE: Bluetooth 5.0, Bluetooth mesh |
|||
|
Zigbee,Thread,IEEE 802.15.4 |
/ |
/ |
|
|
On-chip Memory |
512KB SRAM & 4MB Flash |
400KB SRAM & 4MB Flash |
8M PSRAM & 8MB Flash |
|
Interface |
1x UART,1x LP_UART, 1x IIC, 1x LP_IIC, 1x SPI,11x GPIO(PWM), 7x ADC, 1xSDIO |
1x UART, 1x IIC, 1x SPI,11x GPIO(PWM), 4x ADC |
1x UART, 1x IIC, 1x IIS, 1x SPI,11x GPIO(PWM), 9x ADC, 1x User LED, 1x Charge LED |
|
1x Reset button, 1x Boot button |
|||
|
Dimensions |

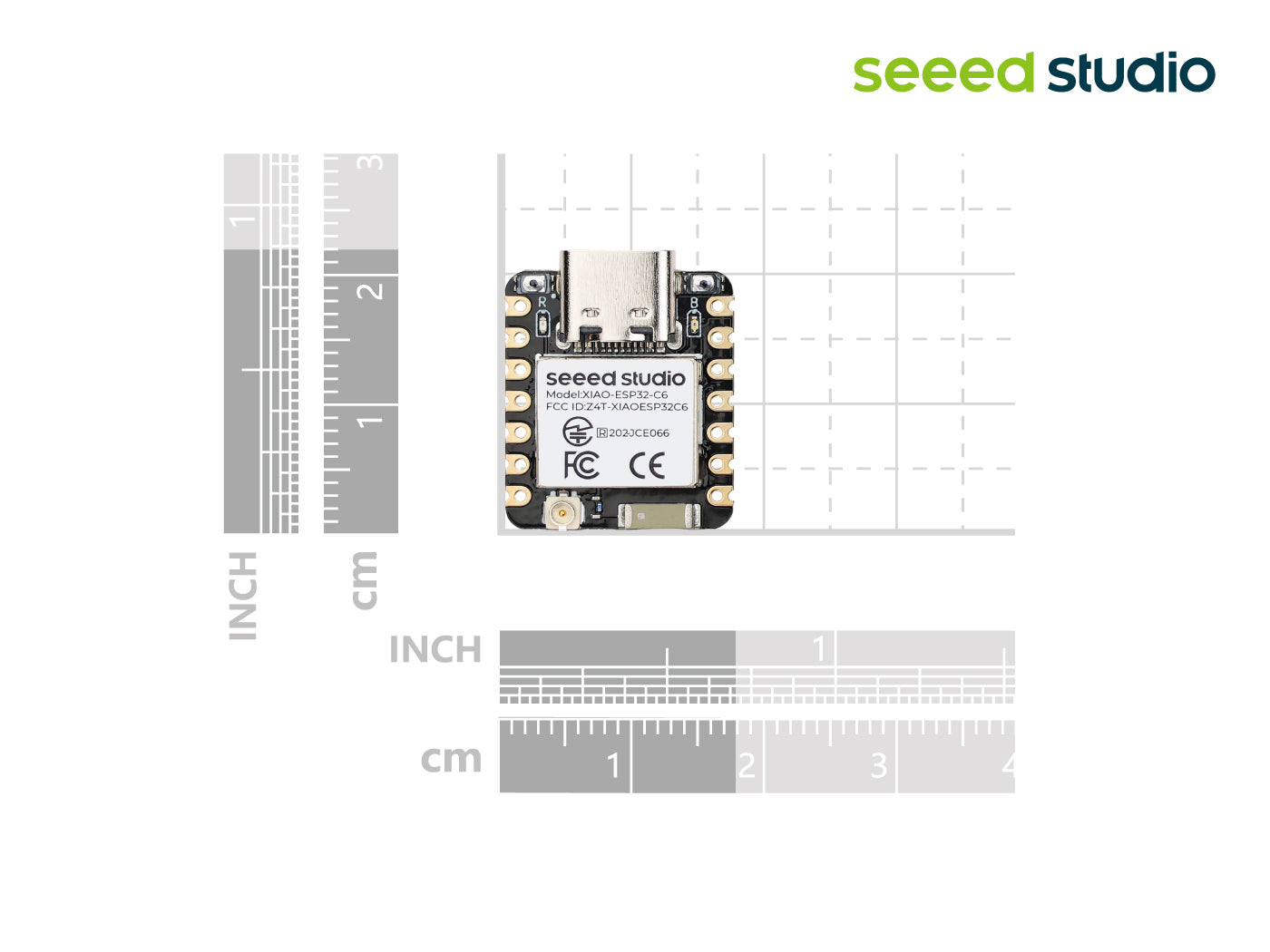

21 x 17.8mm |
||
|
Power |
Input voltage (Type-C): 5V Input voltage (BAT): 4.2V |
||
|
Circuit operating Voltage (ready to operate): - USB:5V@9mA - BAT:3.8V@9mA |
|||
|
Charging battery current: 100mA |
|||
|
Power Consumption Model (Supply Power: 3.8V) |
Modem-sleep Model: ~ 30 mA Light-sleep Model: ~ 2.5 mA Deep Sleep Model: ~ 15 μA |
Modem-sleep Model: ~ 24 mA Light-sleep Model: ~ 3 mA Deep Sleep Model: ~ 44 μA |
Modem-sleep Model: ~ 25 mA Light-sleep Model: ~ 2 mA Deep Sleep Model: ~ 14 μA |
|
Working Temperature |
-40°C ~ 85°C |
-40°C ~ 85°C |
-40°C ~ 65°C |

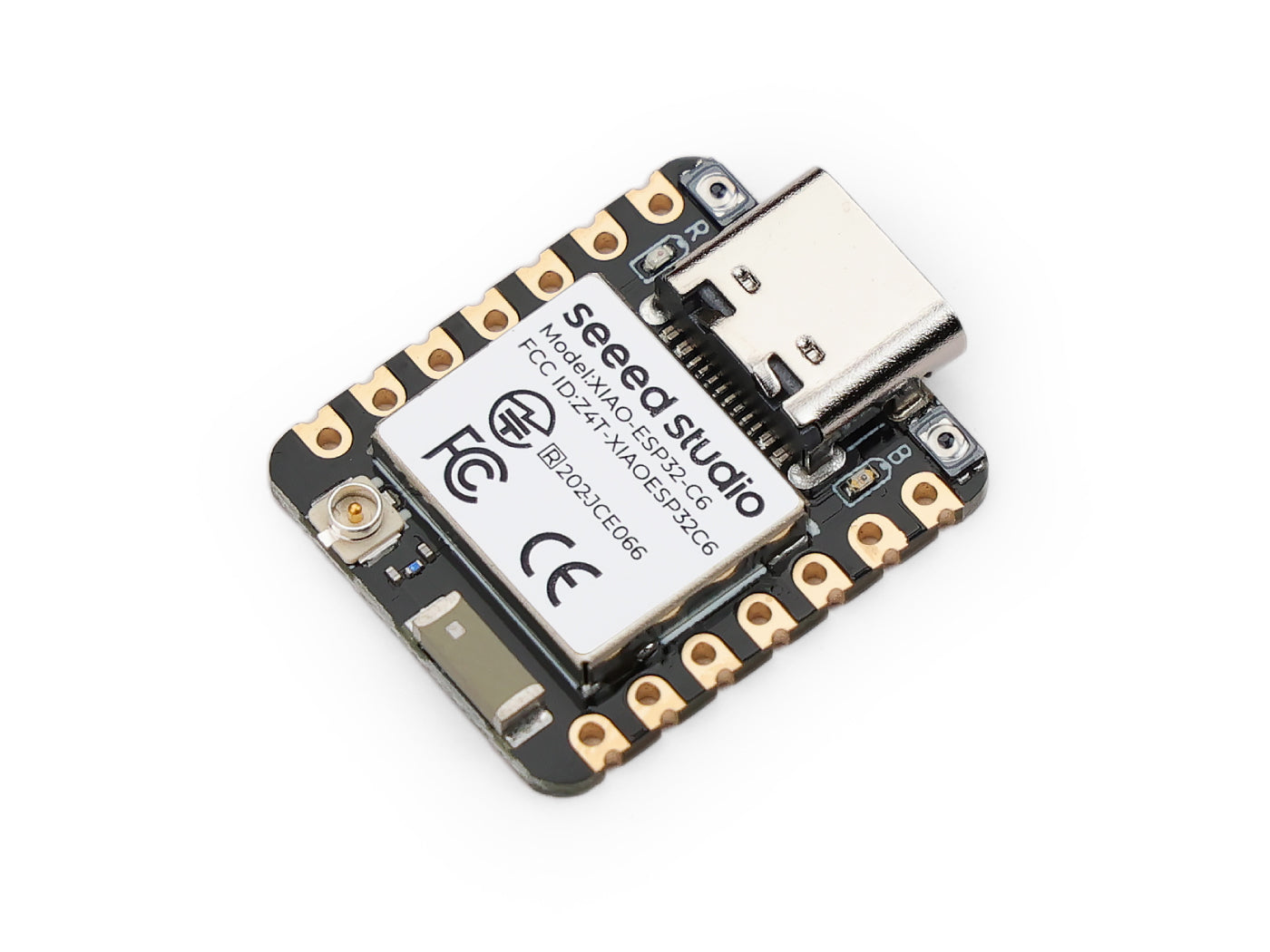

Hardware Overview
Onboard

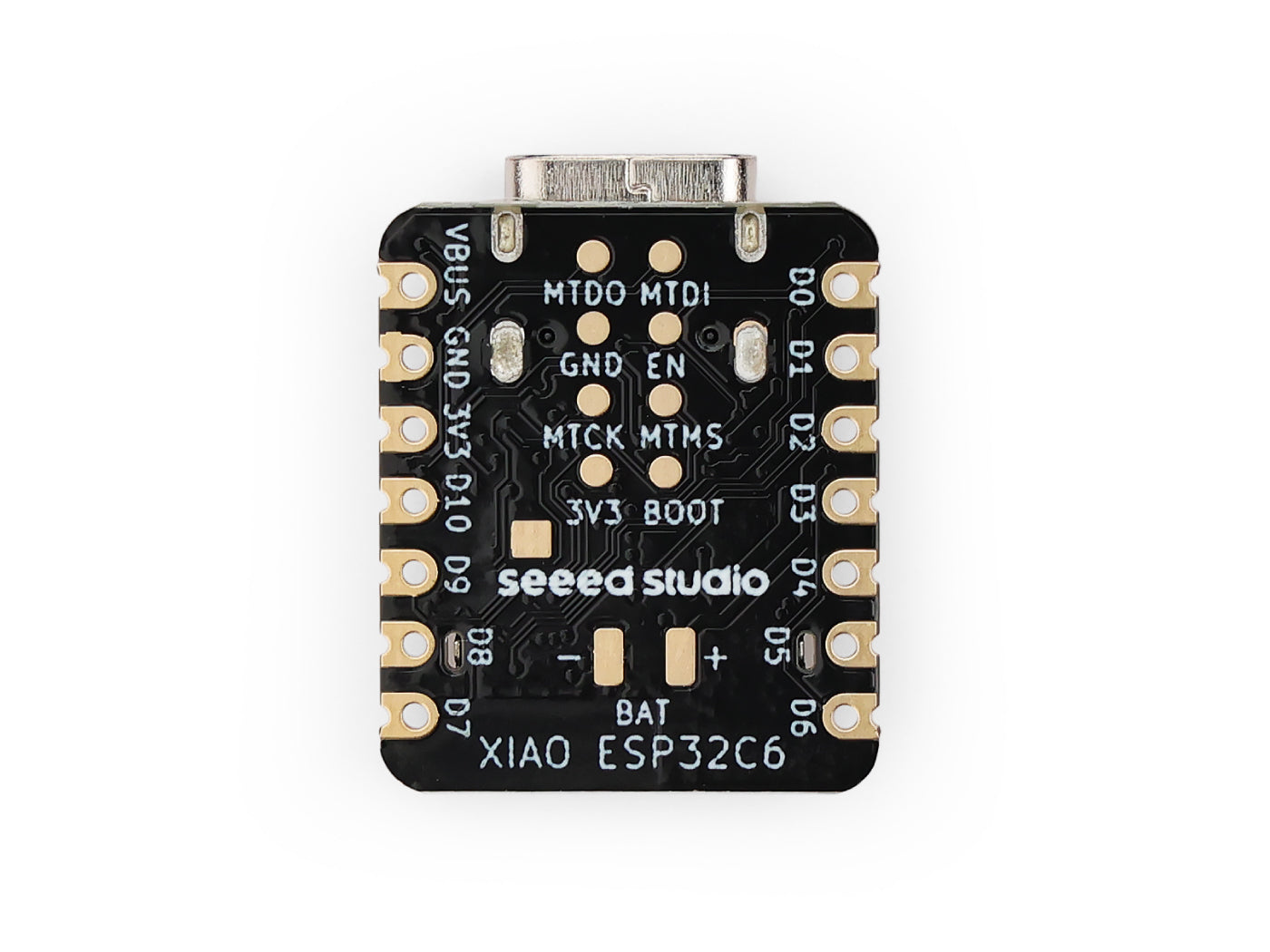

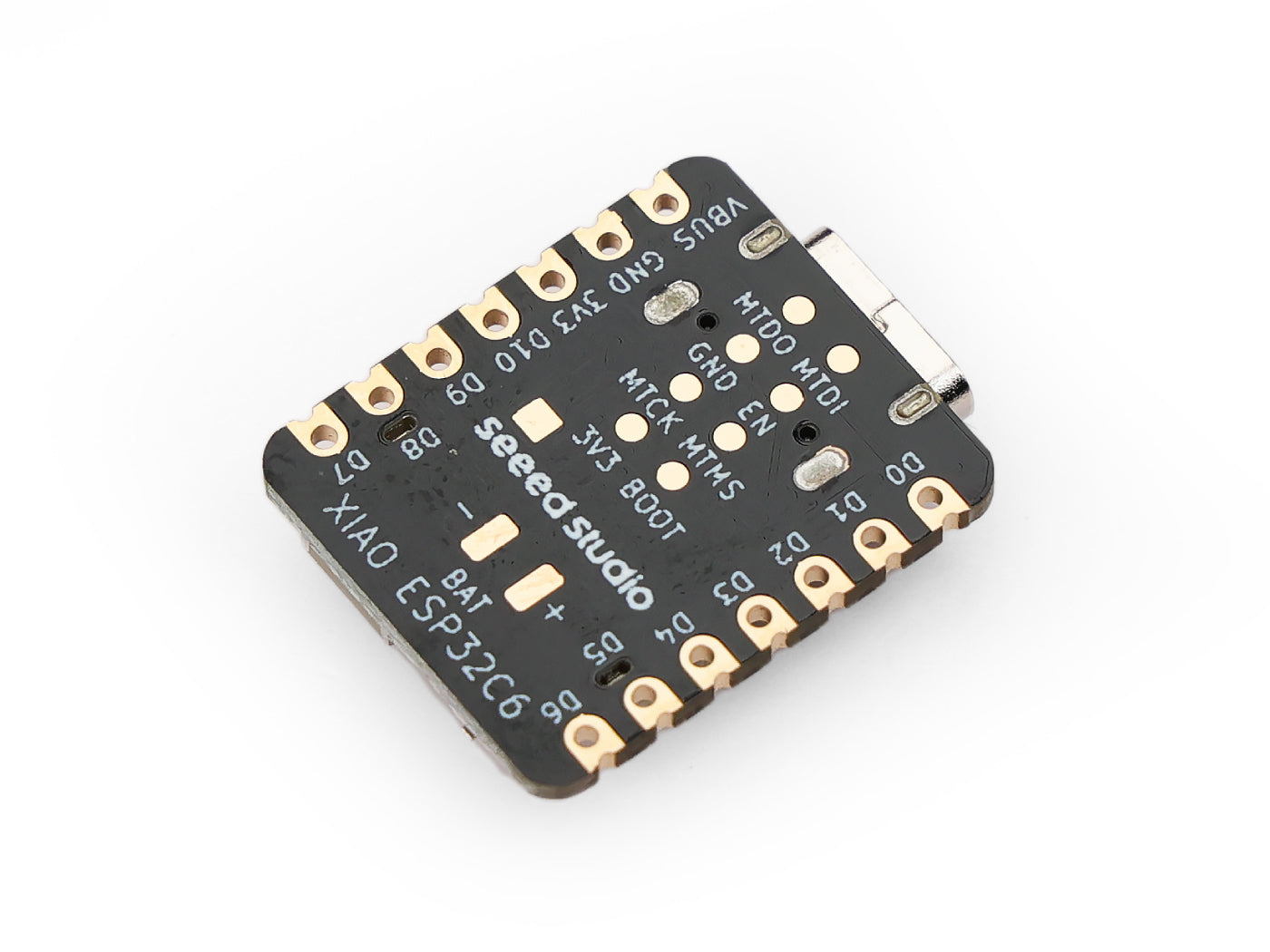

PinOut
Application
Secure and Connected Smart Home, enhancing everyday life through automation, remote control, and more
Space-limited and Battery-Powered Wearables, thanks to their thumb-size and low-power consumption
Wireless IoT Scenarios, enabling rapid, reliable data transmission
