Our strong series compatible board has added a new member, the MEGA 2560 strong, a modification for Arduino mega 2560. They all use DuPont terminals to connect and extract I / O and energy. It is very convenient to use the DuPont cable to connect to the application module. Do your favorite job faster.
Arduino is an open-source physical computing platform based on a simple I / O board and a development environment that implements the processing/wiring language. For Arduino, it can be used to develop independent interactive objects, or they can be connected to the software of your computer (for example, Flash, processing, MaxMSP). The open-source IDE can be downloaded for free (currently for Mac OS X, Windows, and Linux).

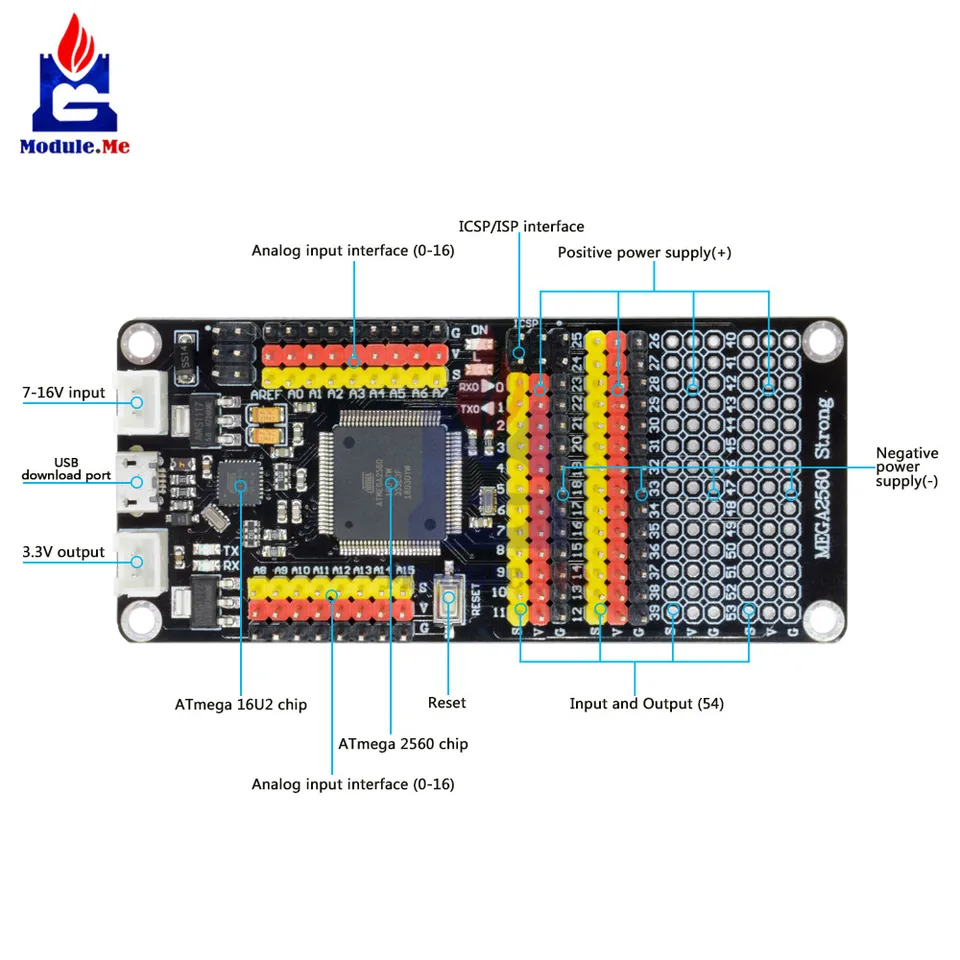

The Mega 2560 strong is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (serial hardware ports), a 16 MHz crystal resonator, a USB connection, a header power, an ICSP header, and a reset button. It contains everything necessary to support the microcontroller; connect it to a computer with a USB cable or feed it with an AC to DC adapter or battery. The Mega 2560 strong is based on Arduino mega 2560 and is fully compatible with Arduino.
Compatible with the Arduino line of products. Trademark registrations throughout the world for ARDUINO or Arduino® are owned by: Arduino AG and Arduino SA.
