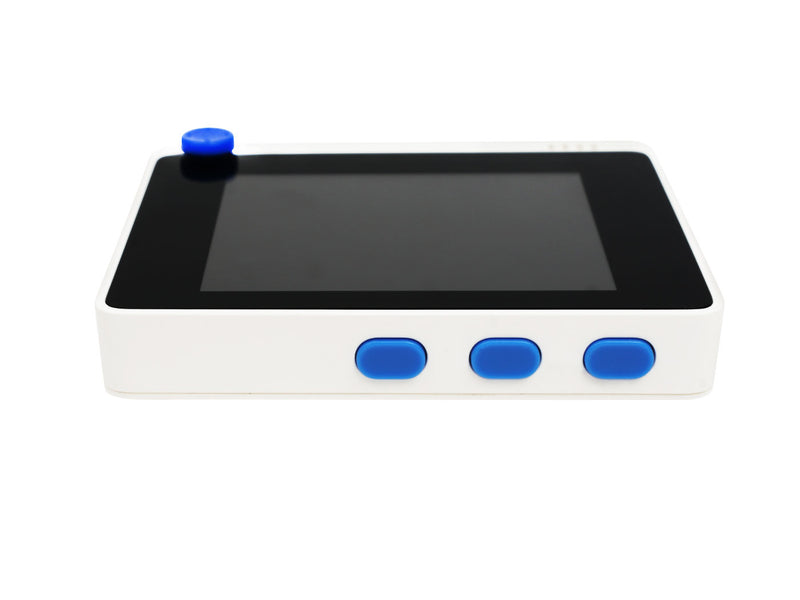

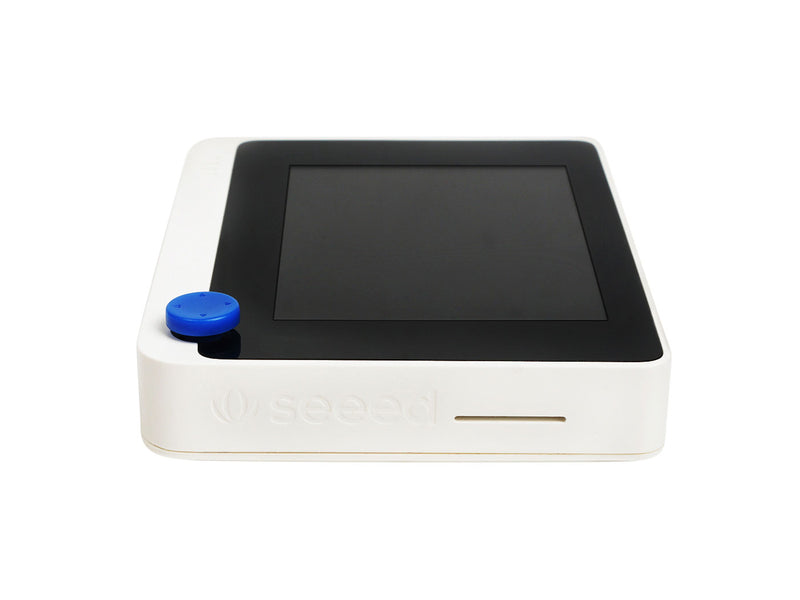

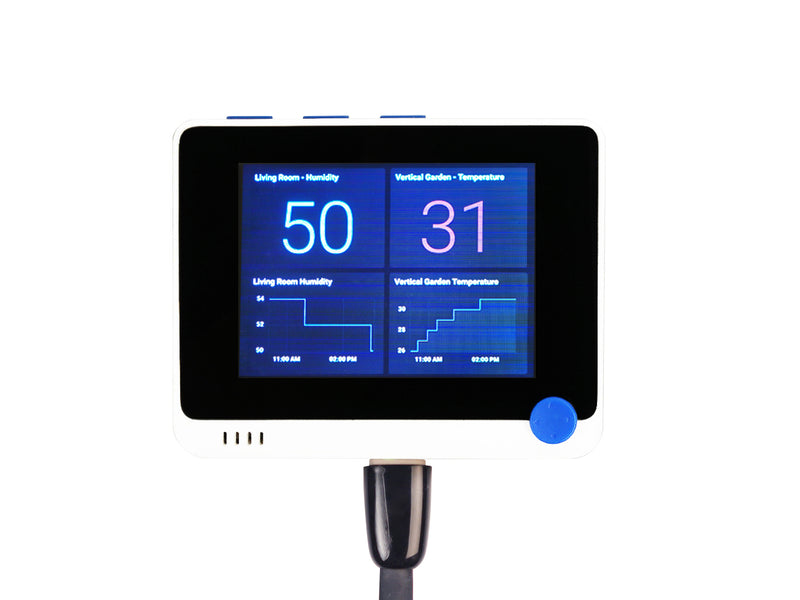

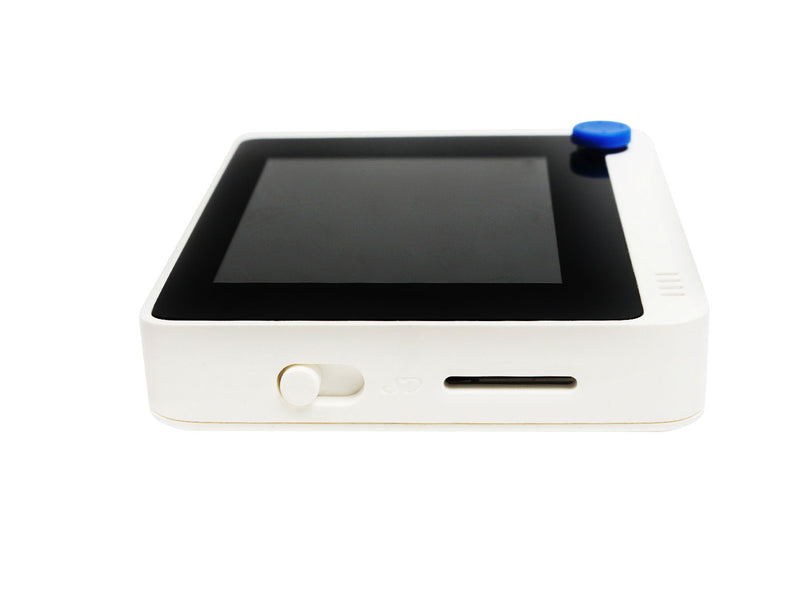

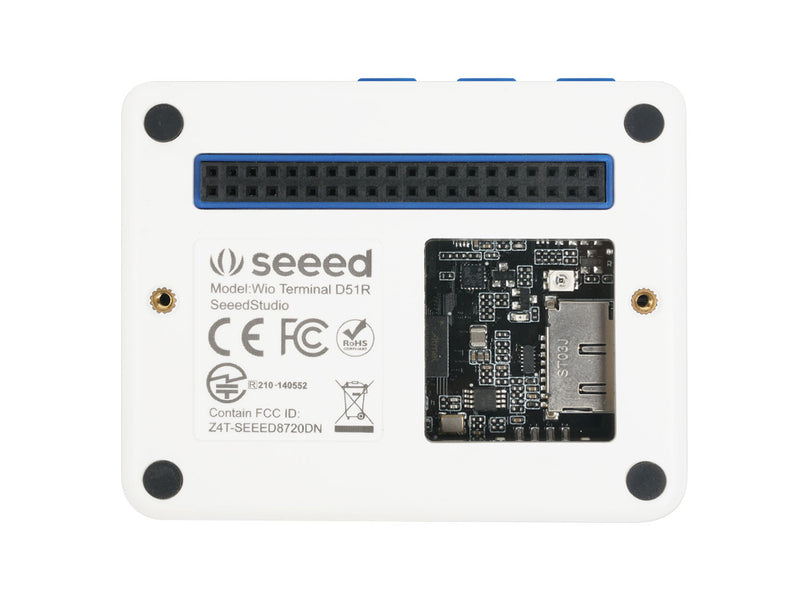

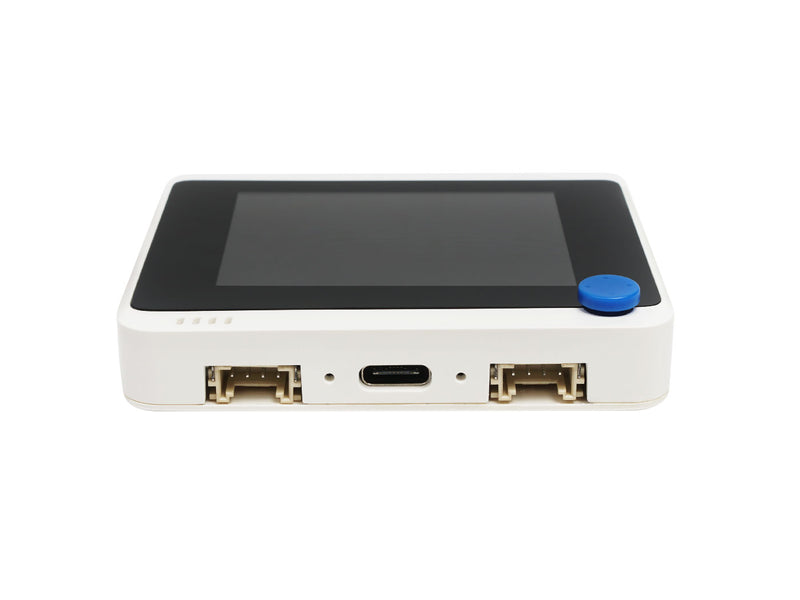

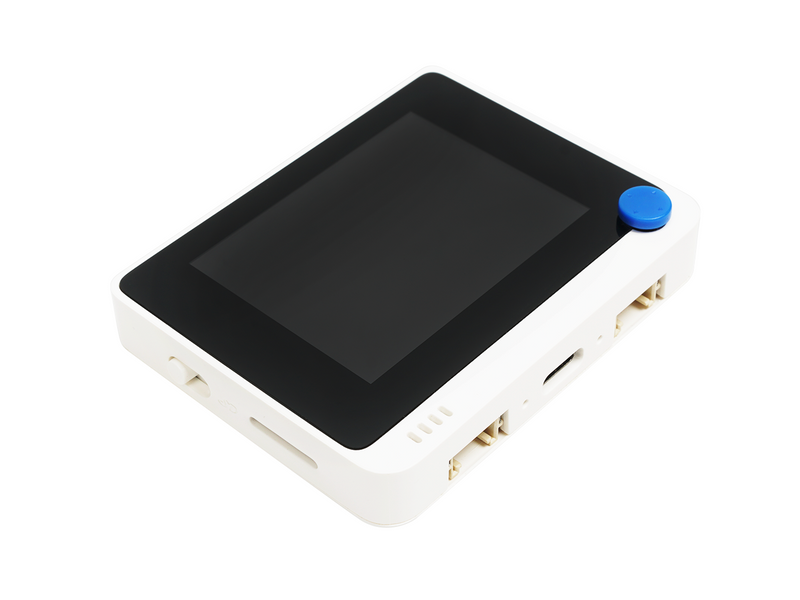

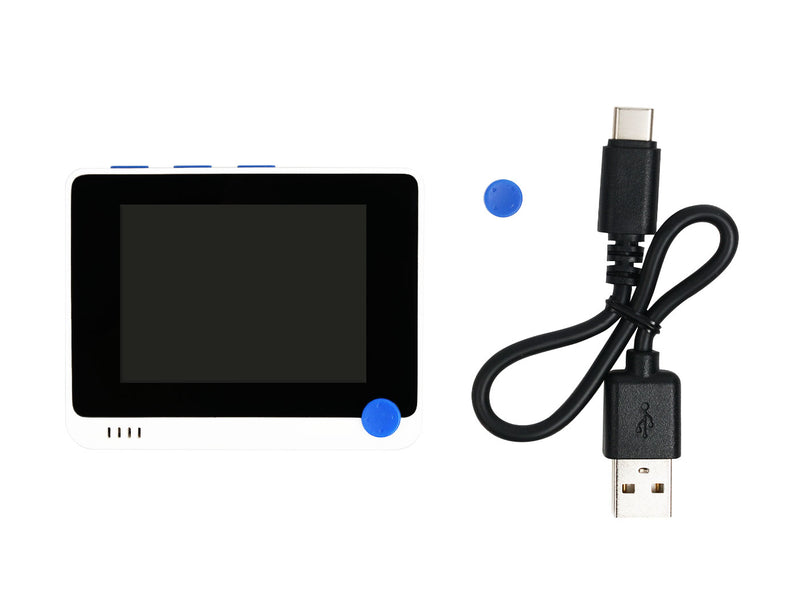

Name: Wio Terminal: ATSAMD51 Core with Realtek RTL8720DN BLE 5.0 & Wi-Fi 2.4G/5G Dev Board
Brand: ThinkRobotics.in
SKU: SBC1032
Price: 3929.99 INR
Availability: InStock

{"id":8063957860669,"title":"Wio Terminal: ATSAMD51 Core with Realtek RTL8720DN BLE 5.0 \u0026 Wi-Fi 2.4G\/5G Dev Board","handle":"wio-terminal-atsamd51-core","description":"\u003cp\u003eWio Terminal is an ATSAMD51-based microcontroller with both \u003cb\u003e\u003cstrong style=\"font-style: inherit;\"\u003eBluetooth and Wi-Fi Wireless connectivity\u003c\/strong\u003e\u003c\/b\u003epowered by Realtek RTL8720DN, \u003cb\u003e\u003cstrong style=\"font-style: inherit;\"\u003ecompatible with Arduino and MicroPython\u003c\/strong\u003e\u003c\/b\u003e. Currently, wireless connectivity is only supported by Arduino. More than just a single embedded functional module, Wio Terminal itself is integrated with a 2.4” LCD Screen, onboard IMU(LIS3DHTR), microphone, buzzer, microSD card slot, light sensor, infrared emitter(IR 940nm).On top of that, it also has \u003cb\u003e\u003cstrong style=\"font-style: inherit;\"\u003etwo multifunctional Grove ports\u003c\/strong\u003e\u003c\/b\u003e for Grove Ecosystem and \u003cb\u003e\u003cstrong style=\"font-style: inherit;\"\u003e40 Raspberry pi compatible pin GPIO\u003c\/strong\u003e\u003c\/b\u003e for more add-ons. All of these practical add-ons are carefully housed in a compact enclosure, making it an \u003cb\u003e\u003cstrong style=\"font-style: inherit;\"\u003eefficient and product-ready product\u003c\/strong\u003e\u003c\/b\u003e. Equipped with Raspberry Pi 40-pin GPIO, it can be mounted to a Raspberry Pi as a slave device.\u003c\/p\u003e\n\u003ch2\u003eKey Features\u003c\/h2\u003e\n\u003cul style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cstrong\u003ePowerful MCU\u003c\/strong\u003e: Microchip ATSAMD51P19 with ARM Cortex-M4F core running at 120MHz\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cstrong\u003eReliable Wireless Connectivity\u003c\/strong\u003e: Equipped with Realtek RTL8720DN, dual-band 2.4Ghz \/ 5Ghz Wi-Fi\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eComplete system equipped with Screen + Development Board + Input\/Output Interface + Enclosure\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eHighly Integrated Design: 2.4” LCD Screen, MCU, IMU, WIFI, BT, and more practical add-ons housed in a compact enclosure with built-in magnets \u0026amp; mounting holes allows you to easily set up your IoT project\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eRaspberry Pi 40-pin Compatible GPIO enables installation as a peripheral to the Raspberry Pi\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eExternal onboard multi-functional Grove ports: Compatible with over 300 Plug\u0026amp;Play Grove modules to explore with IoT\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cstrong\u003eUSB OTG Support\u003c\/strong\u003e： can act as a USB host (reads data or signals from a mouse, keyboard, MIDI device, 3D printer, etc.) or USB client (emulates a mouse, keyboard, or MIDI device to a host PC).\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eSupport Arduino, CircuitPython, Micropython, ArduPy(\u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"http:\/\/wiki.seeedstudio.com\/Wio-Terminal-ArduPy\/\"\u003eWhat is ArduPy?\u003c\/a\u003e), AT Firmware, Visual Studio Code\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eAzure Certified Device: Sense and tag real-world data and visualize through Azure IoT Central \u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eTELEC certificated\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003e\u003c\/h2\u003e\n\u003ch2\u003eDescription\u003c\/h2\u003e\n\u003cp\u003eThe \u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/www.seeedstudio.com\/wio-c-977.html\"\u003eWio\u003c\/a\u003e (Wireless Input and Output) platform (\u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/www.seeedstudio.com\/Wio-Link.html\"\u003eWio Link\u003c\/a\u003e, \u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/www.seeedstudio.com\/Wio-Node.html\"\u003eWio Nodes\u003c\/a\u003e, etc.) was first introduced to the world at the end of 2015 by Seeed. \u003c\/p\u003e\n\u003cp\u003eMeet our new member: Wio Terminal is compatible with Arduino and Micropython, built with an ATSAMD51 microcontroller with wireless connectivity supported by Realtek RTL8720DN. Its CPU speed runs at 120MHz (Boost up to 200MHz). Realtek RTL8720DN chip supports both Bluetooth and Wi-Fi providing the backbone for IoT projects. The Wio Terminal is Highly Integrated with a 2.4” LCD Screen, there is an onboard IMU(LIS3DHTR), microphone, buzzer, microSD card slot, light sensor, and infrared emitter(IR 940nm). \u003c\/p\u003e\n\u003cp\u003eThere are built-in magnets and two mounting holes on the well-designed enclosure, \u003cb\u003e\u003cstrong style=\"font-style: inherit;\"\u003eallowing you to set up your IoT project without hassle.\u003c\/strong\u003e\u003c\/b\u003e\u003c\/p\u003e\n\u003cp\u003eOn top of that, it also has two multifunctional Grove ports for connecting with over 300 modules and Raspberry Pi 40-pin compatible GPIO for tons of Pi HAT add-ons, which means there are \u003cb\u003e\u003cstrong style=\"font-style: inherit;\"\u003eendless IoT possibilities you can create with this tiny device! \u003c\/strong\u003e\u003c\/b\u003e\u003c\/p\u003e\n\u003ch4 style=\"font-style: inherit;\"\u003e\u003c\/h4\u003e\n\u003ch3 style=\"font-style: inherit;\"\u003eWith Wio Terminal, you can: \u003c\/h3\u003e\n\u003cul style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eSense and tag the Real-World data with over 300 Groves created by Seeed and visualize through Azure IoT Central Platform to create an end-to-end IoT project\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eUse 100% open-source Hardware in a pythonic way\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eBuild your program interpreter starting from 90% with an LCD screen and compact enclosure\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eCreate embedded GUI with easy-to-use graphical elements and beautiful visualized editing tools.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg style=\"float: none;\" alt=\"\" src=\"https:\/\/lh5.googleusercontent.com\/jIDQxk-noD3Eq5ma_RGdp1ghrztXby-UyzxWWCOj7s4aAlHFRjmhW3ZuwtYAYY0V-8oOCMoPysYc5wdbtYsyND4O6xoXhPEbOQfai2cmpmGgFQCEkT8vPv4nno9AtXIEV8jqPira\"\u003e\u003c\/div\u003e\n\u003cblockquote\u003e\n\u003cp style=\"text-align: left;\"\u003eCheck the \u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/www.seeedstudio.com\/IoT-for-beginners-with-Seeed-and-Microsoft-Wio-Terminal-Starter-Kit-p-5006.html\" target=\"_blank\" data-mce-href=\"https:\/\/www.seeedstudio.com\/IoT-for-beginners-with-Seeed-and-Microsoft-Wio-Terminal-Starter-Kit-p-5006.html\"\u003eWio Terminal Starter Kit\u003c\/a\u003e, which is a collaboration between Seeed and Microsoft for IoT beginners. The hardware includes Wio Terminal provided by Seeed, a variety of optional Grove, other mods, etc. Learn the basics of the Internet of Things with this \u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/github.com\/microsoft\/IoT-For-Beginners\" target=\"_blank\" data-mce-href=\"https:\/\/github.com\/microsoft\/IoT-For-Beginners\"\u003efree 12-week, 24-lesson curriculum from Microsoft Cloud Advocates\u003c\/a\u003e. Build prototypes of real-world IoT projects as you learn all about IoT whilst following the journey of food from farm to table.\u003c\/p\u003e\n\u003c\/blockquote\u003e\n\u003ch2\u003e\u003c\/h2\u003e\n\u003ch3 style=\"font-style: inherit;\"\u003e\u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/www.seeedstudio.com\/wio-terminal-tinyml.html\"\u003eHello World of AI\u003c\/a\u003e\u003c\/h3\u003e\n\u003cp\u003e\u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/www.seeedstudio.com\/wio-terminal-tinyml.html\"\u003ePowered by TinyML and Wio Terminal, Paired up with Edge Impulse and Azure IoT, your will find an easier way to navigate the ever-changing landscape of their AIoT journey. \u003c\/a\u003e\u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003ca href=\"https:\/\/www.seeedstudio.com\/wio-terminal-tinyml.html\" target=\"_blank\"\u003e\u003cimg style=\"float: none;\" src=\"https:\/\/lh3.googleusercontent.com\/X2D7f0IegD77fxs1lqFOpj-lSkppsMBkOjIDp0YvZmYPvyxGKbGuidfd0wY1ADtN2zEiT8D0X5Vgv0h0QogyWCeznDACWSxsYHbuoD322uzte-aEftqqADFM8qiNblkF9lzbat5H\"\u003e\u003c\/a\u003e\u003c\/div\u003e\n\u003ch3 style=\"font-style: inherit;\"\u003e\u003c\/h3\u003e\n\u003ch3 style=\"font-style: inherit;\"\u003eConnecting the Wio Terminal to Azure IoT Central\u003c\/h3\u003e\n\u003cp\u003eWio Terminal is an \u003cb\u003e\u003cstrong style=\"font-style: inherit;\"\u003eAzure-certified device\u003c\/strong\u003e\u003c\/b\u003e, not only can the artificial nose sense and tag the scents you want to know in the air, but everything can be analyzed and visualized in real-time through \u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/azure.microsoft.com\/services\/iot-central\/\"\u003eAzure IoT Central\u003c\/a\u003e. More importantly, you can automatically trigger rules when, for example, a bad smell is being detected, therefore allowing the nose to be much smarter than if it were just a standalone, offline, device.\u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/lh3.googleusercontent.com\/iYjZoY12onQsvM2PHyxxX0TSCFUeKs55rSazJ6zK18bPJreOIKWhq5oMnImLOeqcxjheIlwPF5vfQrt7lCouT64sHkilkCAu_D84DjAvX86FFKLmWZ96KjYS5q0rZsZjZa-P-428\" alt=\"\" style=\"float: none;\"\u003e\u003c\/div\u003e\n\u003cp data-style=\"text-align: center;\"\u003e\u003cem style=\"font-style: inherit; font-weight: inherit;\"\u003eConnecting the Artificial Nose to Azure IoT Central – Real-time telemetry.\u003c\/em\u003e\u003c\/p\u003e\n\u003ch3\u003e\u003cb\u003e\u003cstrong style=\"font-style: inherit;\"\u003e\u003c\/strong\u003e\u003c\/b\u003e\u003c\/h3\u003e\n\u003ch3\u003e\u003cb\u003e\u003cstrong style=\"font-style: inherit;\"\u003e\u003c\/strong\u003e\u003c\/b\u003e\u003c\/h3\u003e\n\u003ch3\u003e\u003cb\u003e\u003cstrong style=\"font-style: inherit;\"\u003eWhat other cool things can you play with Wio Terminal?\u003c\/strong\u003e\u003c\/b\u003e\u003c\/h3\u003e\n\u003cul style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eArtificial Nose that can Discern Different Kinds of Rum or ScotchTV\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eAffordable IR Thermal Imaging Camera\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eRemote Controller\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eCost-effective Pulse Oximeter\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eWeather Forecast Monitor\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eRun TinyGO on Wio Terminal\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003ePrinter\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eGPS Navigator\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eWater Level Detector\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch3 style=\"font-style: inherit;\"\u003e \u003c\/h3\u003e\n\u003ch2\u003eApplications\u003c\/h2\u003e\n\u003cul style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003ePython Terminal Device\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eData Collection Machine Learning powered device\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eHand-held analyzer \u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eRetro Gaming Device\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eIoT Controller\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eSmart Robot for Education\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eIoT application quick prototyping\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eSlave devise \/ Accessories for Raspberry Pi\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cb\u003e\u003cstrong style=\"font-style: inherit;\"\u003eCollaborate With the Worldwide Community! \u003c\/strong\u003e\u003c\/b\u003e\u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/lh3.googleusercontent.com\/8sZX8IkyBYjslHsCumtfBol_OzEf0dKq0-tnMF-c5M4v0mAoQTDpQDwYaa3HTV6qksryd-AeqH3ZSjfLkpb7ksqmxQMi6oQvC8cuFZlZcOMj6pYfk4Ep0KuSr0xEzntrcnt89YWm\" style=\"float: none;\"\u003e\u003c\/div\u003e\n\u003ch3 style=\"font-style: inherit;\"\u003e\u003c\/h3\u003e\n\u003ch3 style=\"font-style: inherit;\"\u003eWio Terminal Classroom\u003c\/h3\u003e\n\u003cp\u003eIn this show, our engineer Lakshantha will explain how to use the Wio terminal along with the software and present you with fun demos as well! In this episode, you will learn about how to draw text strings by using the coordinate system and will learn to display \"Hello World!\" at the end of the video! \u003c\/p\u003e\n\u003cp\u003eStay tuned to \u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/www.youtube.com\/watch?v=af_I0n5iyzk\u0026amp;list=PLpH_4mf13-A0MzOdPNITVfoVBMvf7Rg9g\"\u003eour show\u003c\/a\u003e and we hope this helps you to gain more knowledge on how to program with the Wio Terminal!\u003c\/p\u003e\n\u003cp\u003e \u003ciframe width=\"560\" height=\"315\" src=\"https:\/\/www.youtube.com\/embed\/af_I0n5iyzk\" title=\"YouTube video player\" frameborder=\"0\" allow=\"accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share\" allowfullscreen=\"\"\u003e\u003c\/iframe\u003e\u003c\/p\u003e\n\u003ch3 style=\"font-style: inherit;\"\u003e\u003cspan data-style=\"font-size: 1.5em;\" style=\"font-style: inherit; font-weight: inherit;\"\u003e\u003c\/span\u003e\u003c\/h3\u003e\n\u003ch3 style=\"font-style: inherit;\"\u003e\u003cspan data-style=\"font-size: 1.5em;\" style=\"font-style: inherit; font-weight: inherit;\"\u003eFully Open-source Manufacturing Process\u003c\/span\u003e\u003c\/h3\u003e\n\u003cp\u003e\u003cspan style=\"font-style: inherit; font-weight: inherit;\"\u003eAs a fully open-source device, Wio Terminal development will continue to optimize its performance and every update will be publicized on our \u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/www.seeedstudio.com\/blog\/tag\/wio-terminal\/\" target=\"_blank\"\u003eblog\u003c\/a\u003e. We are also making a series of \u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/www.youtube.com\/watch?v=T0sy9unlzx0\u0026amp;list=PLpH_4mf13-A3KpUyQf8luBDJIfH9cSK1T\" target=\"_blank\"\u003eVlog\u003c\/a\u003e about the fully open-source manufacturing process of Seeed products. From hardware and software development to each step of manufacture and testing, you can find all you want to know about Wio Terminal, check now!\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-style: inherit; font-weight: inherit;\"\u003e\u003ciframe title=\"YouTube video player\" src=\"https:\/\/www.youtube.com\/embed\/T0sy9unlzx0\" height=\"315\" width=\"560\" allowfullscreen=\"\" allow=\"accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share\" frameborder=\"0\"\u003e\u003c\/iframe\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003ch2\u003e\u003c\/h2\u003e\n\u003ch2\u003ePinout Diagram\u003c\/h2\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg style=\"float: none;\" alt=\"\" src=\"https:\/\/files.seeedstudio.com\/wiki\/Wio-Terminal\/img\/WioT-Pinout.jpg\"\u003e\u003c\/div\u003e\n\u003cp style=\"font-style: inherit; font-weight: inherit; text-align: center;\"\u003eWio Terminal Pin Out Overview by Seeed\u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg style=\"float: none;\" alt=\"\" src=\"https:\/\/media-cdn.seeedstudio.com\/media\/wysiwyg\/wtpinout2.png\"\u003e\u003c\/div\u003e\n\u003cp style=\"font-style: inherit; font-weight: inherit; text-align: center;\"\u003eWio Terminal Pin Out Overview by @matsujirushi12\u003c\/p\u003e\n\u003ch2\u003e\u003c\/h2\u003e\n\u003ch2\u003eHardware Overview\u003c\/h2\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/files.seeedstudio.com\/wiki\/Wio-Terminal\/img\/Wio-Terminal-Hardware-Overview.png\" alt=\"\" style=\"float: none;\"\u003e\u003c\/div\u003e\n\u003ch2\u003e\u003c\/h2\u003e\n\u003ch2\u003eSetup, Documentation, and Support\u003c\/h2\u003e\n\u003cul style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eAn invitation to join the Seeed Community on Discord! Click \u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/discord.gg\/WSXszPA2wC\" target=\"_blank\"\u003ehere\u003c\/a\u003e to join our Wio Terminal Channel for a 24\/7\/365 making, sharing, and helping each other out. https:\/\/discord.gg\/WSXszPA2wC\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003ePlease visit our \u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"http:\/\/wiki.seeedstudio.com\/Wio-Terminal-Getting-Started\/\" target=\"_blank\"\u003ewiki\u003c\/a\u003e for more information about Wio Terminal. If you have any questions, feel free to ask us at our \u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/forum.seeedstudio.com\/c\/products\/wio-terminal\/85\" target=\"_blank\"\u003eForum\u003c\/a\u003e.\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eCheck \u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/www.seeedstudio.com\/blog\/2020\/06\/04\/resource-roundup-for-wio-terminal\/\" target=\"_blank\"\u003eResource Roundup for Wio Terminal: Tutorials, Reviews, and Projects from Community\u003c\/a\u003e and we hope some of them will inspire you!\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2\u003eTechnical Specifications\u003c\/h2\u003e\n\u003ctable style=\"font-style: inherit; font-weight: inherit;\" align=\"center\" width=\"70%\"\u003e\n\u003ctbody style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" rowspan=\"6\"\u003e\n\u003cp\u003eMain Chip\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eManufacturer Part Number\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eATSAMD51P19\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eCore Processor\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eARM® Cortex®-M4F running at 120MHz\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eMemory\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e4 MB External Flash, 192 KB RAM\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eMaximum Speed\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e200MHz\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eExternal Flash\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e4MBytes\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eOperating Temperature\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e-40°C ~ 85°C (TA)\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" rowspan=\"3\"\u003e\n\u003cp\u003eLCD Screen\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eResolution\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e320x240\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eDisplay Size\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e2.4inch\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eDrive IC\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eILI9341\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" rowspan=\"5\"\u003e\n\u003cp\u003eWireless Connectivity\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eManufacturer Part Number\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eRTL8720DN\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eKM4 CPU\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eARM® Cortex®-M4F @ 200MHz\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eKM0 CPU\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eARM® Cortex®-M0\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eWi-Fi\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e802.11 a\/b\/g\/n 1x1, Dual Band 2.4GHz \u0026amp; 5GHz\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eBluetooth\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eSupport BLE5.0\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" rowspan=\"5\"\u003e\n\u003cp\u003eBuilt-in Modules\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eAccelerometer\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eLIS3DHTR\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eMicrophone\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e1.0V-10V -42dB\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eSpeaker\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e≥78dB @10cm 4000Hz\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eLight Sensor\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e400-1050nm\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eInfrared Emitter\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e940nm\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" rowspan=\"6\"\u003e\n\u003cp\u003eInterface\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eMicroSD Card Slot\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eMaximum 16GB\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eGPIO\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e40-PIN (Raspberry Pi Compatible)\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eSupported Protocol\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eSPI, I2C, I2S, ADC, DAC, PWM, UART(Serial)\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eGrove\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e2 (Multifunction), for Digital, Analog, I2C, and PWM\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eFPC\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e20-Pins\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eUSB Type-C\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003ePower \u0026amp; USB-OTG\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" rowspan=\"3\"\u003e\n\u003cp\u003eOperation Interface\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" colspan=\"2\"\u003e\n\u003cp\u003e5-Way Switch\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" colspan=\"2\"\u003e\n\u003cp\u003ePower\/Reset Switch\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" colspan=\"2\"\u003e\n\u003cp\u003eUser-defined button *3\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" rowspan=\"3\"\u003e\n\u003cp\u003eEnclosure\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eMouting\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eBuilt-in magnets and two mounting holes\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eDimension\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e72mm*57mm*12mm\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eMaterials\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eABS+PC\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" rowspan=\"6\"\u003e\n\u003cp\u003eSoftware Support\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" colspan=\"2\"\u003e\n\u003cp\u003eArduino\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" colspan=\"2\"\u003e\n\u003cp\u003eMicroPython\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" colspan=\"2\"\u003e\n\u003cp\u003e\u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"http:\/\/wiki.seeedstudio.com\/Wio-Terminal-ArduPy\/\" target=\"_blank\"\u003eArduPy\u003c\/a\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" colspan=\"2\"\u003e\n\u003cp\u003eAT Firmware\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" colspan=\"2\"\u003e\n\u003cp\u003eVisual Studio Code\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" colspan=\"2\"\u003e\n\u003cp\u003e\u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/wiki.seeedstudio.com\/Wio-Terminal-CircuitPython\/\" target=\"_blank\"\u003eCircuitPython ( How to run CircuitPython on Wio Terminal\u003c\/a\u003e?)\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2\u003e\u003cspan data-style=\"font-size: 1.5em;\" style=\"font-style: inherit; font-weight: inherit;\"\u003ePart List\u003c\/span\u003e\u003c\/h2\u003e\n\u003cul style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eWio Terminal\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eUSB Type-C Short Cable\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eUser Manual\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2\u003eDOCUMENTS\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003e\u003cb\u003e\u003ca style=\"font-style: inherit; color: #ff2a00; text-decoration: underline;\" href=\"https:\/\/files.seeedstudio.com\/wiki\/Wio-Terminal\/res\/ATSAMD51.pdf\" target=\"_blank\"\u003eATSAMD51N19A Datasheet\u003c\/a\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003e\u003cb\u003e\u003ca style=\"font-style: inherit; color: #ff2a00; text-decoration: underline;\" href=\"https:\/\/files.seeedstudio.com\/wiki\/Wio-Terminal\/res\/Wio-Terminal-SCH-v1.2.pdf\" target=\"_blank\"\u003eWio Terminal Schematics v1.2\u003c\/a\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003e\u003cb\u003e\u003ca style=\"font-style: inherit; color: #ff2a00; text-decoration: underline;\" href=\"https:\/\/files.seeedstudio.com\/wiki\/Wio-Terminal\/res\/Wio-Terminal-Main-V3.0-White-72x57x10.4mm.pdf\" target=\"_blank\"\u003eWio Terminal Enclosure Dimensions - Front\u003c\/a\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003e\u003cb\u003e\u003ca style=\"font-style: inherit; color: #ff2a00; text-decoration: underline;\" href=\"https:\/\/files.seeedstudio.com\/wiki\/Wio-Terminal\/res\/Wio-Terminal-Main-Back-V3.0-White-72x57x7.1mm.pdf\" target=\"_blank\"\u003eWio Terminal Enclosure Dimensions - Back\u003c\/a\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003e\u003cb\u003e\u003ca style=\"font-style: inherit; color: #ff2a00; text-decoration: underline;\" href=\"https:\/\/files.seeedstudio.com\/wiki\/Wio-Terminal\/res\/Wio-Terminal-Screen-Sticker-Design-File(Wio-Terminal-%E3%81%A1%E3%82%83%E3%82%93).ai\" target=\"_blank\"\u003eWio-Terminal-Screen-Sticker-Design-File(Wio-Terminal-ちゃん)\u003c\/a\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003e\u003cb\u003e\u003ca style=\"font-style: inherit; color: #ff2a00; text-decoration: underline;\" href=\"https:\/\/files.seeedstudio.com\/wiki\/Wio-Terminal\/res\/Wio-Terminal-chan-Desgin-File-blue\u0026amp;white.ai\" target=\"_blank\"\u003eWio-Terminal-chan-Desgin-File-blue\u0026amp;white\u003c\/a\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003e\u003cb\u003e\u003ca style=\"font-style: inherit; color: #ff2a00; text-decoration: underline;\" href=\"https:\/\/files.seeedstudio.com\/wiki\/Wio-Terminal\/res\/Wio-Terminal-Main-V3.0-White-72x57x10.4mm.dxf\" target=\"_blank\"\u003eWio Terminal Enclosure Dimensions - Front (DXF)\u003c\/a\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003e\u003cb\u003e\u003ca style=\"font-style: inherit; color: #ff2a00; text-decoration: underline;\" href=\"https:\/\/files.seeedstudio.com\/wiki\/Wio-Terminal\/res\/Wio-Terminal-Main-Back-V3.0-White-72x57x7.1mm.dxf\" target=\"_blank\"\u003eWio Terminal Enclosure Dimensions - Back (DXF)\u003c\/a\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003e\u003cb\u003e\u003ca style=\"font-style: inherit; color: #ff2a00; text-decoration: underline;\" href=\"https:\/\/files.seeedstudio.com\/wiki\/Wio-Terminal\/res\/Wio-Terminal-Chassis-Battery.dxf\" target=\"_blank\"\u003eWio Terminal Battery Chassis Dimensions (DXF)\u003c\/a\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003e\u003cb\u003e\u003ca style=\"font-style: inherit; color: #ff2a00; text-decoration: underline;\" href=\"https:\/\/files.seeedstudio.com\/wiki\/Wio-Terminal\/res\/Wio-Terminal-PCB-V3.0.dxf\" target=\"_blank\"\u003eWio Terminal PCB Dimensions (DXF)\u003c\/a\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003e\u003cb\u003e\u003ca style=\"font-style: inherit; color: #ff2a00; text-decoration: underline;\" href=\"https:\/\/files.seeedstudio.com\/wiki\/Wio-Terminal\/res\/Wio-Terminal-User-Manual.pdf\" target=\"_blank\"\u003eWio Terminal User Manual\u003c\/a\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003e\u003cb\u003e\u003c\/b\u003e\u003c\/h2\u003e\n\u003ch2\u003e\u003cb\u003eLEARN\u003c\/b\u003e\u003c\/h2\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ctable align=\"left\" width=\"800px\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd align=\"right\" width=\"33%\"\u003e \n\u003cdiv data-mce-fragment=\"1\" style=\"text-align: right;\" data-mce-style=\"text-align: right;\"\u003e\u003cimg alt=\"\" src=\"https:\/\/media-cdn.seeedstudio.com\/media\/learn\/images\/w\/i\/wio-terminal-pre.jpg\"\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv class=\"learn-info-title\"\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003e\u003cspan class=\"learn-info-name\"\u003e\u003ca style=\"color: #ff2a00; text-decoration: underline;\" class=\"learn-url\" title=\"Wio Terminal Getting Started\" href=\"http:\/\/wiki.seeedstudio.com\/Wio-Terminal-Getting-Started\/\" target=\"_blank\"\u003eWio Terminal Getting Started\u003c\/a\u003e\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003cdiv title=\"This is the wiki page for this product, which will show you how to use the product, as well as details about the software and hardware.\" class=\"learn-info-content\"\u003eThis is the wiki page for this product, which will show you how to use the product, as well as details about the software and hardware.\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd align=\"right\" width=\"33%\"\u003e\n\u003cdiv style=\"text-align: right;\"\u003e\u003cimg src=\"https:\/\/media-cdn.seeedstudio.com\/media\/learn\/images\/k\/e\/keyboard.png\" alt=\"\"\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003ca href=\"http:\/\/wiki.seeedstudio.com\/Wio-Terminal-USBH-Overview\/\" title=\"Wio Terminal running USB-Host\" target=\"_blank\"\u003e\u003cspan style=\"text-decoration: underline;\"\u003e\u003cspan class=\"learn-info-name\" style=\"color: #ff2a00;\"\u003e\u003cspan style=\"text-decoration-thickness: initial; text-decoration-style: initial; text-decoration-color: initial;\"\u003eWio Terminal running USB-Host\u003c\/span\u003e\u003c\/span\u003e\u003c\/span\u003e\u003c\/a\u003e\n\u003cdiv title=\"Wio Terminal can run as USB-Host and use USB devices\" class=\"learn-info-content\"\u003eWio Terminal can run as USB-Host and use USB devices\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd align=\"right\" width=\"33%\"\u003e\n\u003cdiv style=\"text-align: right;\"\u003e\u003cimg src=\"https:\/\/media-cdn.seeedstudio.com\/media\/learn\/images\/p\/l\/platformio.gif\" width=\"60%\" alt=\"\"\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv class=\"learn-info-title\"\u003e\u003cspan class=\"learn-info-name\" style=\"color: #ff2a00;\"\u003e\u003ca href=\"https:\/\/wiki.seeedstudio.com\/Software-PlatformIO\/\" title=\"How to Use PlatformIO IDE For Arduino Programming\" class=\"learn-url\" style=\"color: #ff2a00;\" target=\"_blank\"\u003eHow to Use PlatformIO IDE For Arduino Programming\u003c\/a\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003cp\u003eUsing PlatformIO to develop Wio Terminal\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd align=\"right\" width=\"33%\"\u003e\n\u003cdiv style=\"text-align: right;\"\u003e\u003cimg src=\"https:\/\/media-cdn.seeedstudio.com\/media\/learn\/images\/_\/2\/_2020-07-24_2.32.12.png\" width=\"60%\" alt=\"\" style=\"float: none;\"\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv class=\"learn-info-title\"\u003e\u003cspan style=\"text-decoration: underline;\"\u003e\u003cspan class=\"learn-info-name\" style=\"color: #ff2a00;\"\u003e\u003ca class=\"learn-url\" title=\"Wio Terminal Edge Impulse Getting Started\" href=\"https:\/\/wiki.seeedstudio.com\/Wio-Terminal-Edge-Impulse\/\" style=\"color: #ff2a00; text-decoration: underline;\" target=\"_blank\"\u003eWio Terminal Edge Impulse Getting Started\u003c\/a\u003e\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003cp\u003eEdge Impulse enables developers to create the next generation of intelligent device solutions with embedded Machine Learning. Machine Learning at the very edge will enable valuable use of the 99% of sensor data that is discarded today due to cost, bandwidth or power constraints.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e","published_at":"2023-01-05T22:32:39+05:30","created_at":"2023-01-05T22:32:38+05:30","vendor":"ThinkRobotics.in","type":"","tags":["ARD-KIT","ATSAMD51","bluetooth","Bluetooth 5.1","bluetooth development board","Board","control board","Development Board","ESP32 WIFI Bluetooth Development Board","Low Energy Bluetooth","Low Power Bluetooth","MicroPython","RTL8720DN","SBC1","SEEED","SEEEDSTD","Single","single board computer","terminal","WIFI development board","Wio"],"price":392999,"price_min":392999,"price_max":392999,"available":true,"price_varies":false,"compare_at_price":599999,"compare_at_price_min":599999,"compare_at_price_max":599999,"compare_at_price_varies":false,"variants":[{"id":44313461948733,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"SBC1032","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Wio Terminal: ATSAMD51 Core with Realtek RTL8720DN BLE 5.0 \u0026 Wi-Fi 2.4G\/5G Dev Board","public_title":null,"options":["Default Title"],"price":392999,"weight":800,"compare_at_price":599999,"inventory_management":"shopify","barcode":"44313461948733","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/thinkrobotics.com\/cdn\/shop\/products\/0072.jpg?v=1672938432","\/\/thinkrobotics.com\/cdn\/shop\/products\/102991299_All-04.jpg?v=1672938620","\/\/thinkrobotics.com\/cdn\/shop\/products\/102991299_Back-06.jpg?v=1672938620","\/\/thinkrobotics.com\/cdn\/shop\/products\/102991299_Feature.jpg?v=1672938620","\/\/thinkrobotics.com\/cdn\/shop\/products\/102991299_Feature-02.jpg?v=1672938620","\/\/thinkrobotics.com\/cdn\/shop\/products\/102991299_Front-05.jpg?v=1672938620","\/\/thinkrobotics.com\/cdn\/shop\/products\/102991299_Package-03.jpg?v=1672938620","\/\/thinkrobotics.com\/cdn\/shop\/products\/102991299_Preview-07.png?v=1672938620","\/\/thinkrobotics.com\/cdn\/shop\/products\/102991299_Thumbnail-09.png?v=1672938620"],"featured_image":"\/\/thinkrobotics.com\/cdn\/shop\/products\/0072.jpg?v=1672938432","options":["Title"],"media":[{"alt":null,"id":32464907338045,"position":1,"preview_image":{"aspect_ratio":1.333,"height":1050,"width":1400,"src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/0072.jpg?v=1672938432"},"aspect_ratio":1.333,"height":1050,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/0072.jpg?v=1672938432","width":1400},{"alt":null,"id":32464921133373,"position":2,"preview_image":{"aspect_ratio":1.333,"height":360,"width":480,"src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/hqdefault_e449c14d-eb2e-415f-9c75-499cff8481c4.jpg?v=1672938616"},"aspect_ratio":1.77,"external_id":"HSkqHrpk7FM","host":"youtube","media_type":"external_video"},{"alt":null,"id":32464907370813,"position":3,"preview_image":{"aspect_ratio":1.333,"height":1050,"width":1400,"src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/102991299_All-04.jpg?v=1672938620"},"aspect_ratio":1.333,"height":1050,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/102991299_All-04.jpg?v=1672938620","width":1400},{"alt":null,"id":32464907403581,"position":4,"preview_image":{"aspect_ratio":1.333,"height":1050,"width":1400,"src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/102991299_Back-06.jpg?v=1672938620"},"aspect_ratio":1.333,"height":1050,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/102991299_Back-06.jpg?v=1672938620","width":1400},{"alt":null,"id":32464907436349,"position":5,"preview_image":{"aspect_ratio":1.333,"height":1050,"width":1400,"src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/102991299_Feature.jpg?v=1672938620"},"aspect_ratio":1.333,"height":1050,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/102991299_Feature.jpg?v=1672938620","width":1400},{"alt":null,"id":32464907469117,"position":6,"preview_image":{"aspect_ratio":1.333,"height":1050,"width":1400,"src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/102991299_Feature-02.jpg?v=1672938620"},"aspect_ratio":1.333,"height":1050,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/102991299_Feature-02.jpg?v=1672938620","width":1400},{"alt":null,"id":32464907501885,"position":7,"preview_image":{"aspect_ratio":1.333,"height":1050,"width":1400,"src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/102991299_Front-05.jpg?v=1672938620"},"aspect_ratio":1.333,"height":1050,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/102991299_Front-05.jpg?v=1672938620","width":1400},{"alt":null,"id":32464907534653,"position":8,"preview_image":{"aspect_ratio":1.333,"height":1050,"width":1400,"src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/102991299_Package-03.jpg?v=1672938620"},"aspect_ratio":1.333,"height":1050,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/102991299_Package-03.jpg?v=1672938620","width":1400},{"alt":null,"id":32464907567421,"position":9,"preview_image":{"aspect_ratio":1.333,"height":1050,"width":1400,"src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/102991299_Preview-07.png?v=1672938620"},"aspect_ratio":1.333,"height":1050,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/102991299_Preview-07.png?v=1672938620","width":1400},{"alt":null,"id":32464907600189,"position":10,"preview_image":{"aspect_ratio":1.338,"height":157,"width":210,"src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/102991299_Thumbnail-09.png?v=1672938620"},"aspect_ratio":1.338,"height":157,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/102991299_Thumbnail-09.png?v=1672938620","width":210}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eWio Terminal is an ATSAMD51-based microcontroller with both \u003cb\u003e\u003cstrong style=\"font-style: inherit;\"\u003eBluetooth and Wi-Fi Wireless connectivity\u003c\/strong\u003e\u003c\/b\u003epowered by Realtek RTL8720DN, \u003cb\u003e\u003cstrong style=\"font-style: inherit;\"\u003ecompatible with Arduino and MicroPython\u003c\/strong\u003e\u003c\/b\u003e. Currently, wireless connectivity is only supported by Arduino. More than just a single embedded functional module, Wio Terminal itself is integrated with a 2.4” LCD Screen, onboard IMU(LIS3DHTR), microphone, buzzer, microSD card slot, light sensor, infrared emitter(IR 940nm).On top of that, it also has \u003cb\u003e\u003cstrong style=\"font-style: inherit;\"\u003etwo multifunctional Grove ports\u003c\/strong\u003e\u003c\/b\u003e for Grove Ecosystem and \u003cb\u003e\u003cstrong style=\"font-style: inherit;\"\u003e40 Raspberry pi compatible pin GPIO\u003c\/strong\u003e\u003c\/b\u003e for more add-ons. All of these practical add-ons are carefully housed in a compact enclosure, making it an \u003cb\u003e\u003cstrong style=\"font-style: inherit;\"\u003eefficient and product-ready product\u003c\/strong\u003e\u003c\/b\u003e. Equipped with Raspberry Pi 40-pin GPIO, it can be mounted to a Raspberry Pi as a slave device.\u003c\/p\u003e\n\u003ch2\u003eKey Features\u003c\/h2\u003e\n\u003cul style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cstrong\u003ePowerful MCU\u003c\/strong\u003e: Microchip ATSAMD51P19 with ARM Cortex-M4F core running at 120MHz\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cstrong\u003eReliable Wireless Connectivity\u003c\/strong\u003e: Equipped with Realtek RTL8720DN, dual-band 2.4Ghz \/ 5Ghz Wi-Fi\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eComplete system equipped with Screen + Development Board + Input\/Output Interface + Enclosure\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eHighly Integrated Design: 2.4” LCD Screen, MCU, IMU, WIFI, BT, and more practical add-ons housed in a compact enclosure with built-in magnets \u0026amp; mounting holes allows you to easily set up your IoT project\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eRaspberry Pi 40-pin Compatible GPIO enables installation as a peripheral to the Raspberry Pi\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eExternal onboard multi-functional Grove ports: Compatible with over 300 Plug\u0026amp;Play Grove modules to explore with IoT\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cstrong\u003eUSB OTG Support\u003c\/strong\u003e： can act as a USB host (reads data or signals from a mouse, keyboard, MIDI device, 3D printer, etc.) or USB client (emulates a mouse, keyboard, or MIDI device to a host PC).\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eSupport Arduino, CircuitPython, Micropython, ArduPy(\u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"http:\/\/wiki.seeedstudio.com\/Wio-Terminal-ArduPy\/\"\u003eWhat is ArduPy?\u003c\/a\u003e), AT Firmware, Visual Studio Code\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eAzure Certified Device: Sense and tag real-world data and visualize through Azure IoT Central \u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eTELEC certificated\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003e\u003c\/h2\u003e\n\u003ch2\u003eDescription\u003c\/h2\u003e\n\u003cp\u003eThe \u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/www.seeedstudio.com\/wio-c-977.html\"\u003eWio\u003c\/a\u003e (Wireless Input and Output) platform (\u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/www.seeedstudio.com\/Wio-Link.html\"\u003eWio Link\u003c\/a\u003e, \u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/www.seeedstudio.com\/Wio-Node.html\"\u003eWio Nodes\u003c\/a\u003e, etc.) was first introduced to the world at the end of 2015 by Seeed. \u003c\/p\u003e\n\u003cp\u003eMeet our new member: Wio Terminal is compatible with Arduino and Micropython, built with an ATSAMD51 microcontroller with wireless connectivity supported by Realtek RTL8720DN. Its CPU speed runs at 120MHz (Boost up to 200MHz). Realtek RTL8720DN chip supports both Bluetooth and Wi-Fi providing the backbone for IoT projects. The Wio Terminal is Highly Integrated with a 2.4” LCD Screen, there is an onboard IMU(LIS3DHTR), microphone, buzzer, microSD card slot, light sensor, and infrared emitter(IR 940nm). \u003c\/p\u003e\n\u003cp\u003eThere are built-in magnets and two mounting holes on the well-designed enclosure, \u003cb\u003e\u003cstrong style=\"font-style: inherit;\"\u003eallowing you to set up your IoT project without hassle.\u003c\/strong\u003e\u003c\/b\u003e\u003c\/p\u003e\n\u003cp\u003eOn top of that, it also has two multifunctional Grove ports for connecting with over 300 modules and Raspberry Pi 40-pin compatible GPIO for tons of Pi HAT add-ons, which means there are \u003cb\u003e\u003cstrong style=\"font-style: inherit;\"\u003eendless IoT possibilities you can create with this tiny device! \u003c\/strong\u003e\u003c\/b\u003e\u003c\/p\u003e\n\u003ch4 style=\"font-style: inherit;\"\u003e\u003c\/h4\u003e\n\u003ch3 style=\"font-style: inherit;\"\u003eWith Wio Terminal, you can: \u003c\/h3\u003e\n\u003cul style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eSense and tag the Real-World data with over 300 Groves created by Seeed and visualize through Azure IoT Central Platform to create an end-to-end IoT project\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eUse 100% open-source Hardware in a pythonic way\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eBuild your program interpreter starting from 90% with an LCD screen and compact enclosure\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eCreate embedded GUI with easy-to-use graphical elements and beautiful visualized editing tools.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg style=\"float: none;\" alt=\"\" src=\"https:\/\/lh5.googleusercontent.com\/jIDQxk-noD3Eq5ma_RGdp1ghrztXby-UyzxWWCOj7s4aAlHFRjmhW3ZuwtYAYY0V-8oOCMoPysYc5wdbtYsyND4O6xoXhPEbOQfai2cmpmGgFQCEkT8vPv4nno9AtXIEV8jqPira\"\u003e\u003c\/div\u003e\n\u003cblockquote\u003e\n\u003cp style=\"text-align: left;\"\u003eCheck the \u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/www.seeedstudio.com\/IoT-for-beginners-with-Seeed-and-Microsoft-Wio-Terminal-Starter-Kit-p-5006.html\" target=\"_blank\" data-mce-href=\"https:\/\/www.seeedstudio.com\/IoT-for-beginners-with-Seeed-and-Microsoft-Wio-Terminal-Starter-Kit-p-5006.html\"\u003eWio Terminal Starter Kit\u003c\/a\u003e, which is a collaboration between Seeed and Microsoft for IoT beginners. The hardware includes Wio Terminal provided by Seeed, a variety of optional Grove, other mods, etc. Learn the basics of the Internet of Things with this \u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/github.com\/microsoft\/IoT-For-Beginners\" target=\"_blank\" data-mce-href=\"https:\/\/github.com\/microsoft\/IoT-For-Beginners\"\u003efree 12-week, 24-lesson curriculum from Microsoft Cloud Advocates\u003c\/a\u003e. Build prototypes of real-world IoT projects as you learn all about IoT whilst following the journey of food from farm to table.\u003c\/p\u003e\n\u003c\/blockquote\u003e\n\u003ch2\u003e\u003c\/h2\u003e\n\u003ch3 style=\"font-style: inherit;\"\u003e\u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/www.seeedstudio.com\/wio-terminal-tinyml.html\"\u003eHello World of AI\u003c\/a\u003e\u003c\/h3\u003e\n\u003cp\u003e\u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/www.seeedstudio.com\/wio-terminal-tinyml.html\"\u003ePowered by TinyML and Wio Terminal, Paired up with Edge Impulse and Azure IoT, your will find an easier way to navigate the ever-changing landscape of their AIoT journey. \u003c\/a\u003e\u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003ca href=\"https:\/\/www.seeedstudio.com\/wio-terminal-tinyml.html\" target=\"_blank\"\u003e\u003cimg style=\"float: none;\" src=\"https:\/\/lh3.googleusercontent.com\/X2D7f0IegD77fxs1lqFOpj-lSkppsMBkOjIDp0YvZmYPvyxGKbGuidfd0wY1ADtN2zEiT8D0X5Vgv0h0QogyWCeznDACWSxsYHbuoD322uzte-aEftqqADFM8qiNblkF9lzbat5H\"\u003e\u003c\/a\u003e\u003c\/div\u003e\n\u003ch3 style=\"font-style: inherit;\"\u003e\u003c\/h3\u003e\n\u003ch3 style=\"font-style: inherit;\"\u003eConnecting the Wio Terminal to Azure IoT Central\u003c\/h3\u003e\n\u003cp\u003eWio Terminal is an \u003cb\u003e\u003cstrong style=\"font-style: inherit;\"\u003eAzure-certified device\u003c\/strong\u003e\u003c\/b\u003e, not only can the artificial nose sense and tag the scents you want to know in the air, but everything can be analyzed and visualized in real-time through \u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/azure.microsoft.com\/services\/iot-central\/\"\u003eAzure IoT Central\u003c\/a\u003e. More importantly, you can automatically trigger rules when, for example, a bad smell is being detected, therefore allowing the nose to be much smarter than if it were just a standalone, offline, device.\u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/lh3.googleusercontent.com\/iYjZoY12onQsvM2PHyxxX0TSCFUeKs55rSazJ6zK18bPJreOIKWhq5oMnImLOeqcxjheIlwPF5vfQrt7lCouT64sHkilkCAu_D84DjAvX86FFKLmWZ96KjYS5q0rZsZjZa-P-428\" alt=\"\" style=\"float: none;\"\u003e\u003c\/div\u003e\n\u003cp data-style=\"text-align: center;\"\u003e\u003cem style=\"font-style: inherit; font-weight: inherit;\"\u003eConnecting the Artificial Nose to Azure IoT Central – Real-time telemetry.\u003c\/em\u003e\u003c\/p\u003e\n\u003ch3\u003e\u003cb\u003e\u003cstrong style=\"font-style: inherit;\"\u003e\u003c\/strong\u003e\u003c\/b\u003e\u003c\/h3\u003e\n\u003ch3\u003e\u003cb\u003e\u003cstrong style=\"font-style: inherit;\"\u003e\u003c\/strong\u003e\u003c\/b\u003e\u003c\/h3\u003e\n\u003ch3\u003e\u003cb\u003e\u003cstrong style=\"font-style: inherit;\"\u003eWhat other cool things can you play with Wio Terminal?\u003c\/strong\u003e\u003c\/b\u003e\u003c\/h3\u003e\n\u003cul style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eArtificial Nose that can Discern Different Kinds of Rum or ScotchTV\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eAffordable IR Thermal Imaging Camera\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eRemote Controller\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eCost-effective Pulse Oximeter\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eWeather Forecast Monitor\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eRun TinyGO on Wio Terminal\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003ePrinter\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eGPS Navigator\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eWater Level Detector\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch3 style=\"font-style: inherit;\"\u003e \u003c\/h3\u003e\n\u003ch2\u003eApplications\u003c\/h2\u003e\n\u003cul style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003ePython Terminal Device\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eData Collection Machine Learning powered device\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eHand-held analyzer \u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eRetro Gaming Device\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eIoT Controller\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eSmart Robot for Education\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eIoT application quick prototyping\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eSlave devise \/ Accessories for Raspberry Pi\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cb\u003e\u003cstrong style=\"font-style: inherit;\"\u003eCollaborate With the Worldwide Community! \u003c\/strong\u003e\u003c\/b\u003e\u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/lh3.googleusercontent.com\/8sZX8IkyBYjslHsCumtfBol_OzEf0dKq0-tnMF-c5M4v0mAoQTDpQDwYaa3HTV6qksryd-AeqH3ZSjfLkpb7ksqmxQMi6oQvC8cuFZlZcOMj6pYfk4Ep0KuSr0xEzntrcnt89YWm\" style=\"float: none;\"\u003e\u003c\/div\u003e\n\u003ch3 style=\"font-style: inherit;\"\u003e\u003c\/h3\u003e\n\u003ch3 style=\"font-style: inherit;\"\u003eWio Terminal Classroom\u003c\/h3\u003e\n\u003cp\u003eIn this show, our engineer Lakshantha will explain how to use the Wio terminal along with the software and present you with fun demos as well! In this episode, you will learn about how to draw text strings by using the coordinate system and will learn to display \"Hello World!\" at the end of the video! \u003c\/p\u003e\n\u003cp\u003eStay tuned to \u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/www.youtube.com\/watch?v=af_I0n5iyzk\u0026amp;list=PLpH_4mf13-A0MzOdPNITVfoVBMvf7Rg9g\"\u003eour show\u003c\/a\u003e and we hope this helps you to gain more knowledge on how to program with the Wio Terminal!\u003c\/p\u003e\n\u003cp\u003e \u003ciframe width=\"560\" height=\"315\" src=\"https:\/\/www.youtube.com\/embed\/af_I0n5iyzk\" title=\"YouTube video player\" frameborder=\"0\" allow=\"accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share\" allowfullscreen=\"\"\u003e\u003c\/iframe\u003e\u003c\/p\u003e\n\u003ch3 style=\"font-style: inherit;\"\u003e\u003cspan data-style=\"font-size: 1.5em;\" style=\"font-style: inherit; font-weight: inherit;\"\u003e\u003c\/span\u003e\u003c\/h3\u003e\n\u003ch3 style=\"font-style: inherit;\"\u003e\u003cspan data-style=\"font-size: 1.5em;\" style=\"font-style: inherit; font-weight: inherit;\"\u003eFully Open-source Manufacturing Process\u003c\/span\u003e\u003c\/h3\u003e\n\u003cp\u003e\u003cspan style=\"font-style: inherit; font-weight: inherit;\"\u003eAs a fully open-source device, Wio Terminal development will continue to optimize its performance and every update will be publicized on our \u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/www.seeedstudio.com\/blog\/tag\/wio-terminal\/\" target=\"_blank\"\u003eblog\u003c\/a\u003e. We are also making a series of \u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/www.youtube.com\/watch?v=T0sy9unlzx0\u0026amp;list=PLpH_4mf13-A3KpUyQf8luBDJIfH9cSK1T\" target=\"_blank\"\u003eVlog\u003c\/a\u003e about the fully open-source manufacturing process of Seeed products. From hardware and software development to each step of manufacture and testing, you can find all you want to know about Wio Terminal, check now!\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-style: inherit; font-weight: inherit;\"\u003e\u003ciframe title=\"YouTube video player\" src=\"https:\/\/www.youtube.com\/embed\/T0sy9unlzx0\" height=\"315\" width=\"560\" allowfullscreen=\"\" allow=\"accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share\" frameborder=\"0\"\u003e\u003c\/iframe\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003ch2\u003e\u003c\/h2\u003e\n\u003ch2\u003ePinout Diagram\u003c\/h2\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg style=\"float: none;\" alt=\"\" src=\"https:\/\/files.seeedstudio.com\/wiki\/Wio-Terminal\/img\/WioT-Pinout.jpg\"\u003e\u003c\/div\u003e\n\u003cp style=\"font-style: inherit; font-weight: inherit; text-align: center;\"\u003eWio Terminal Pin Out Overview by Seeed\u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg style=\"float: none;\" alt=\"\" src=\"https:\/\/media-cdn.seeedstudio.com\/media\/wysiwyg\/wtpinout2.png\"\u003e\u003c\/div\u003e\n\u003cp style=\"font-style: inherit; font-weight: inherit; text-align: center;\"\u003eWio Terminal Pin Out Overview by @matsujirushi12\u003c\/p\u003e\n\u003ch2\u003e\u003c\/h2\u003e\n\u003ch2\u003eHardware Overview\u003c\/h2\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/files.seeedstudio.com\/wiki\/Wio-Terminal\/img\/Wio-Terminal-Hardware-Overview.png\" alt=\"\" style=\"float: none;\"\u003e\u003c\/div\u003e\n\u003ch2\u003e\u003c\/h2\u003e\n\u003ch2\u003eSetup, Documentation, and Support\u003c\/h2\u003e\n\u003cul style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eAn invitation to join the Seeed Community on Discord! Click \u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/discord.gg\/WSXszPA2wC\" target=\"_blank\"\u003ehere\u003c\/a\u003e to join our Wio Terminal Channel for a 24\/7\/365 making, sharing, and helping each other out. https:\/\/discord.gg\/WSXszPA2wC\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003ePlease visit our \u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"http:\/\/wiki.seeedstudio.com\/Wio-Terminal-Getting-Started\/\" target=\"_blank\"\u003ewiki\u003c\/a\u003e for more information about Wio Terminal. If you have any questions, feel free to ask us at our \u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/forum.seeedstudio.com\/c\/products\/wio-terminal\/85\" target=\"_blank\"\u003eForum\u003c\/a\u003e.\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eCheck \u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/www.seeedstudio.com\/blog\/2020\/06\/04\/resource-roundup-for-wio-terminal\/\" target=\"_blank\"\u003eResource Roundup for Wio Terminal: Tutorials, Reviews, and Projects from Community\u003c\/a\u003e and we hope some of them will inspire you!\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2\u003eTechnical Specifications\u003c\/h2\u003e\n\u003ctable style=\"font-style: inherit; font-weight: inherit;\" align=\"center\" width=\"70%\"\u003e\n\u003ctbody style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" rowspan=\"6\"\u003e\n\u003cp\u003eMain Chip\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eManufacturer Part Number\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eATSAMD51P19\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eCore Processor\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eARM® Cortex®-M4F running at 120MHz\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eMemory\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e4 MB External Flash, 192 KB RAM\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eMaximum Speed\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e200MHz\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eExternal Flash\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e4MBytes\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eOperating Temperature\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e-40°C ~ 85°C (TA)\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" rowspan=\"3\"\u003e\n\u003cp\u003eLCD Screen\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eResolution\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e320x240\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eDisplay Size\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e2.4inch\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eDrive IC\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eILI9341\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" rowspan=\"5\"\u003e\n\u003cp\u003eWireless Connectivity\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eManufacturer Part Number\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eRTL8720DN\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eKM4 CPU\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eARM® Cortex®-M4F @ 200MHz\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eKM0 CPU\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eARM® Cortex®-M0\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eWi-Fi\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e802.11 a\/b\/g\/n 1x1, Dual Band 2.4GHz \u0026amp; 5GHz\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eBluetooth\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eSupport BLE5.0\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" rowspan=\"5\"\u003e\n\u003cp\u003eBuilt-in Modules\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eAccelerometer\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eLIS3DHTR\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eMicrophone\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e1.0V-10V -42dB\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eSpeaker\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e≥78dB @10cm 4000Hz\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eLight Sensor\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e400-1050nm\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eInfrared Emitter\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e940nm\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" rowspan=\"6\"\u003e\n\u003cp\u003eInterface\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eMicroSD Card Slot\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eMaximum 16GB\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eGPIO\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e40-PIN (Raspberry Pi Compatible)\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eSupported Protocol\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eSPI, I2C, I2S, ADC, DAC, PWM, UART(Serial)\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eGrove\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e2 (Multifunction), for Digital, Analog, I2C, and PWM\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eFPC\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e20-Pins\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eUSB Type-C\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003ePower \u0026amp; USB-OTG\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" rowspan=\"3\"\u003e\n\u003cp\u003eOperation Interface\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" colspan=\"2\"\u003e\n\u003cp\u003e5-Way Switch\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" colspan=\"2\"\u003e\n\u003cp\u003ePower\/Reset Switch\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" colspan=\"2\"\u003e\n\u003cp\u003eUser-defined button *3\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" rowspan=\"3\"\u003e\n\u003cp\u003eEnclosure\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eMouting\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eBuilt-in magnets and two mounting holes\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eDimension\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003e72mm*57mm*12mm\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eMaterials\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cp\u003eABS+PC\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" rowspan=\"6\"\u003e\n\u003cp\u003eSoftware Support\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" colspan=\"2\"\u003e\n\u003cp\u003eArduino\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" colspan=\"2\"\u003e\n\u003cp\u003eMicroPython\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" colspan=\"2\"\u003e\n\u003cp\u003e\u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"http:\/\/wiki.seeedstudio.com\/Wio-Terminal-ArduPy\/\" target=\"_blank\"\u003eArduPy\u003c\/a\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" colspan=\"2\"\u003e\n\u003cp\u003eAT Firmware\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" colspan=\"2\"\u003e\n\u003cp\u003eVisual Studio Code\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003ctd style=\"font-style: inherit; font-weight: inherit;\" colspan=\"2\"\u003e\n\u003cp\u003e\u003ca style=\"font-style: inherit; font-weight: inherit;\" href=\"https:\/\/wiki.seeedstudio.com\/Wio-Terminal-CircuitPython\/\" target=\"_blank\"\u003eCircuitPython ( How to run CircuitPython on Wio Terminal\u003c\/a\u003e?)\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2\u003e\u003cspan data-style=\"font-size: 1.5em;\" style=\"font-style: inherit; font-weight: inherit;\"\u003ePart List\u003c\/span\u003e\u003c\/h2\u003e\n\u003cul style=\"font-style: inherit; font-weight: inherit;\"\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eWio Terminal\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eUSB Type-C Short Cable\u003c\/li\u003e\n\u003cli style=\"font-style: inherit; font-weight: inherit;\"\u003eUser Manual\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2\u003eDOCUMENTS\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003e\u003cb\u003e\u003ca style=\"font-style: inherit; color: #ff2a00; text-decoration: underline;\" href=\"https:\/\/files.seeedstudio.com\/wiki\/Wio-Terminal\/res\/ATSAMD51.pdf\" target=\"_blank\"\u003eATSAMD51N19A Datasheet\u003c\/a\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003e\u003cb\u003e\u003ca style=\"font-style: inherit; color: #ff2a00; text-decoration: underline;\" href=\"https:\/\/files.seeedstudio.com\/wiki\/Wio-Terminal\/res\/Wio-Terminal-SCH-v1.2.pdf\" target=\"_blank\"\u003eWio Terminal Schematics v1.2\u003c\/a\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003e\u003cb\u003e\u003ca style=\"font-style: inherit; color: #ff2a00; text-decoration: underline;\" href=\"https:\/\/files.seeedstudio.com\/wiki\/Wio-Terminal\/res\/Wio-Terminal-Main-V3.0-White-72x57x10.4mm.pdf\" target=\"_blank\"\u003eWio Terminal Enclosure Dimensions - Front\u003c\/a\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003e\u003cb\u003e\u003ca style=\"font-style: inherit; color: #ff2a00; text-decoration: underline;\" href=\"https:\/\/files.seeedstudio.com\/wiki\/Wio-Terminal\/res\/Wio-Terminal-Main-Back-V3.0-White-72x57x7.1mm.pdf\" target=\"_blank\"\u003eWio Terminal Enclosure Dimensions - Back\u003c\/a\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003e\u003cb\u003e\u003ca style=\"font-style: inherit; color: #ff2a00; text-decoration: underline;\" href=\"https:\/\/files.seeedstudio.com\/wiki\/Wio-Terminal\/res\/Wio-Terminal-Screen-Sticker-Design-File(Wio-Terminal-%E3%81%A1%E3%82%83%E3%82%93).ai\" target=\"_blank\"\u003eWio-Terminal-Screen-Sticker-Design-File(Wio-Terminal-ちゃん)\u003c\/a\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003e\u003cb\u003e\u003ca style=\"font-style: inherit; color: #ff2a00; text-decoration: underline;\" href=\"https:\/\/files.seeedstudio.com\/wiki\/Wio-Terminal\/res\/Wio-Terminal-chan-Desgin-File-blue\u0026amp;white.ai\" target=\"_blank\"\u003eWio-Terminal-chan-Desgin-File-blue\u0026amp;white\u003c\/a\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003e\u003cb\u003e\u003ca style=\"font-style: inherit; color: #ff2a00; text-decoration: underline;\" href=\"https:\/\/files.seeedstudio.com\/wiki\/Wio-Terminal\/res\/Wio-Terminal-Main-V3.0-White-72x57x10.4mm.dxf\" target=\"_blank\"\u003eWio Terminal Enclosure Dimensions - Front (DXF)\u003c\/a\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003e\u003cb\u003e\u003ca style=\"font-style: inherit; color: #ff2a00; text-decoration: underline;\" href=\"https:\/\/files.seeedstudio.com\/wiki\/Wio-Terminal\/res\/Wio-Terminal-Main-Back-V3.0-White-72x57x7.1mm.dxf\" target=\"_blank\"\u003eWio Terminal Enclosure Dimensions - Back (DXF)\u003c\/a\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003e\u003cb\u003e\u003ca style=\"font-style: inherit; color: #ff2a00; text-decoration: underline;\" href=\"https:\/\/files.seeedstudio.com\/wiki\/Wio-Terminal\/res\/Wio-Terminal-Chassis-Battery.dxf\" target=\"_blank\"\u003eWio Terminal Battery Chassis Dimensions (DXF)\u003c\/a\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003e\u003cb\u003e\u003ca style=\"font-style: inherit; color: #ff2a00; text-decoration: underline;\" href=\"https:\/\/files.seeedstudio.com\/wiki\/Wio-Terminal\/res\/Wio-Terminal-PCB-V3.0.dxf\" target=\"_blank\"\u003eWio Terminal PCB Dimensions (DXF)\u003c\/a\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003e\u003cb\u003e\u003ca style=\"font-style: inherit; color: #ff2a00; text-decoration: underline;\" href=\"https:\/\/files.seeedstudio.com\/wiki\/Wio-Terminal\/res\/Wio-Terminal-User-Manual.pdf\" target=\"_blank\"\u003eWio Terminal User Manual\u003c\/a\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003e\u003cb\u003e\u003c\/b\u003e\u003c\/h2\u003e\n\u003ch2\u003e\u003cb\u003eLEARN\u003c\/b\u003e\u003c\/h2\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ctable align=\"left\" width=\"800px\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd align=\"right\" width=\"33%\"\u003e \n\u003cdiv data-mce-fragment=\"1\" style=\"text-align: right;\" data-mce-style=\"text-align: right;\"\u003e\u003cimg alt=\"\" src=\"https:\/\/media-cdn.seeedstudio.com\/media\/learn\/images\/w\/i\/wio-terminal-pre.jpg\"\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv class=\"learn-info-title\"\u003e\u003cspan style=\"text-decoration: underline; color: #ff2a00;\"\u003e\u003cspan class=\"learn-info-name\"\u003e\u003ca style=\"color: #ff2a00; text-decoration: underline;\" class=\"learn-url\" title=\"Wio Terminal Getting Started\" href=\"http:\/\/wiki.seeedstudio.com\/Wio-Terminal-Getting-Started\/\" target=\"_blank\"\u003eWio Terminal Getting Started\u003c\/a\u003e\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003cdiv title=\"This is the wiki page for this product, which will show you how to use the product, as well as details about the software and hardware.\" class=\"learn-info-content\"\u003eThis is the wiki page for this product, which will show you how to use the product, as well as details about the software and hardware.\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd align=\"right\" width=\"33%\"\u003e\n\u003cdiv style=\"text-align: right;\"\u003e\u003cimg src=\"https:\/\/media-cdn.seeedstudio.com\/media\/learn\/images\/k\/e\/keyboard.png\" alt=\"\"\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003ca href=\"http:\/\/wiki.seeedstudio.com\/Wio-Terminal-USBH-Overview\/\" title=\"Wio Terminal running USB-Host\" target=\"_blank\"\u003e\u003cspan style=\"text-decoration: underline;\"\u003e\u003cspan class=\"learn-info-name\" style=\"color: #ff2a00;\"\u003e\u003cspan style=\"text-decoration-thickness: initial; text-decoration-style: initial; text-decoration-color: initial;\"\u003eWio Terminal running USB-Host\u003c\/span\u003e\u003c\/span\u003e\u003c\/span\u003e\u003c\/a\u003e\n\u003cdiv title=\"Wio Terminal can run as USB-Host and use USB devices\" class=\"learn-info-content\"\u003eWio Terminal can run as USB-Host and use USB devices\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd align=\"right\" width=\"33%\"\u003e\n\u003cdiv style=\"text-align: right;\"\u003e\u003cimg src=\"https:\/\/media-cdn.seeedstudio.com\/media\/learn\/images\/p\/l\/platformio.gif\" width=\"60%\" alt=\"\"\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv class=\"learn-info-title\"\u003e\u003cspan class=\"learn-info-name\" style=\"color: #ff2a00;\"\u003e\u003ca href=\"https:\/\/wiki.seeedstudio.com\/Software-PlatformIO\/\" title=\"How to Use PlatformIO IDE For Arduino Programming\" class=\"learn-url\" style=\"color: #ff2a00;\" target=\"_blank\"\u003eHow to Use PlatformIO IDE For Arduino Programming\u003c\/a\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003cp\u003eUsing PlatformIO to develop Wio Terminal\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd align=\"right\" width=\"33%\"\u003e\n\u003cdiv style=\"text-align: right;\"\u003e\u003cimg src=\"https:\/\/media-cdn.seeedstudio.com\/media\/learn\/images\/_\/2\/_2020-07-24_2.32.12.png\" width=\"60%\" alt=\"\" style=\"float: none;\"\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv class=\"learn-info-title\"\u003e\u003cspan style=\"text-decoration: underline;\"\u003e\u003cspan class=\"learn-info-name\" style=\"color: #ff2a00;\"\u003e\u003ca class=\"learn-url\" title=\"Wio Terminal Edge Impulse Getting Started\" href=\"https:\/\/wiki.seeedstudio.com\/Wio-Terminal-Edge-Impulse\/\" style=\"color: #ff2a00; text-decoration: underline;\" target=\"_blank\"\u003eWio Terminal Edge Impulse Getting Started\u003c\/a\u003e\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003cp\u003eEdge Impulse enables developers to create the next generation of intelligent device solutions with embedded Machine Learning. Machine Learning at the very edge will enable valuable use of the 99% of sensor data that is discarded today due to cost, bandwidth or power constraints.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e"}

	Wio Terminal Getting Started This is the wiki page for this product, which will show you how to use the product, as well as details about the software and hardware.
	Wio Terminal running USB-Host Wio Terminal can run as USB-Host and use USB devices
	How to Use PlatformIO IDE For Arduino Programming Using PlatformIO to develop Wio Terminal
	Wio Terminal Edge Impulse Getting Started Edge Impulse enables developers to create the next generation of intelligent device solutions with embedded Machine Learning. Machine Learning at the very edge will enable valuable use of the 99% of sensor data that is discarded today due to cost, bandwidth or power constraints.

Wio Terminal: ATSAMD51 Core with Realtek RTL8720DN BLE 5.0 & Wi-Fi 2.4G/5G Dev Board

Key Features

Description

With Wio Terminal, you can:

Hello World of AI

Connecting the Wio Terminal to Azure IoT Central

What other cool things can you play with Wio Terminal?

Applications

Wio Terminal Classroom

Fully Open-source Manufacturing Process

Pinout Diagram

Hardware Overview

Setup, Documentation, and Support

Technical Specifications

Part List

DOCUMENTS

LEARN

Customer Reviews

Custom Requirements?

Download the ThinkRobotics Mobile App

We are here to serve you! Reach us at:

Popular Links

Shopping Cart

Let customers speak for us

Main Chip	Manufacturer Part Number	ATSAMD51P19
	Core Processor	ARM® Cortex®-M4F running at 120MHz
	Memory	4 MB External Flash, 192 KB RAM
	Maximum Speed	200MHz
	External Flash	4MBytes
	Operating Temperature	-40°C ~ 85°C (TA)
LCD Screen	Resolution	320x240
	Display Size	2.4inch
	Drive IC	ILI9341
Wireless Connectivity	Manufacturer Part Number	RTL8720DN
	KM4 CPU	ARM® Cortex®-M4F @ 200MHz
	KM0 CPU	ARM® Cortex®-M0
	Wi-Fi	802.11 a/b/g/n 1x1, Dual Band 2.4GHz & 5GHz
	Bluetooth	Support BLE5.0
Built-in Modules	Accelerometer	LIS3DHTR
	Microphone	1.0V-10V -42dB
	Speaker	≥78dB @10cm 4000Hz
	Light Sensor	400-1050nm
	Infrared Emitter	940nm
Interface	MicroSD Card Slot	Maximum 16GB
	GPIO	40-PIN (Raspberry Pi Compatible)
	Supported Protocol	SPI, I2C, I2S, ADC, DAC, PWM, UART(Serial)
	Grove	2 (Multifunction), for Digital, Analog, I2C, and PWM
	FPC	20-Pins
	USB Type-C	Power & USB-OTG
Operation Interface	5-Way Switch
	Power/Reset Switch
	User-defined button *3
Enclosure	Mouting	Built-in magnets and two mounting holes
	Dimension	72mm57mm12mm
	Materials	ABS+PC
Software Support	Arduino
	MicroPython
	ArduPy
	AT Firmware
	Visual Studio Code
	CircuitPython ( How to run CircuitPython on Wio Terminal?)
