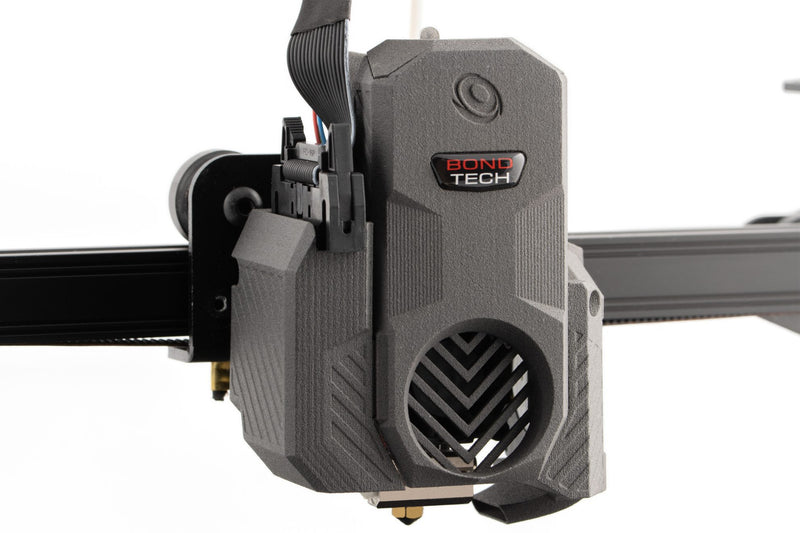

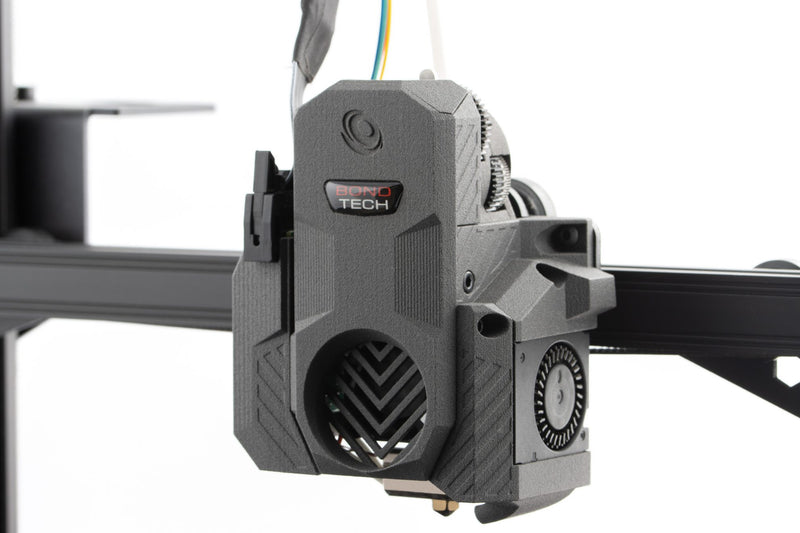

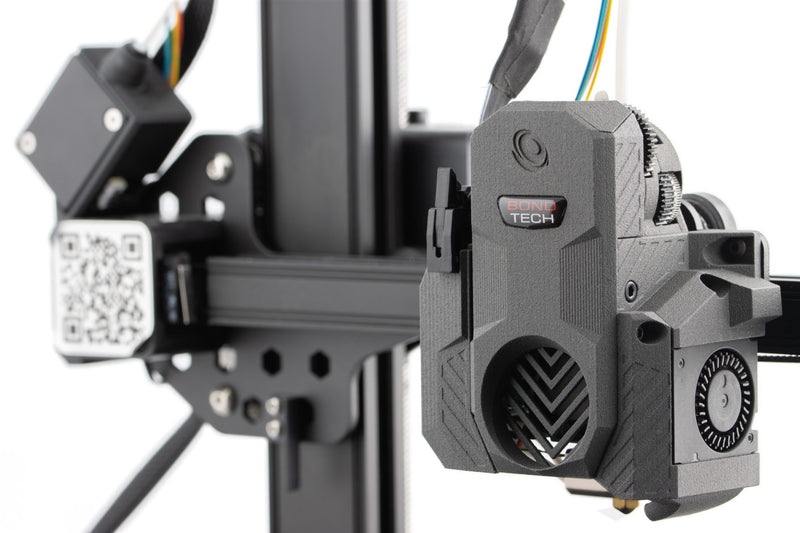

LGX Lite Arrow for Creality with LGX Lite eXtruder

Upgrade kit compatible with LGX Lite only to use on:

• Creality CR-6 SE;
• CR-6 Max;
• CR-10 Smart.

The LGX Lite Arrow for Creality plastic parts are made of grey Polyamide (PA12) with no dyeing featuring a wax protective coating.

LGX Lite Arrow for Creality Advantages

• It converts the compatible printers from Bowden to direct extruder.
• Extra load on strain gauge is limited to the LGX Lite itself.
• Housing is light and insulated from the Extruder to allow for strain gauge levelling.
• It is compatible with all stock hotends and cooling fans.
• Housing is easy to remove for maintenance and service of the hotend and extruder.
• Z-position of the fan shroud may be adjusted.

We have two variants available:

For using a Mosquito Hotend with Arrow, please contact us at support@thinkrobotics.in.

LGX Lite Arrow for Creality Features

• Weight: 65g.
• E-steps : 562 @ 16 microsteps.
• Klipper’s rotation_distance : 5.7.
• Stepper motor current : 0.45 to 0.65A max.
• Max operating temperature : 90°C.

It may be upgraded with Slice Engineering hotends:

• Copperhead Screw Mount;
• Mosquito;
• Mosquito Magnum;
• Mosquito Magnum + Air.

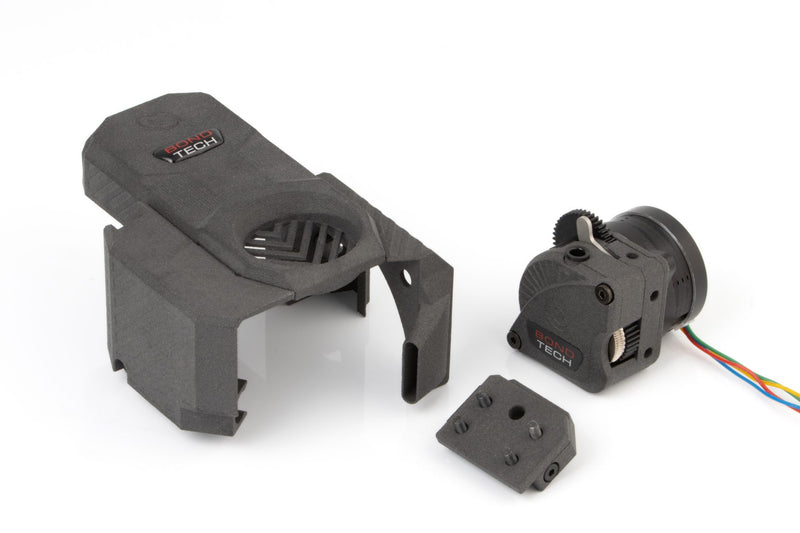

LGX Lite Arrow for Creality Includes

• 1x LGX Lite extruder mounting set
  • 1x PA12 extruder mount
  • 1x PA12 hotend mount
  • 4x M3x6 button head screw
  • 2x M3x10 button head screw
  • 2x M3x8 button head screw
  • 1x M3x30 screw
  • 1x M3 square nut
  • 1x Capricorn cutting fixture
  • 1x 70mm Capricorn tube

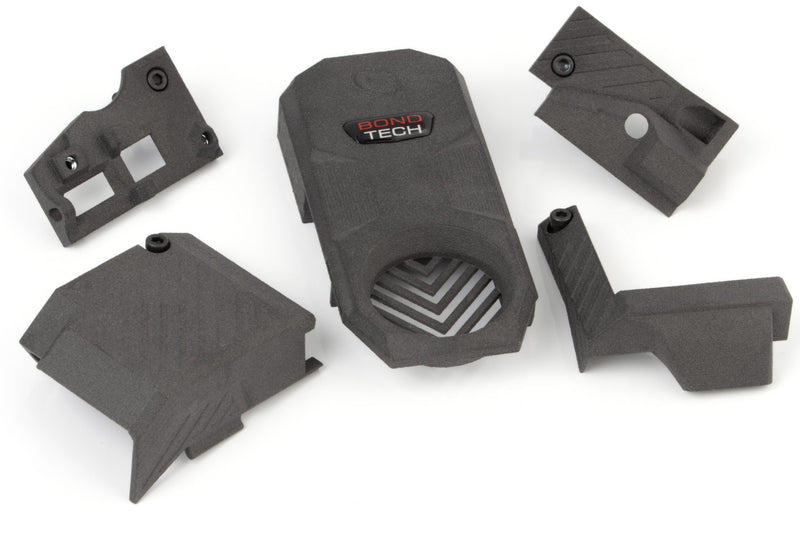

• 1x LGX Lite Arrow housing set
  • 1x PA12 front housing
  • 1x PA12 left wing
  • 1x PA12 right wing
  • 1x PA12 top lid
  • 1x PA12 fan shroud
  • 1x PA12 (breakout board/cables) cover
  • 2x M3x8 button head screw
  • 1x M3x16 screw
  • 2x M3x20 MC6S screw
  • 3x M3 square nut
• 1x Powered by Bondtech sticker
