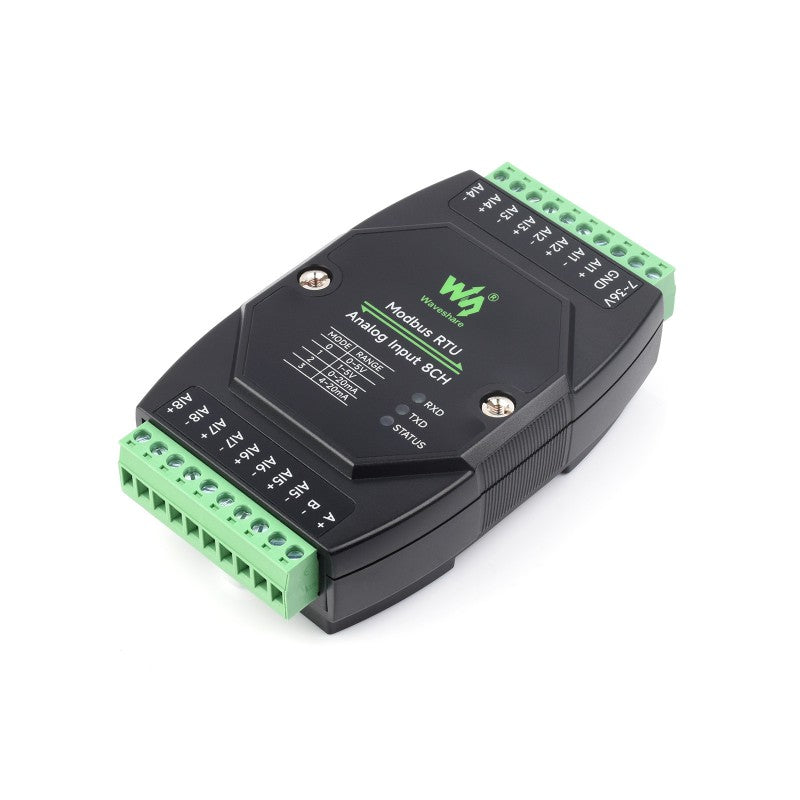

Industrial 8-Ch Analog Acquisition Module

12-bit High-precision | Supports Voltage and Current Acquisition | DC 7~36V Wide Voltage | Modbus RTU Protocol | Multiple Isolation Protection

• Configurable device address (1~255), multi devices can be cascaded on RS485 bus
• Onboard voltage regulator, supports 7~36V wide range power supply
• Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
• Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference
• Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic
• Supports 12-bit high-precision acquisition with multiple range input modes, supports single-ended/differential input, supports voltage and current simultaneous acquisition
• Adopts high-precision resistors and zero-drift high-precision operational amplifier for more accurate data acquisition
• Built-in oversampling digital filtering algorithm, onboard watchdog, for stable output without crashing
• Rail-mount case design, support stacking combination, easy to install and safer to use
• 3x LEDs for indicating the MCU status and signal transceiving status

Version Options

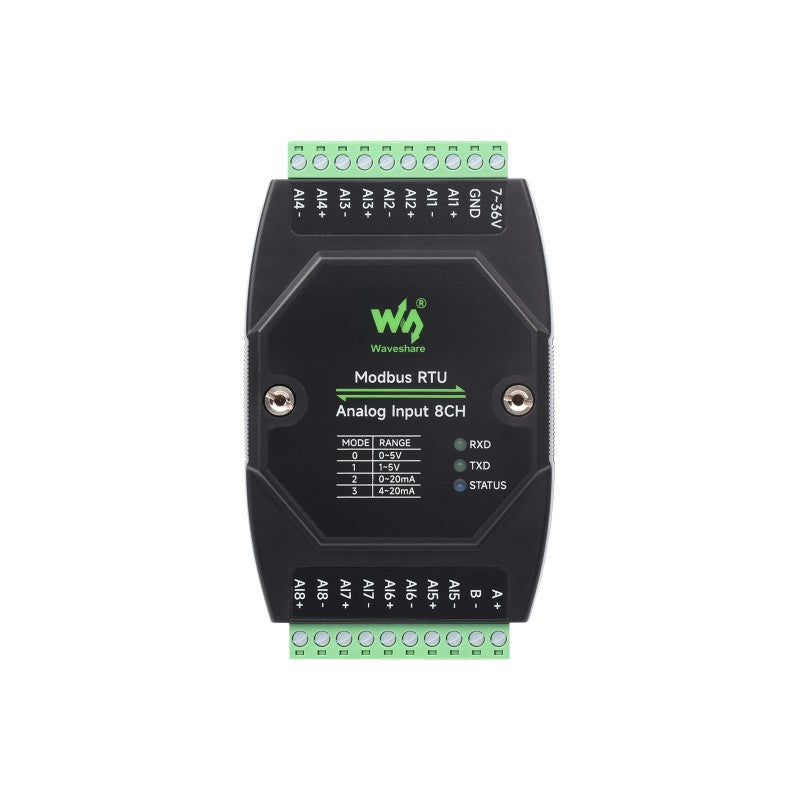

Modbus RTU Analog Input 8CH (default current mode) Supports four ranges (configurable): 0~5V/1~5V 0~20mA (default) /4~20mA

Modbus RTU Analog Input 8CH (default voltage mode) Supports four ranges (configurable): 0~10V (default)/2~10V 0~20mA /4~20mA

Specifications

Primary Function

Supports Sending Modbus RTU Protocol Commands Via RS485
To Acquire Data From 0~20mA/0~10V Sensor

Industrial Grade Isolated Protection

Onboard power and signal dual isolation for RS485 communication, provides stable isolation voltage, features high reliability and strong anti-interference performance. Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable current and voltage output, provides over-current and over-voltage proof, improves shock-proof performance, suitable for the industrial environments with high requirement.

Supports Voltage/Current Acquisition
Wider Measurement Range

8-Ch Analog Acquisition Interfaces, Voltage And Current Acquisition Is Switchable Via Jumper. Multiple Ranges Configurable Via Software

Interface Introduction

Connection Diagram

Supports Setting Device Address (1~255) For Multi-Device Cascading, Supports Single-Ended/Differential Input, Supports Voltage And Current Simultaneous Acquisition

Wide Voltage Power Supply, Isolated RS485 Interface

Built-In Fuse And Anti-Reverse Protection, With ESD Protection For Analog Input

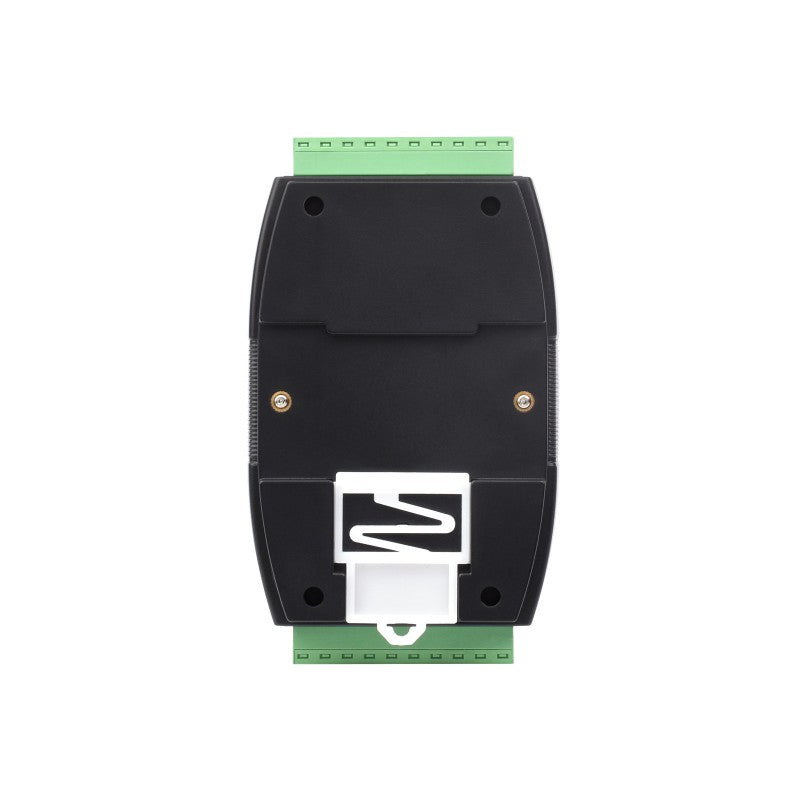

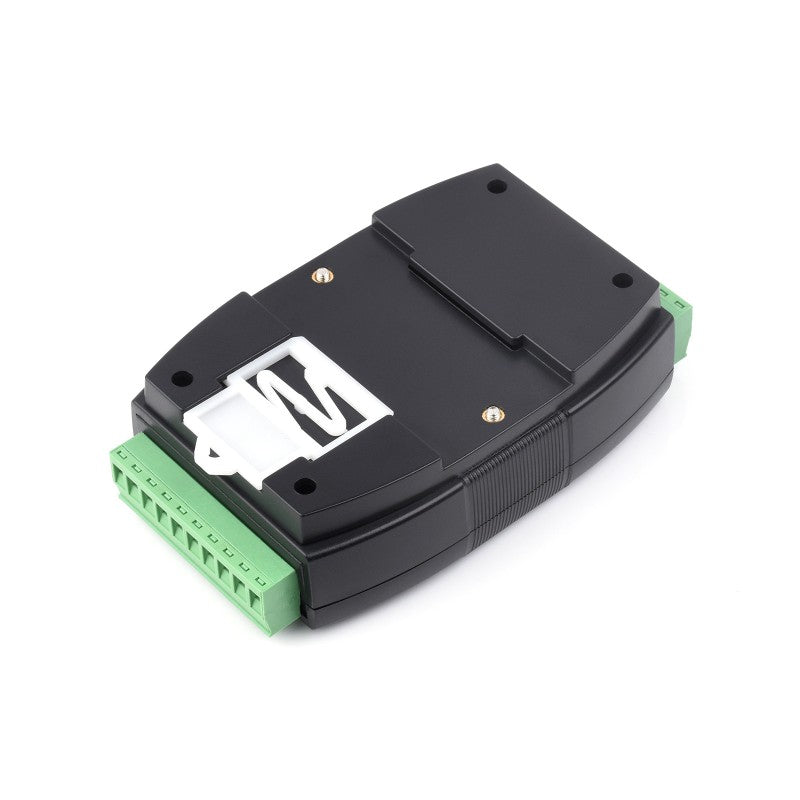

Rail-Mount Support

Supports 35mm Standard Guide Rail, With Rail-Mount Buckle, Easy To Install.

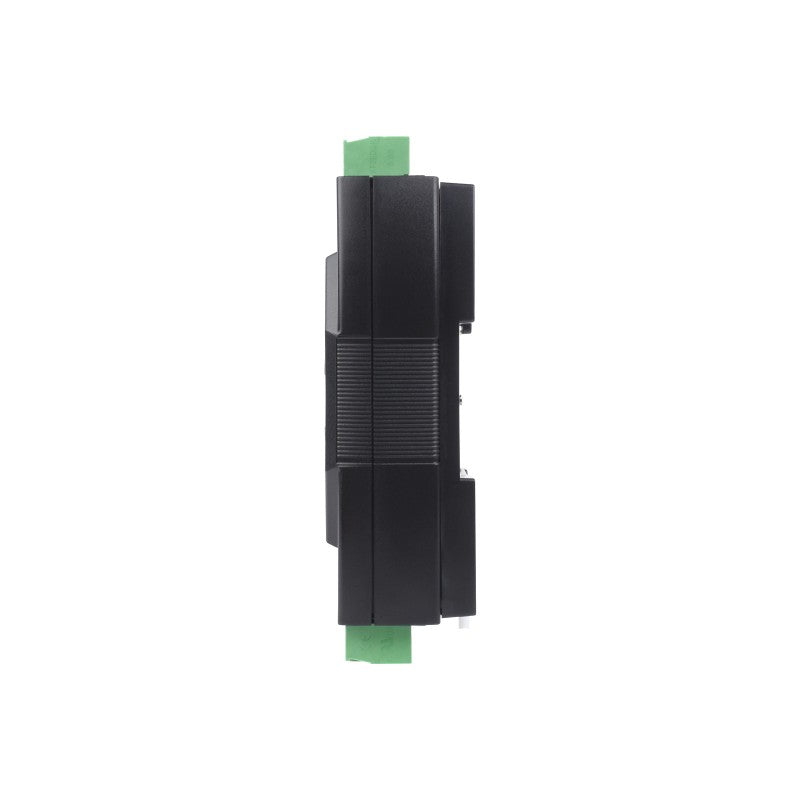

Supports Stacking Installation
