Waveshare Jetson Orin Nano/NX Carrier Board
JETSON ORIN Carrier Board
Waveshare Jetson Orin Nano/NX Development Board
Based on Jetson Orin Nano and Jetson Orin NX module, provides almost the same peripheral interfaces, size and thickness as the Jetson Orin Nano Developer Kit (Official Orin Nano kit), which is suitable for users to develop their applications and apply into various AI projects.
Connect To CSI Camera
2× 4-Lane CSI Camera Ports For AI Applications Such As Face Recognition, Road Sign Recognition And License Plate Recognition
* Note: the adapter cable is required for connecting the camera.
5× USB Ports
4× Tyep-A + 1× Tyep-C Supports Connecting To More Peripherals, USB 3.2 Gen 2 Ports For Data Transmission Up To 10Gbps, And The Type-C Port Can Be Used For System Burning
4K High Definition Output
Supports DP High-Definition Port
Color-Coded 40PIN GPIO Header
Color-Coded Header Pins To Differentiate IO Resources Such As I2C, SPI, I2S, UART, GPIO, Etc.
Flexible Storage And Wireless Expansion

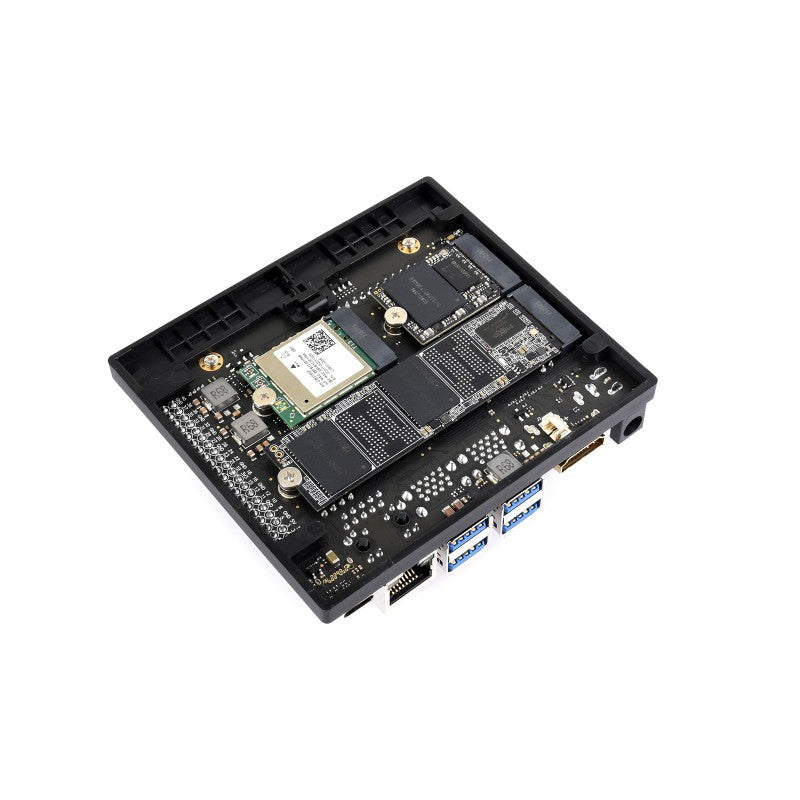

Onboard 2× M.2 Key M Ports For Easy Connecting Solid State Drives And 1× M.2 Key E Interface For Connecting Wireless NIC, Which Can Reduce Cable Connection * for reference only, the Solid State Drive and wireless network card are NOT included.

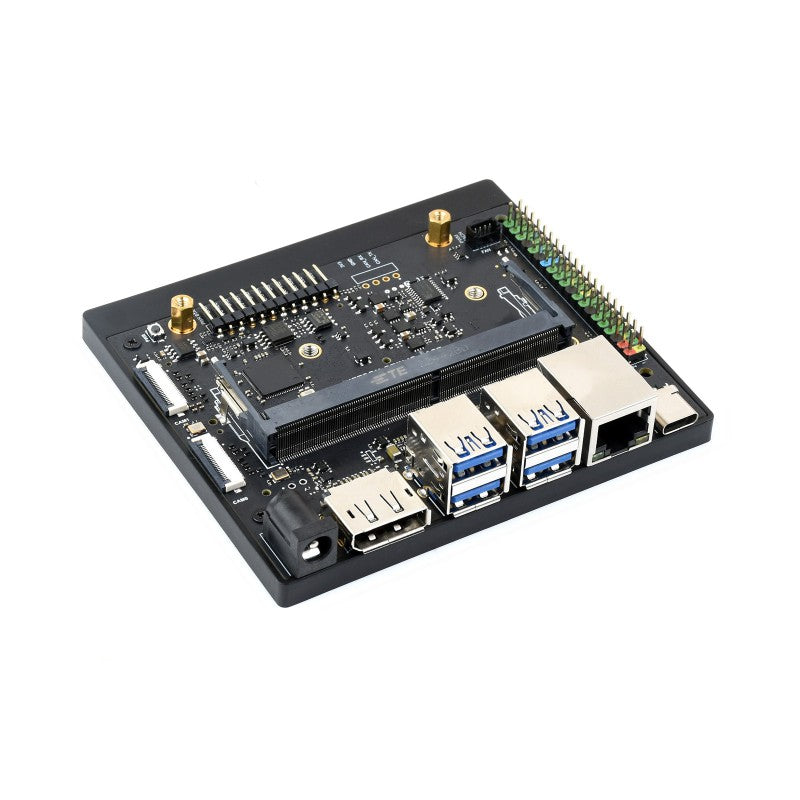

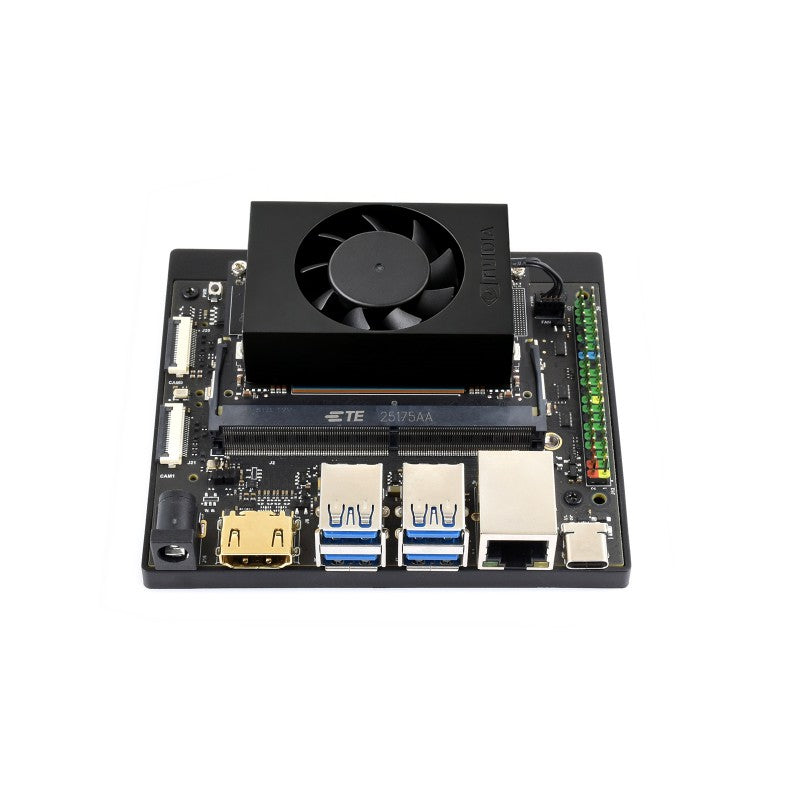

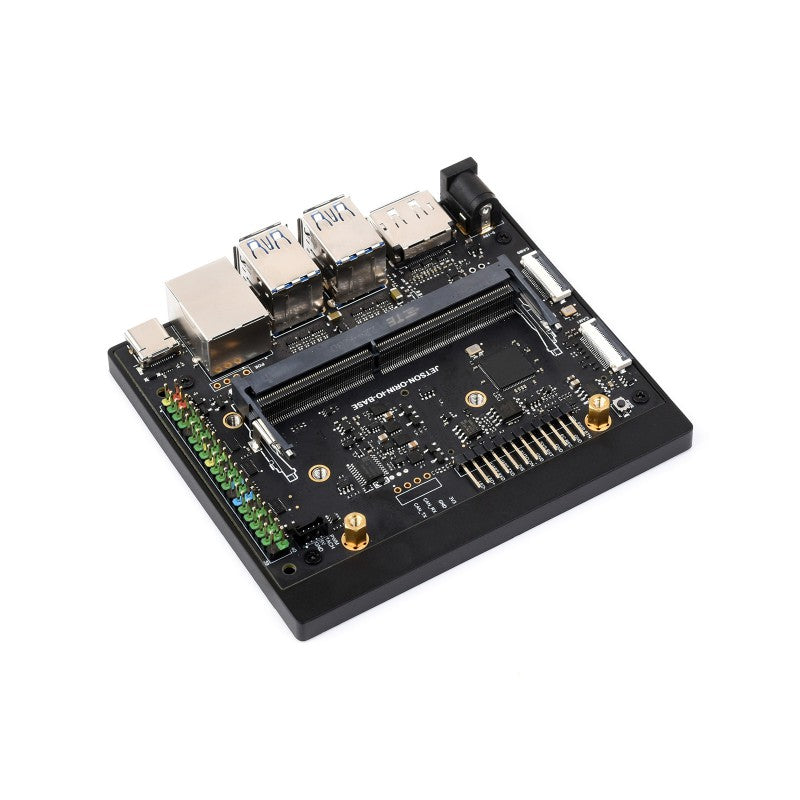

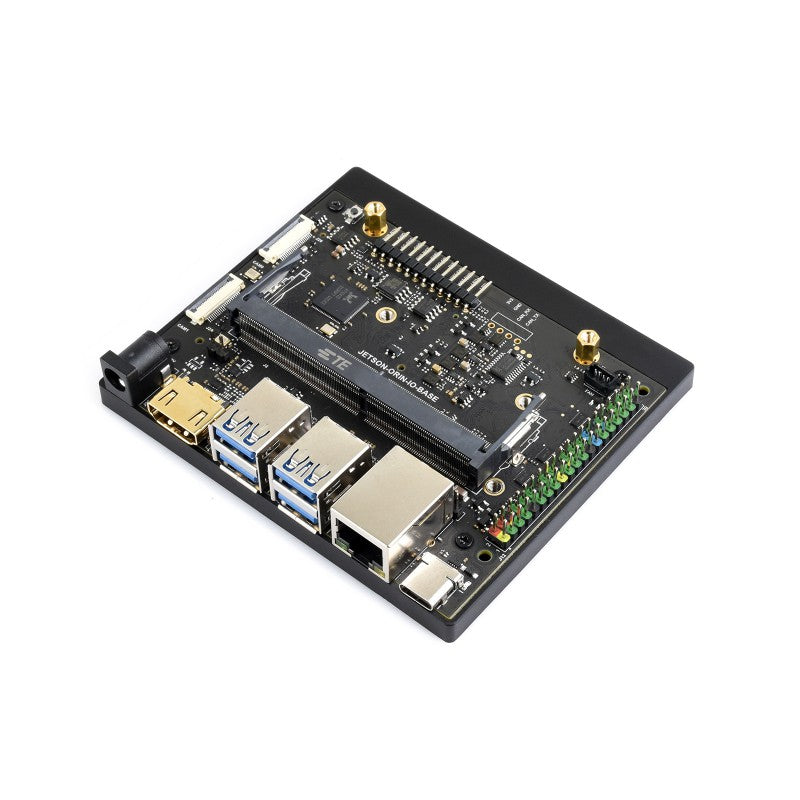

Onboard Resources
260PIN DO-DIMM socket
12PIN header
Power button 2× 22PIN CSI camera connectors
DC Power jack
DisplayPort connector
4× USB 3.2 Gen2 Type A ports
RJ45 Gigabit Ethernet port
USB Type-C Interface
40PIN header 4PIN PWM fan header
M.2 Key E

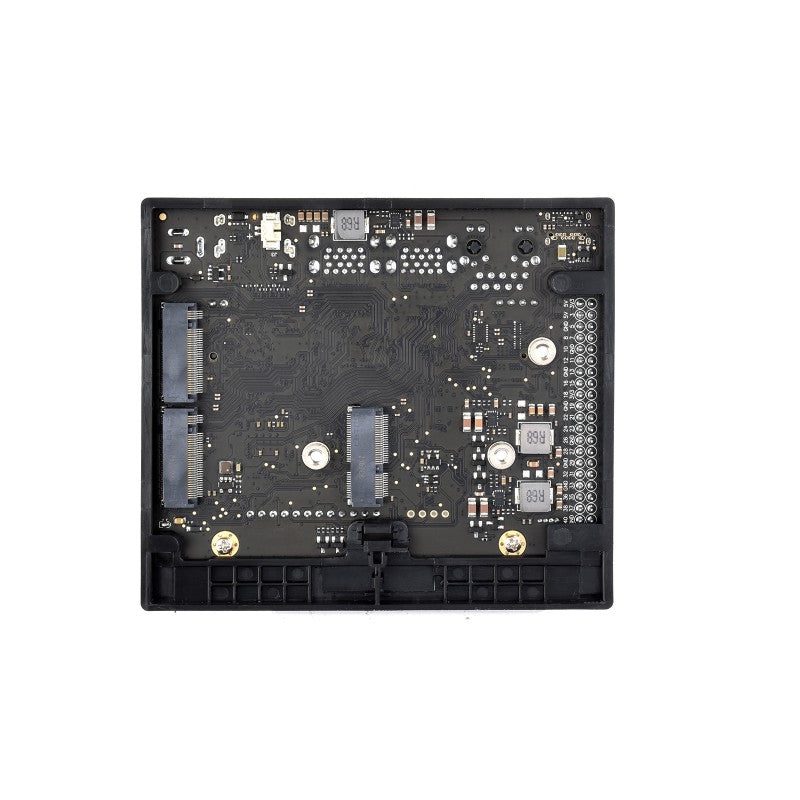

2x M.2 Key M
RTC backup battery header
Outline Dimensions
