Name: Industrial Isolated Multi-Bus Converter, USB / RS232 / RS485 / TTL Communication
Brand: Waveshare
SKU: ELC3071
Price: 1999.99 INR
Availability: InStock

{"id":9601788248381,"title":"Industrial Isolated Multi-Bus Converter, USB \/ RS232 \/ RS485 \/ TTL Communication","handle":"industrial-isolated-multi-bus-converter","description":"\u003cdiv style=\"text-align: center;\" class=\"pdT\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch1 style=\"text-align: center;\" class=\"richTitle\" data-mce-style=\"text-align: center;\"\u003eIndustrial Isolated Multi-bus converter\u003c\/h1\u003e\n\u003ch3 style=\"text-align: center;\" class=\"hilitBlock2\" data-mce-style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(194, 0, 1);\" data-mce-style=\"color: rgb(194, 0, 1);\"\u003eCommunication between different buses\u003c\/span\u003e\u003c\/h3\u003e\n\u003cspan\u003e \u003c\/span\u003e\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-1.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-1.jpg\" data-mce-style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: left;\" class=\"richTitle\" data-mce-style=\"text-align: left;\"\u003eFeatures\u003c\/h2\u003e\n\u003cdiv class=\"alignl subBlock mgnTB pdTRBL2\"\u003e\n\u003cp style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003eThe\u003cspan\u003e \u003c\/span\u003e\u003cstrong\u003eUSB\/RS232\/RS485\/TTL Converter\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003eis an industrial grade isolated converter that supports\u003cspan\u003e \u003c\/span\u003e\u003cstrong\u003eUSB \/ RS232 \/ TTL\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003eto\u003cspan\u003e \u003c\/span\u003e\u003cstrong\u003eRS232 \/ 485 \/ TTL\u003c\/strong\u003e, with built-in power supply isolation, digital isolation, and protection circuits like TVS diode. It is easy to use and suitable for industrial control equipments and\/or applications with high communication requirement.\u003c\/p\u003e\n\u003cul\u003e\n\u003cli style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003eAdopts original FT232RL for USB communication, fast communicating, stable and reliable, better compatibility\u003c\/li\u003e\n\u003cli style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003eOnboard over-voltage, over-current protection circuits (there's no protection between the two power supplies of the host terminal)\u003c\/li\u003e\n\u003cli style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003eOnboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal\u003c\/li\u003e\n\u003cli style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003eOnboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption\u003c\/li\u003e\n\u003cli style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003eOnboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof \u0026amp; anti-electrostatic\u003c\/li\u003e\n\u003cli style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003eOnboard resettable fuse and protection diodes, ensures the current\/voltage stable outputs, provides over-current\/over-voltage proof, improves shock proof performance\u003c\/li\u003e\n\u003cli style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003eOnboard TTL serial port 3.3V and 5V voltage level switch, allows the user to select TTL level of the Group B terminal\u003c\/li\u003e\n\u003cli style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003eAluminium alloy enclosure with oxidation dull-polish surface, solid and durable\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003e \u003c\/p\u003e\n\u003c\/div\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-3.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-3.jpg\" data-mce-style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003eSpecifications\u003c\/h2\u003e\n\u003ctable style=\"width: 70%;\" data-mce-style=\"width: 70%;\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth\u003eProduct Type\u003c\/th\u003e\n\u003ctd colspan=\"3\"\u003eIndustrial Isolated Multi-bus USB\/RS232\/RS485\/TTL Converter\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eData Rate\u003c\/th\u003e\n\u003ctd colspan=\"3\"\u003e300 ~ 921600bps\u003cbr\u003e300 ~ 600000bps (RS232 to RS232)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth rowspan=\"10\"\u003eGroup A\u003c\/th\u003e\n\u003ctd rowspan=\"3\"\u003eUSB\u003c\/td\u003e\n\u003ctd\u003eOperating voltage\u003c\/td\u003e\n\u003ctd\u003e5V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConnector\u003c\/td\u003e\n\u003ctd\u003eUSB-B\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eProtection\u003c\/td\u003e\n\u003ctd\u003e200mA resettable fuse, isolated output\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"3\"\u003eRS232\u003c\/td\u003e\n\u003ctd\u003eConnector\u003c\/td\u003e\n\u003ctd\u003eDB9 male\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eProtection\u003c\/td\u003e\n\u003ctd\u003eTVS protection, surge-suppress, ESD protection\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eTransmission mode\u003c\/td\u003e\n\u003ctd\u003epoint-to-point\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"4\"\u003eTTL (UART)\u003c\/td\u003e\n\u003ctd\u003eOperating voltage\u003c\/td\u003e\n\u003ctd\u003e5V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConnector\u003c\/td\u003e\n\u003ctd\u003escrew terminal\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePinout\u003c\/td\u003e\n\u003ctd\u003eTXD, RXD, GND, 5V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eProtection\u003c\/td\u003e\n\u003ctd\u003eclamping protection diode, over-voltage protection, reverse-proof, shock-proof, jamproof\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth rowspan=\"12\"\u003eGroup B\u003c\/th\u003e\n\u003ctd rowspan=\"5\"\u003eRS485\u003c\/td\u003e\n\u003ctd\u003eConnector\u003c\/td\u003e\n\u003ctd\u003escrew terminal\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePinout\u003c\/td\u003e\n\u003ctd\u003eA+, B-, GND\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDirection control\u003c\/td\u003e\n\u003ctd\u003ehardware auto control\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eProtection\u003c\/td\u003e\n\u003ctd\u003elightningproof, surge-suppress, ESD protection\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eTransmission mode\u003c\/td\u003e\n\u003ctd\u003epoint-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"3\"\u003eRS232\u003c\/td\u003e\n\u003ctd\u003eConnector\u003c\/td\u003e\n\u003ctd\u003eDB9 male\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eProtection\u003c\/td\u003e\n\u003ctd\u003eTVS protection, surge-suppress, ESD protection\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eTransmission mode\u003c\/td\u003e\n\u003ctd\u003epoint-to-point\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"4\"\u003eTTL (UART)\u003c\/td\u003e\n\u003ctd\u003eOperating voltage\u003c\/td\u003e\n\u003ctd\u003e3.3\/5V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConnector\u003c\/td\u003e\n\u003ctd\u003escrew terminal\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePinout\u003c\/td\u003e\n\u003ctd\u003eTXD, RXD, GND\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eProtection\u003c\/td\u003e\n\u003ctd\u003eclamping protection diode, over-voltage protection, reverse-proof, shock-proof, jamproof\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth rowspan=\"2\"\u003eOperating environment\u003c\/th\u003e\n\u003ctd\u003eTemperature\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003e-25℃ ~ 85℃\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eHumidity\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003e5%RH ~ 95%RH\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eOS support\u003c\/th\u003e\n\u003ctd colspan=\"3\"\u003eWindows 11 \/ 10 \/ 8.1 \/ 8 \/ 7 \/ XP\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"note\"\u003e\n\u003cth\u003eNote\u003c\/th\u003e\n\u003ctd colspan=\"3\"\u003e\n\u003cp\u003eonly one pair of devices will be matched for a complete communication between the Group A and Group B terminals at the same time\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" class=\"pdT\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-style=\"text-align: center;\"\u003eInterface introduction\u003c\/h2\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-7.jpg\" data-mce-style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-7.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-style=\"text-align: center;\"\u003eMulti-protocol Multi-bus conversion\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\" class=\"hilitBlock2\" data-mce-style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\" data-mce-style=\"color: rgb(194, 0, 0);\"\u003eTransmitting data from Group A terminals to Group B\u003c\/span\u003e\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-5-1.gif\" data-mce-style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-5-1.gif\"\u003e\u003cspan\u003e \u003c\/span\u003e\u003cspan style=\"color: rgb(194, 0, 0);\" data-mce-style=\"color: rgb(194, 0, 0);\"\u003e \u003c\/span\u003e\n\u003cp class=\"hilitBlock2\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\" data-mce-style=\"color: rgb(194, 0, 0);\"\u003eTransmitting data from Group B terminals to Group A\u003c\/span\u003e\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-5-2.gif\" data-mce-style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-5-2.gif\"\u003e\n\u003cdiv class=\"msg msg_info\"\u003e\n\u003cul\u003e\n\u003cli style=\"text-align: left;\"\u003eTerminals in the same group cannot communicate with each other.\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003eTerminals in the same group cannot send data at the same time, while concurrently receiving is allowed.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\" style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003ePinout definition\u003c\/h2\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-10.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-10.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eOperating Status Indicators\u003c\/h2\u003e\n\u003ch4 class=\"richDesc\" style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(194, 0, 1);\"\u003e3x LED indicators for easily checking power connection \u003cbr\u003eand signal TX\/RX statuses\u003c\/span\u003e\u003c\/h4\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-11.gif\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-11.gif\"\u003e\u003cspan\u003e \u003c\/span\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-11.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-11.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eAluminium Alloy Enclosure\u003c\/h2\u003e\n\u003cp class=\"richDesc\" style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003eAluminium alloy enclosure with oxidation dull-polish surface,\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003esolid and durable, nice looking\u003c\/span\u003e\u003c\/p\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-13.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-13.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eOutline dimensions\u003c\/h2\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-size.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-size.jpg\"\u003e\n\u003c\/div\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: left;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: left;\"\u003eResources\u003c\/h2\u003e\n\u003cp\u003e\u003cstrong\u003eWiki:\u003cspan\u003e \u003c\/span\u003e\u003c\/strong\u003e\u003ca href=\"http:\/\/www.waveshare.com\/wiki\/Multibus_Converter\" data-mce-href=\"http:\/\/www.waveshare.com\/wiki\/Multibus_Converter\" target=\"_blank\"\u003eUSB\/RS232\/RS485\/TTL_Converter\u003c\/a\u003e\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2\u003ePackage Contains:\u003c\/h2\u003e\n\u003cp\u003e\u003cstrong\u003eWeight:\u003cspan\u003e \u003c\/span\u003e\u003c\/strong\u003e\u003cspan\u003e0.245 kg\u003c\/span\u003e\u003c\/p\u003e\n\u003cdiv class=\"std\"\u003e\n\u003col\u003e\n\u003cli\u003eMultibus Converter x1\u003c\/li\u003e\n\u003cli\u003eUSB cable (~1.2m) x1\u003c\/li\u003e\n\u003c\/ol\u003e\n\u003cdiv class=\"imgTextWrap\"\u003e\n\u003cdiv\u003e1\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-1_220.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-1_220.jpg\"\u003e2\u003ca href=\"https:\/\/www.waveshare.com\/img\/devkit\/accessories\/USB-Type-B-Cable.jpg\" data-mce-href=\"https:\/\/www.waveshare.com\/img\/devkit\/accessories\/USB-Type-B-Cable.jpg\" target=\"_blank\"\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accessories\/USB-Type-B-Cable_93.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accessories\/USB-Type-B-Cable_93.jpg\"\u003e\u003c\/a\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e","published_at":"2024-08-13T06:58:42+05:30","created_at":"2024-08-13T06:55:56+05:30","vendor":"Waveshare","type":"","tags":["21411","AVR","DEV-KITS","ELC3","I2C","Industrial","Isolated","JTAG","Multi-Bus","PRGMR","Programmer","RS232","RS485","SAM","SAMD","TTL","UART","USB","USB TO UART\/I2C\/SPI\/JTAG","WaveSH","Waveshare","WVSH"],"price":199999,"price_min":199999,"price_max":199999,"available":true,"price_varies":false,"compare_at_price":259999,"compare_at_price_min":259999,"compare_at_price_max":259999,"compare_at_price_varies":false,"variants":[{"id":49232423747901,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"ELC3071","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Industrial Isolated Multi-Bus Converter, USB \/ RS232 \/ RS485 \/ TTL Communication","public_title":null,"options":["Default Title"],"price":199999,"weight":300,"compare_at_price":259999,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/thinkrobotics.com\/cdn\/shop\/files\/multibus-converter-1_1.jpg?v=1723512502","\/\/thinkrobotics.com\/cdn\/shop\/files\/multibus-converter-7_1.jpg?v=1723512502","\/\/thinkrobotics.com\/cdn\/shop\/files\/multibus-converter-4_1.jpg?v=1723512502","\/\/thinkrobotics.com\/cdn\/shop\/files\/multibus-converter-3_1.jpg?v=1723512502","\/\/thinkrobotics.com\/cdn\/shop\/files\/multibus-converter-5_1.jpg?v=1723512502","\/\/thinkrobotics.com\/cdn\/shop\/files\/multibus-converter-6.jpg?v=1723512502","\/\/thinkrobotics.com\/cdn\/shop\/files\/multibus-converter-2_1.jpg?v=1723512502"],"featured_image":"\/\/thinkrobotics.com\/cdn\/shop\/files\/multibus-converter-1_1.jpg?v=1723512502","options":["Title"],"media":[{"alt":null,"id":39981668696381,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/multibus-converter-1_1.jpg?v=1723512502"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/multibus-converter-1_1.jpg?v=1723512502","width":800},{"alt":null,"id":39981668761917,"position":2,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/multibus-converter-7_1.jpg?v=1723512502"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/multibus-converter-7_1.jpg?v=1723512502","width":800},{"alt":null,"id":39981668860221,"position":3,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/multibus-converter-4_1.jpg?v=1723512502"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/multibus-converter-4_1.jpg?v=1723512502","width":800},{"alt":null,"id":39981668892989,"position":4,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/multibus-converter-3_1.jpg?v=1723512502"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/multibus-converter-3_1.jpg?v=1723512502","width":800},{"alt":null,"id":39981668827453,"position":5,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/multibus-converter-5_1.jpg?v=1723512502"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/multibus-converter-5_1.jpg?v=1723512502","width":800},{"alt":null,"id":39981668794685,"position":6,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/multibus-converter-6.jpg?v=1723512502"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/multibus-converter-6.jpg?v=1723512502","width":800},{"alt":null,"id":39981668925757,"position":7,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/multibus-converter-2_1.jpg?v=1723512502"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/multibus-converter-2_1.jpg?v=1723512502","width":800}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cdiv style=\"text-align: center;\" class=\"pdT\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch1 style=\"text-align: center;\" class=\"richTitle\" data-mce-style=\"text-align: center;\"\u003eIndustrial Isolated Multi-bus converter\u003c\/h1\u003e\n\u003ch3 style=\"text-align: center;\" class=\"hilitBlock2\" data-mce-style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(194, 0, 1);\" data-mce-style=\"color: rgb(194, 0, 1);\"\u003eCommunication between different buses\u003c\/span\u003e\u003c\/h3\u003e\n\u003cspan\u003e \u003c\/span\u003e\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-1.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-1.jpg\" data-mce-style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: left;\" class=\"richTitle\" data-mce-style=\"text-align: left;\"\u003eFeatures\u003c\/h2\u003e\n\u003cdiv class=\"alignl subBlock mgnTB pdTRBL2\"\u003e\n\u003cp style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003eThe\u003cspan\u003e \u003c\/span\u003e\u003cstrong\u003eUSB\/RS232\/RS485\/TTL Converter\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003eis an industrial grade isolated converter that supports\u003cspan\u003e \u003c\/span\u003e\u003cstrong\u003eUSB \/ RS232 \/ TTL\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003eto\u003cspan\u003e \u003c\/span\u003e\u003cstrong\u003eRS232 \/ 485 \/ TTL\u003c\/strong\u003e, with built-in power supply isolation, digital isolation, and protection circuits like TVS diode. It is easy to use and suitable for industrial control equipments and\/or applications with high communication requirement.\u003c\/p\u003e\n\u003cul\u003e\n\u003cli style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003eAdopts original FT232RL for USB communication, fast communicating, stable and reliable, better compatibility\u003c\/li\u003e\n\u003cli style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003eOnboard over-voltage, over-current protection circuits (there's no protection between the two power supplies of the host terminal)\u003c\/li\u003e\n\u003cli style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003eOnboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal\u003c\/li\u003e\n\u003cli style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003eOnboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption\u003c\/li\u003e\n\u003cli style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003eOnboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof \u0026amp; anti-electrostatic\u003c\/li\u003e\n\u003cli style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003eOnboard resettable fuse and protection diodes, ensures the current\/voltage stable outputs, provides over-current\/over-voltage proof, improves shock proof performance\u003c\/li\u003e\n\u003cli style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003eOnboard TTL serial port 3.3V and 5V voltage level switch, allows the user to select TTL level of the Group B terminal\u003c\/li\u003e\n\u003cli style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003eAluminium alloy enclosure with oxidation dull-polish surface, solid and durable\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003e \u003c\/p\u003e\n\u003c\/div\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-3.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-3.jpg\" data-mce-style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003eSpecifications\u003c\/h2\u003e\n\u003ctable style=\"width: 70%;\" data-mce-style=\"width: 70%;\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth\u003eProduct Type\u003c\/th\u003e\n\u003ctd colspan=\"3\"\u003eIndustrial Isolated Multi-bus USB\/RS232\/RS485\/TTL Converter\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eData Rate\u003c\/th\u003e\n\u003ctd colspan=\"3\"\u003e300 ~ 921600bps\u003cbr\u003e300 ~ 600000bps (RS232 to RS232)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth rowspan=\"10\"\u003eGroup A\u003c\/th\u003e\n\u003ctd rowspan=\"3\"\u003eUSB\u003c\/td\u003e\n\u003ctd\u003eOperating voltage\u003c\/td\u003e\n\u003ctd\u003e5V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConnector\u003c\/td\u003e\n\u003ctd\u003eUSB-B\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eProtection\u003c\/td\u003e\n\u003ctd\u003e200mA resettable fuse, isolated output\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"3\"\u003eRS232\u003c\/td\u003e\n\u003ctd\u003eConnector\u003c\/td\u003e\n\u003ctd\u003eDB9 male\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eProtection\u003c\/td\u003e\n\u003ctd\u003eTVS protection, surge-suppress, ESD protection\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eTransmission mode\u003c\/td\u003e\n\u003ctd\u003epoint-to-point\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"4\"\u003eTTL (UART)\u003c\/td\u003e\n\u003ctd\u003eOperating voltage\u003c\/td\u003e\n\u003ctd\u003e5V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConnector\u003c\/td\u003e\n\u003ctd\u003escrew terminal\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePinout\u003c\/td\u003e\n\u003ctd\u003eTXD, RXD, GND, 5V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eProtection\u003c\/td\u003e\n\u003ctd\u003eclamping protection diode, over-voltage protection, reverse-proof, shock-proof, jamproof\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth rowspan=\"12\"\u003eGroup B\u003c\/th\u003e\n\u003ctd rowspan=\"5\"\u003eRS485\u003c\/td\u003e\n\u003ctd\u003eConnector\u003c\/td\u003e\n\u003ctd\u003escrew terminal\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePinout\u003c\/td\u003e\n\u003ctd\u003eA+, B-, GND\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDirection control\u003c\/td\u003e\n\u003ctd\u003ehardware auto control\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eProtection\u003c\/td\u003e\n\u003ctd\u003elightningproof, surge-suppress, ESD protection\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eTransmission mode\u003c\/td\u003e\n\u003ctd\u003epoint-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"3\"\u003eRS232\u003c\/td\u003e\n\u003ctd\u003eConnector\u003c\/td\u003e\n\u003ctd\u003eDB9 male\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eProtection\u003c\/td\u003e\n\u003ctd\u003eTVS protection, surge-suppress, ESD protection\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eTransmission mode\u003c\/td\u003e\n\u003ctd\u003epoint-to-point\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"4\"\u003eTTL (UART)\u003c\/td\u003e\n\u003ctd\u003eOperating voltage\u003c\/td\u003e\n\u003ctd\u003e3.3\/5V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConnector\u003c\/td\u003e\n\u003ctd\u003escrew terminal\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePinout\u003c\/td\u003e\n\u003ctd\u003eTXD, RXD, GND\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eProtection\u003c\/td\u003e\n\u003ctd\u003eclamping protection diode, over-voltage protection, reverse-proof, shock-proof, jamproof\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth rowspan=\"2\"\u003eOperating environment\u003c\/th\u003e\n\u003ctd\u003eTemperature\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003e-25℃ ~ 85℃\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eHumidity\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003e5%RH ~ 95%RH\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eOS support\u003c\/th\u003e\n\u003ctd colspan=\"3\"\u003eWindows 11 \/ 10 \/ 8.1 \/ 8 \/ 7 \/ XP\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr class=\"note\"\u003e\n\u003cth\u003eNote\u003c\/th\u003e\n\u003ctd colspan=\"3\"\u003e\n\u003cp\u003eonly one pair of devices will be matched for a complete communication between the Group A and Group B terminals at the same time\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" class=\"pdT\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-style=\"text-align: center;\"\u003eInterface introduction\u003c\/h2\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-7.jpg\" data-mce-style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-7.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-style=\"text-align: center;\"\u003eMulti-protocol Multi-bus conversion\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\" class=\"hilitBlock2\" data-mce-style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\" data-mce-style=\"color: rgb(194, 0, 0);\"\u003eTransmitting data from Group A terminals to Group B\u003c\/span\u003e\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-5-1.gif\" data-mce-style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-5-1.gif\"\u003e\u003cspan\u003e \u003c\/span\u003e\u003cspan style=\"color: rgb(194, 0, 0);\" data-mce-style=\"color: rgb(194, 0, 0);\"\u003e \u003c\/span\u003e\n\u003cp class=\"hilitBlock2\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\" data-mce-style=\"color: rgb(194, 0, 0);\"\u003eTransmitting data from Group B terminals to Group A\u003c\/span\u003e\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-5-2.gif\" data-mce-style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-5-2.gif\"\u003e\n\u003cdiv class=\"msg msg_info\"\u003e\n\u003cul\u003e\n\u003cli style=\"text-align: left;\"\u003eTerminals in the same group cannot communicate with each other.\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003eTerminals in the same group cannot send data at the same time, while concurrently receiving is allowed.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\" style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003ePinout definition\u003c\/h2\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-10.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-10.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eOperating Status Indicators\u003c\/h2\u003e\n\u003ch4 class=\"richDesc\" style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(194, 0, 1);\"\u003e3x LED indicators for easily checking power connection \u003cbr\u003eand signal TX\/RX statuses\u003c\/span\u003e\u003c\/h4\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-11.gif\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-11.gif\"\u003e\u003cspan\u003e \u003c\/span\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-11.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-11.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eAluminium Alloy Enclosure\u003c\/h2\u003e\n\u003cp class=\"richDesc\" style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003eAluminium alloy enclosure with oxidation dull-polish surface,\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003esolid and durable, nice looking\u003c\/span\u003e\u003c\/p\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-13.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-13.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eOutline dimensions\u003c\/h2\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-size.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-details-size.jpg\"\u003e\n\u003c\/div\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: left;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: left;\"\u003eResources\u003c\/h2\u003e\n\u003cp\u003e\u003cstrong\u003eWiki:\u003cspan\u003e \u003c\/span\u003e\u003c\/strong\u003e\u003ca href=\"http:\/\/www.waveshare.com\/wiki\/Multibus_Converter\" data-mce-href=\"http:\/\/www.waveshare.com\/wiki\/Multibus_Converter\" target=\"_blank\"\u003eUSB\/RS232\/RS485\/TTL_Converter\u003c\/a\u003e\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2\u003ePackage Contains:\u003c\/h2\u003e\n\u003cp\u003e\u003cstrong\u003eWeight:\u003cspan\u003e \u003c\/span\u003e\u003c\/strong\u003e\u003cspan\u003e0.245 kg\u003c\/span\u003e\u003c\/p\u003e\n\u003cdiv class=\"std\"\u003e\n\u003col\u003e\n\u003cli\u003eMultibus Converter x1\u003c\/li\u003e\n\u003cli\u003eUSB cable (~1.2m) x1\u003c\/li\u003e\n\u003c\/ol\u003e\n\u003cdiv class=\"imgTextWrap\"\u003e\n\u003cdiv\u003e1\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-1_220.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/Multibus-Converter\/Multibus-Converter-1_220.jpg\"\u003e2\u003ca href=\"https:\/\/www.waveshare.com\/img\/devkit\/accessories\/USB-Type-B-Cable.jpg\" data-mce-href=\"https:\/\/www.waveshare.com\/img\/devkit\/accessories\/USB-Type-B-Cable.jpg\" target=\"_blank\"\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accessories\/USB-Type-B-Cable_93.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accessories\/USB-Type-B-Cable_93.jpg\"\u003e\u003c\/a\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e"}

Industrial Isolated Multi-Bus Converter, USB / RS232 / RS485 / TTL Communication

Industrial Isolated Multi-bus converter

Communication between different buses

Features

Specifications

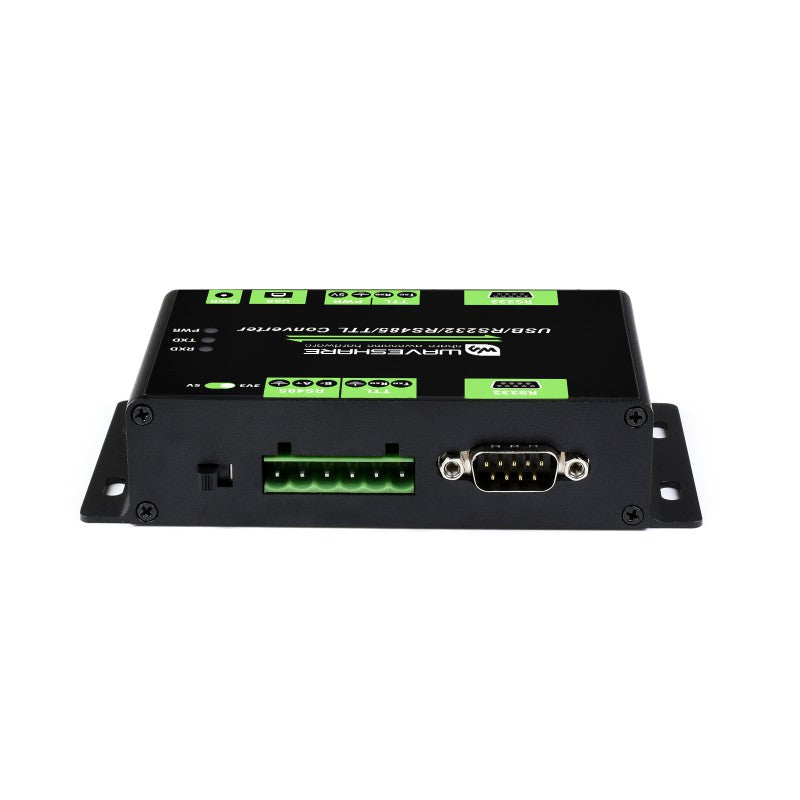

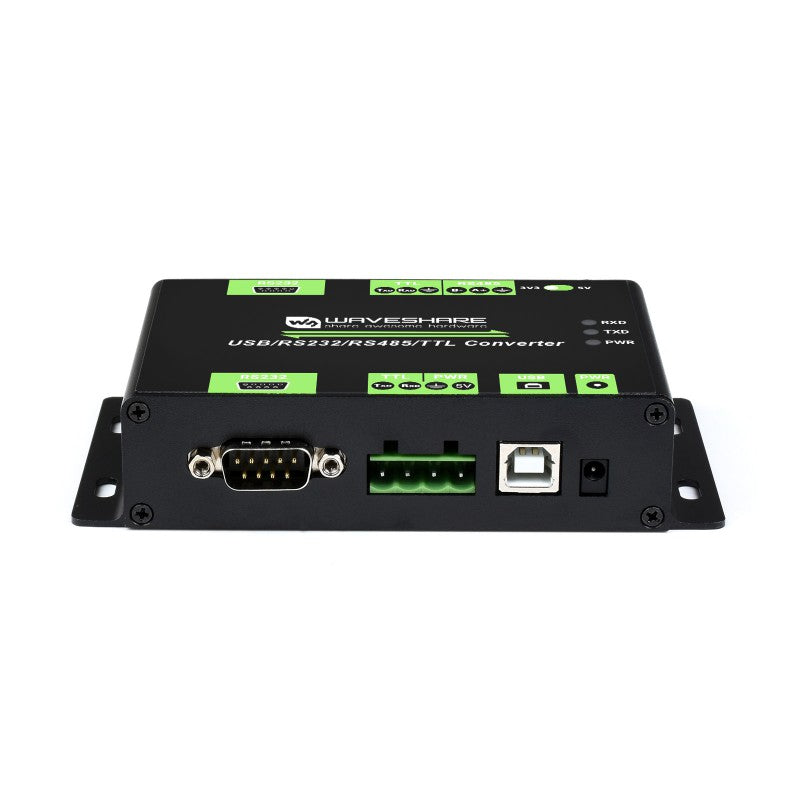

Interface introduction

Multi-protocol Multi-bus conversion

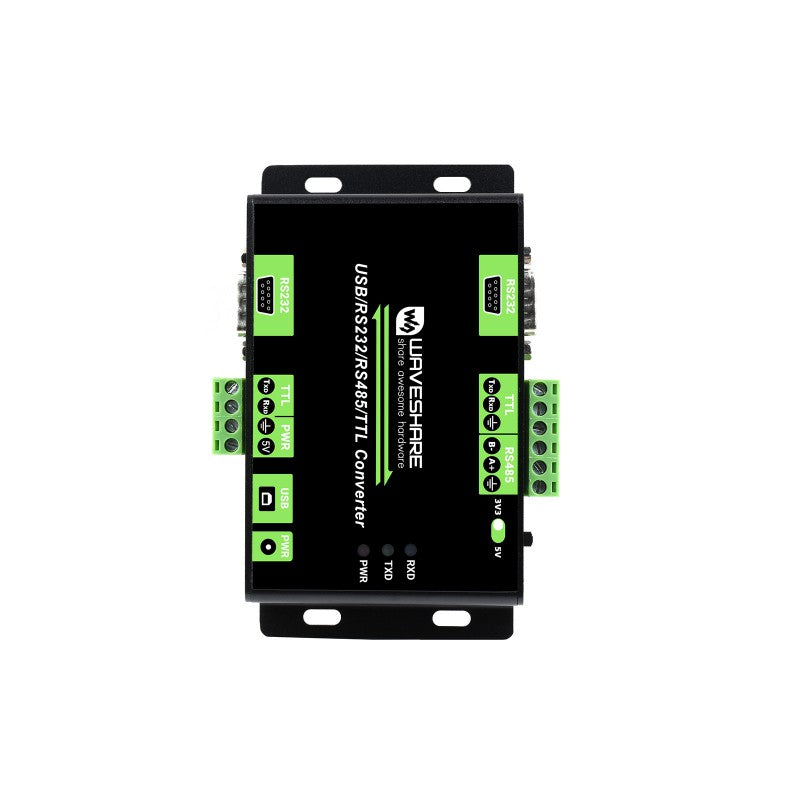

Pinout definition

Operating Status Indicators

3x LED indicators for easily checking power connection
and signal TX/RX statuses

Aluminium Alloy Enclosure

Outline dimensions

Resources

Package Contains:

Want to buy in bulk?

Customer Reviews

Custom Requirements?

Download the ThinkRobotics Mobile App

We are here to serve you! Reach us at:

Popular Links

Shopping Cart

Let customers speak for us

Product Type	Industrial Isolated Multi-bus USB/RS232/RS485/TTL Converter
Data Rate	300 ~ 921600bps 300 ~ 600000bps (RS232 to RS232)
Group A	USB	Operating voltage	5V
		Connector	USB-B
		Protection	200mA resettable fuse, isolated output
	RS232	Connector	DB9 male
		Protection	TVS protection, surge-suppress, ESD protection
		Transmission mode	point-to-point
	TTL (UART)	Operating voltage	5V
		Connector	screw terminal
		Pinout	TXD, RXD, GND, 5V
		Protection	clamping protection diode, over-voltage protection, reverse-proof, shock-proof, jamproof
Group B	RS485	Connector	screw terminal
		Pinout	A+, B-, GND
		Direction control	hardware auto control
		Protection	lightningproof, surge-suppress, ESD protection
		Transmission mode	point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
	RS232	Connector	DB9 male
		Protection	TVS protection, surge-suppress, ESD protection
		Transmission mode	point-to-point
	TTL (UART)	Operating voltage	3.3/5V
		Connector	screw terminal
		Pinout	TXD, RXD, GND
		Protection	clamping protection diode, over-voltage protection, reverse-proof, shock-proof, jamproof
Operating environment	Temperature	-25℃ ~ 85℃
Operating environment	Humidity	5%RH ~ 95%RH
OS support	Windows 11 / 10 / 8.1 / 8 / 7 / XP
Note	only one pair of devices will be matched for a complete communication between the Group A and Group B terminals at the same time
