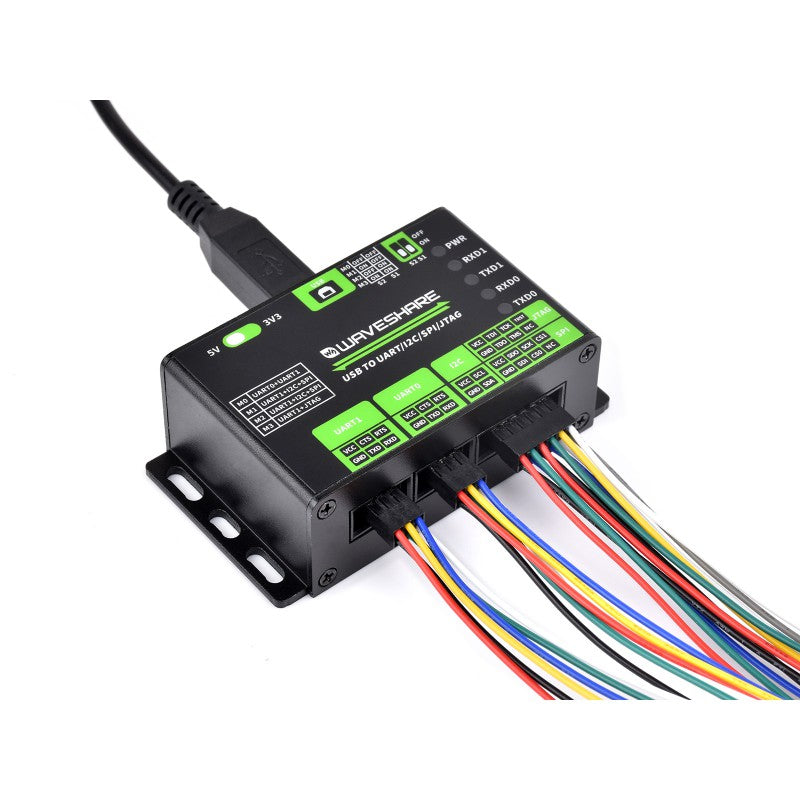

Supports multiple interfaces | Compatible with 3.3V and 5V
Features
Supports USB to 2-ch UART, or USB to 1-ch UART + 1-ch I2C + 1-ch SPI, or USB to 1-ch UART + 1-ch JTAG
Supports 2-ch high-speed UART interfaces, up to 9Mbps baud rate, with CTS and RTS hardware automatic flow control
Supports 1-ch I2C interface, for easy operating EEPROM through the host computer or programming I2C devices such as OLED and sensor
Supports 1-ch SPI interface, with 2x chip select signal pins, capable of controlling 2-ch SPI slave devices at different times
Supports 1-ch JTAG interface, can be used with OpenOCD for debugging and testing (Due to the limited testing of chips and software functions, users need to evaluate and test this function on their own)
Onboard 3.3V and 5V level conversion circuit for switching the operating level of the communication interface, better compatibility
Onboard resettable fuse and ESD protection circuit, provides over-current/over-voltage proof, safe and stable communication

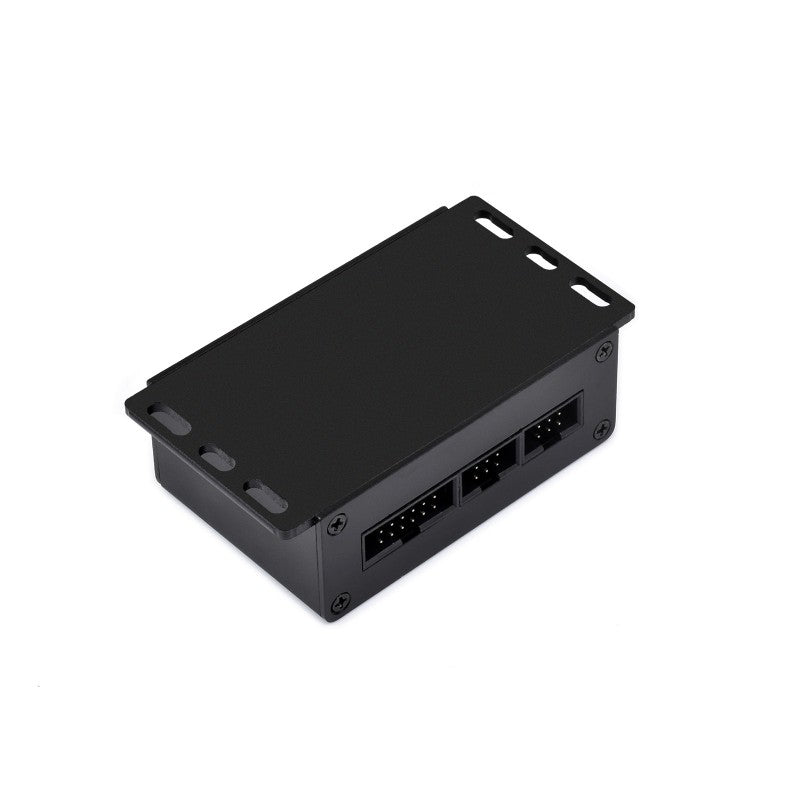

Aluminium alloy case with oxidation dull-polish surface, CNC process opening, solid and durable, well-crafted
High-quality USB-B and DC connectors, smooth plug & pull, durable and reliable, with anti-reverse protection
Specifications
Host interface
USB
Power Supply
USB port, 5V
Operating level
3.3V/5V (select via onboard switch)
USB
Connector
USB-B
Interface protection
Resettable fuse, ESD protection
UART
Channel
2 (the red DIP switch needs to be set to M0 mode)
Connector
6PIN IDC connector
Baud rate
1200bps～9 Mbps
Hardware flow control
CTS and RTS
I2C
Channel
1 (the red DIP switch needs to be set to M1/M2 mode)
Connector
12PIN IDC connector (the first 4 pins are I2C)
SPI
Channel
1 (the red DIP switch needs to be set to M1/M2 mode)
Connector
12PIN IDC connector (the last 8 pins are SPI)
JTAG
Channel
1 (the red DIP switch needs to be set to M3 mode)
Connector
12PIN IDC connector (the last 8 pins are JTAG)
dimensions
86.0×48.0×27.6mm
Primary Function
Easy to control and debug various interface devices via PC, Supports USB to 2-ch UART, or USB to 1-ch UART + 1-ch I2C + 1-ch SPI, or USB to 1-ch UART + 1-ch JTAG
Multi system Support
Supports Win7/8/8.1/10/11, Linux, etc.
Application Environments
Suitable for college students, technical engineers, electronic enthusiasts, or DIY makers for learning and debugging
Supports Various Interfaces Supports multiple communication debugging interfaces, most of which can be used at the same time
Small and compact, easy to install Flexible installation, suitable for various devices
Reserved screw holes Easy to mount, industrial metal case, rugged & durable

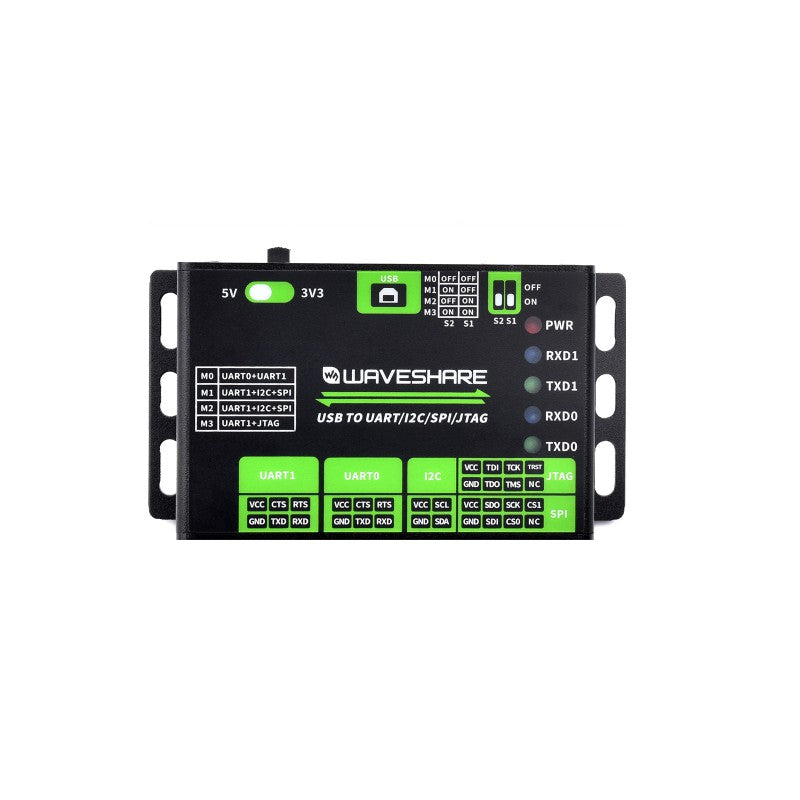

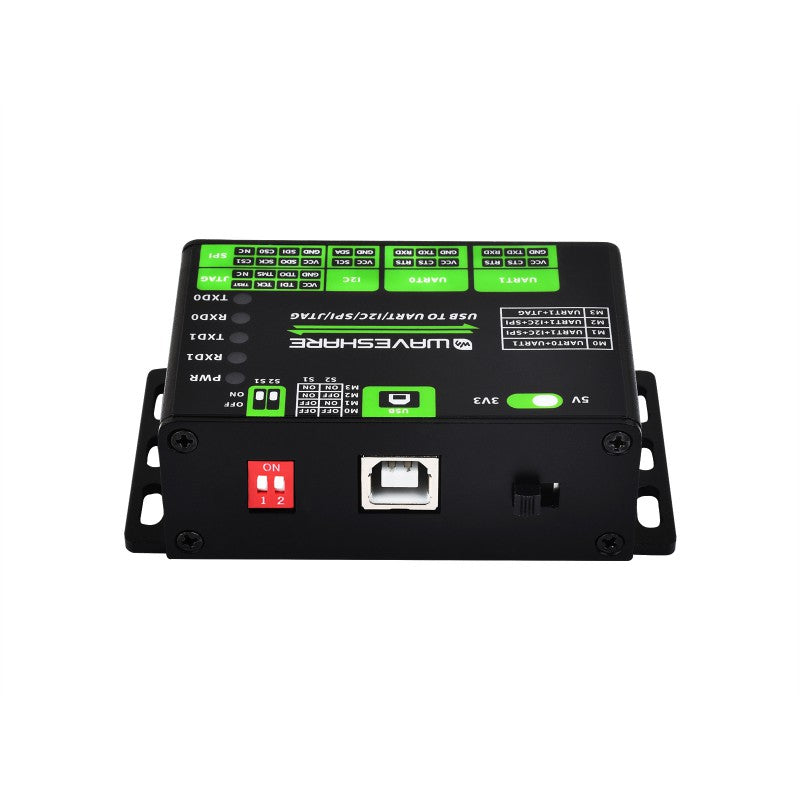

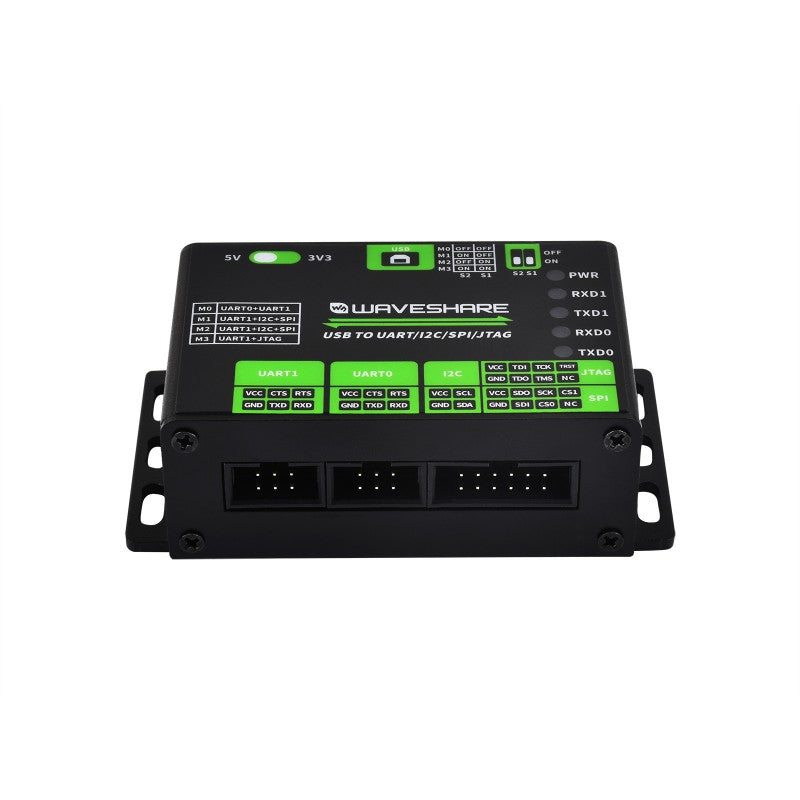

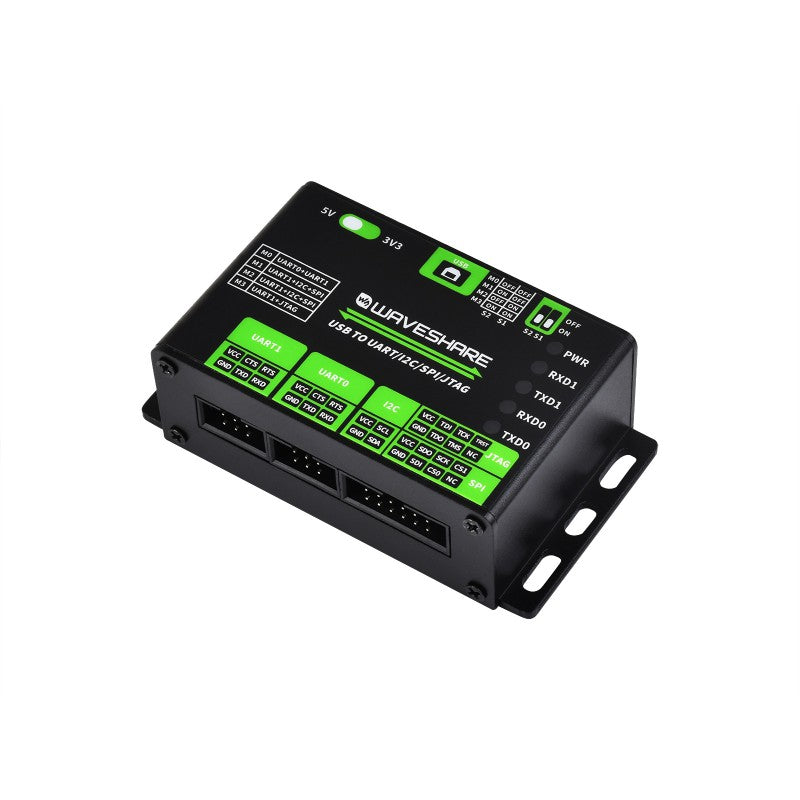

Interface and mode description

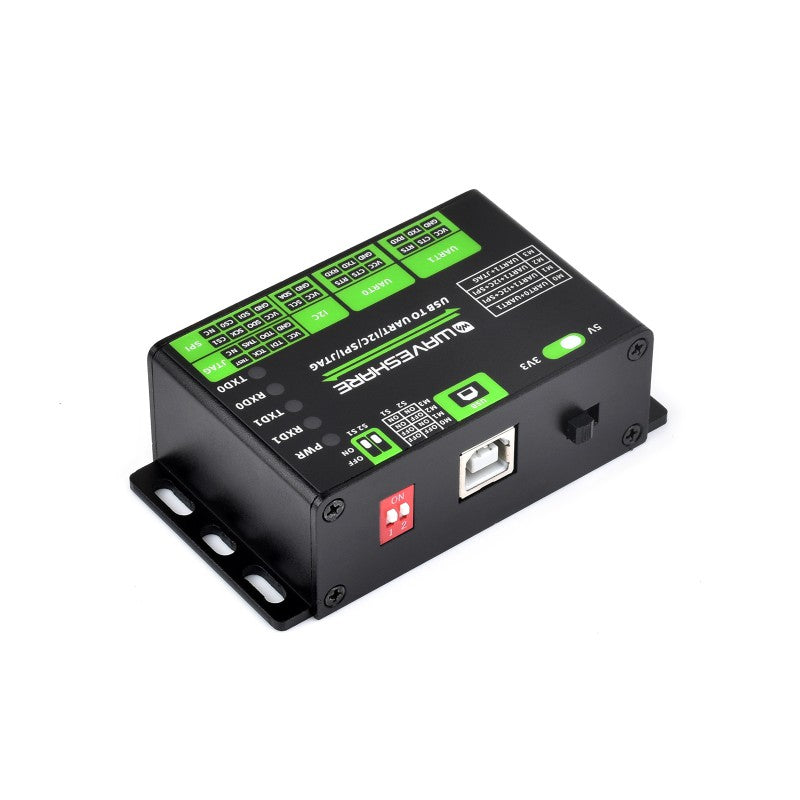

Indicator Introduction
PWR
power indicator, lights up while the USB is connected and voltage is detected
RXD1
UART1 receiving indicator, lights up when the device port sends data back
TXD1
UART1 sending indicator, lights up when the USB port sends data
RXD0
UART0 receiving indicator, lights up when the device port sends data back
TXD0
UART0 sending indicator, lights up when the USB port sends data
Outline dimensions
* The above dimensions are measured manually. there is about 1mm error.
