JetAcker is powered by NVIDIA Jetson Nano B01 and supports Robot Operating System (ROS). It leverages mainstream deep learning frameworks, incorporates MediaPipe development, enables YOLO model training, and utilizes TensorRT acceleration. This combination delivers a diverse range of 3D machine vision applications, including autonomous driving, somatosensory interaction, and KCF target tracking. Moreover, with JetAcker, you can learn and validate various robotic SLAM algorithms.
Ackerman Steering Structure Pendulum SuspensionThe rear wheels of the chassis are always in a parallel state. When turning, the inner wheel rotation angle is greater than the outer wheel rotation angle. Steering through the difference in rotation angle of the inner and outer wheels is called Ackermann steering. |
Equipped with Lidar & Supports SLAM Mapping NavigationJetAcker is equipped with lidar, which can realize SLAM mapping and navigation, and supports path planning, fixed-point navigation and dynamic obstacle avoidance. |
CNC Steering SystemFull-metal CNC high-precision components combined with strong-bearing intelligent servo provides exceptional rotational force. |
High-density Solid WheelPayload capacity, deformation resistance, reduced friction coefficient and minimized mechanical wear, resulting in an extended lifespan. |
Pendulum Suspension StructureHigh-precision pendulum suspension structure balances the force, enabling good adaptability to uneven surfaces while preventing any impact on motor. |
240° High-performance Pan-tiltIt is driven by an serial bus servo which provides over-temperature protection. Its up to 240° rotation range extends JetAcker's exploration ranges. |
Function List
3D Vision AI Upgraded Interaction
JetAcker is equipped with a 3D depth camera, supports 3D vision mapping and navigation, and can obtain 3D point cloud images. Through deep learning, it can realize more AI vision interactive gameplay.
MediaPipe Development, Upgraded AI Interaction
JetAcker utilizes MediaPipe development framework to accomplish various functions, such as human body recognition, fingertip recognition, face detection, and 3D detection.
Fingertip Trajectory Recognition |
Human Body Recognition |
3D Detection |
3D Face Detection |
AI Vision Interaction
By incorporating artificial intelligence, JetAcker can implement KCF target tracking, line following, color/ tag recognition and tracking, YOLO object recognition and more.
KCF Target TrackingRelying on KCF filtering algorithm, the robot can track the selected target. |
Vision Line FollowingJetAcker supports custom color selection, and the robot can identify color lines and follow them. |
Color/ Tag Recognition and TrackingJetAcker is able to recognize and track the designated color, and can recognize multiple April Tags and their coordinates at the same time. |
YOLO Object RecognitionUtilize YOLO network algorithm and deep learning model library to recognize the objects. |
6CH Far-field Microphone Array
This 6CH far-field microphone array is adroit at far-field sound source localization, voice recognition and voice interaction. In comparison to ordinary microphone module,it can implement more advanced functions.
Sound Source LocalizationThrough the 6-microphone array, high-precision positioning of noise reduction sources is achieved. With radar distance recognition, Hiwonder can be summoned at any location. |
TTS Voice BroadcastThe text content published by ROS can be directly converted into voice broadcast to facilitate interactive design. |
Voice InteractionSpeech recognition and TTS voice broadcast are combined to realize voice interaction and support the expansion of iFlytek's online voice conversation function. |
Voice NavigationUse voice commands to control Hiwonder to reach any designated location on the map, similar to the voice control scenario of a food delivery robot. |
ROS Robot Operating System
Global Popular Robotic Communication Framework
ROS is an open-source meta operating system for robots. It provides some basic services, such as hardware abstraction, low-level device control, implementation of commonly used functionality, message-passing between processes, and package management. And it also offers the tools and library functions needed to obtain, compile, write, and run code across computers. It aims at providing code reuse support for robotics research and development.
Gazebo Simulation
JetAcker is built on the Robot Operating System (ROS) and integrates with Gazebo simulation. This enables effortless control of the robot in a simulated environment, facilitating algorithm prevalidation to prevent potential errors. Gazebo provides visual data, allowing you to observe the motion trajectories of each endpoint and center. This visual feedback facilitates algorithm enhancement.
Body Simulation ControlThrough robot simulation control, algorithm verification of mapping navigation can be carried out to improve the iteration speed of the algorithm and reduce the cost of trial and error. |
Rviz Shows URDF ModelProvide an accurate URDF model, and observe the mapping navigation effect through the Rviz visualization tool to facilitate debugging and improving algorithms. |
Wrapped Rear Tail ShellIt can effectively protect the PCB circuit and magnetic ring at the end of the motor from external influences, effectively improving the safety and service life of the motor. |
Permanent Magnet Brushed MotorThe permanent magnet DC motor has fast starting response speed, large starting torque and smooth speed change. |
High-precision Magnetic EncoderThe motor is equipped with a high-precision magnetic encoder, has strong horsepower, high precision, and strong anti-interference ability. |
Adapt to Various ScenesThe low speed of 1:90 ratio and the high torque of 15kg.cm enable the motor to adapt to car chassis made of various materials. |
Hall Encoder Geared Motor520 motor comes with high-accuracy encoder, and features strong force and high performance. The built-in AB phase incremental Hall encoder stands out for its high accuracy and anti-interference ability. |
Ackermann WheelIt has the advantages of high load and no deformation, which prevents the tire from falling due to overweight of the vehicle body, effectively reduces the friction coefficient and mechanical loss, and extends the tire life. |
Multi-functional Expansion BoardThe expansion board has a built-in IMU sensor which can detects robot posture in real time. There are 2-channel PWM, two keys, a LED, a buzzer, 9-channel serial bus servo interface, two GPIO expansion ports and two IIC interfaces on it. |
Lithium Battery ParametersThe fuselage has a built-in 11.1V 6000mAh large-capacity lithium battery to improve the robot's endurance. |
 |
 |
 |
 |
|
|---|---|---|---|---|
| JetTank | JetAcker | JetAuto | JetAuto Pro | |
| Chassis | Tracked chassis | Ackerman steering structure | Pendulum suspension chassis | Pendulum suspension chassis |
| Wheel | Nylon track | 100mm Solid rubber wheel | 97mm Mecanum wheel | 97mm Mecanum wheel |
| Motor | 520 Motor*2 | 520 Motor*2 | 520 Motor*4 | 520 Motor*4 |
| Servo | Intelligent servo*1 | Intelligent servo*2 | Intelligent servo*1 | Intelligent servo*5 |
| Camera | Astra Pro Plus depth camera | Astra Pro Plus depth camera | Astra Pro Plus depth camera | Astra Pro Plus depth camera and monocular camera |
| Wheel | Nylon track | 100mm Solid rubber wheel | 97mm Mecanum wheel | 97mm Mecanum wheel |
| Lidar | SLAMTEC A1/ EAI G4 | |||
| Robot Arm | / | / | / | Monocular vision robotic arm |
| Features | ROS in-depth development Able to overcome obstacles | Autonomous driving research | Pendulum suspension for stable driving 360° omnidirectional movement | Grabbing and transporting |
Specification Parameters
Product Parameters |
Dimensional Diagram |
||||||||||||||||||||||||||||||
SLAMTEC A1 Lidar Parameters |
EAI G4 Lidar Parameters |
||||||||||||||||||||||||||||||
Depth Camera Parameters |
6CH Far-Field Microphone Array Parameters |
||||||||||||||||||||||||||||||
7-inch LCD Screen Parameters |
HTS-20H Servo Parameters |
Abundant Learning Materials

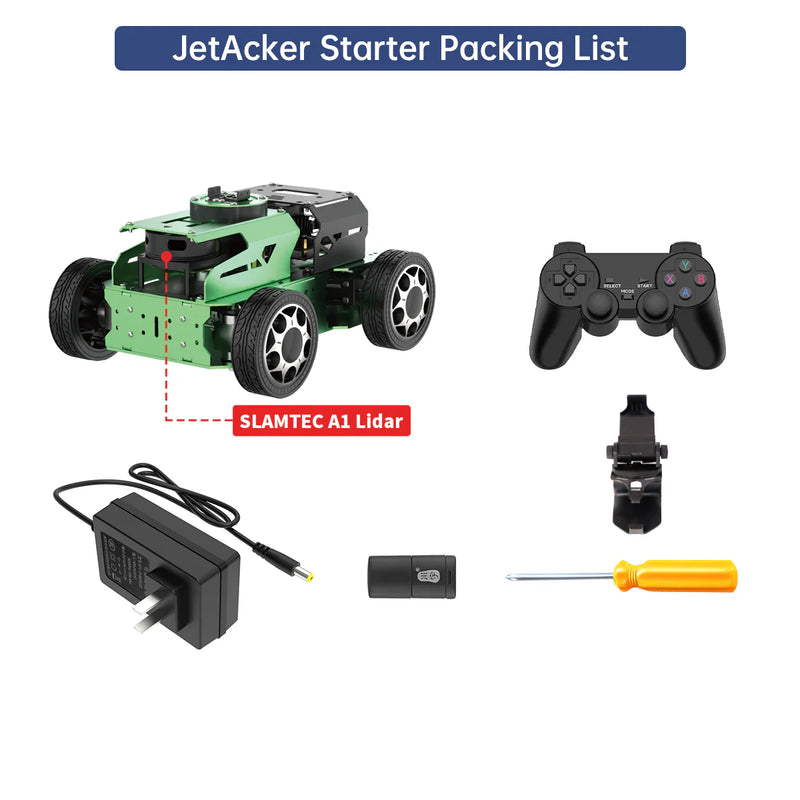

JetAcker Starter Packing List

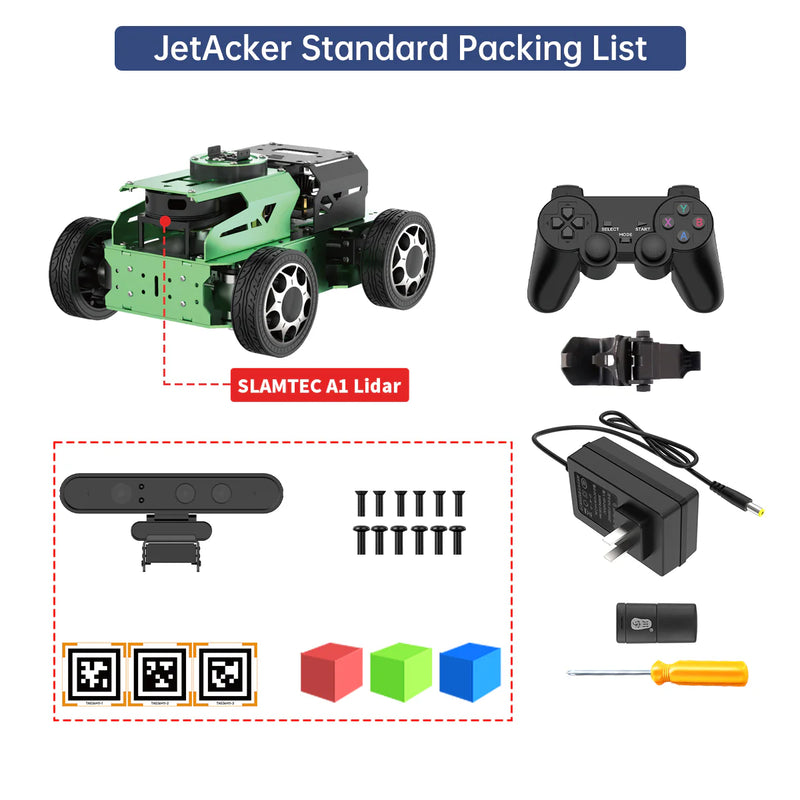

JetAcker Standard Packing List

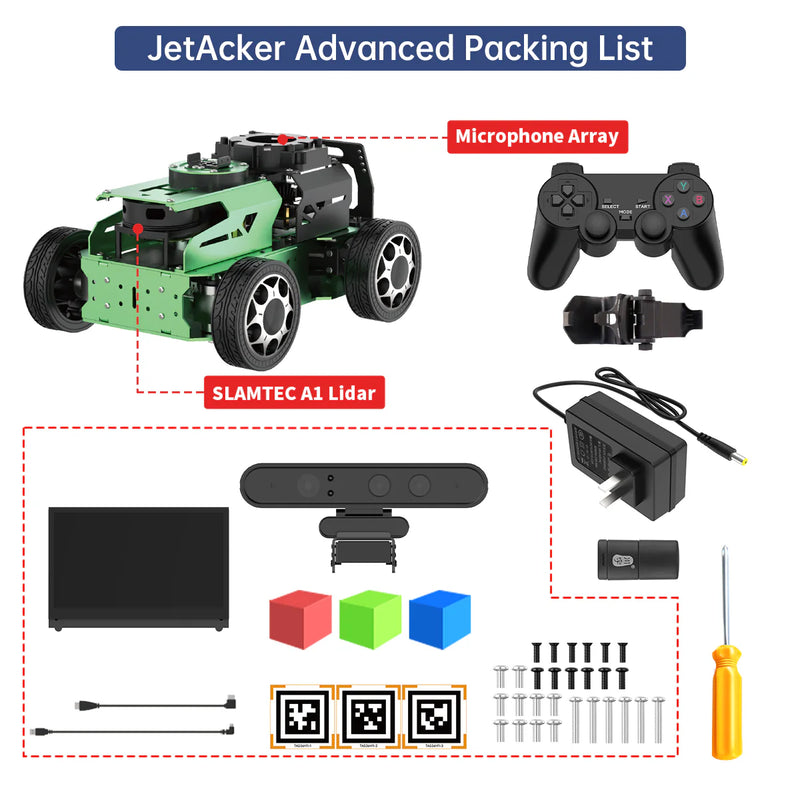

JetAcker Advanced Packing List
