RC832H / RC832 AV Wireless Receiver – 5.8GHz, 600mW, 48CH/40CH
The RC832H and RC832 are compact and high-performance 5.8GHz AV wireless receivers widely used in FPV (First-Person View) drone setups, wireless camera systems, and remote video transmission applications. Both models are built to deliver stable video reception with minimal latency and are compatible with a wide range of 5.8GHz video transmitters. However, there are distinct differences between the two models in terms of channel support, frequency compatibility, and firmware upgrades.

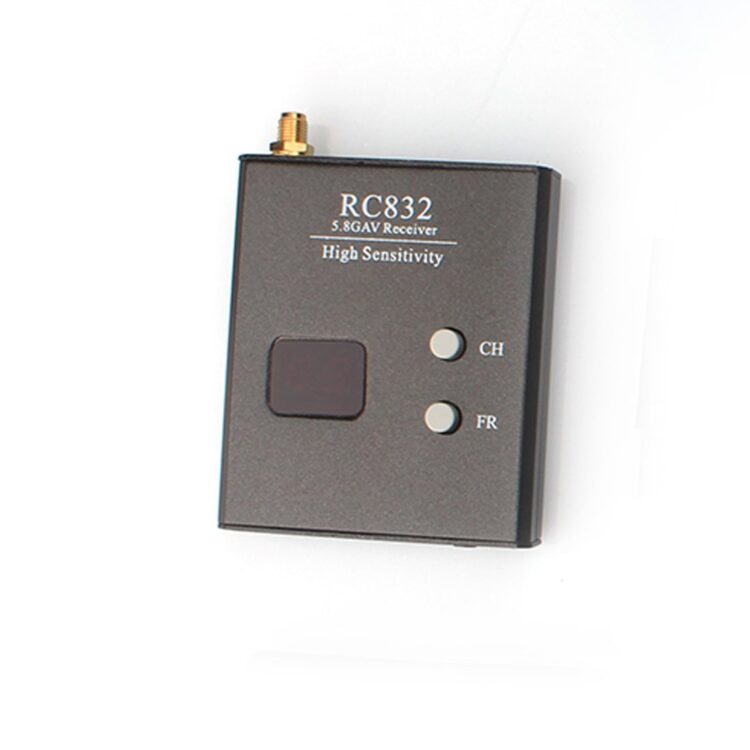

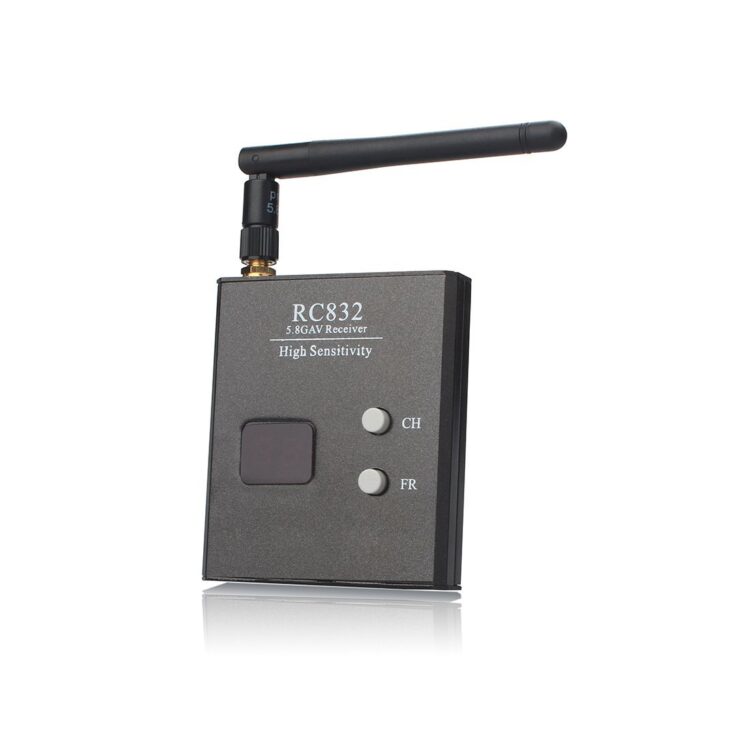

RC832 AV Receiver (40CH)
The RC832 is a robust 40-channel receiver that supports most standard 5.8GHz frequency bands, including A, B, E, and F (FatShark). It is a well-established, budget-friendly choice for many FPV users. The device features dual AV outputs, allowing you to connect a display and recording device simultaneously, making it a practical solution for many standard FPV systems.

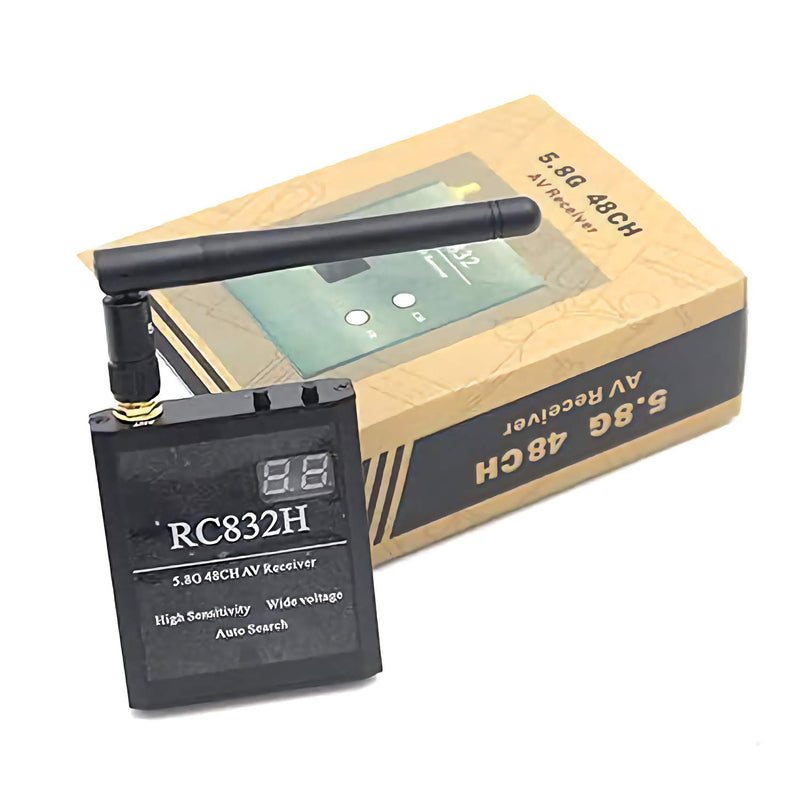

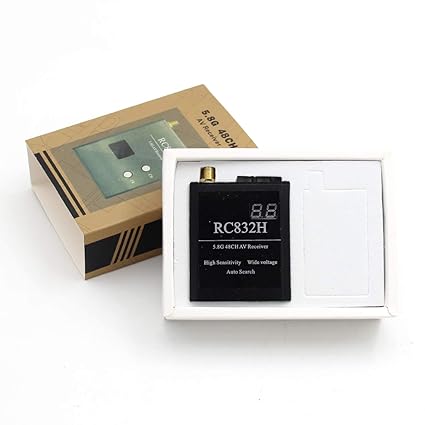

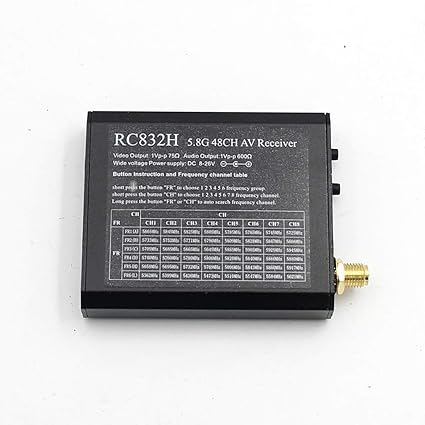

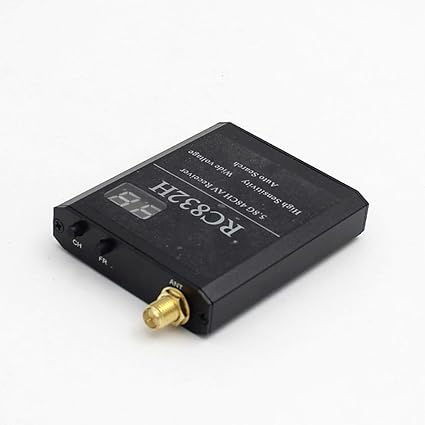

RC832H AV Receiver (48CH)
The RC832H is an upgraded version of the RC832. It expands compatibility with support for 48 channels, including the RaceBand spectrum — essential for FPV racing drones where multiple pilots fly simultaneously. It features an improved user interface with a clear digital channel display and better frequency management. The RC832H also benefits from upgraded internal components for enhanced signal clarity and noise filtering.
Key Features (Common)
| Operating Frequency: 5.8GHz ISM band |
| Transmission Power: 600mW |

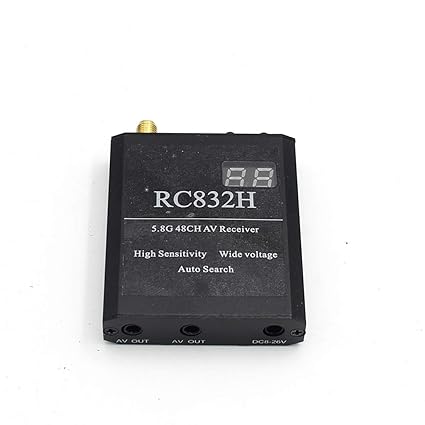

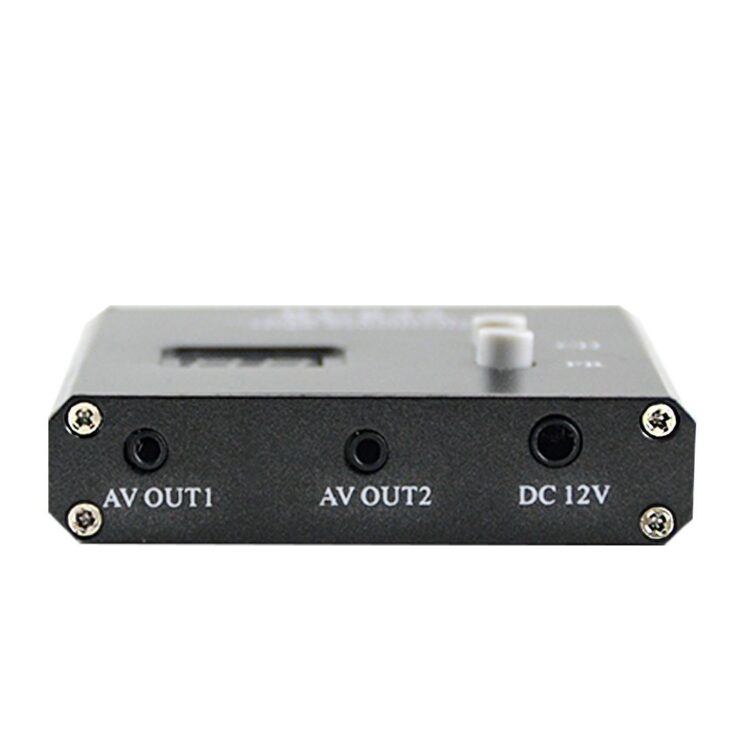

| A/V Outputs: 2x AV OUT ports (video and stereo audio) |
| Power Supply: 12V DC |
| Compact Aluminum Housing: Durable and effective for heat dissipation |
| Applications: FPV racing, drone systems, wireless CCTV, remote monitoring |
Detailed Comparison Table
| Feature | RC832 (40CH) | RC832H (48CH) |
|---|---|---|
| Supported Channels | 40 Channels | 48 Channels (includes RaceBand) |
| Frequency Bands | A, B, E, F (FatShark) | A, B, E, F, H, L + RaceBand |
| RaceBand Support | ❌ Not supported | ✅ Yes, supported |
| Display | Basic LED Channel Indicator | Digital LED Display with Band + CH |
| Channel Selection | Button-controlled | Button-controlled |
| A/V Output Ports | Dual AV Outputs | Dual AV Outputs |
| Power Input | 12V DC | 12V DC |

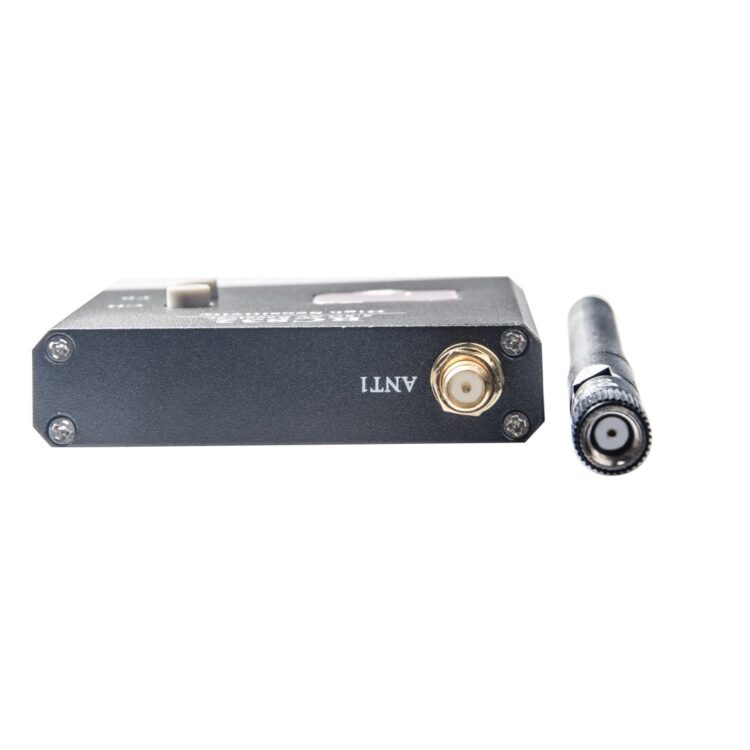

| Antenna Connector | RP-SMA Female | RP-SMA Female |
| Build Material | Aluminum Casing | Aluminum Casing |
| Dimensions | ~80mm x 65mm x 15mm | ~62mm x 52mm x 13mm |
| Weight | ~85g | ~50g |
| Application Suitability | General FPV, video transmission | FPV racing, advanced compatibility |
Choosing Between RC832 and RC832H
> Go with RC832 if you need a reliable, cost-effective AV receiver for general FPV flying or wireless AV setups without requiring RaceBand support.
> Choose RC832H if you’re into FPV racing or working in an environment where multiple video frequencies are in use — the additional 8 channels (including RaceBand) give you the flexibility to avoid interference and improve signal reliability.
Resources

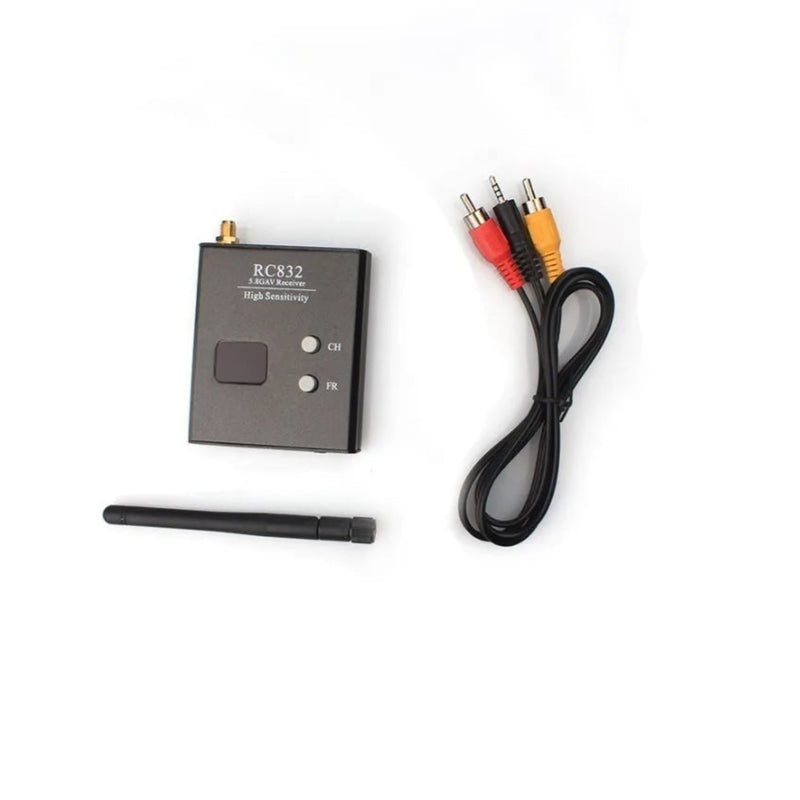

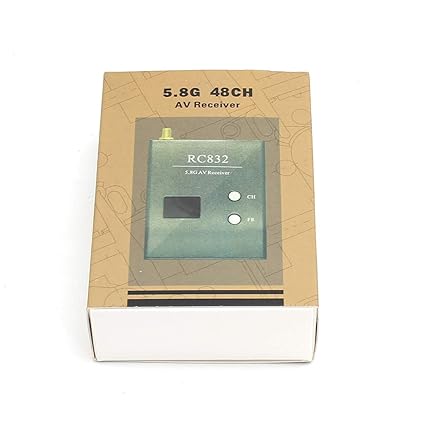

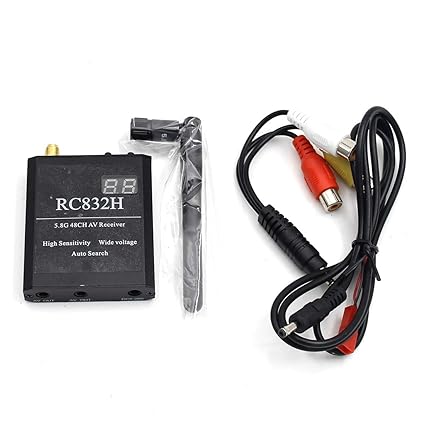

Package Contents
1x RC832 / RC832H AV Receiver
1x 5.8GHz RP-SMA Antenna
1x AV Output Cable
1x Power Cable (Only with RC832H)
