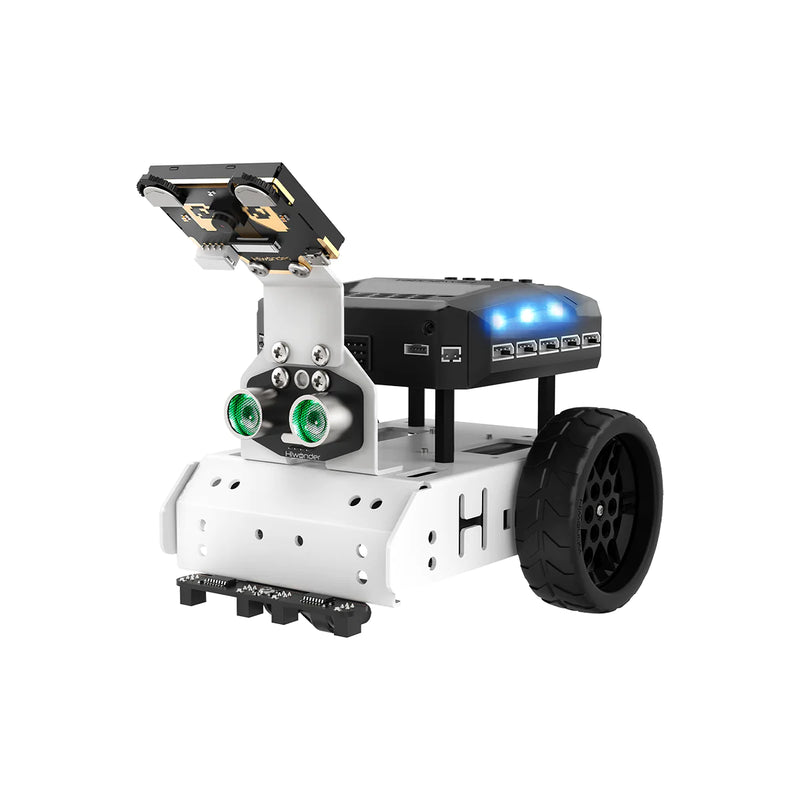

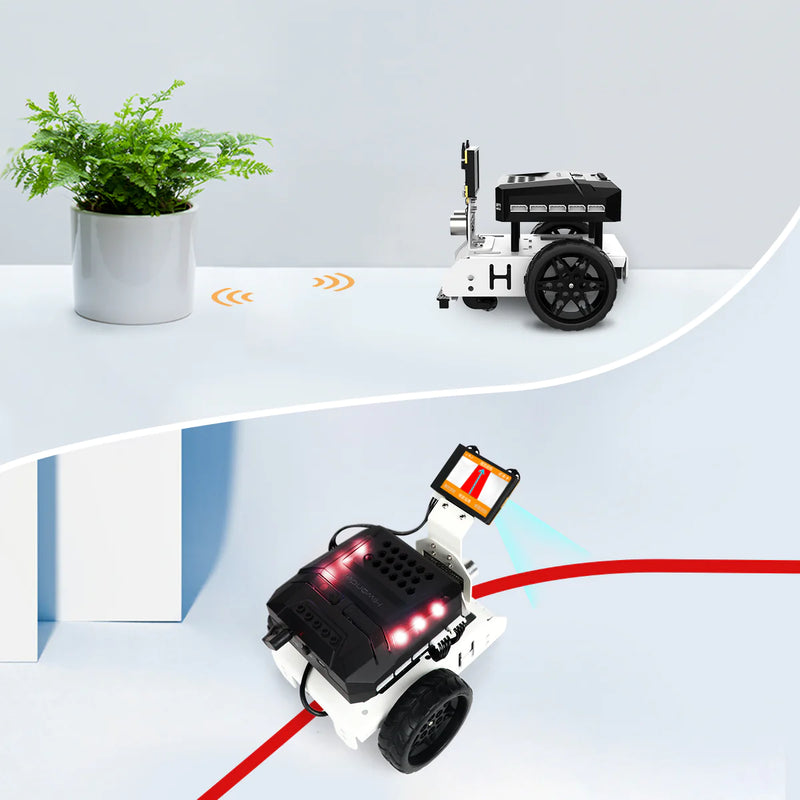

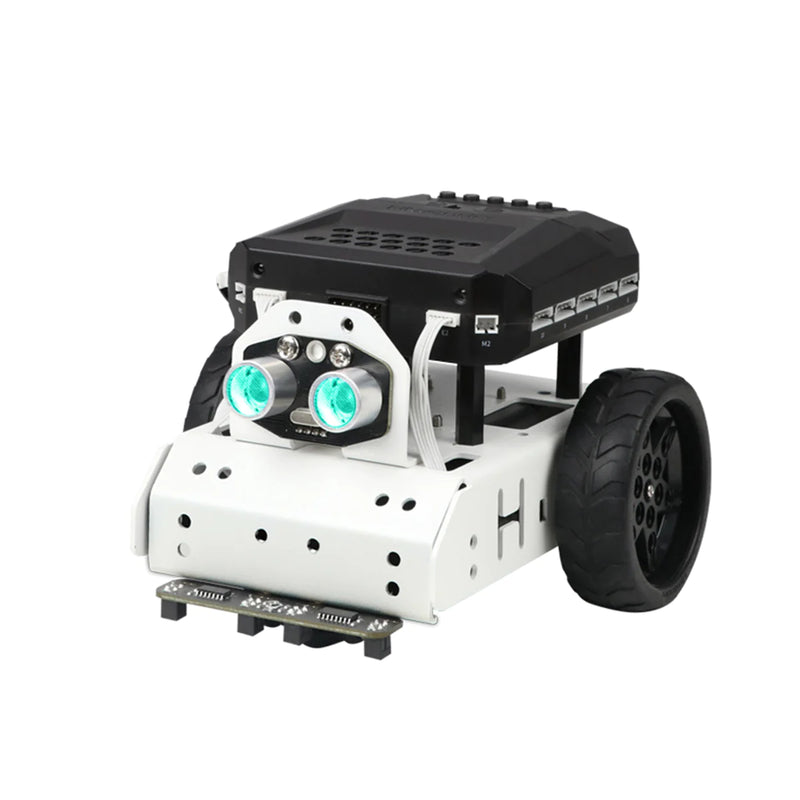

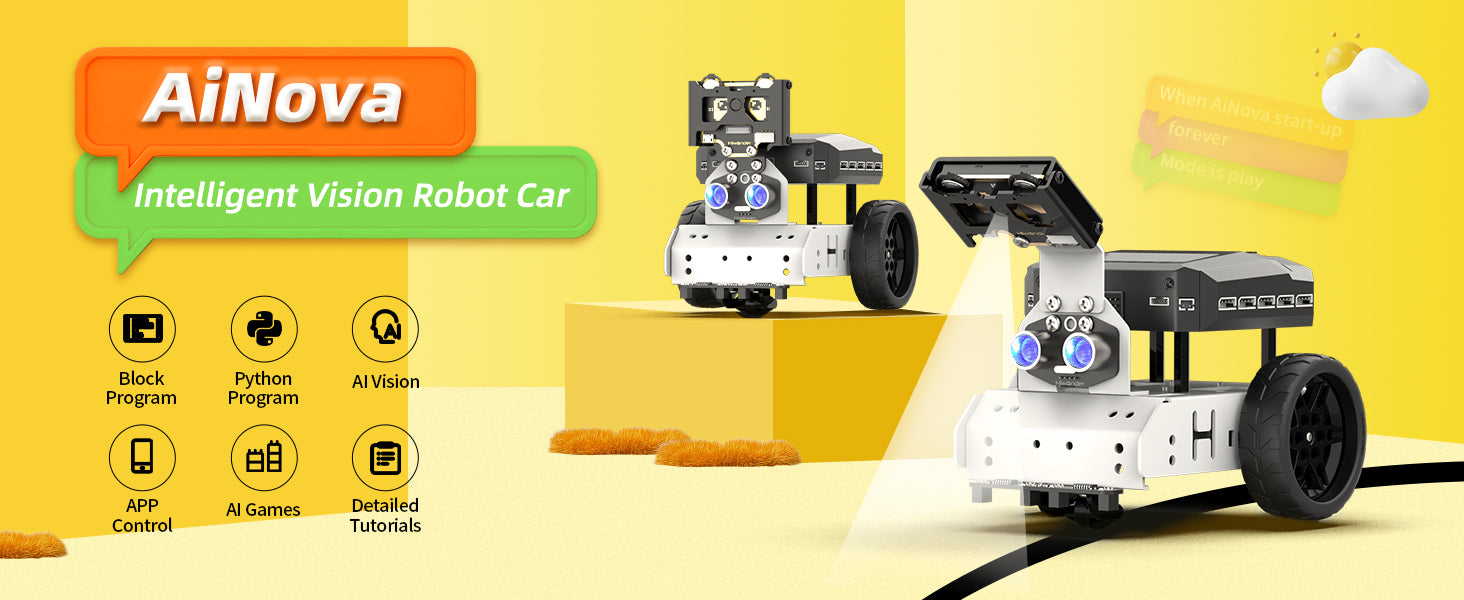

AiNova is a next-generation AI technology education robot based on graphical and Python program. Loading with CoreX controller, encoder motors, 4-channel line follower and glowing ultrasonic sensor, it can perform line follow, obstacle avoidance, etc.

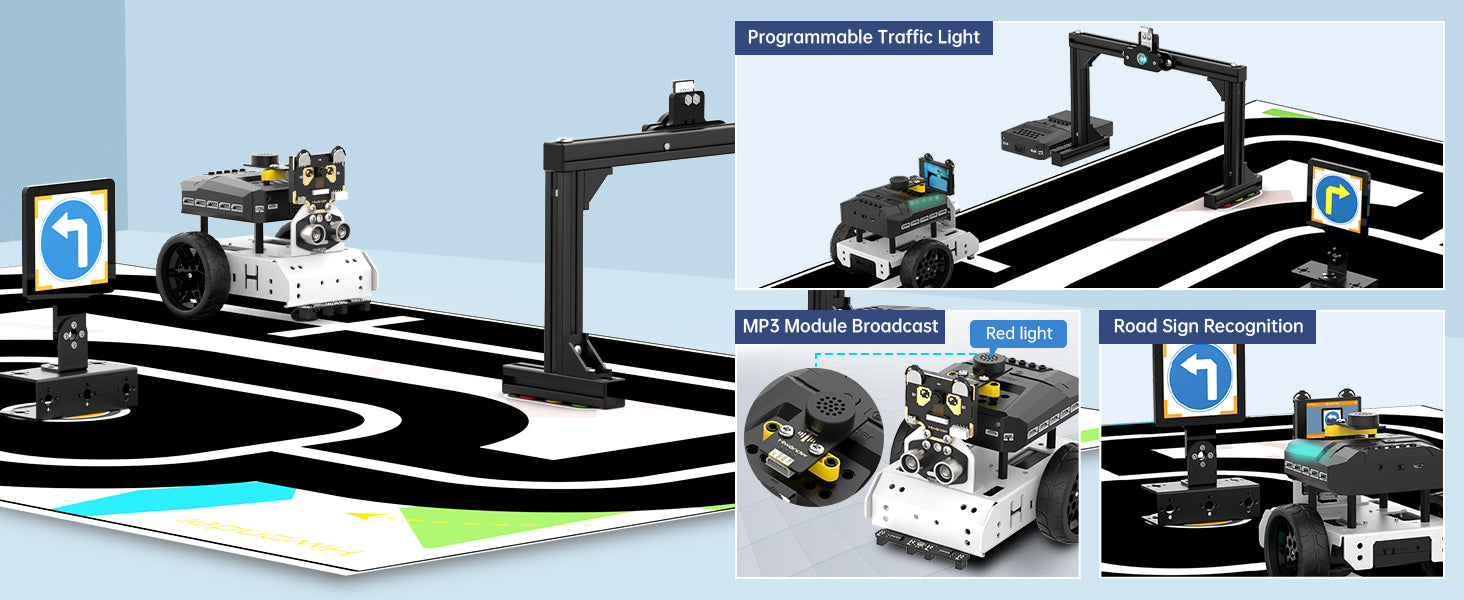

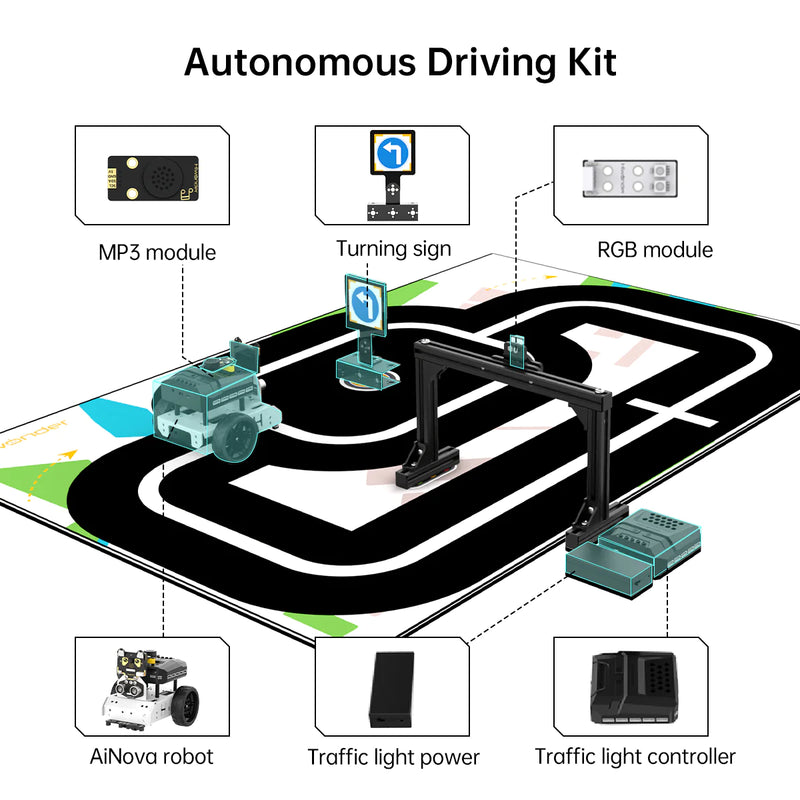

The standard version integrated with WonderCam vision module is available for AI games such as Autonomous Driving, Vision Line Follow, Tag Tracking, etc.
Features
- Supports graphic Scratch and Python Programming
- Compatible with LEGO for Expansion and sensor extension
- Powered by 2x 18650 lithium batteries for longer operation time
- Encoder motor has precise performance for cruise control and line following
- AiNova with WonderCam have top view and flat View for advanced coding learning

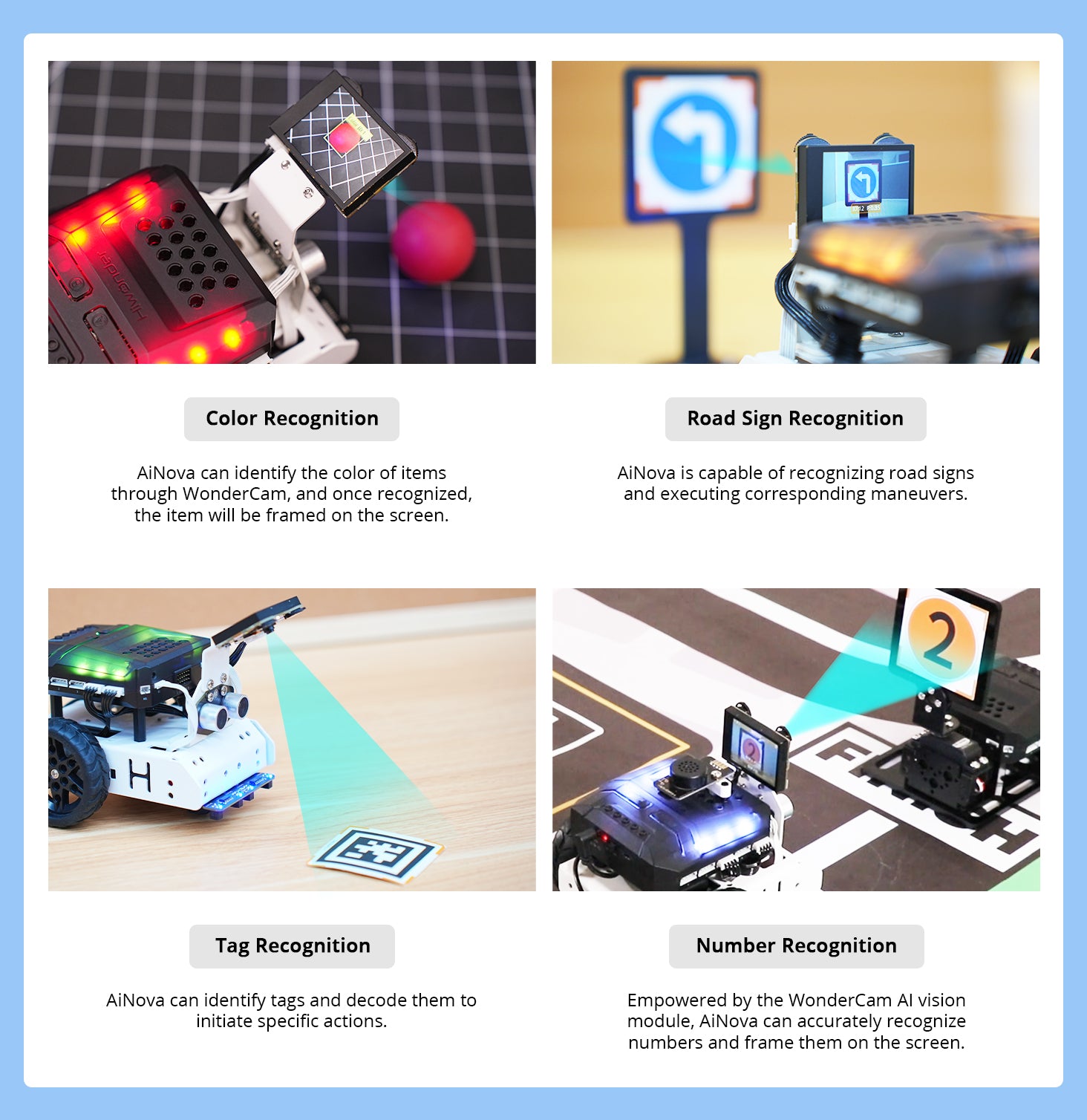

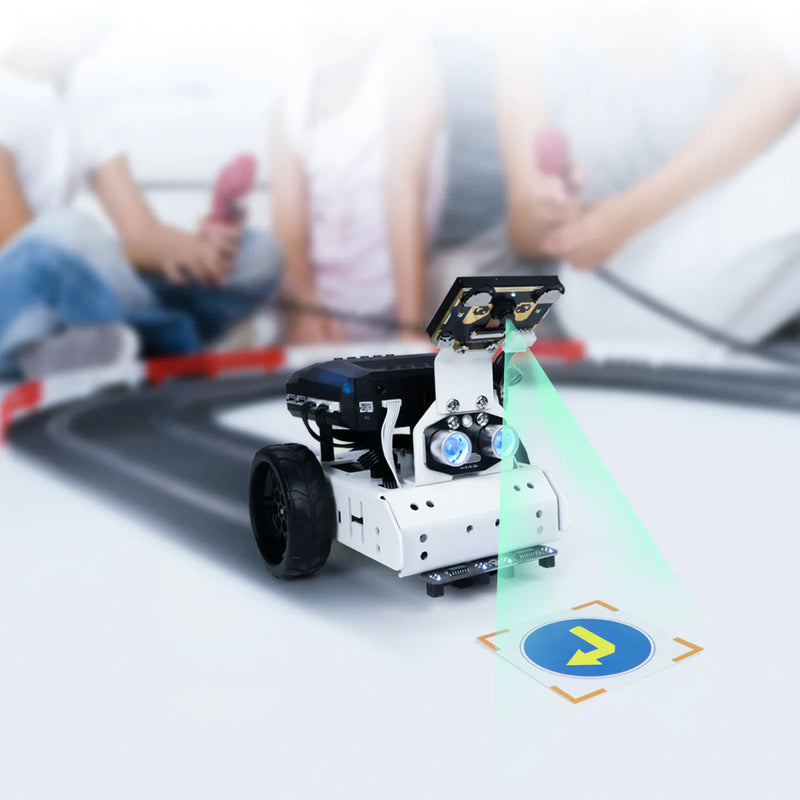

Road Signage Recognition |
Number Recognition |
Color Recognition |
Tag Recognition |
AI Vision Recognition

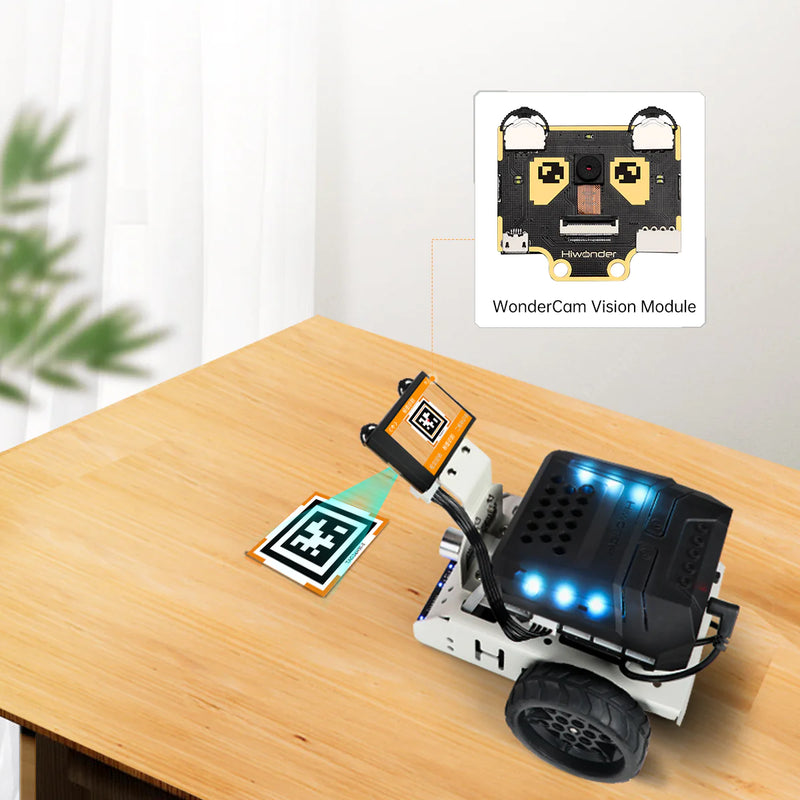

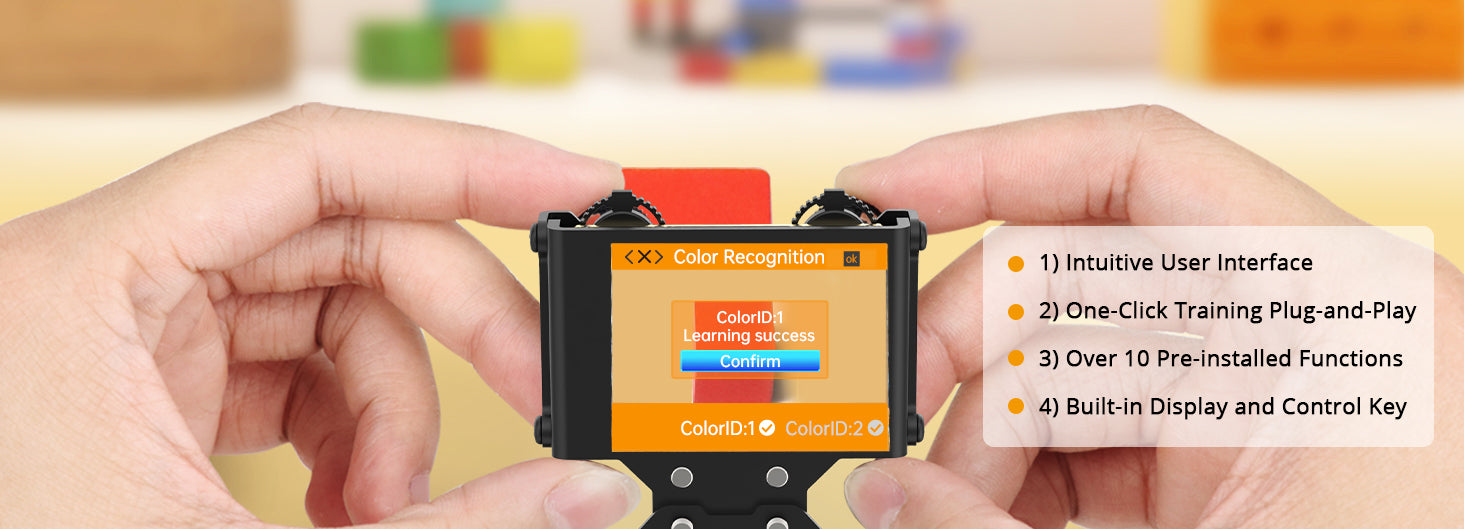

WonderCam identifies color and sends tag position through IIC connector to controller.
Color Tracking |
Tag Tracking |
AI Vision Tracking
WonderCam identifies and sends color and tag position through IIC connector to controller. Basing on this working principle, program the AiNova to realize color tracking, tag tracking etc.

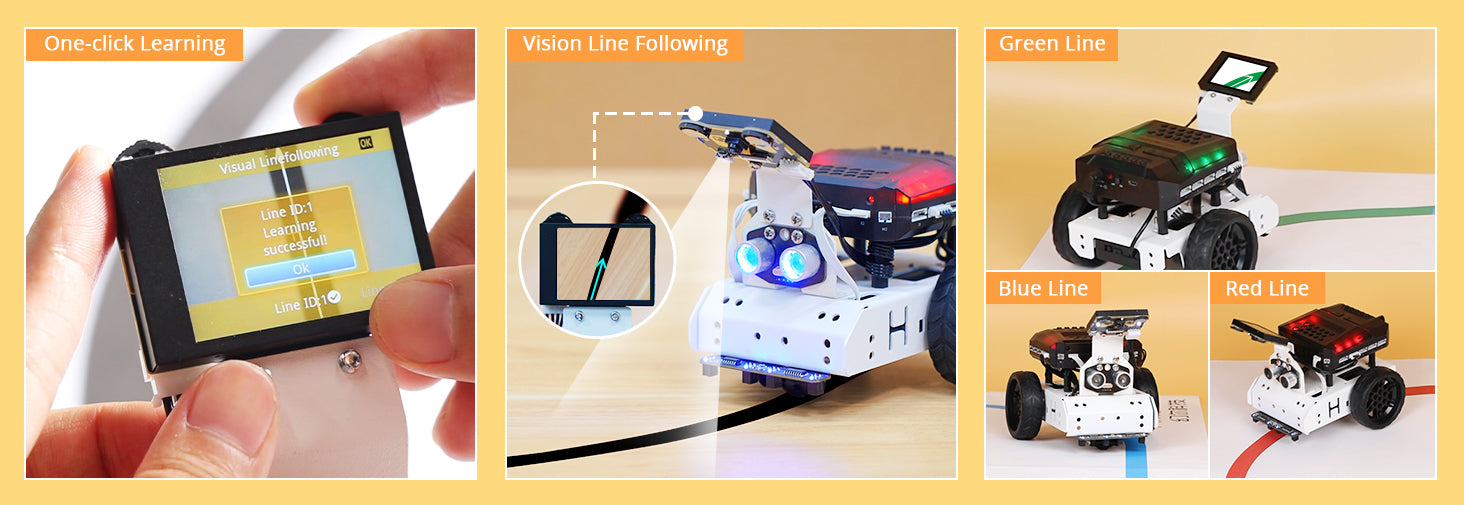

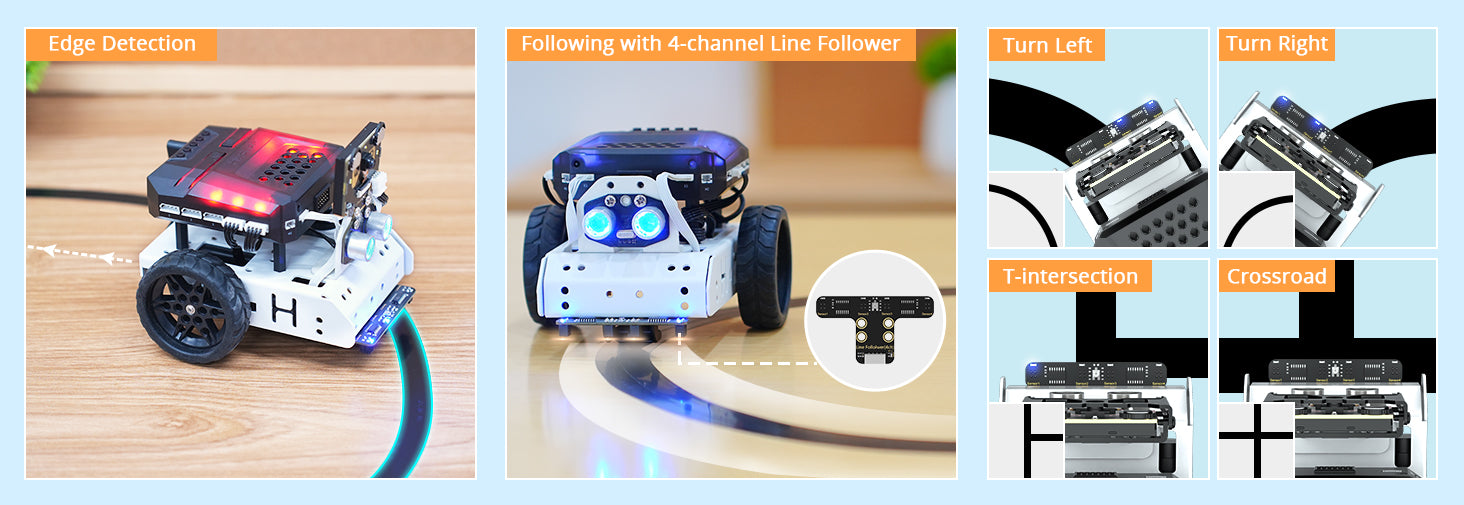

Vision Line FollowingAiNova not only follows the line through 4-channel line follower sensor, but also tracks by cooperating with WonderCam module. |
Precise Encoder MotorWith 2 high-precision encoder motors, AiNova detects the motor speed in real time for cruise control, perfect turning and following the line you draw on APP. |

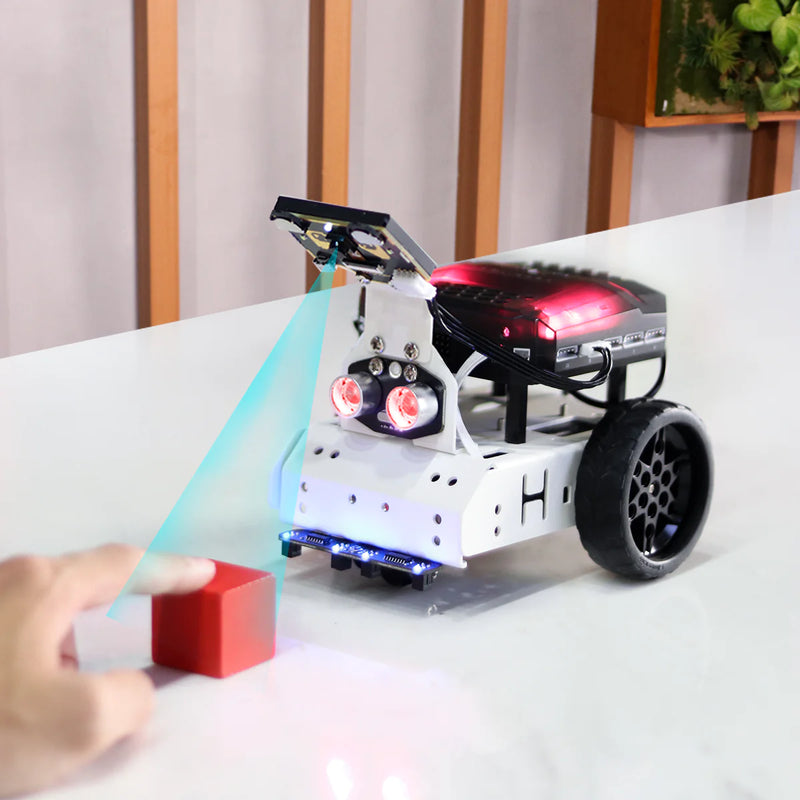

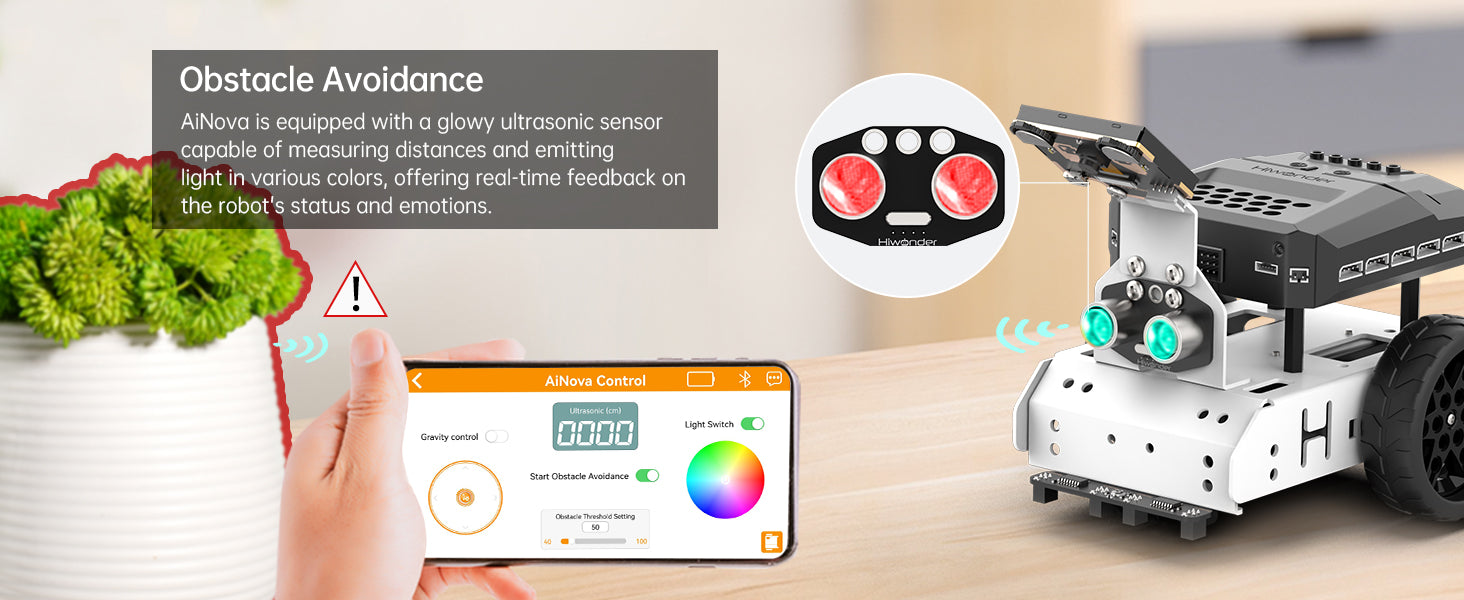

Glowing Ultrasonic SensorProgram glowing ultrasonic sensor to measure distance and express AiNova’s emotion with RGB lights to explore the magic of robotic world. |

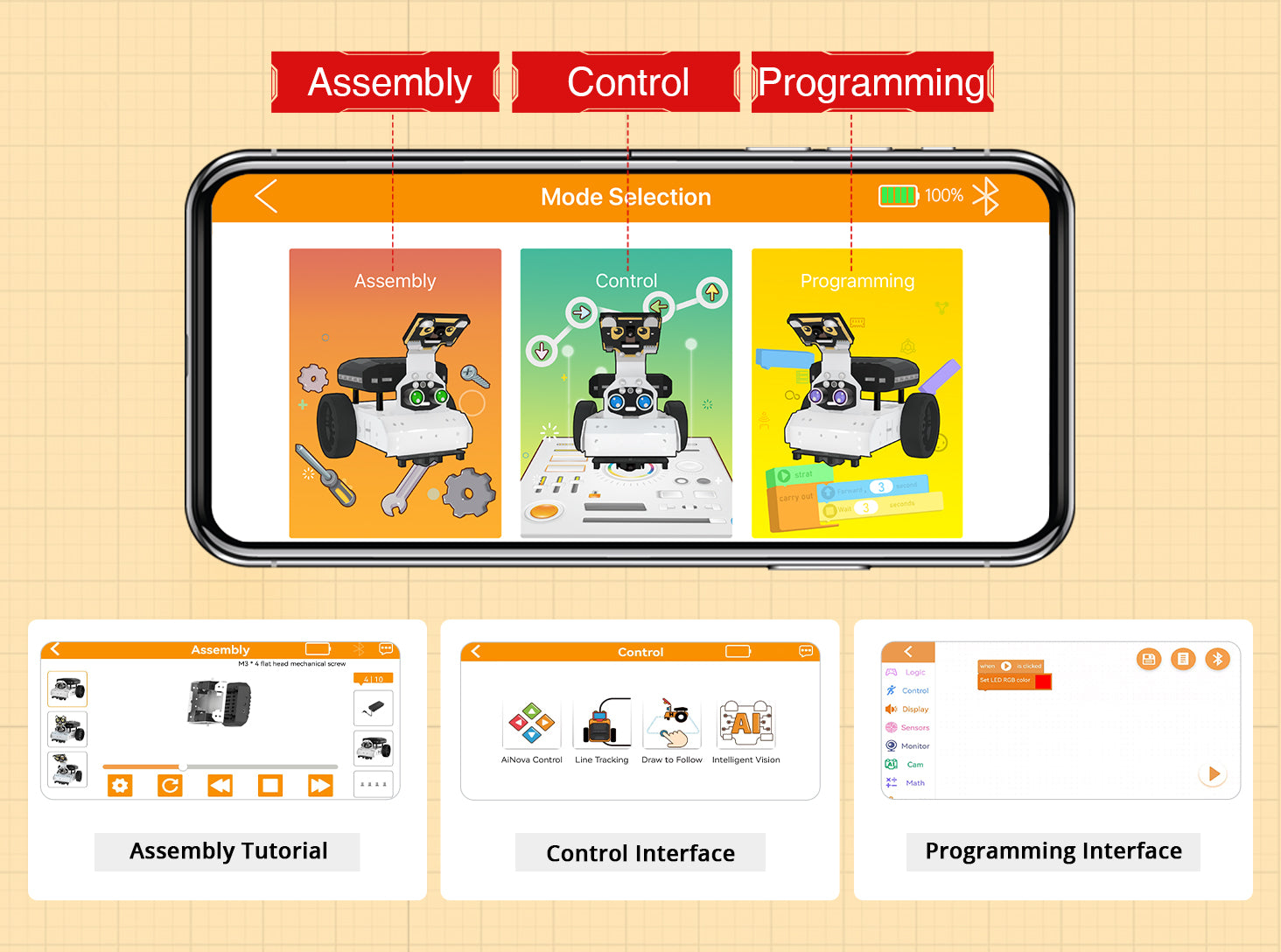

Quick start AI games with the APPAiNova supports Android and iOS smart phone APP remote control. With the provided APP, user can lean how to assemble and start AI vision games, which consists of assembly, operation and programming. |

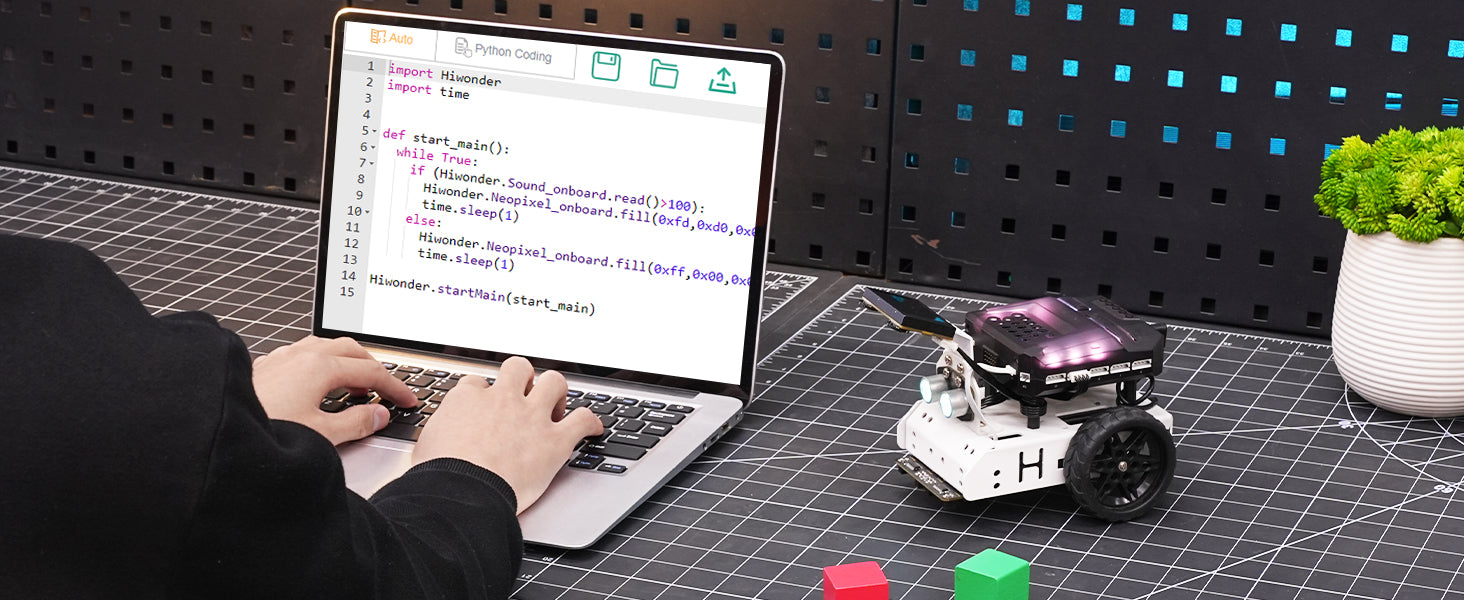

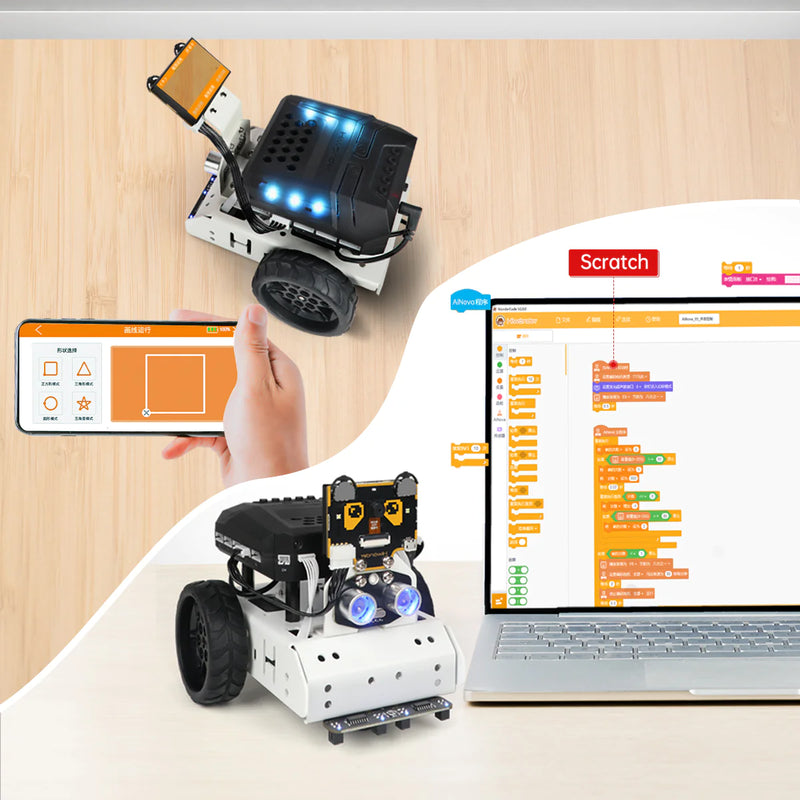

Graphic Scratch and Python ProgrammingSupport Scratch and Python Programming languages. Block-based visual programming makes it easy to start programming while advanced programmers Python to explore further depth of digital world |
Built-in Screen for FPV2.0 inch IPS screen and high-performance processing power enable to conduct AI training and AI tasks by one-click program function. |
Top View and Flat ViewThe provided metal bracket supports user to modify the view to top and flat, which helps AiNova to achieve more creativity. |

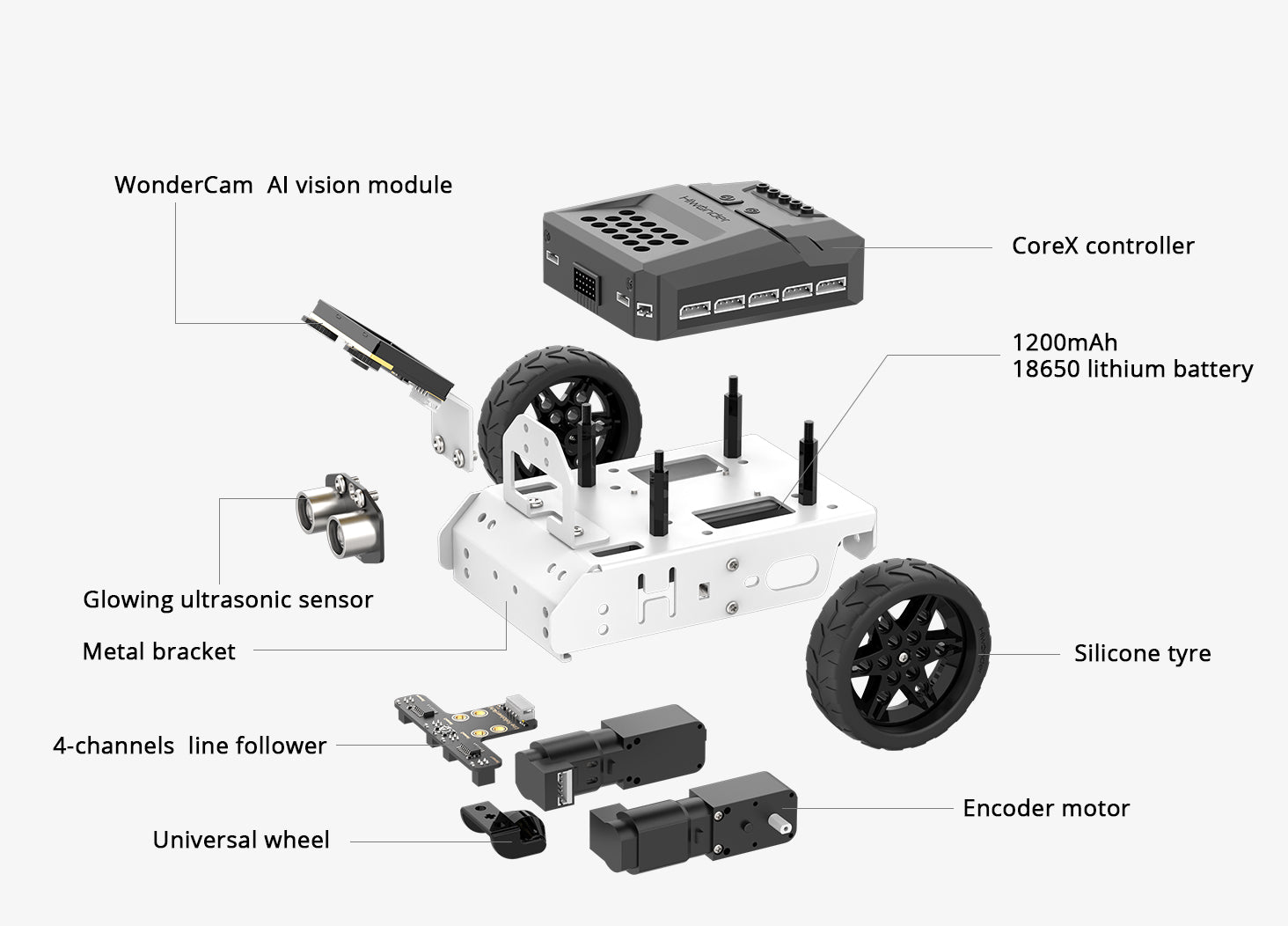

The encased CoreX Controller is highly integrated with multiple powerful functions and expandable to connect more sensors and modules easily and safely. |

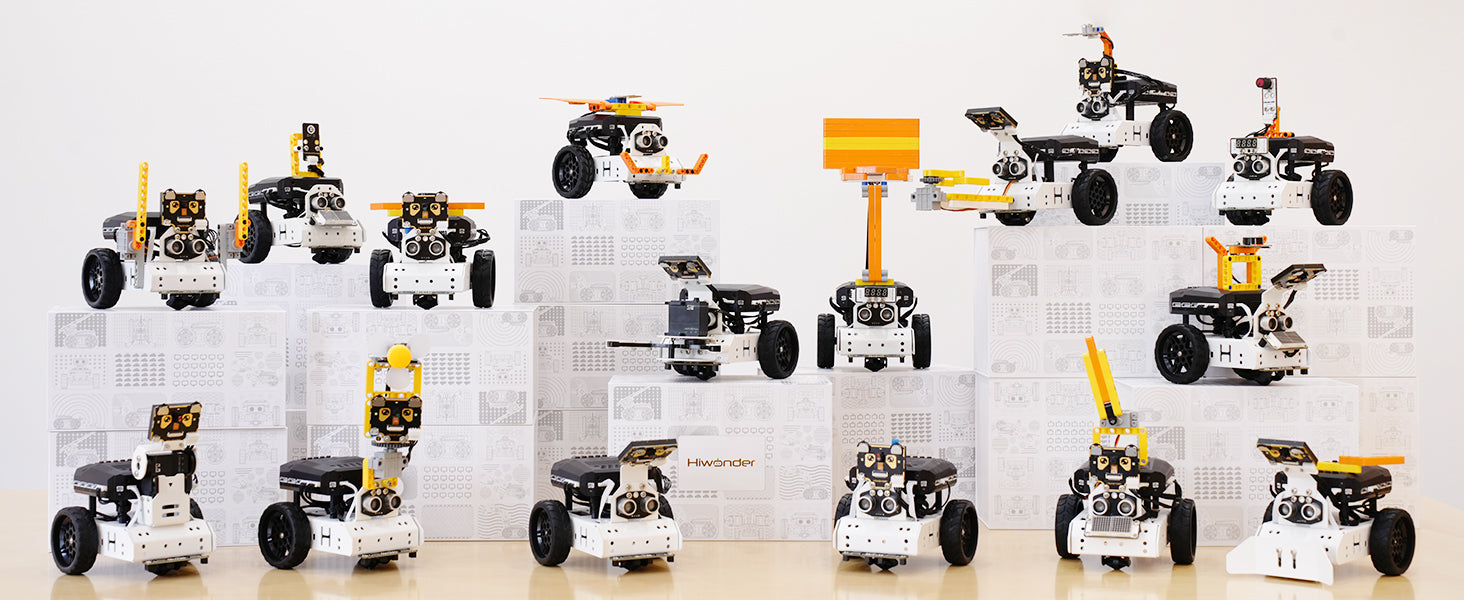

AiNova is expandable to connect sensors and LOGO so that you can DIY your own amazing robot to realize your creativity and programming functions. |
Product Parameters
Starter Kit & Standard Kit

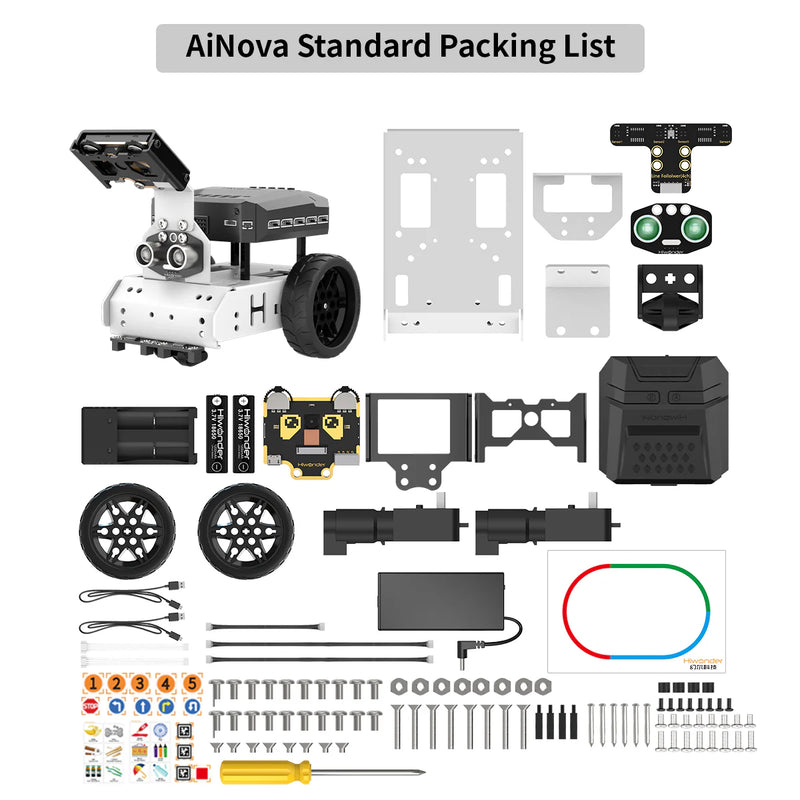

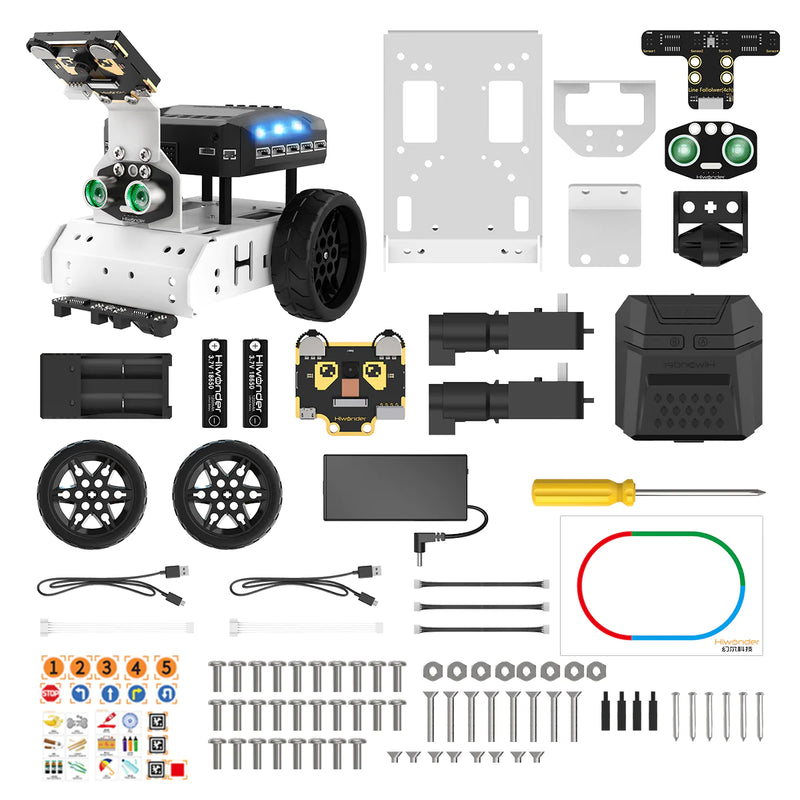

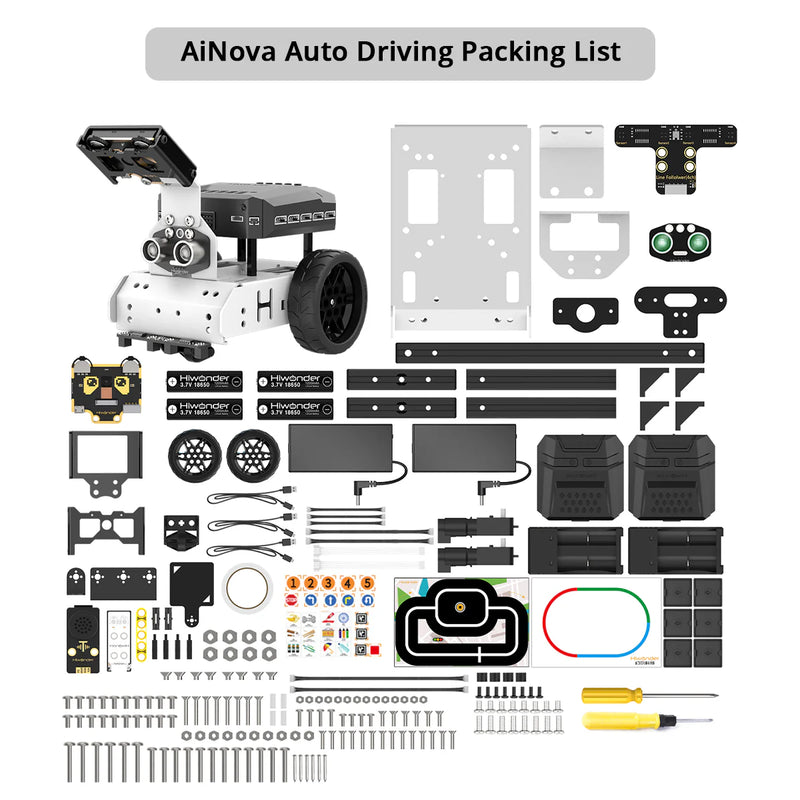

Packing List
- 1x CoreX controller
- 1x Glowing ultrasonic sensor
- 1x 4-channels line follower
- 2x Encoder motor
- 1x Battery case
- 1x Charger
- 1x Universal wheel
- 2x Wheel
- 1x USB cable
- 2x 4PIN wire
- 2x Motor wire
- 1x Map
- 1x Screwdriver
- 1x Screw bag
- 1x WonderCam AI vision module (Standard version Only)
- 1x Card set (Standard version Only)
- 2x 18650 Lipo battery
Specifications:
Item | Specification |
Car data | Size : 172*140*146mm Weight : about 0.5kg Material : metal Camera : WonderCam AI Vision Module Screen : 2.0 inch IPS, 320*240 resolution; size: 41*31mm |
Power supply | Battery : 18650 lithium battery |
Control system | Hardware : CoreX controller Software : WonderCode(Scratch, Micropython)+iOS/Android APP |
Others | Control method : smart phone/computer |

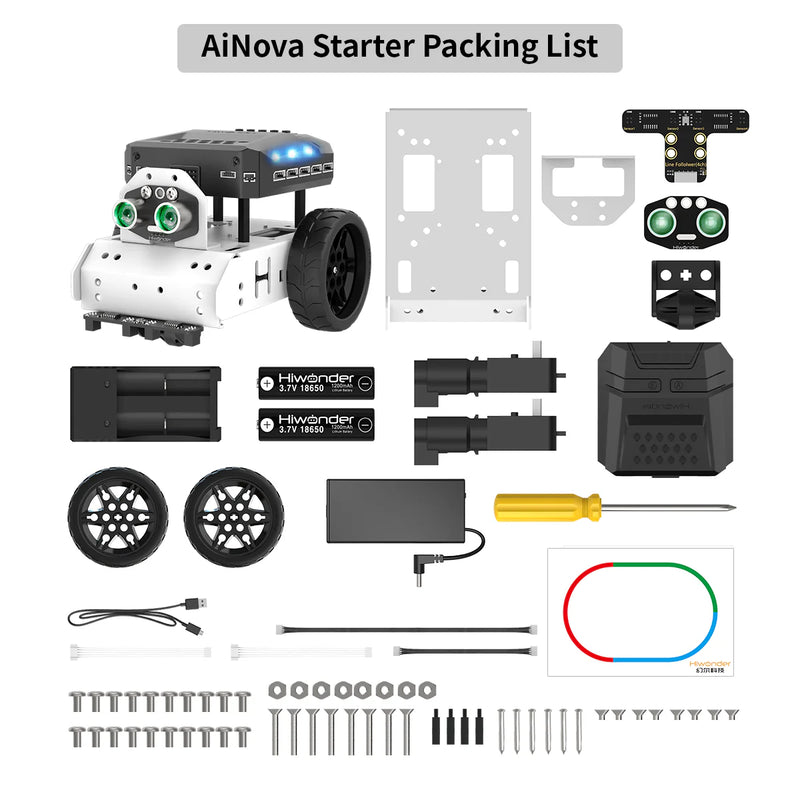

Package List(AiNova starter) |
1*CoreX controller |

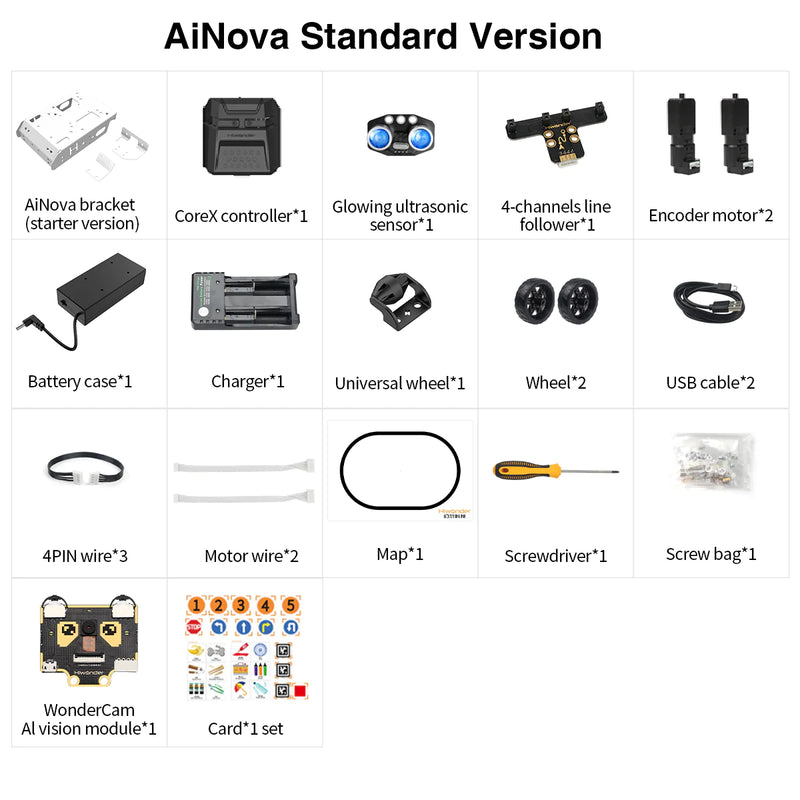

Package List(AiNova standard) | 1*CoreX controller 1* Glowing ultrasonic sensor 4-channels line follower 2* Encoder motor 1* Battery case 1* Charger 1* Universal wheel 2* Wheel 2* USB cable 3* 4PIN wire 2* Motor wire 1* Map 1* Screwdriver 1* Screw bag 1* WonderCam AI vision module 1* Card set 2* 18650 Lipo battery |
