Hiwonder LFD-01 Robot Servo 6V Micro Servo Anti-blocking with Plastic Gear
Hiwonder LFD-01 Robot Servo 6V Micro Servo Anti-blocking
Feature
1. Working voltage is 4.8-6V
2. Built-in anti-blocking algorithm is more durable.
3. Optimize the design of gears to make the operation smoother.
4. Using the high-quality material for better performance.
5. Provide 51, Arduino, STM32 servo control program.

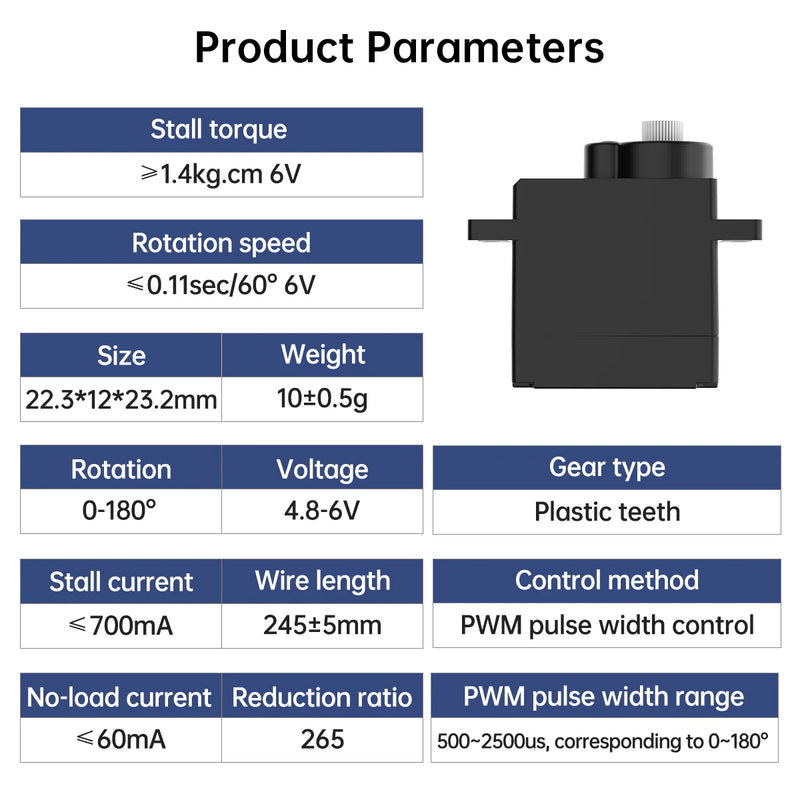

Product Parameters
Item Specification
Product weight
10g

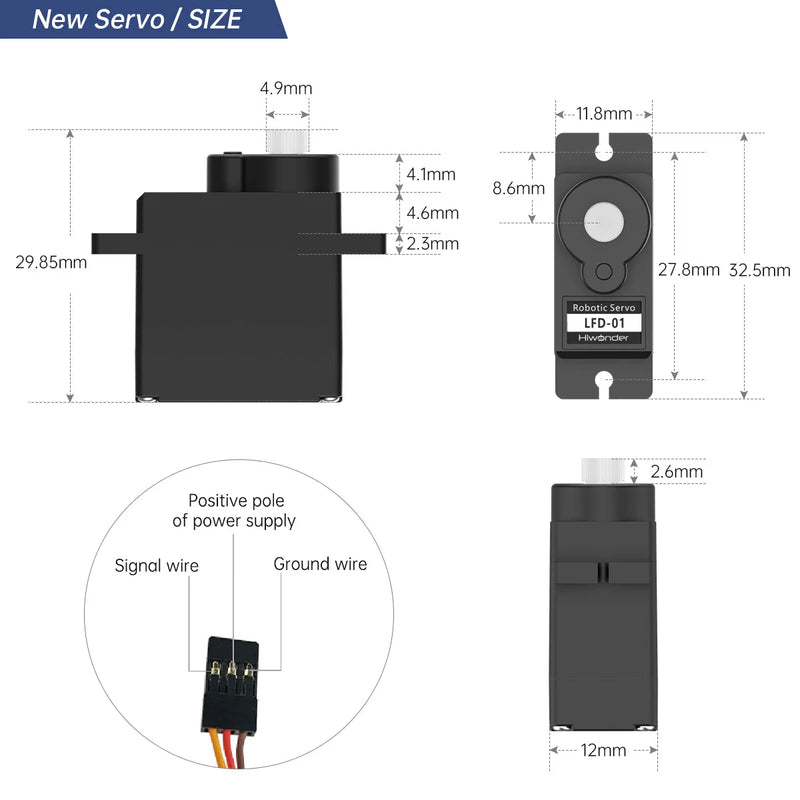

Product size
22.3*12*23.2mm
Working voltage
4.8-6V
Rotation speed
≤0.11sec/60° 6V
Stalled rotor torque
≥1.4kg.cm 6V
Rotation range
0~180°
No-load current
≤60mA
Locked rotor current
700mA
Control method
PWM pulse width control
PWM pulse width range
500~2500us, corresponding to 0~180°
Gear type
plastic teeth
Product line length
245±5mm (Exposed without plug)
Applicable to
various types of bionic robot joints
Anti-blocking Servo
Equipped with built-in stall protection algorithm, ensuring the servo won't burn out due to blockage or collision, significantly extending its lifespan.
Precise and Durable Gear
Hiwonder excels in gearbox design, ensuring precision and delicacy in every gear. Our optimization techniques guarantee smooth operation, significantly reducing the risk of chipping.
High Quality Materials
LFD-01 servo is made of high-quality materials, and recycled materials are not utilized in its production.

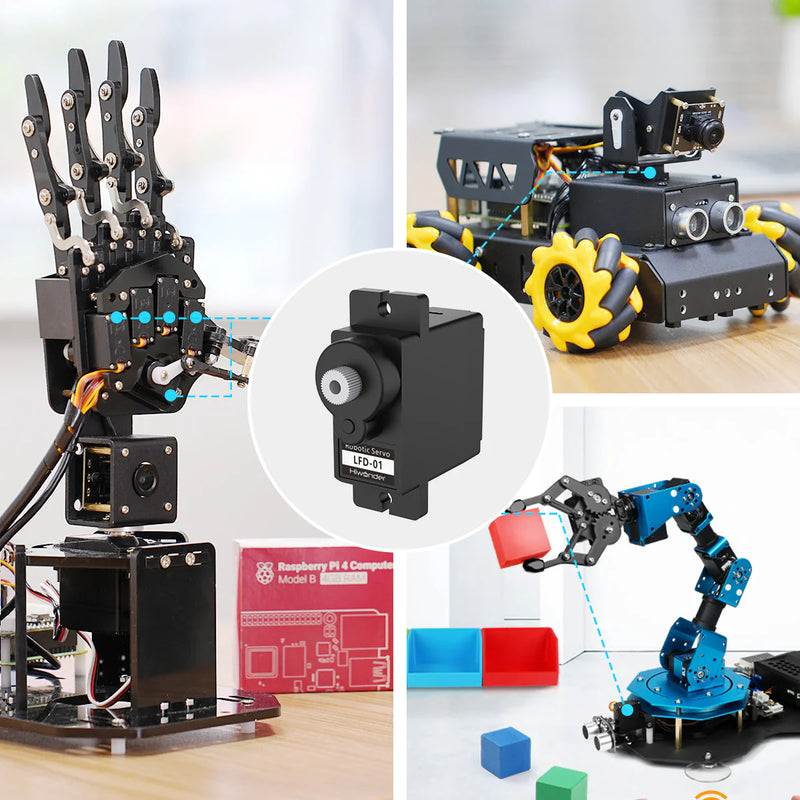

Various Application Scenarios
