Open-Source Robotic Hand AiHand Powered by micro:bit V2 Programming Educational Robot, Support WonderCam AI Vision Module

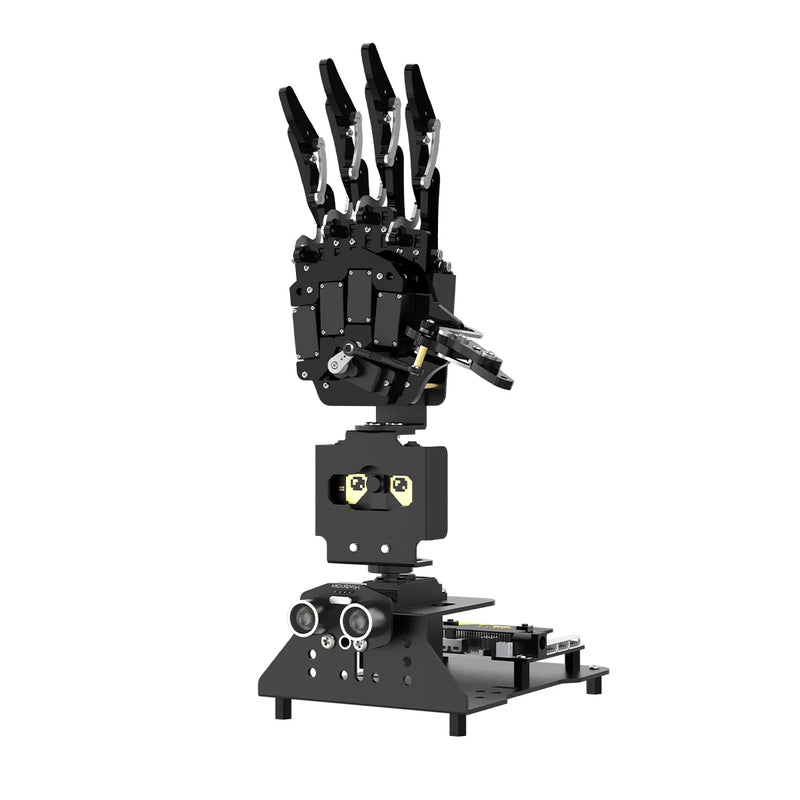

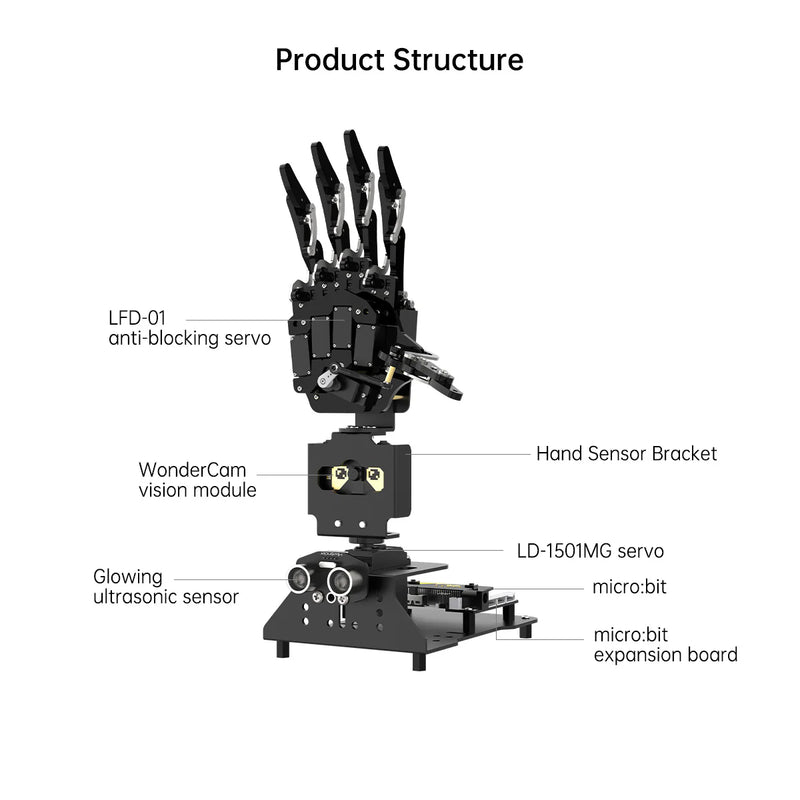

AiHand is an open-source robotic hand powered by micro:bit. With 6 joints and the micro:bit V2 as its core controller, it incorporates the WonderCam vision module and emits ultrasonic sensors. Additionally, it offers multiple expansion interfaces for you to conveniently customize and enhance your robotic hand.

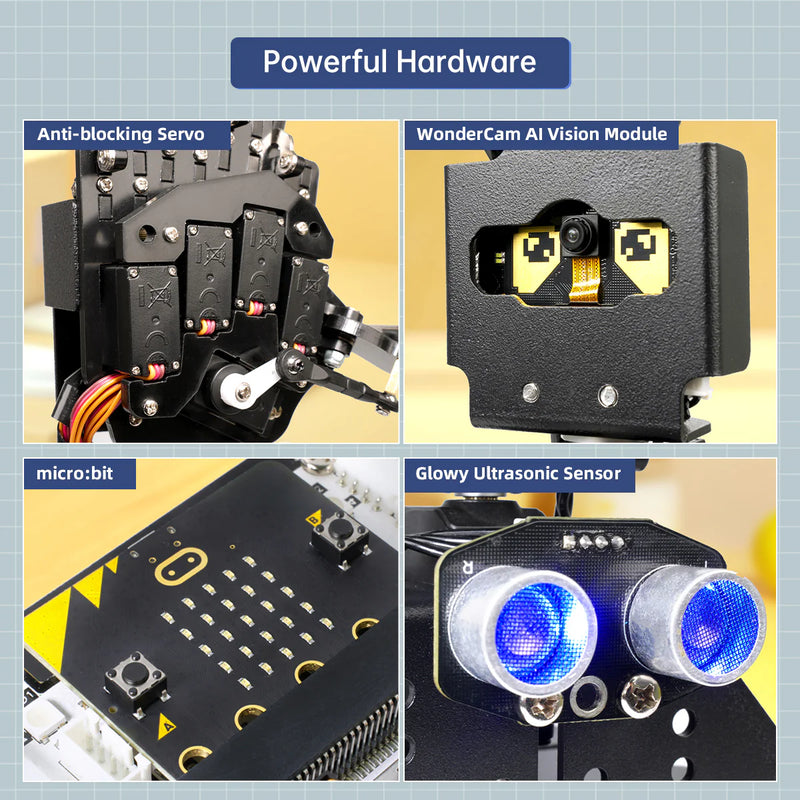

 Anti-blocking Servo Equipped with built-in stall protection algorithm, ensuring the servo won't burn out due to blockage or collision, significantly extending its lifespan. |

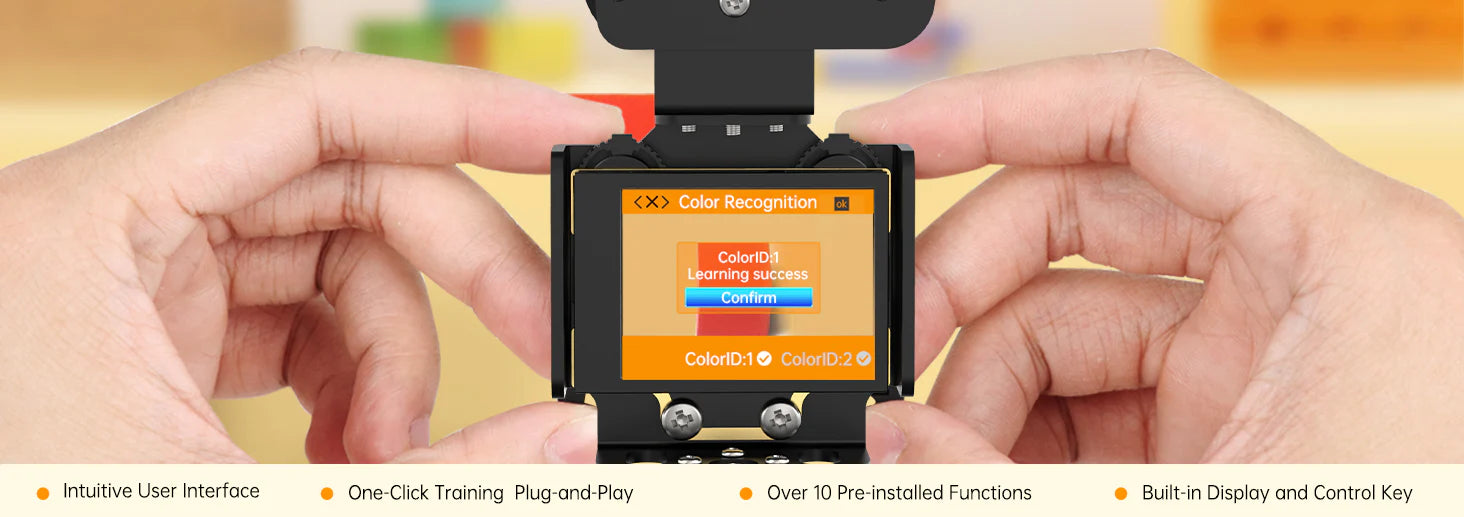

 WonderCam Vision Module WonderCam is a user-friendly AI vision module with eight built-in functions, which makes learning AI fun and easy to comprehend. |
 Glowy Ultrasonic Sensor The luminescent ultrasonic sensor equipped with I2C interface can not only achieve sonic distance measurement but also achieve sonic ball catching. |
 micro:bit Controller micro:bit is a micro controller consisting of onboard Bluetooth, accelerometer, electronic compass, three buttons, and 5 x 5 LED dot matrix. The micro:bit comes with a built-in speaker, microphone, and capacitive touch sensor. |
 Button Control |
 Action Dance |
 Touch Control |
 Intelligent Voice Control |
One-click Training and Learning for Limitless AI Creativity
AiHand's AI vision module is integrated with some learning algorithms, allowing it to complete diverse AI vision projects such as color recognition and face recognition.
 Tag Recognition Using the WonderCam Al vision module, AiHand can acquire the coordinate position of tags and send the data to the controller. |
 Face Recognition AiHand's WonderCam detects face and identifies if it matches according to conditions and image on its display. |
 Color Recognition AiHand can identify the color of items through WonderCam, and once recognized, the item will be framed on the screen. |
 Waste Sorting AiHand can recognize junk cards, broadcast the corresponding category of junk based on the recognition results, and display the corresponding dot matrix pattern. |

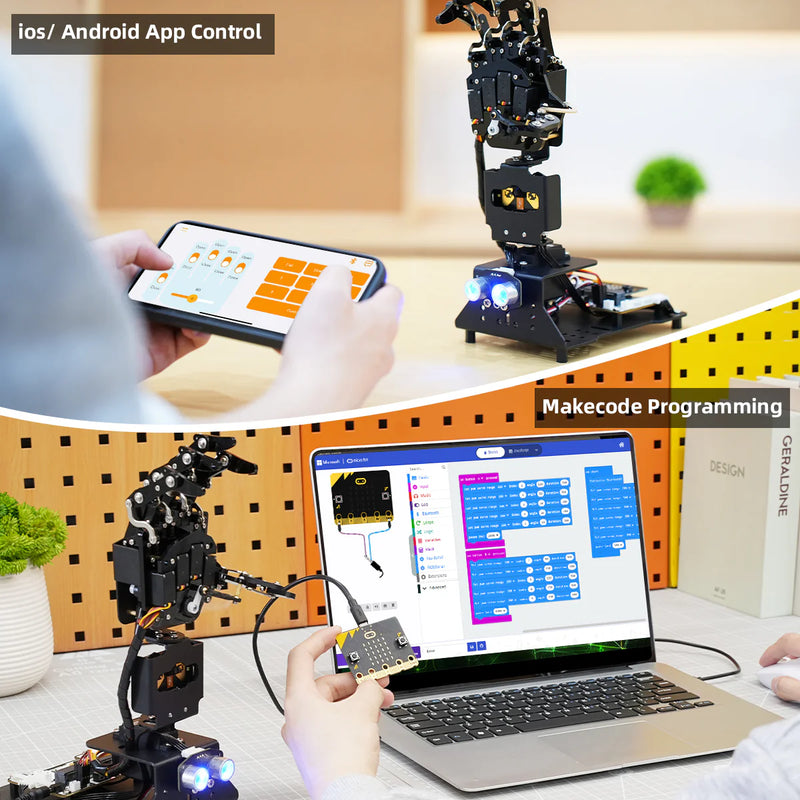

 ios/ Android App Control Easily control the AiHand by tapping buttons or dragging sliders on the app, making it simple and intuitive toexecute actions. |
 micro:bit Control AiHand is an open-source robotic hand powered by micro:bit. Consisting of onboard Bluetooth, accelerometer, electronic compass, three buttons, 5 x 5 LED dot matrix, it is only half the size of credit card and mainly used for programming education for teenagers. |

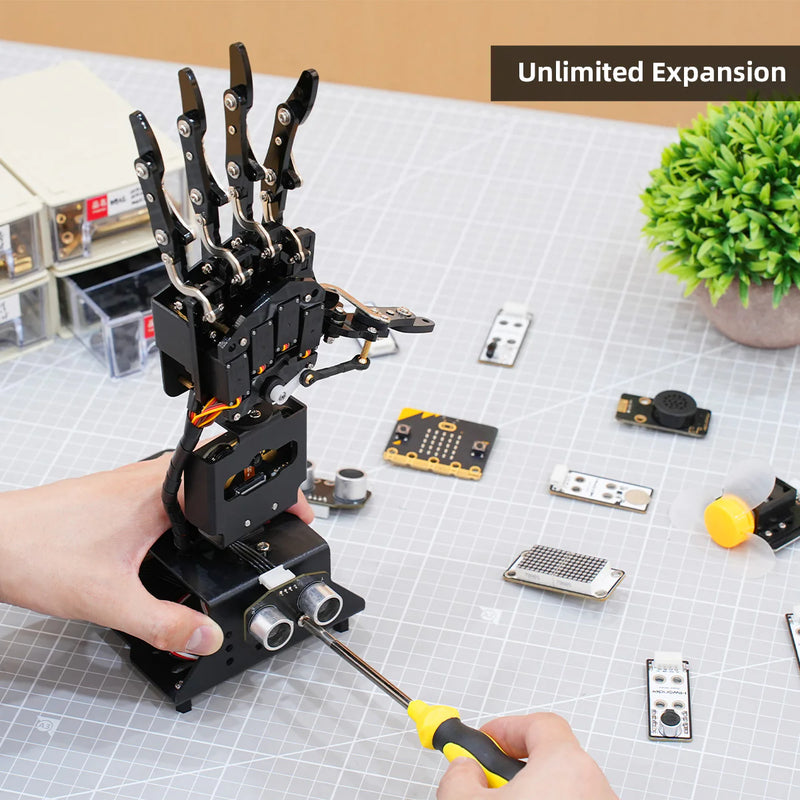

 Support Sensor Expansion Expand the capabilities of AiHand with a variety of sensors and unlock endless possibilities for your project. |

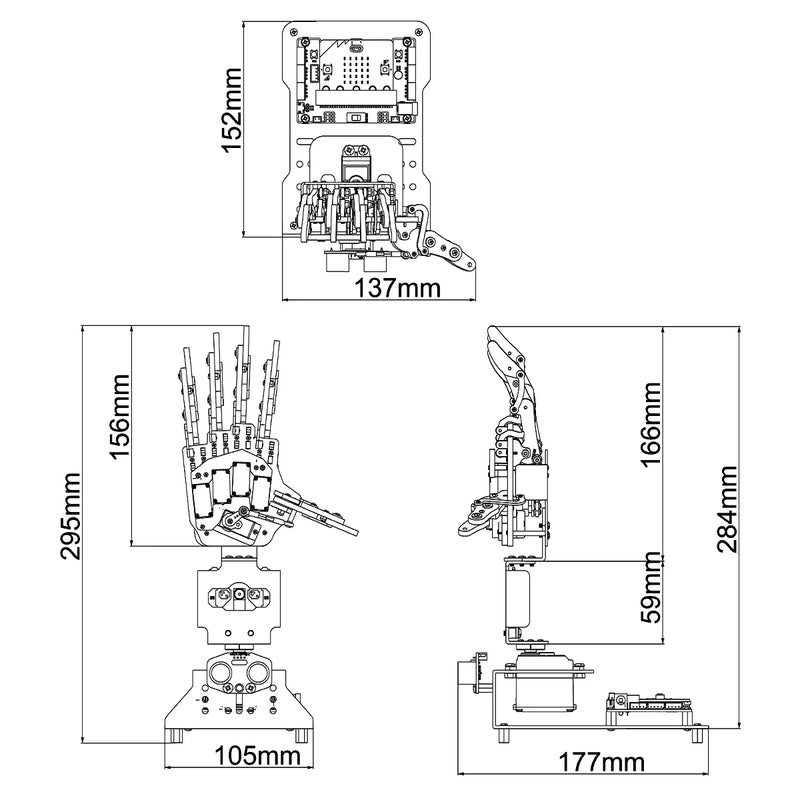

Dimensional Diagram
Specification
| Item | Specification |
|---|---|
| Product size | 177*105*295mm |
| Product weight | about 0.73kg (main body + micro:bit + micro:bit expansion board) |
| Body material | acrylic, duralumin alloy |
| PTZ angle | 180° |
| Power supply | 7.5V 3A adapter (DC3.5*1.35) |

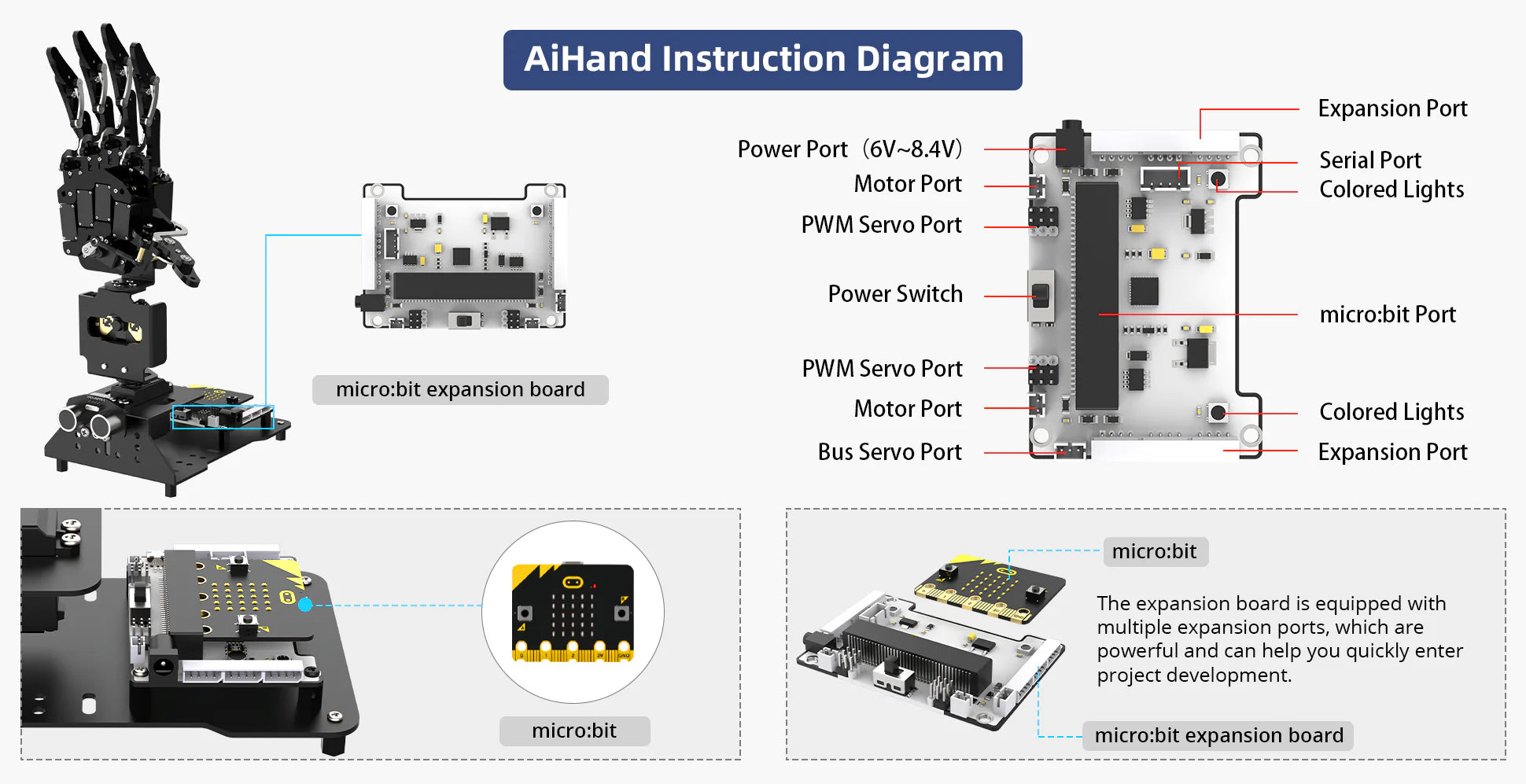

| Main control system | micro:bit + micro:bit expansion board |
| Software | iOS/Android mobile APP |
| Communication method | Bluetooth, USB |
| Servo model | LD-1501MG servo *1; LFD-01 servo *5 |
| Control method | APP Control (WonderCom) |
| Shipping size | 29*22*15(cm) |
| Overall weight | about 1kg (excluding packaging) |

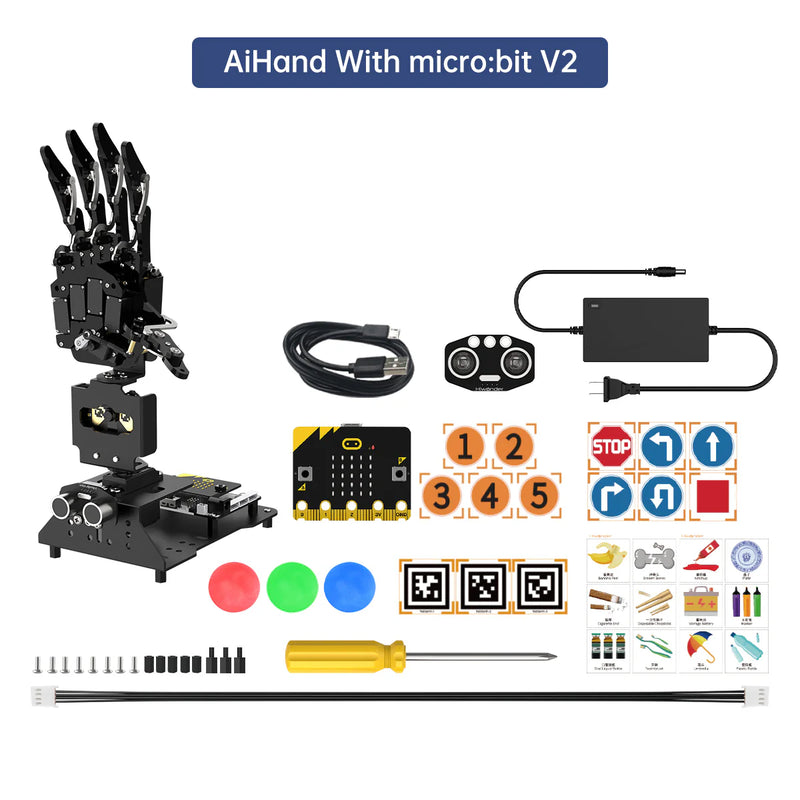

AiHand Packing List
Note: micro:bit is included in the box
