Hiwonder TurboPi Raspberry Pi Omnidirectional Mecanum Wheels Robot Car Kit with Camera, Open Source, Python for Beginners
TurboPi is an open source AI vision robot car designed for beginners. It is built on Mecanum wheel chassis, powered by Raspberry Pi 4B, loaded with 120-degree wide angle camera and uses OpenCV to process images.
Equipped with RGB glowy ultrasonic sensor whose light can be adjusted, TurboPi is able to avoid obstacle smartly. In addition, it also supports variety of sensors to turn your creative AI ideas into reality. Abundant tutorials and Python source codes are provided to help you advance quickly into robot technology, machine vision and artificial intelligence!
Omnidirectional Movement, Flexible Field of View
360° Omnidirectional Movement
With 4 omnidirectional mecanum wheels, TurboPi can move 360°. Different movement modes (move forward, horizontally, diagonally and rotate ) and excellent performance make it bold to challenge various complicated routes.
2DOF Pan Tilt for 360° View
AI Vision Recognition, Target Tracking
 |
Color Recognition and TrackingWorking with OpenCV, TurboPi can track specific color. After you select the color on the APP, it emits light of corresponding color and moves with the object of that color. |
|
Target Tracking, Different Tracking ModesTurboPi tracks the target within its view with OpenCV. It supports two tracking modes. You can make pan tilt or pan tilt together with car body move with the target. |
 |
|
 |
Gesture Recognition, Man-robot InteractionTurboPi cooperates with OpenCV to count fingers. Then interact with you based on the number of finger, such as honk horn, twist and change color of light. |
|
Face Detection and TrackingWith the help of OpenCV, TurboPi can track human face within its field of view, and move with it. |
QR Code ControlTurboPi can recognize and read QR code to perform related actions. |
2 Driving Modes
 |
Visual Line FollowingTo achieve line following, it extracts ROI area with OpenCV first. Then remove noise to locate the line on binary image. Lastly, use PID algorithm to perform direction calibration. |
|
Following with 4-channel Line FollowerTurboPi uses 4 infrared probes on 4-channel line follower to detect and follow line. |
 |
|
Autonomous Driving
It combines 4-channel line follower and camera to achieve autonomous driving. Line follower is responsible for line following function, and camera is used to recognize traffic light and road signs.
APP Control, FPV Transmitted Image
Android and iOS APP are available for robot remote control. Via the APP, you can control the robot in real time and switch various AI games just by one tap.
First Person View, HD Transmitted ImageTurboPi supports LAN and WiFi direct connection modes. After WiFi connection, the first person view will be transmitted to APP interface, which brings you more exciting and real robot control experience! |
Quickly Experience AI GamesWonderPi APP supports Android and iOS. Switch game modes easily and quickly to experience various AI games. |
Glowy Ultrasonic Sensor for Obstacle AvoidanceLoaded with glowy ultrasonic sensor with IIC interface, TurboPi can detect and avoid obstacle without occupying Raspberry Pi CPU. |
Product Structure
Hard Aluminium Alloy ChassisIt protects the core control board from shattering and shocking and can bear bigger load! |
High Performance Pan Tilt Servo2DOF pan tilt is equipped with micro anti-blocking servo which has higher accuracy and longer service life. |
HD 120° Wide Angle CameraLoaded with 120° wide-angle camera, TurboPi can look around 180°, and up and down 180°. Combined with mecanum chassis car, its visual range is up to 360°. |
4-channel Line Follower4-channel line follower with IIC interface enables TurboPi to detect black line without occupying Raspberry Pi CPU. |
Powerful Control System
RaspberryPi 4B distinguishes itself in processor speed, multimedia performance, memory and connection. The combination of RaspberryPi 4B and RaspberryPi expansion board significantly enhances TurboPi AI performance!
- Independent power switch for stable power supply
- 6-channel PWM servo ports with over-current protection
- Loaded MCU to offload the workload of Raspberry Pi and reduce resource usage
- Loaded with RGB light, buzzer, LED light, etc.
- Three IIC ports for expansion
- Lead out multiple GPIO pins for development
- 4PIN anti-reverse ports compatible with Hiwonder sensors
Product Parameters

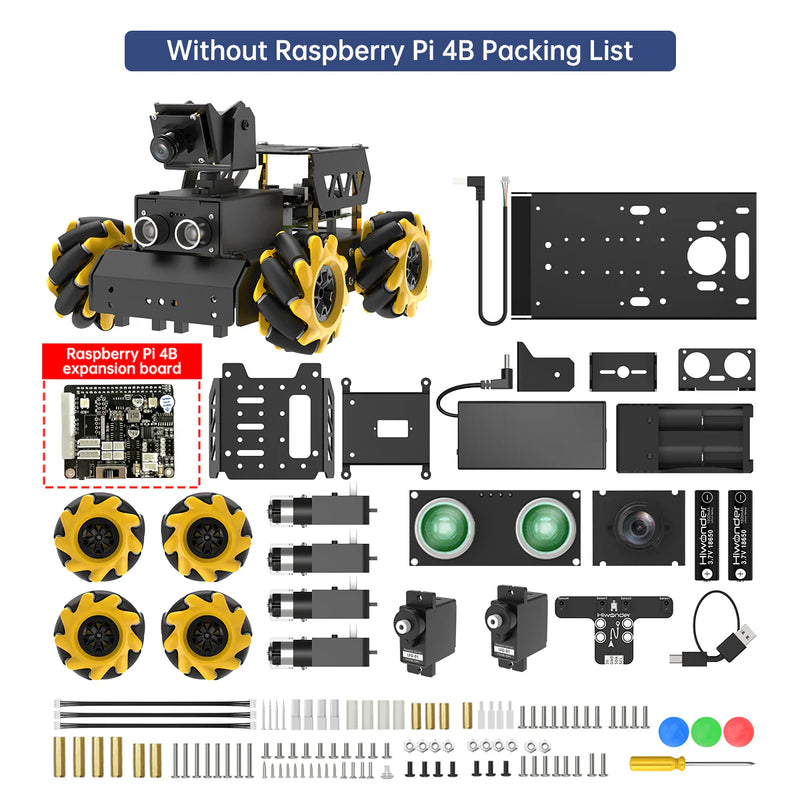

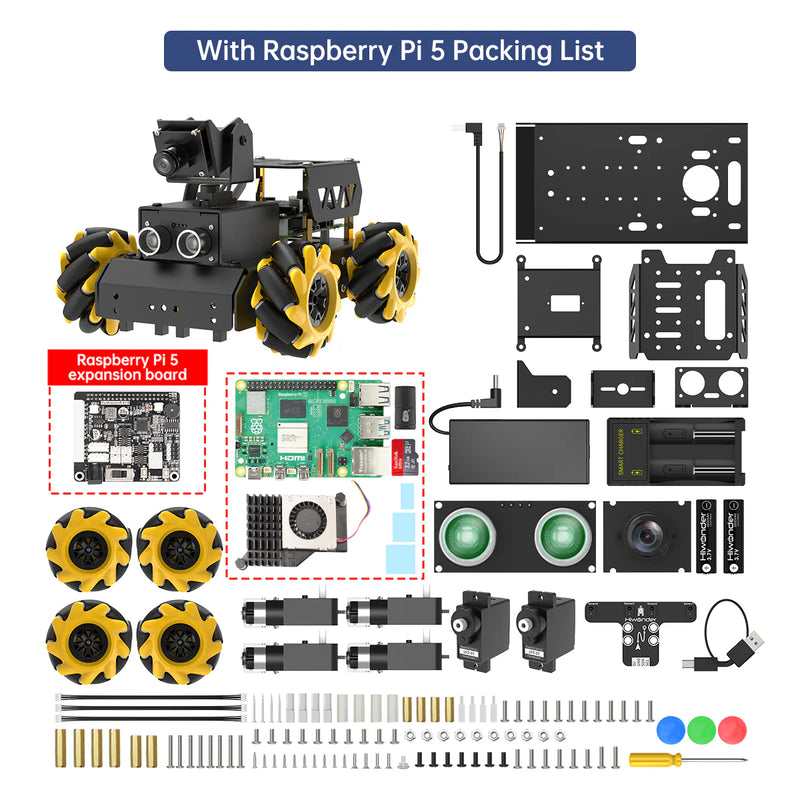

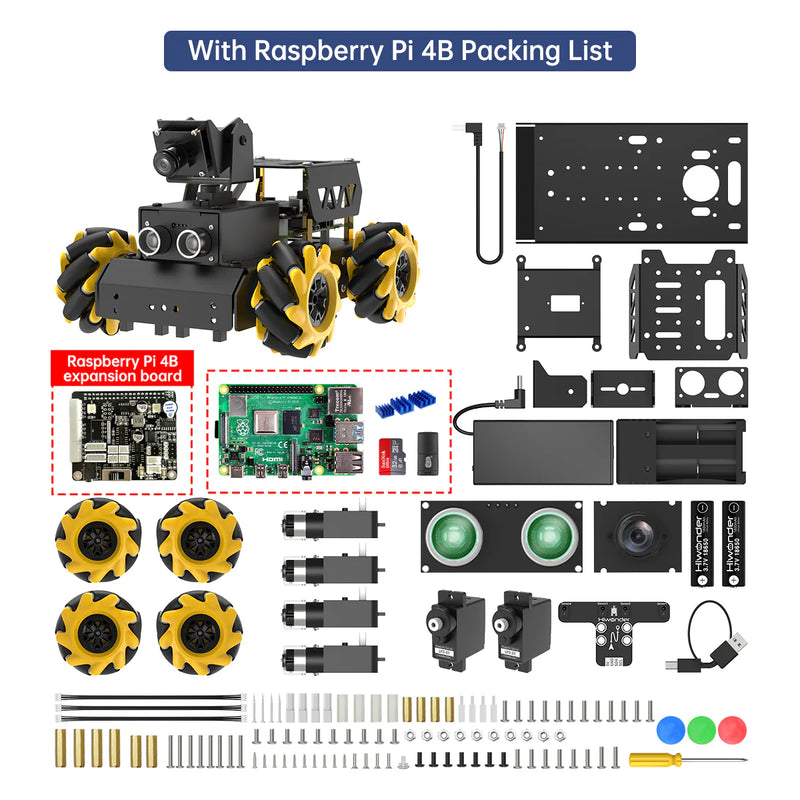

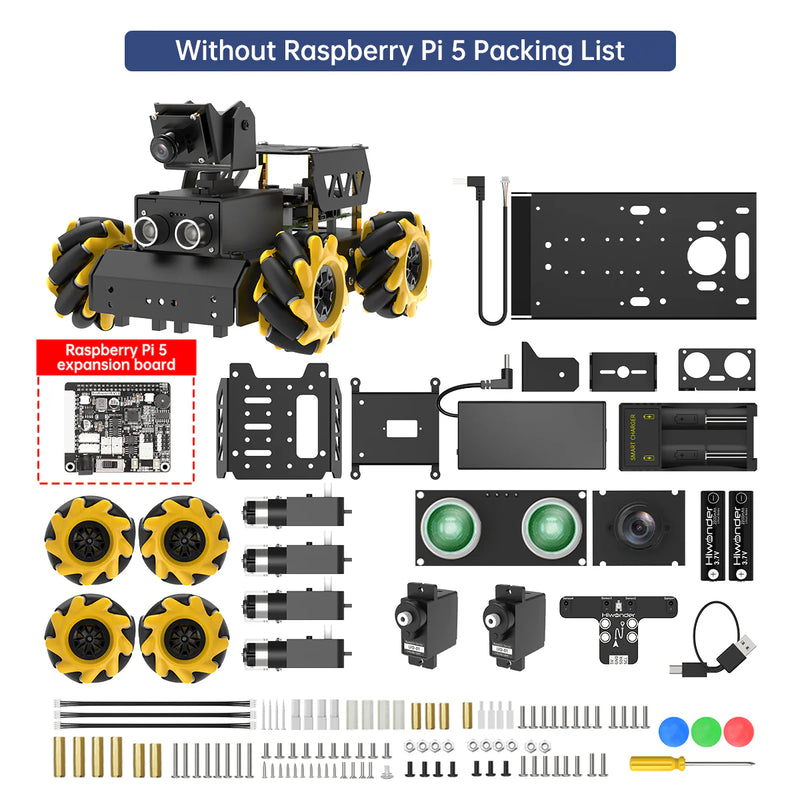

Packing List
