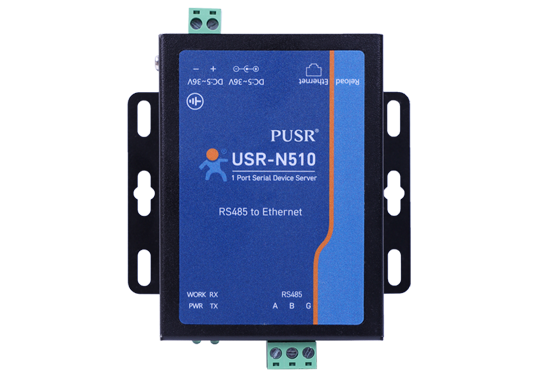

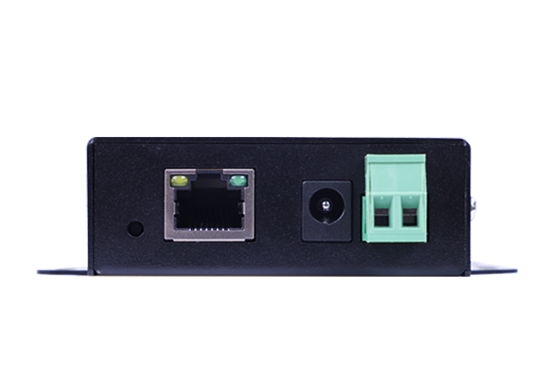

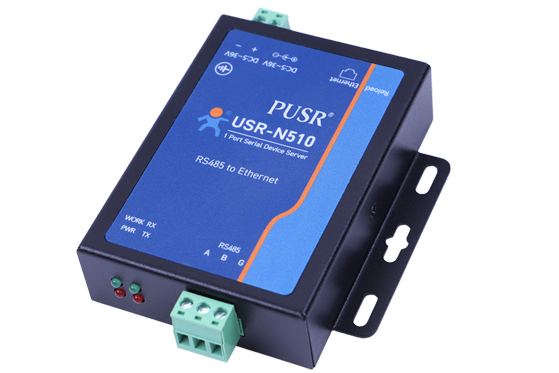

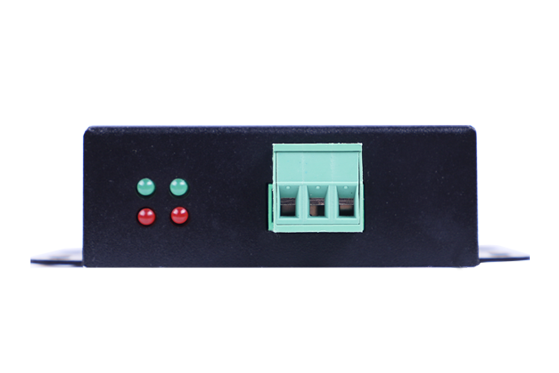

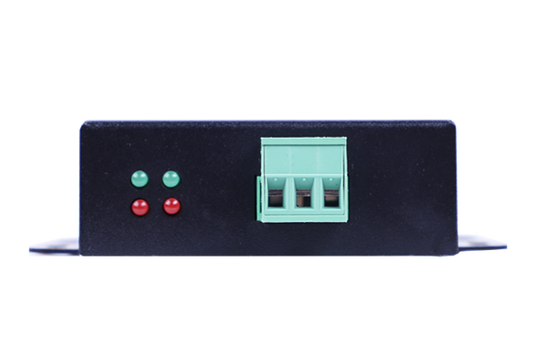

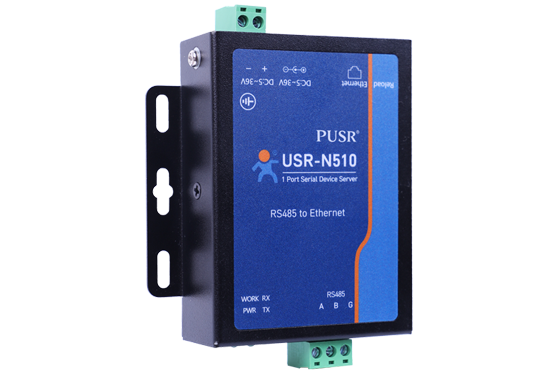

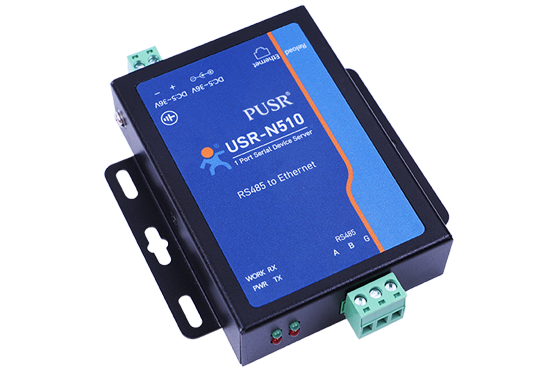

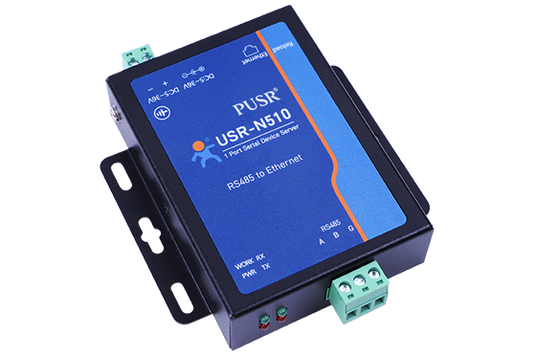

Name: Serial to Ethernet - USR-N510
Brand: PUSR
SKU: ELC8526
Price: 4549.99 INR
Availability: InStock

Cannot place order, conditions not met:

OK

{"id":9805186892093,"title":"Serial to Ethernet - USR-N510","handle":"serial-to-ethernet-usr-n510","description":"\u003ch1 style=\"text-align: center;\"\u003eUSR-N510\u003c\/h1\u003e\n\u003ch3 style=\"text-align: center;\"\u003e1 Port RS485 Ethernet Device Servers[MQTT\/SSL]\u003cbr\u003e\n\u003c\/h3\u003e\n\u003cp style=\"text-align: center;\"\u003e1 port Serial Port to Ethernet Adapter USR-N510-H7-4 can realize bi-directional transparent transmission between RS485 and network. Supports modbus RTU to TCP, Modbus Polling.\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg alt=\"\" src=\"https:\/\/www.pusr.com\/uploads\/20230417\/58cf45eb652f7527cb43e6ffdaeddbc8.jpg\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eLightweight MQTT Protocol\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003eMQTT 3.1 and 3.1.1 both supported,features SSL\/TLS security, supports maximum 16 topics publication simultaneously, 16 topics subscription simultaneously.\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/29c2c2f6e3f2113c40aefac4256c9976.jpg?v=1779687876\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eData Transmission Encryption\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003eSupports SSL\/TLS encryption in TCP client, HTTP client and MQTT operation modes Supports two-way certificates authentication\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/508811bc93ce010fffbfa7e6b64ac988.jpg?v=1779687970\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eEdge Computing\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003eN510 actively execute data collection and internal calculate,then transmits to cloud platform by customized Json format. Edge computing gateways can effectively relieve the pressure on the server.\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/8c7791b583a0eecb2c709f425720c262.jpg?v=1779687834\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eModbus Gateway\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003eTransfer between modbus RTU and modbus TCP protocol, Support modbus multi-host polling, Support up to 128 data points for data collection, support modbus address mapping.\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/64d299c70c6c0687725cdd1f273fce28.jpg?v=1779688044\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eComparision of New and Old Schemes\u003cbr\u003e\n\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/fa2cd40147a0e26f515bfd6c06494fa7.jpg?v=1779687960\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eScheme Upgrade to Provide Better Experience\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003eMaster chip adopts ST crotex-M7 core, the main frequency is up to 400Mhz, fast processing speed, high stable and reliable performance\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/bf59cd4f7b9f616af449e3bac45de60d.jpg?v=1779687849\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eHigh Reliability and Stability\u003cbr\u003e\n\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/54cb0e32b37d83ccd370259b8d3f7329.jpg?v=1779687983\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eRedundant Power Supply\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003eWide input voltage DC 5-36V, with reverse polarity protection\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/dac44bc42344f90c8dbbd819b3ff2af1.jpg?v=1779688638\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eBlock Diagram\u003cbr\u003e\n\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/ff1289db5ba899e33f764ca8553b83dd.jpg?v=1779687593\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eFree Choice of Multiple Working Modes\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003eN510 supports TCP Client, TCP Server, UDP Client, UDP Server, Httpd Client etc. operation modes\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/c79fb1f0a438eb96e693b65c0221a78b.jpg?v=1779687889\" alt=\"\"\u003e\u003cimg alt=\"\" src=\"https:\/\/www.pusr.com\/uploads\/20230417\/dcf4cfe36126c01ce5c9a21a24ba01b8.jpg\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eProduct Details\u003cbr\u003e\n\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/d373b2eb554211232b1b9ac3b159500b.jpg?v=1779687998\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eTarget Applications\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003eThe N5X0 series enables instant networking of serial devices and can be deployed in a variety of commercial applications and industrial process automation environments that require serial-to-Ethernet connectivity. These include POS, access control, SCADA systems, environment monitoring, sensor monitoring, device management, remote site management, and more.\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/baf6aef63875504c59ea745440ebde42.jpg?v=1779688618\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eSpecifications\u003c\/h2\u003e\n\u003ctable style=\"border-collapse: collapse; width: 100%; height: 724.97px;\"\u003e\n\u003c!-- System Information --\u003e\n\u003ctbody\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd colspan=\"2\" style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 100%;\"\u003e\u003cstrong\u003eSystem Information\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eProcessor\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003eST Cortex-M7\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eBasic Frequency\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003e400MHz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eFlash\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003e128K+4M byte\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c!-- Ethernet --\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd colspan=\"2\" style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 100%;\"\u003e\u003cstrong\u003eEthernet\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003ePort Number\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003e1\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eInterface Standard\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003e8 pin RJ45\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 39.1875px; text-align: center; width: 50.1658%;\"\u003eRate\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 39.1875px; text-align: center; width: 49.8342%;\"\u003e10\/100 Mbps, MDI\/MDIX, auto switch between cross and direct connection\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eProtection\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003e2KV electromagnetism isolation, shell insulation blocking\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eNetwork Protocol\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003eIP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP, Web socket, Httpd client\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eReceive Buffer\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003eMax 16k bytes buffer\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c!-- Serial --\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd colspan=\"2\" style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 100%;\"\u003e\u003cstrong\u003eSerial\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003ePort Number\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003e1\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eInterface Standard\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003eRS-485: 2 wire (A+,B-) Half-Duplex\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eData Bits\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003e7,8\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eStop Bit\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003e1,2\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eCheck Bit\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003eEven, Odd\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eBaud Rate\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003e600bps ~ 921600Mbps\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eFlow Control\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003eXON\/XOFF\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eBuffer\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003eSend and receive 4k bytes respectively\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eProtection\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003eRS-485: anti-static 2KV,lightning protection\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 39.1875px; text-align: center; width: 50.1658%;\"\u003eRS-485 Pull-up and Pull-Down Resistor\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 39.1875px; text-align: center; width: 49.8342%;\"\u003e2.2 KΩ\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c!-- Software --\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd colspan=\"2\" style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 100%;\"\u003e\u003cstrong\u003eSoftware\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eVirtual Serial USR-VCOM）\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003eWindows 2000 or higher(32 bit\/64 bit)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eConfiguration\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003eBuilt-in webpage, computer set-up software, serial command\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c!-- Basic Parameter --\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd colspan=\"2\" style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 100%;\"\u003e\u003cstrong\u003eBasic Parameter\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 50.1658%;\"\u003eSize\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 49.8342%;\"\u003e88 x 81 x 24 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 50.1658%;\"\u003eOperating Temp.\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 49.8342%;\"\u003e-40 ~ 85°C (industry)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 50.1658%;\"\u003eStorage Temp.\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 49.8342%;\"\u003e-40 ~ 85°C, 5 ~ 95% RH (no condensation)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 50.1658%;\"\u003eInput Voltage\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 49.8342%;\"\u003eDC 5 ~ 36V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 50.1658%;\"\u003eWorking Current\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 49.8342%;\"\u003e53mA @ 12V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 50.1658%;\"\u003ePower\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 49.8342%;\"\u003e\u0026lt;1W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c!-- More --\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd colspan=\"2\" style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 100%;\"\u003e\u003cstrong\u003eMore\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 50.1658%;\"\u003eCertificate\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 49.8342%;\"\u003eCE,FCC,ROHS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 50.1658%;\"\u003eWarranty\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 49.8342%;\"\u003e2 years\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eDownloads\u003c\/h2\u003e\n\u003ctable style=\"border-collapse: collapse; width: 100%; height: 58.7814px;\"\u003e\n\u003ctbody\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding-top: 5px; padding-right: 5px; padding-bottom: 5px; text-align: center; height: 19.5938px; width: 50.1658%;\"\u003eDocuments\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding-top: 5px; padding-right: 5px; padding-bottom: 5px; text-align: center; height: 19.5938px; width: 49.8342%;\"\u003e\u003ca href=\"https:\/\/www.pusr.com\/wiki\/puba\/ZdyzlXaeV?lang=en_US\" target=\"_blank\" rel=\"noopener\"\u003eDownload\u003c\/a\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding-top: 5px; padding-right: 5px; padding-bottom: 5px; text-align: center; height: 19.5938px; width: 50.1658%;\"\u003eUtilities\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding-top: 5px; padding-right: 5px; padding-bottom: 5px; text-align: center; height: 19.5938px; width: 49.8342%;\"\u003e\u003ca href=\"https:\/\/www.pusr.com\/wiki\/puba\/14GM1vMeS?lang=en_US\" target=\"_blank\" rel=\"noopener\"\u003eDownload\u003c\/a\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding-top: 5px; padding-right: 5px; padding-bottom: 5px; text-align: center; height: 19.5938px; width: 50.1658%;\"\u003eCertificate\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding-top: 5px; padding-right: 5px; padding-bottom: 5px; text-align: center; height: 19.5938px; width: 49.8342%;\"\u003e\u003ca href=\"https:\/\/www.pusr.com\/wiki\/puba\/j4zJNINSU?lang=en_US\" target=\"_blank\" rel=\"noopener\"\u003eDownload\u003c\/a\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003ePackaging List\u003cbr\u003e\n\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003e1x USR-N510\u003c\/p\u003e","published_at":"2025-02-10T15:44:49+05:30","created_at":"2025-01-23T16:02:43+05:30","vendor":"PUSR","type":"Ethernet \u0026 Communication Modules","tags":["AccessControl","ARP","Automation","BuildingAutomation","CompactDesign","DataLogging","DataProcessing","DeviceIntegration","DHCP","DINRailMount","DNS","EdgeComputing","EdgeGateway","EmbeddedNetworking","EmbeddedSystems","EMCProtection","EnvironmentalMonitoring","HighReliability","HTTP","IND-IOT","IndustrialAutomation","IndustrialControl","IndustrialIoT","IndustrialNetworking","IntelligentAgriculture","IoTConnectivity","IoTDeviceManagement","IPConfiguration","JSONSupport","LightweightDesign","ModbusGateway","ModbusRTU","ModbusTCP","MultiClient","NET-ACC","NetworkPrinting","PLCIntegration","PlugAndPlay","PointToPointCommunication","POSSystem","PowerControl","PowerEfficient","PUSR","PUSR IOT","RemoteAccess","RemoteMonitoring","RS232","RS422","RS485","SCADA","SecureDataTransmission","SecureIoT","SecureNetworking","SecureSerialCommunication","SerialNetworking","SerialServer","SerialToEthernet","SmartFactory","SmartInfrastructure","SurgeProtection","TCP","TCPClient","TCPServer","TransparentTransmission","UDP","UDPClient","UDPServer","VirtualCOM","Watchdog","WebSocket","WideVoltage","WLS-IOT","ZOHO UPDATED"],"price":454999,"price_min":454999,"price_max":454999,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":49836616417597,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"ELC8526","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Serial to Ethernet - USR-N510","public_title":null,"options":["Default Title"],"price":454999,"weight":550,"compare_at_price":null,"inventory_management":"shopify","barcode":"ELC8526","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/thinkrobotics.com\/cdn\/shop\/files\/N510-420221211181248.png?v=1779686300","\/\/thinkrobotics.com\/cdn\/shop\/files\/N510-220221211181247.png?v=1779686300","\/\/thinkrobotics.com\/cdn\/shop\/files\/N510-120221211181246.png?v=1779686301","\/\/thinkrobotics.com\/cdn\/shop\/files\/N510-320221211181248.png?v=1779686300","\/\/thinkrobotics.com\/cdn\/shop\/files\/N510-620221211181249.png?v=1779686300","\/\/thinkrobotics.com\/cdn\/shop\/files\/N510-520221211181248.png?v=1779686300"],"featured_image":"\/\/thinkrobotics.com\/cdn\/shop\/files\/N510-420221211181248.png?v=1779686300","options":["Title"],"media":[{"alt":null,"id":51061967257917,"position":1,"preview_image":{"aspect_ratio":1.499,"height":373,"width":559,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/N510-420221211181248.png?v=1779686300"},"aspect_ratio":1.499,"height":373,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/N510-420221211181248.png?v=1779686300","width":559},{"alt":null,"id":51061967192381,"position":2,"preview_image":{"aspect_ratio":1.499,"height":373,"width":559,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/N510-220221211181247.png?v=1779686300"},"aspect_ratio":1.499,"height":373,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/N510-220221211181247.png?v=1779686300","width":559},{"alt":null,"id":51061967356221,"position":3,"preview_image":{"aspect_ratio":1.499,"height":373,"width":559,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/N510-120221211181246.png?v=1779686301"},"aspect_ratio":1.499,"height":373,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/N510-120221211181246.png?v=1779686301","width":559},{"alt":null,"id":51061967225149,"position":4,"preview_image":{"aspect_ratio":1.499,"height":373,"width":559,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/N510-320221211181248.png?v=1779686300"},"aspect_ratio":1.499,"height":373,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/N510-320221211181248.png?v=1779686300","width":559},{"alt":null,"id":51061967323453,"position":5,"preview_image":{"aspect_ratio":1.499,"height":373,"width":559,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/N510-620221211181249.png?v=1779686300"},"aspect_ratio":1.499,"height":373,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/N510-620221211181249.png?v=1779686300","width":559},{"alt":null,"id":51061967290685,"position":6,"preview_image":{"aspect_ratio":1.499,"height":373,"width":559,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/N510-520221211181248.png?v=1779686300"},"aspect_ratio":1.499,"height":373,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/N510-520221211181248.png?v=1779686300","width":559}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch1 style=\"text-align: center;\"\u003eUSR-N510\u003c\/h1\u003e\n\u003ch3 style=\"text-align: center;\"\u003e1 Port RS485 Ethernet Device Servers[MQTT\/SSL]\u003cbr\u003e\n\u003c\/h3\u003e\n\u003cp style=\"text-align: center;\"\u003e1 port Serial Port to Ethernet Adapter USR-N510-H7-4 can realize bi-directional transparent transmission between RS485 and network. Supports modbus RTU to TCP, Modbus Polling.\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg alt=\"\" src=\"https:\/\/www.pusr.com\/uploads\/20230417\/58cf45eb652f7527cb43e6ffdaeddbc8.jpg\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eLightweight MQTT Protocol\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003eMQTT 3.1 and 3.1.1 both supported,features SSL\/TLS security, supports maximum 16 topics publication simultaneously, 16 topics subscription simultaneously.\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/29c2c2f6e3f2113c40aefac4256c9976.jpg?v=1779687876\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eData Transmission Encryption\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003eSupports SSL\/TLS encryption in TCP client, HTTP client and MQTT operation modes Supports two-way certificates authentication\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/508811bc93ce010fffbfa7e6b64ac988.jpg?v=1779687970\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eEdge Computing\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003eN510 actively execute data collection and internal calculate,then transmits to cloud platform by customized Json format. Edge computing gateways can effectively relieve the pressure on the server.\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/8c7791b583a0eecb2c709f425720c262.jpg?v=1779687834\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eModbus Gateway\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003eTransfer between modbus RTU and modbus TCP protocol, Support modbus multi-host polling, Support up to 128 data points for data collection, support modbus address mapping.\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/64d299c70c6c0687725cdd1f273fce28.jpg?v=1779688044\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eComparision of New and Old Schemes\u003cbr\u003e\n\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/fa2cd40147a0e26f515bfd6c06494fa7.jpg?v=1779687960\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eScheme Upgrade to Provide Better Experience\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003eMaster chip adopts ST crotex-M7 core, the main frequency is up to 400Mhz, fast processing speed, high stable and reliable performance\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/bf59cd4f7b9f616af449e3bac45de60d.jpg?v=1779687849\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eHigh Reliability and Stability\u003cbr\u003e\n\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/54cb0e32b37d83ccd370259b8d3f7329.jpg?v=1779687983\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eRedundant Power Supply\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003eWide input voltage DC 5-36V, with reverse polarity protection\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/dac44bc42344f90c8dbbd819b3ff2af1.jpg?v=1779688638\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eBlock Diagram\u003cbr\u003e\n\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/ff1289db5ba899e33f764ca8553b83dd.jpg?v=1779687593\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eFree Choice of Multiple Working Modes\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003eN510 supports TCP Client, TCP Server, UDP Client, UDP Server, Httpd Client etc. operation modes\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/c79fb1f0a438eb96e693b65c0221a78b.jpg?v=1779687889\" alt=\"\"\u003e\u003cimg alt=\"\" src=\"https:\/\/www.pusr.com\/uploads\/20230417\/dcf4cfe36126c01ce5c9a21a24ba01b8.jpg\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eProduct Details\u003cbr\u003e\n\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/d373b2eb554211232b1b9ac3b159500b.jpg?v=1779687998\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eTarget Applications\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003eThe N5X0 series enables instant networking of serial devices and can be deployed in a variety of commercial applications and industrial process automation environments that require serial-to-Ethernet connectivity. These include POS, access control, SCADA systems, environment monitoring, sensor monitoring, device management, remote site management, and more.\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/baf6aef63875504c59ea745440ebde42.jpg?v=1779688618\" alt=\"\"\u003e\u003c\/p\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eSpecifications\u003c\/h2\u003e\n\u003ctable style=\"border-collapse: collapse; width: 100%; height: 724.97px;\"\u003e\n\u003c!-- System Information --\u003e\n\u003ctbody\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd colspan=\"2\" style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 100%;\"\u003e\u003cstrong\u003eSystem Information\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eProcessor\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003eST Cortex-M7\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eBasic Frequency\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003e400MHz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eFlash\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003e128K+4M byte\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c!-- Ethernet --\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd colspan=\"2\" style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 100%;\"\u003e\u003cstrong\u003eEthernet\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003ePort Number\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003e1\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eInterface Standard\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003e8 pin RJ45\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 39.1875px; text-align: center; width: 50.1658%;\"\u003eRate\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 39.1875px; text-align: center; width: 49.8342%;\"\u003e10\/100 Mbps, MDI\/MDIX, auto switch between cross and direct connection\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eProtection\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003e2KV electromagnetism isolation, shell insulation blocking\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eNetwork Protocol\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003eIP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP, Web socket, Httpd client\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eReceive Buffer\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003eMax 16k bytes buffer\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c!-- Serial --\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd colspan=\"2\" style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 100%;\"\u003e\u003cstrong\u003eSerial\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003ePort Number\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003e1\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eInterface Standard\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003eRS-485: 2 wire (A+,B-) Half-Duplex\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eData Bits\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003e7,8\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eStop Bit\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003e1,2\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eCheck Bit\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003eEven, Odd\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eBaud Rate\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003e600bps ~ 921600Mbps\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eFlow Control\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003eXON\/XOFF\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eBuffer\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003eSend and receive 4k bytes respectively\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eProtection\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003eRS-485: anti-static 2KV,lightning protection\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 39.1875px; text-align: center; width: 50.1658%;\"\u003eRS-485 Pull-up and Pull-Down Resistor\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 39.1875px; text-align: center; width: 49.8342%;\"\u003e2.2 KΩ\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c!-- Software --\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd colspan=\"2\" style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 100%;\"\u003e\u003cstrong\u003eSoftware\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eVirtual Serial USR-VCOM）\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003eWindows 2000 or higher(32 bit\/64 bit)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 50.1658%;\"\u003eConfiguration\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; height: 19.5938px; text-align: center; width: 49.8342%;\"\u003eBuilt-in webpage, computer set-up software, serial command\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c!-- Basic Parameter --\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd colspan=\"2\" style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 100%;\"\u003e\u003cstrong\u003eBasic Parameter\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 50.1658%;\"\u003eSize\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 49.8342%;\"\u003e88 x 81 x 24 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 50.1658%;\"\u003eOperating Temp.\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 49.8342%;\"\u003e-40 ~ 85°C (industry)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 50.1658%;\"\u003eStorage Temp.\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 49.8342%;\"\u003e-40 ~ 85°C, 5 ~ 95% RH (no condensation)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 50.1658%;\"\u003eInput Voltage\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 49.8342%;\"\u003eDC 5 ~ 36V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 50.1658%;\"\u003eWorking Current\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 49.8342%;\"\u003e53mA @ 12V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 50.1658%;\"\u003ePower\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 49.8342%;\"\u003e\u0026lt;1W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c!-- More --\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd colspan=\"2\" style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 100%;\"\u003e\u003cstrong\u003eMore\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 50.1658%;\"\u003eCertificate\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 49.8342%;\"\u003eCE,FCC,ROHS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 50.1658%;\"\u003eWarranty\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding: 5px; text-align: center; height: 19.5938px; width: 49.8342%;\"\u003e2 years\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003eDownloads\u003c\/h2\u003e\n\u003ctable style=\"border-collapse: collapse; width: 100%; height: 58.7814px;\"\u003e\n\u003ctbody\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding-top: 5px; padding-right: 5px; padding-bottom: 5px; text-align: center; height: 19.5938px; width: 50.1658%;\"\u003eDocuments\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding-top: 5px; padding-right: 5px; padding-bottom: 5px; text-align: center; height: 19.5938px; width: 49.8342%;\"\u003e\u003ca href=\"https:\/\/www.pusr.com\/wiki\/puba\/ZdyzlXaeV?lang=en_US\" target=\"_blank\" rel=\"noopener\"\u003eDownload\u003c\/a\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding-top: 5px; padding-right: 5px; padding-bottom: 5px; text-align: center; height: 19.5938px; width: 50.1658%;\"\u003eUtilities\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding-top: 5px; padding-right: 5px; padding-bottom: 5px; text-align: center; height: 19.5938px; width: 49.8342%;\"\u003e\u003ca href=\"https:\/\/www.pusr.com\/wiki\/puba\/14GM1vMeS?lang=en_US\" target=\"_blank\" rel=\"noopener\"\u003eDownload\u003c\/a\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"border: 1px solid black; padding-top: 5px; padding-right: 5px; padding-bottom: 5px; text-align: center; height: 19.5938px; width: 50.1658%;\"\u003eCertificate\u003c\/td\u003e\n\u003ctd style=\"border: 1px solid black; padding-top: 5px; padding-right: 5px; padding-bottom: 5px; text-align: center; height: 19.5938px; width: 49.8342%;\"\u003e\u003ca href=\"https:\/\/www.pusr.com\/wiki\/puba\/j4zJNINSU?lang=en_US\" target=\"_blank\" rel=\"noopener\"\u003eDownload\u003c\/a\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp style=\"text-align: center;\"\u003e \u003c\/p\u003e\n\u003ch2 style=\"text-align: center;\"\u003ePackaging List\u003cbr\u003e\n\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\"\u003e1x USR-N510\u003c\/p\u003e"}

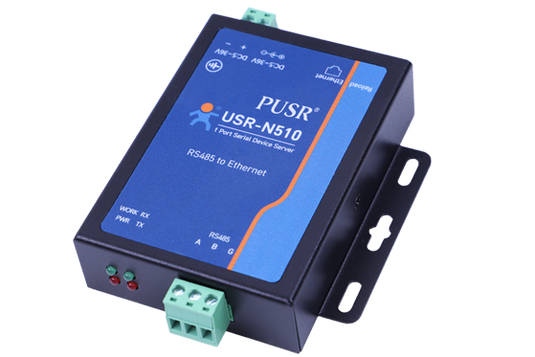

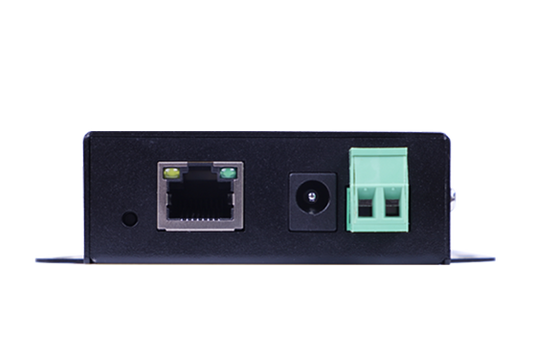

Serial to Ethernet - USR-N510

USR-N510

1 Port RS485 Ethernet Device Servers[MQTT/SSL]

Lightweight MQTT Protocol

Data Transmission Encryption

Edge Computing

Modbus Gateway

Comparision of New and Old Schemes

Scheme Upgrade to Provide Better Experience

High Reliability and Stability

Redundant Power Supply

Block Diagram

Free Choice of Multiple Working Modes

Product Details

Target Applications

Specifications

Downloads

Packaging List

Want to buy in bulk?

Customer Reviews

Custom Requirements?

Discussion Forum

Popular Links

Shopping Cart

Let customers speak for us

System Information
Processor	ST Cortex-M7
Basic Frequency	400MHz
Flash	128K+4M byte
Ethernet
Port Number	1
Interface Standard	8 pin RJ45
Rate	10/100 Mbps, MDI/MDIX, auto switch between cross and direct connection
Protection	2KV electromagnetism isolation, shell insulation blocking
Network Protocol	IP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP, Web socket, Httpd client
Receive Buffer	Max 16k bytes buffer
Serial
Port Number	1
Interface Standard	RS-485: 2 wire (A+,B-) Half-Duplex
Data Bits	7,8
Stop Bit	1,2
Check Bit	Even, Odd
Baud Rate	600bps ~ 921600Mbps
Flow Control	XON/XOFF
Buffer	Send and receive 4k bytes respectively
Protection	RS-485: anti-static 2KV,lightning protection
RS-485 Pull-up and Pull-Down Resistor	2.2 KΩ
Software
Virtual Serial USR-VCOM）	Windows 2000 or higher(32 bit/64 bit)
Configuration	Built-in webpage, computer set-up software, serial command
Basic Parameter
Size	88 x 81 x 24 mm
Operating Temp.	-40 ~ 85°C (industry)
Storage Temp.	-40 ~ 85°C, 5 ~ 95% RH (no condensation)
Input Voltage	DC 5 ~ 36V
Working Current	53mA @ 12V
Power	<1W
More
Certificate	CE,FCC,ROHS
Warranty	2 years

Documents	Download
Utilities	Download
Certificate	Download
