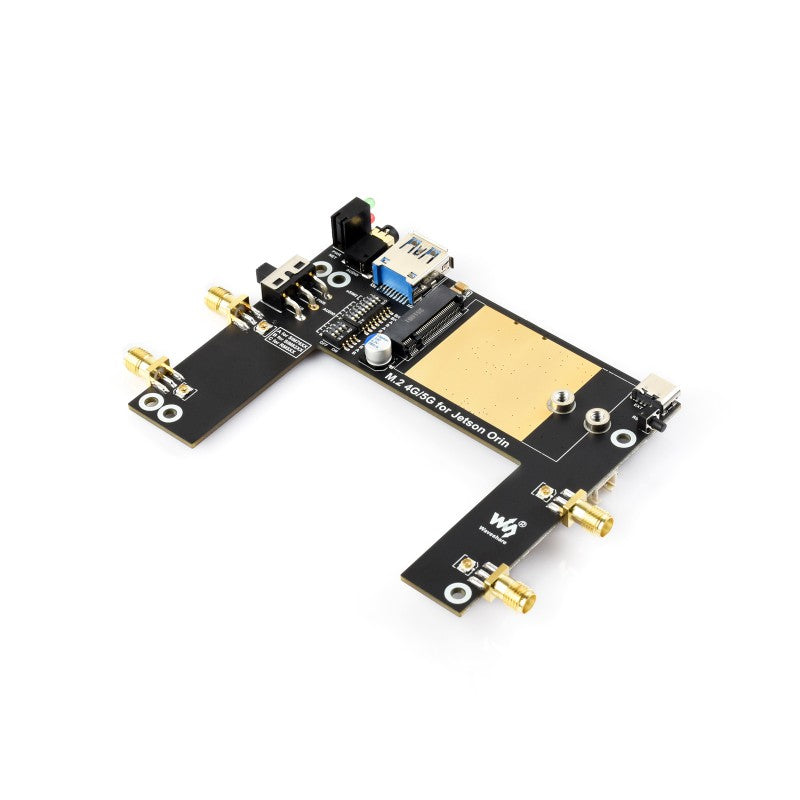

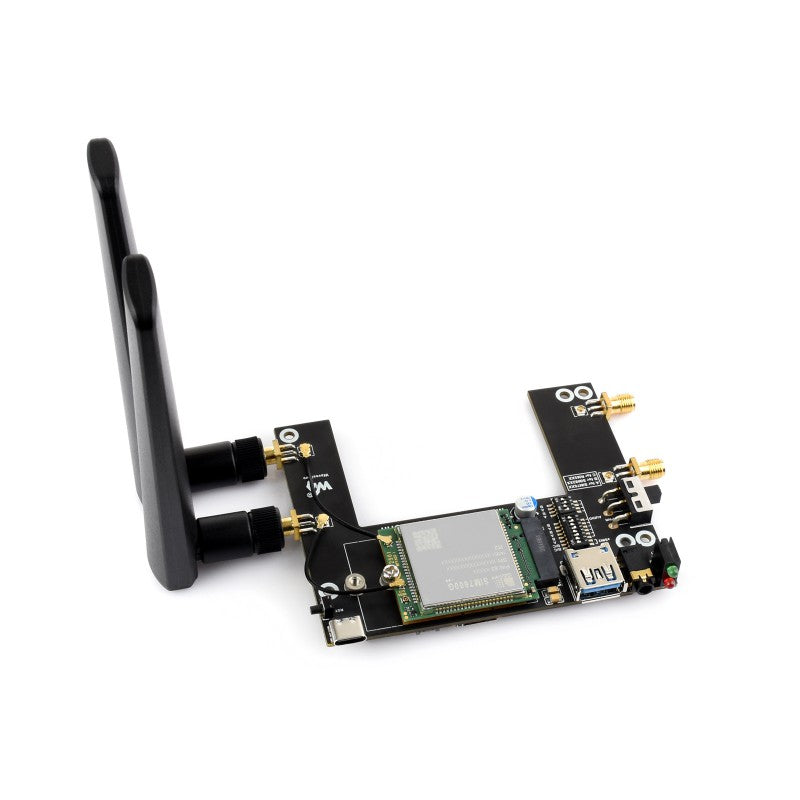

4G module for Jetson Orin
Equipped with a high-performance SIM7600G-H-M.2 4G global module
Supports 4G / 3G / 2G communication and GNSS positioning, global band support
Features
| Supports dial-up, phone call, SMS, TCP, UDP, MQTT, HTTP(S), FTP(S), and more |
| GNSS positioning support: GPS, Beidou, GLONASS, Galileo, QZSS, LBS base station |
| USB 3.1 port (USB 2.0 compatible) for connecting to Jetson Orin, PC, or Raspberry Pi, enabling high-speed 4G networking |
| Onboard standard M.2 B KEY slot with module selection switches, compatible with SIM8260X-M2, SIM8262X-M2, RM5XX, and SIM7600 series modules |
| Four SMA antenna connectors for easy antenna installation |
| Reserved UART solder pads for convenient data transmission and additional module functions |
| Onboard audio interface and audio decoding chip supporting voice functions such as phone calls on SIM series modules |
| Integrated power switch, reset button, and LED indicators for easy power control and status monitoring |
| High-efficiency onboard power supply circuit with up to 3A output current |
Specifications
| 5G / 4G Module | SIM8260G-M2 | SIM8262E-M2 | RM520N-GL | SIM7600G-H-M.2 |
|---|---|---|---|---|
| Images |  |
 |
 |
 |
| 5G Standard | 3GPP R16 | 3GPP R16 | 3GPP R16 | - |
| Chip Solution | Qualcomm Snapdragon X62 | Qualcomm Snapdragon X62 | Qualcomm Snapdragon X62 | Qualcomm MDM9607 |
| Applicable Regions | Global | Except Americas | Global | Global |
| Dimensions (mm) | 30.0 × 52.0 × 2.3 | 30.0 × 42.0 × 2.3 | 30.0 × 52.0 × 2.3 | 42.0 × 31.4 × 3.8 |
| Frequency Band | ||||
| 5G SA | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79 | n1, n3, n5, n7, n8, n18, n20, n26, n28, n38, n40, n41, n48, n66, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | - |
| 5G NSA | n1, n2, n3, n5, n7, n8, n12, n14, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n75, n77, n78, n79 | n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n48, n66, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | - |
| LTE-FDD | B1–B5, B7, B8, B12–B14, B17–B20, B25–B30, B32, B66, B71 | B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32 | B1–B5, B7, B8, B12–B14, B17–B20, B25, B26, B28–B30, B32, B66, B71 | B1–B5, B7, B8, B12, B13, B18–B20, B25, B26, B28, B66 |
| LTE-TDD | B34, B38, B39, B40, B41, B42, B43, B46, B48 | B38, B39, B40, B41, B42, B43 | B34, B38, B39, B40, B41, B42, B43, B48 | B34, B38, B39, B40, B41 |
| WCDMA | B1, B2, B4, B5, B8, B19 | B1, B5, B8 | B1, B2, B4, B5, B8, B19 | B1, B2, B4, B5, B6, B8, B19 |
| GNSS | GPS, GLONASS, Beidou, Galileo, and QZSS | |||
| Data Rate (SA) | 2.5Gbps / 0.9Gbps | 2.4Gbps / 1Gbps | 2.4Gbps / 900Mbps | - |
| Data Rate (NSA) | 3.47Gbps / 460Mbps | 3.4Gbps / 600Mbps | 3.4Gbps / 550Mbps | - |
| LTE | 1.6Gbps / 200Mbps | 1.6Gbps / 200Mbps | 1.6Gbps / 200Mbps | 150Mbps / 50Mbps |
| HSPA+ | 42Mbps / 5.76Mbps | 42Mbps / 5.76Mbps | 42Mbps / 5.76Mbps | 42Mbps / 5.76Mbps |
Note: The above are the supported modules after testing; If you need to use with other 5G modules, please confirm with the module manufacturer for interface and mode compatibility.
Global Band 4G/3G/2G Support
LTE Cat-4: up to 150Mbps (downlink) / 50Mbps (uplink)
3G (HSPA+): up to 42Mbps (downlink) / 5.76Mbps (uplink)
2G (GPRS/EDGE): up to 236.8Kbps (downlink) / 236.8Kbps (uplink)
Multi System Support, Easy to Use
Supports Windows 7 / 8 / 10 / 11, Ubuntu, Raspberry Pi OS, and OpenWRT systems. Just plug it into USB port and simple configuration, the high speed 4G network connection would be ready to use
Connection Examples
for Jetson Orin Nano and Jetson Orin NX, use the purpose-made USB adapter; for Windows PC, Jetson Nano series, Raspberry Pi 5 / 4B / 3B+, and CM5 / CM4 series, use the USB dual-plug cable
|
Connecting with Jetson Nano |
Connecting with Raspberry Pi 5 |
Connecting with CM5 |
* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, host performance, base station condition, etc.
for reference only, the Raspberry Pi 5, CM5 Module, CM5, Jetson Nano Kit, and Jetson Orin Kit are not included, please refer to the package content for detailed part list.
Multi Positioning Support
Supports GPS, GLONASS, BeiDou, Galileo, QZSS, and LBS base station positioning
Cloud Communication
Phone Call & SMS Support
Allows using AT commands to make phone call via Audio jack or send SMS

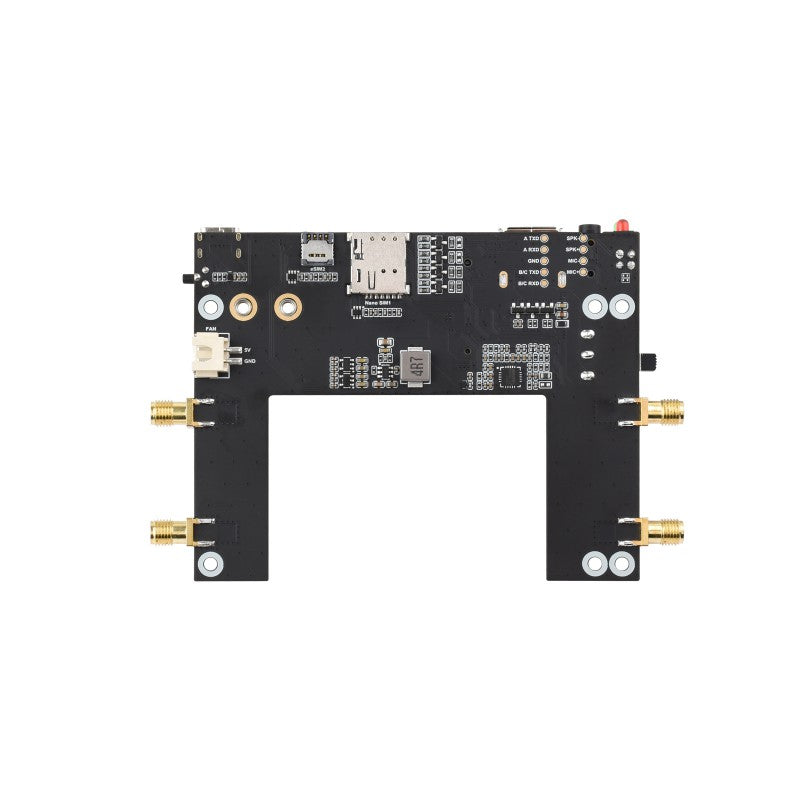

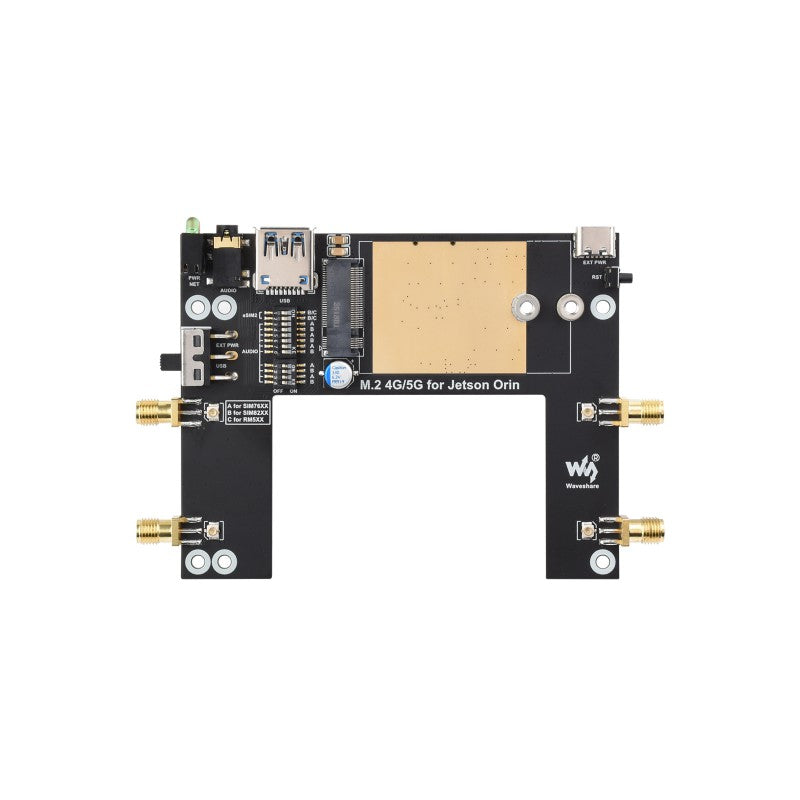

What's On Board
| 1 | USB3.1 Port | 10 | Audio Jack |
| 2 | M.2 Slot | 11 | eSIM Card Slot |
| 3 | USB Type-C Port | 12 | Nano SIM Card Slot |
| 4 | Reset Button | 13 | Level Conversion Circuit |
| 5 | Module Fixing Holes | 14 | UART & Audio Pads |
| 6 | Antenna Connectors | 15 | Mounting Holes |
| 7 | Module Settings Switch | 16 | Audio Drive Circuit |
| 8 | Power Supply Switch | 17 | Power Supply Circuit |
| 9 | Indicator | 18 | Fan Header |
Installation Introduction
* for reference only, please refer to the package content for detailed part list
Outline Dimensions
Resources & Services
Wiki: www.waveshare.com/wiki/SIM7600G-H-M.2_4G_for_Jetson_Orin

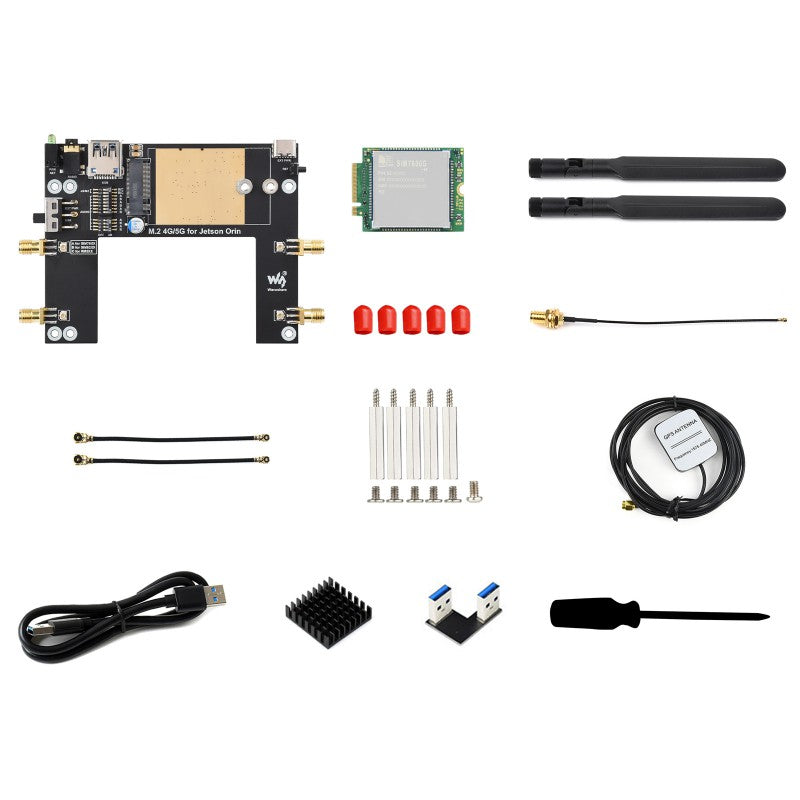

Package Content
Weight: 0.242 kg
Jetson Orin M.2 4G / 5G expansion board x1
SIM7600G-H-M.2 x1
4G antenna x2
SMA protective cap (5PCS) x1
IPEX1 to SMA adapter cable ~10cm x1
IPEX1 to IPEX4 adapter cable ~5cm (2PCS) x1
Screws pack x1
GPS External Antenna (C) x1
Dual plug USB3.0 Type-A cable x1
Heatsink x1
USB 3.0 Adapter (C) x1
Screwdriver x1
