YIHUA 8786D-I 750W Hot Air Rework Station with Soldering Iron

SKU: TOL1028

₹ 5,499.99 ₹ 8,999.99

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
YIHUA 8786D-I 750W Hot Air Rework Station with Soldering Iron₹ 5,499.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Feature

  • This hot air rework station features a PID programmable temperature control system and real time temperature tracking of each component, as well as an automatic temperature correction with rapid speed compensation and minimum tolerance.
  • It comes equipped with a hot air gun and soldering iron.
  • The anti-static design prevents static or electricity leakage.
  • Personalized Functions:
    A. Temperature Correction Function:
    The rework station will automatically correct the temperature due to environmental changes or replacement of the heating coil, soldering iron or other components.
    B. Sleep Mode:
    The soldering iron automatically goes to sleep if it is left in a still condition for 10 minutes, and the temperature will decrease to 200℃. This prevents the iron tip from oxidizing and other damage, as well as eliminates the need for a heat waiting period.
    Activation Method:
    a). Shake the iron handle several times.
    b). Press any button once.
    C). Power-off first and then power-on.

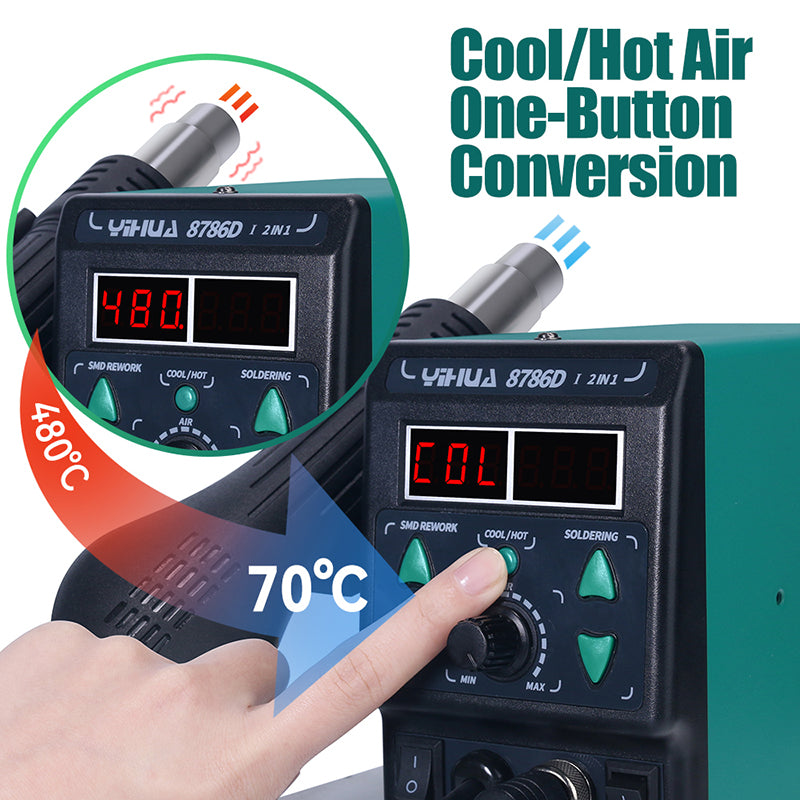

    C. Cold/Hot Air Switch:
    Switch from cold or hot air by pressing the button-the cold air function is especially designed to cool down heated elements processing.

Parameter

Machine
Rated Voltage AC 220V±10% 50Hz
Machine Power 700W
Working Environment 0~40℃ Relative humidity< 80%
Storage Temperature -20~80℃ Relative humidity< 80%
Machine Size 13.5*15*10cm
Weight 2.6KG
Parts
Item Hot air gun Soldering iron
Working Voltage AC 220V±10% 50Hz AC 26V±10% 50Hz
Output Power 650W 50W
Temperature Range 100℃ ~ 480℃ 200℃ ~ 480℃
Mode of Airflow Brushless fan ---
Airflow 120L/min (max.) ---
Temperature Stability ±5℃ (static) ±5℃ (static)
Display LED (red/green) LED (red/green)
Temperature Correction PID digital program proofreading ----
PID Temperature Cycle Fast 200ms Fast 200ms
Heater Ceramics heater Common metal heater
Tips to Ground Impedance --- < 2Ω
Tips Voltage to Ground --- < 2mV

Standard Configuration

  • Machine: 1set
  • User manual: 1pc
  • Air gun handle: 1pc
  • Nozzles: 3pcs (10mm, 8mm, 5mm)
  • Power plug: 1pc
  • Iron handle (including a heater and tips): 1pc
  • Iron holder: 1pc
What power supply and frequency does the unit use?
It operates on AC 220V plus minus 10 percent at 50 Hz with a rated power of 700W.
What are the temperature ranges for the hot air gun and the soldering iron?
Hot air gun range is 100 to 480C and soldering iron range is 200 to 480C; temperature stability is listed as plus minus 5C.
How does the temperature control and correction work?
The station uses a PID digital control with real time temperature tracking and automatic temperature correction to compensate environmental changes and component replacement.
What is the sleep mode feature and how is it activated?
The soldering iron enters sleep after 10 minutes of inactivity and cools to 200C. Activation options include shaking the iron handle, pressing any button, or power cycling.
What items are included in the package?
The package includes the machine, user manual, air gun handle, three nozzles (10mm, 8mm, 5mm), IC puller, power plug, iron handle with heater and tips, and iron holder.
