Load image into Gallery viewer, Airvolute DroneCore 2

Airvolute DroneCore 2

Name: Airvolute DroneCore 2
Brand: Airvolute
SKU: DRO9037
Price: 414999.99 INR
Availability: InStock

SKU: DRO9037

₹ 414,999.99

₹ 414,999.99 ~~₹ 484,999.99~~

Sale Sold out

Tax included. Shipping calculated at checkout.

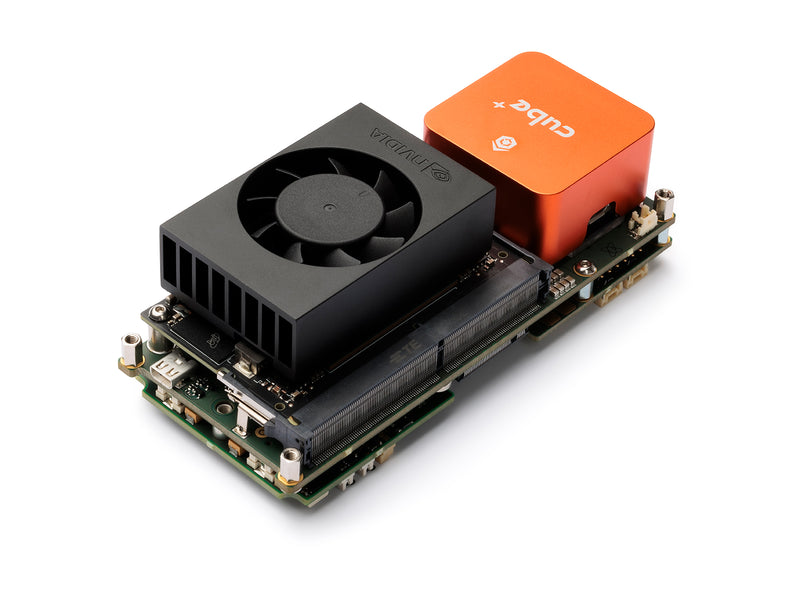

Orin NX 16GB RAM / 256GB SSD / Cube Orange+ Sold out

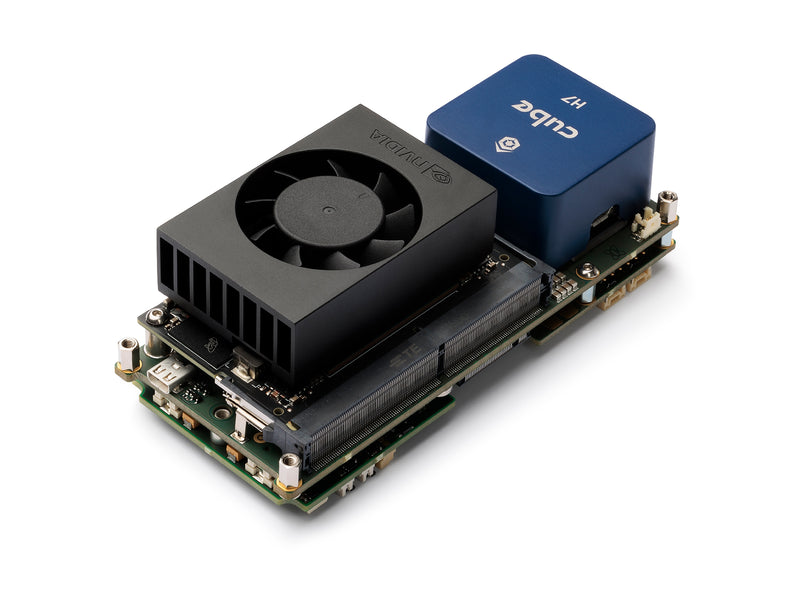

Orin NX 16GB RAM / 259GB SSD / Cube Blue Sold out

Looking for Bulk?

This is a pre order item. We will ship it when it comes in stock.

Quantity must be 1 or more

DroneCore 2

10 times faster time to market for UAS developers

DroneCore 2 is a modular AI-driven open architecture autopilot designed for complex use cases that combines high computational processing power, redundant connectivity, small size, and low weight.

AI-driven autopilot with NVIDIA Jetson, Cube, and ESCs

NVIDIA Jetson: Xavier NX or Orin NX
CubePilot: Cube Orange+, Blue or Red
ESCs: 4x FOC-based speed controller

Features

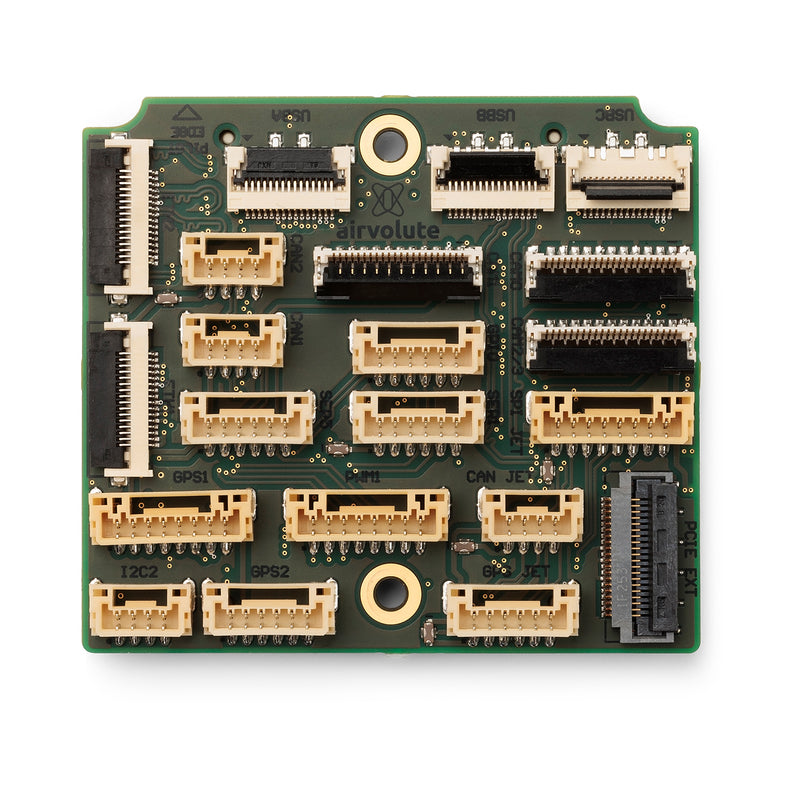

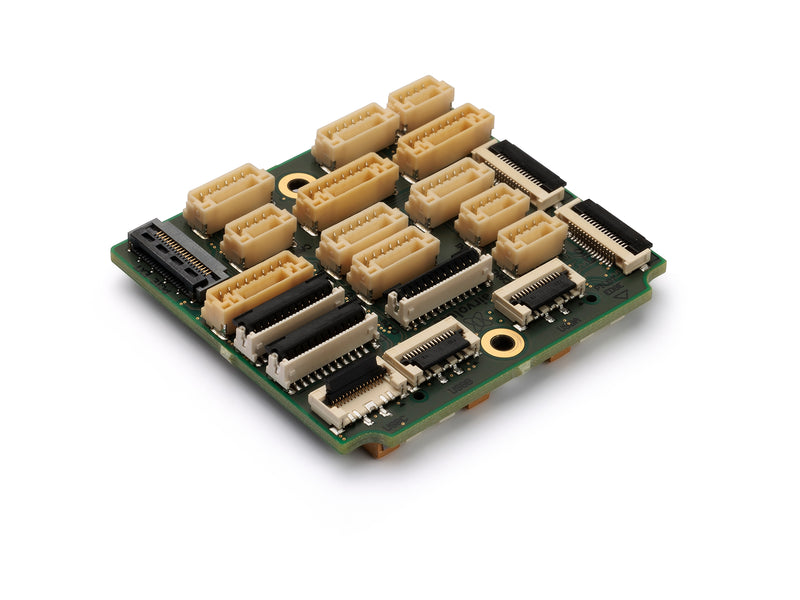

Modular design: single motherboard with various extension boards
Unique modular design allows manufacturers to combine a single motherboard with various extension boards with all required peripherals and connectors.

The Cube Pilot (Orange+ or Blue) as primary autopilot
STM32H7 onboard FMU as secondary autopilot

Powerful SDK and easy-to-use API interface

ROS2-based SDK ready to use for autonomous flights
Unified Python API for various software layers (hardware access, localization, navigation, AI, etc.)
Open Source architecture

Various vehicles support
Support for different types of drones like VTOL, copters, planes, rovers, etc.

Purpose

The purpose of DroneCore 2.0 is to speed up UAS development with a cutting edge autopilot solution.
With rich connectivity and modular architecture, version 2.0 is suitable for serial production of custom UASs.

Mechanical parameters

Weight 206g - including Cube orange, Xavier NX, Xavier heatsink with fan
Dimensions 119.5 x 51 x 41mm

Primary FMU Connections (CUBE Pilot)

Direct PWM output (6 + 8 lines)
PPM input
2x CAN, 4x UART, 2x I2C, analog
Power sensor input, buzzer

Electrical parameters

Power supply range: 12V – 35V (6S LiHV)
Integrated DC/DC converter for control circuits
Redundant power supply with power good monitoring for control unit
Current protected peripheral connectors
4 x FOC UAVCAN ESC 40A, featuring motor identification and motor diagnostics
Power sensor, SMBUS

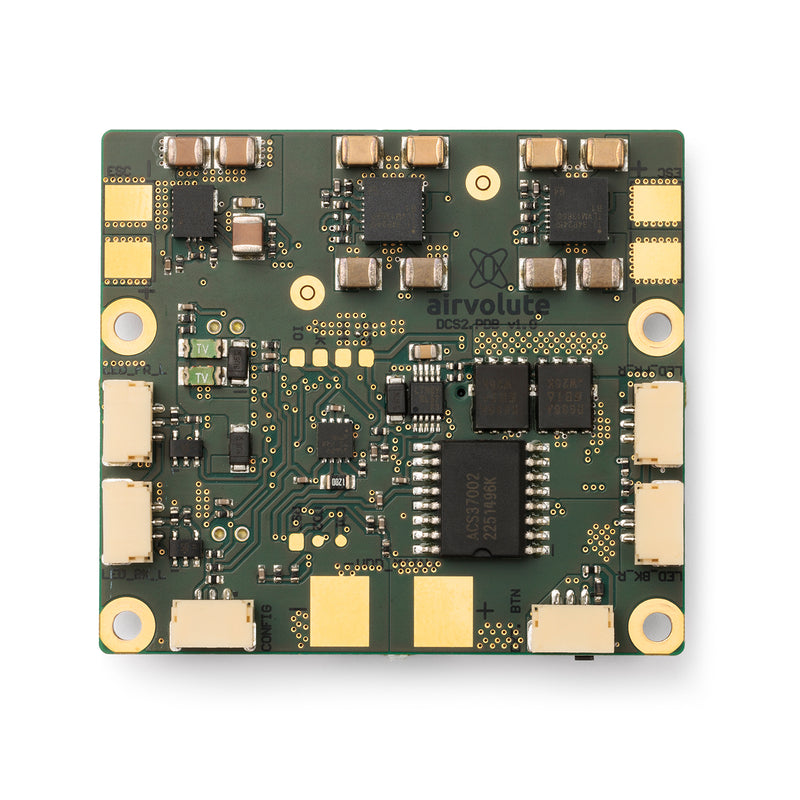

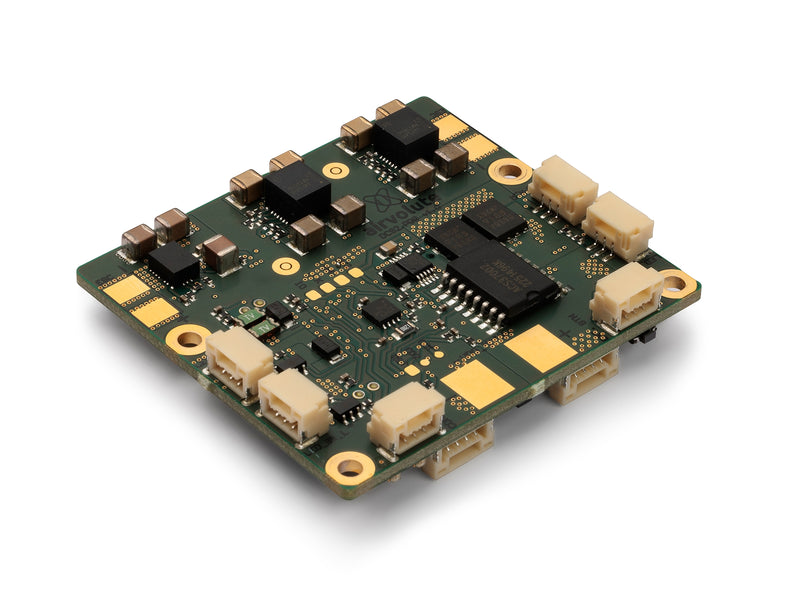

DroneCore.Power (bottom power board)

4 x FOC UAVCAN ESCs – 40A peak / 20A permanent
power sensor, SMBUS,
LED Driver for 4x WS2812B strips

Ardupilot (Cube) Connections

PPM input
PWM output (7 + 7 lines)
2x CAN
4x UART
2x I2C
Buzzer
Power sensor input
ADC input
Buzzer

Jetson connections:

PCI Express (M2, Key E connector)
4x USB 3.0 (ZIF connectors, reductions available)
Gigabit Ethernet (ZIF connector, reductions available)
6 CSI (22 pin)
4 GPIO
UAV CAN, UART, I2C, SPI
IMU BMI088 and barometer BMP388 on board
USB 2.0 for debugging
Micro SD card
Video output connector (micro HDMI)
Fan

Details:

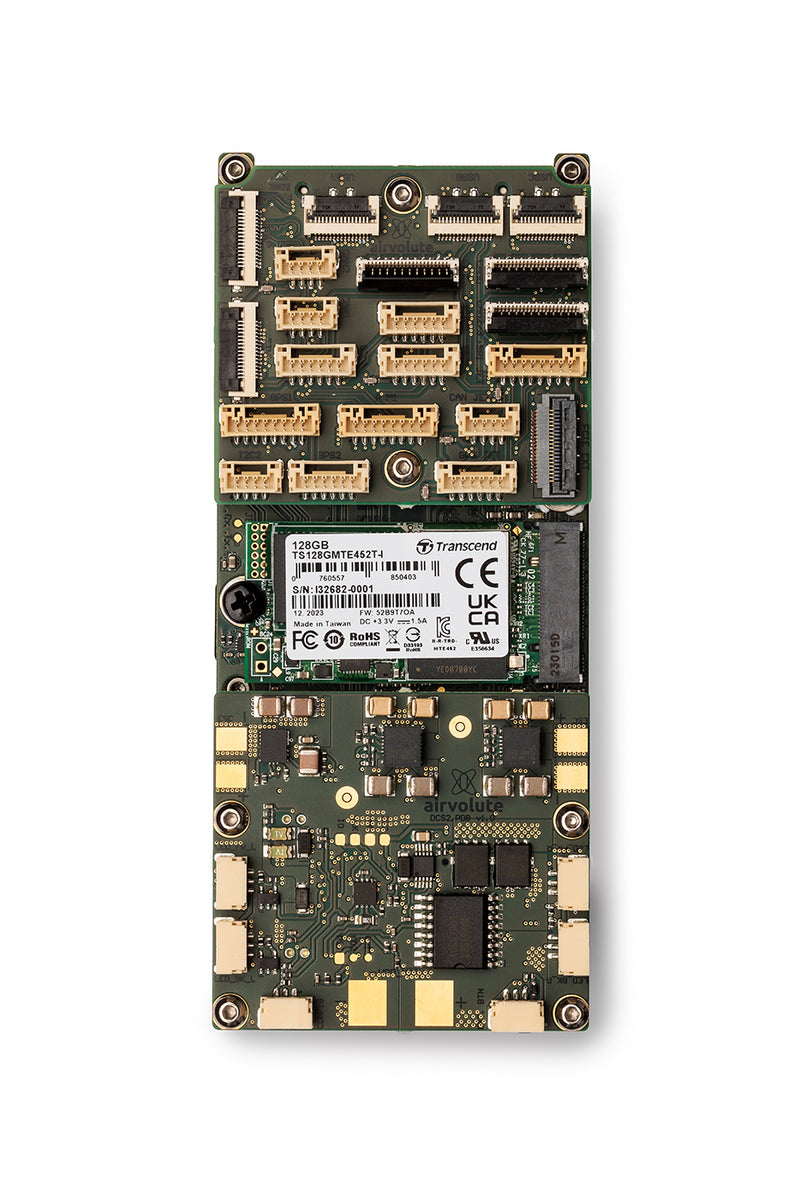

DroneCore.Suite consists of these main blocks

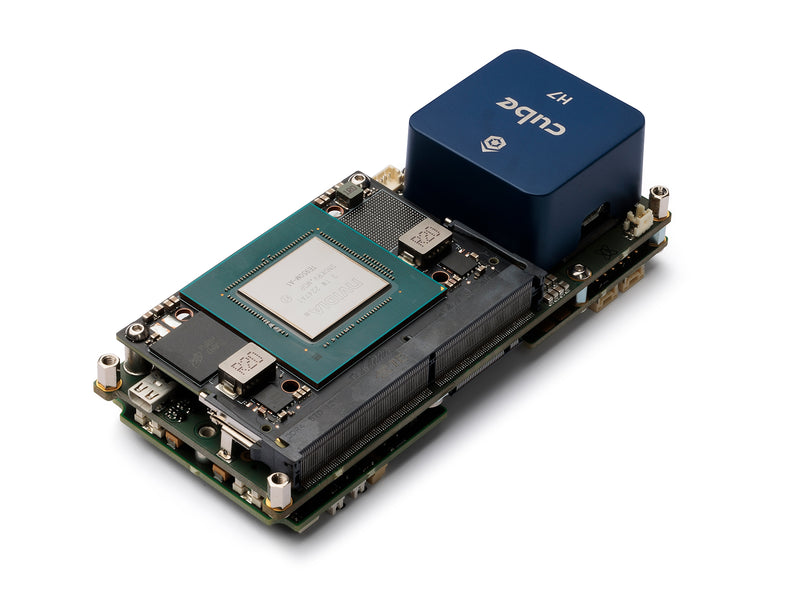

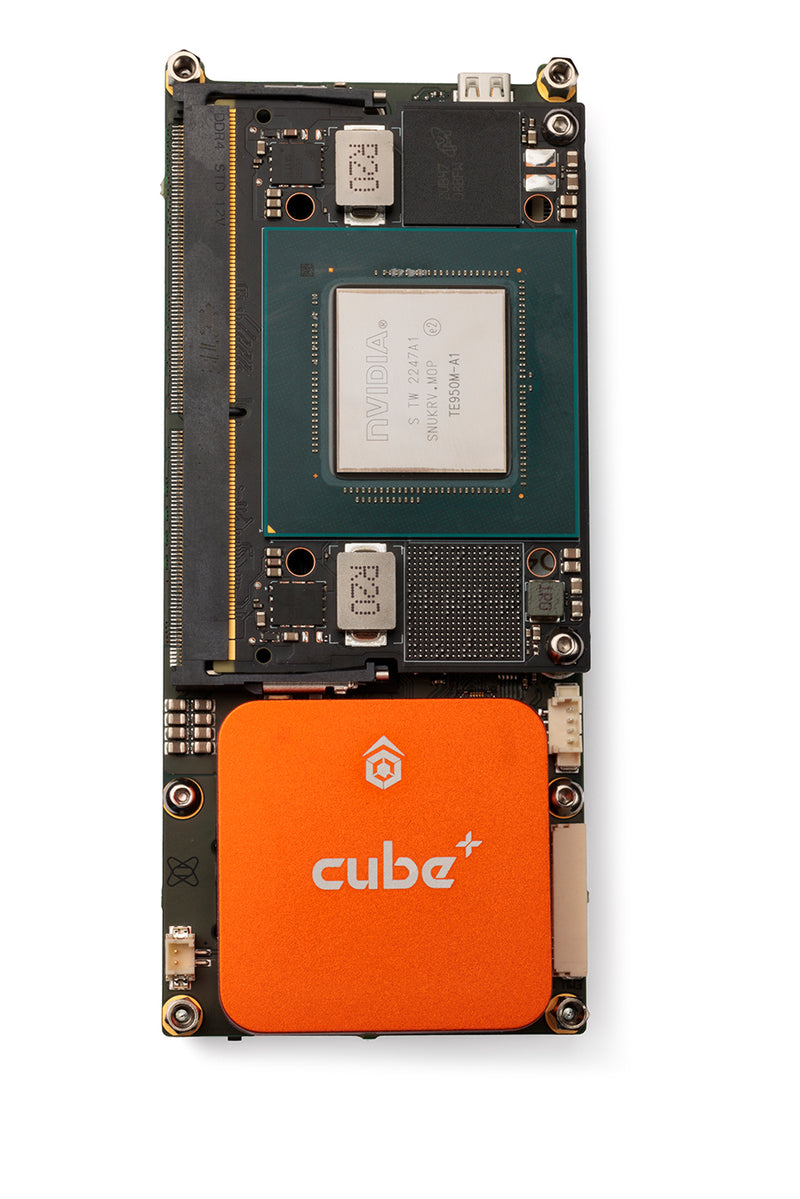

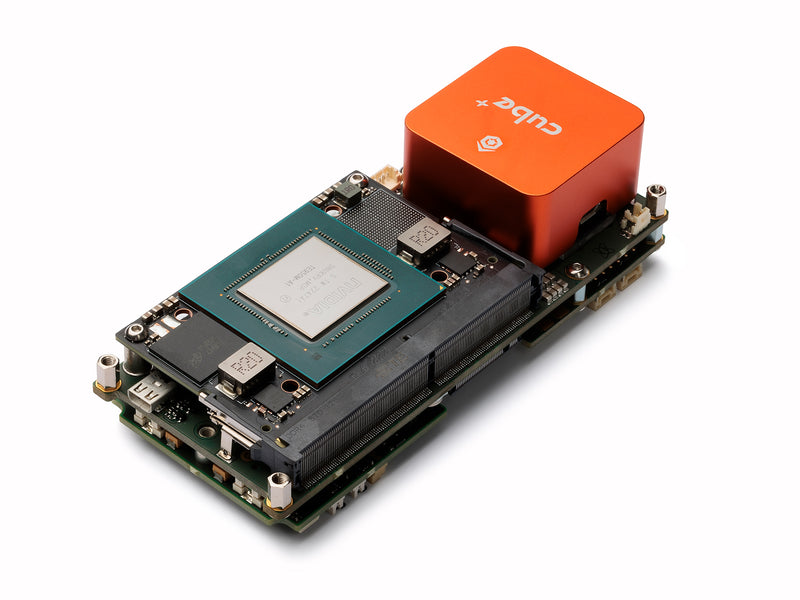

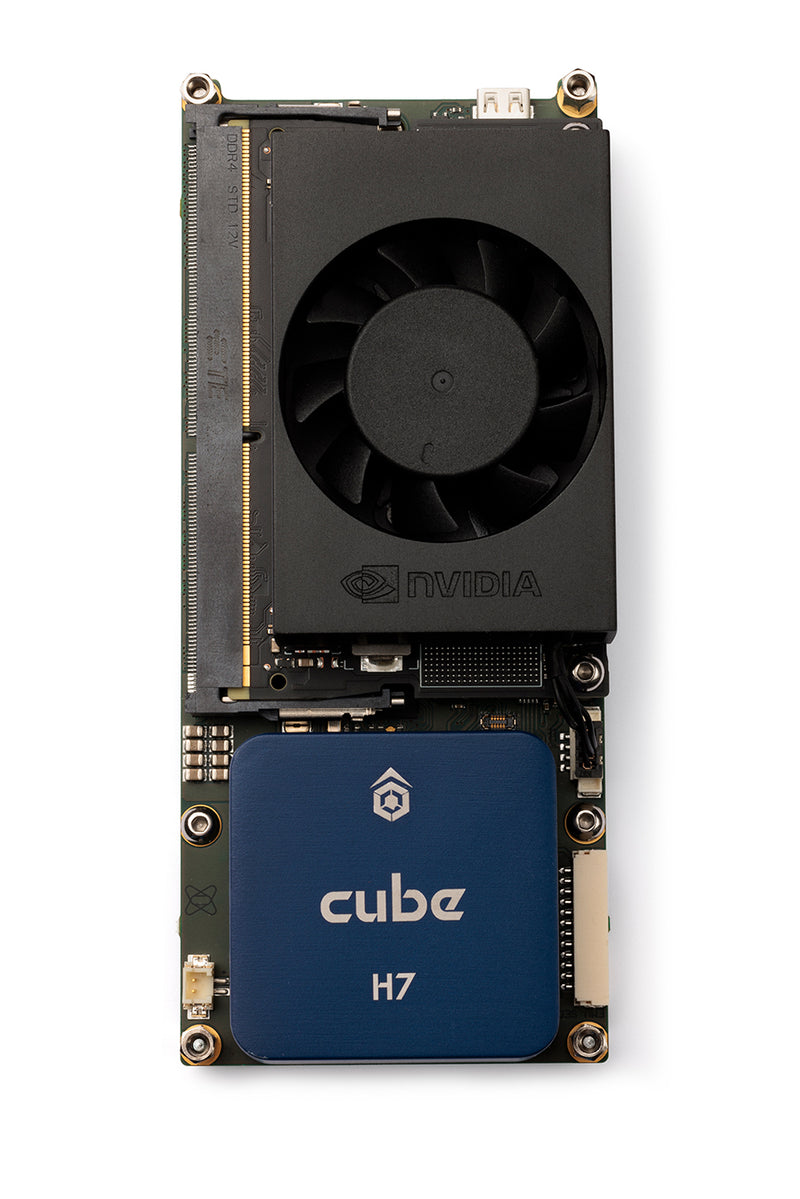

DroneCore.Pilot - top board for control of the aircraft containing

Jetson Xavier NX
Cube flight controller
Internal 5V power supply
Power selector
Peripheral connectors
USB hub

DroneCore.Power - bottom board with power electronic containing

4 FOC UAVCAN ESCs - 20A permanent / 40A peak current
Power sensor (battery voltage and current measurement)
Analog inputs for battery cell monitoring
SMBUS
LED Driver for 4 x WS2812B strips

DroneCore.Suite provides easy to use ROS based software stack supporting development of autonomous applications.

Out of the box device is configured to fly a quadcopter (though flight controller calibration is needed anyway).
