RaspRover Open-source 4WD AI Robot for Raspberry Pi
Ask AI about this product
Ā
Description

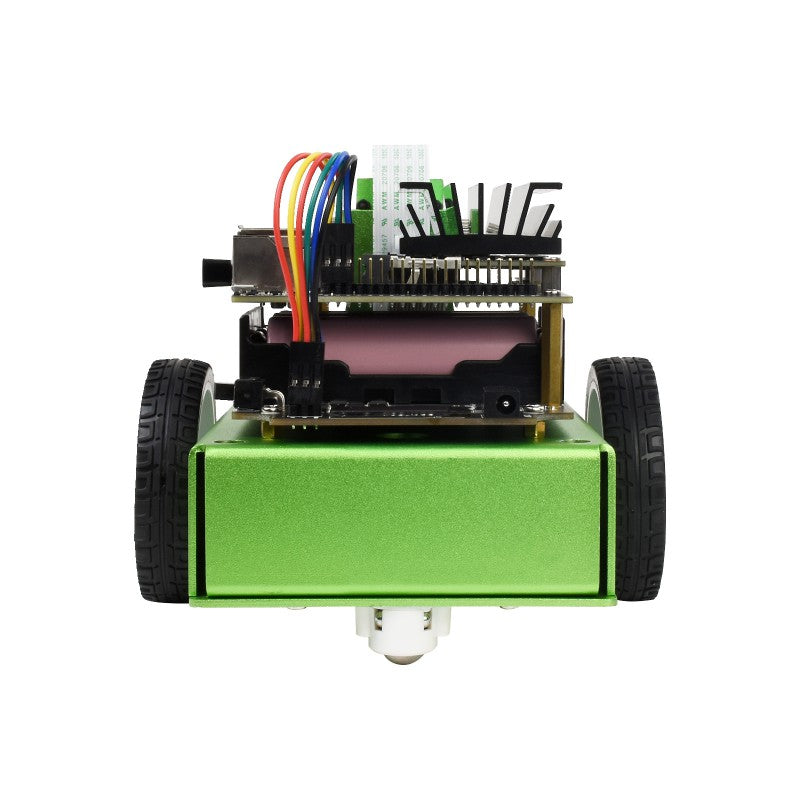

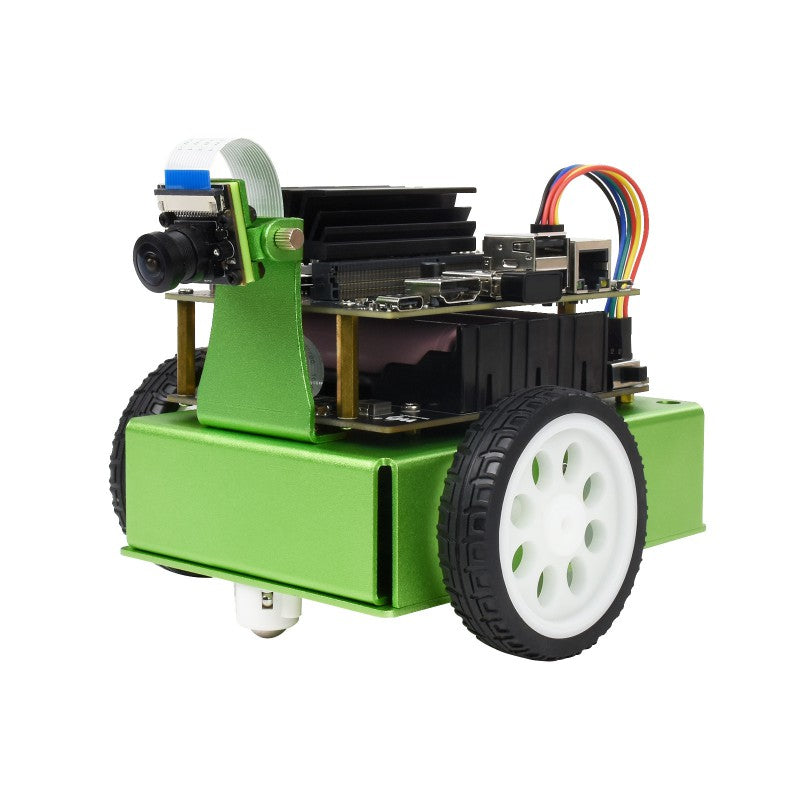

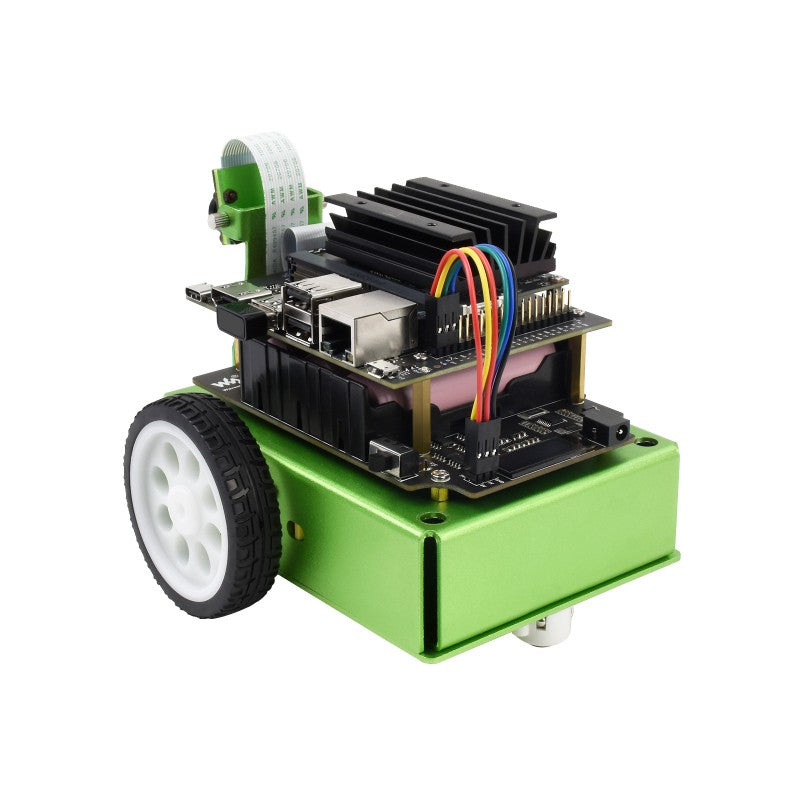

- Waveshare JetBot AI Robot Developer Kit
- Offers 8MP 160Ā° FOV camera
- Comes with a Sony IMX219 sensor
- Provides a resolution of 3280 x 2464 pixel
- No messy wiring, simple assembly
- Runs on 18650 batteriesĀ (Not Included)
TheĀ Waveshare JetBot AI Robot Developer Kit is a small, powerful computer, which delivers 472 GFLOPS for running modern Al algorithms fast, with a quad-core Cortex-A57 CPU and a 128-core Maxwell GPU.
lt is widely used for deep learning, computer vision, GPU computing, multimedia processing, and much more. Many popular Al frameworks are supported, such as TensorFlow, PyTorch, Caffe / Caffe2, Keras, and MXNet, etc.
Specifications
- Controller: Jetson Nano 4GB (optional)
- OS: Ubuntu 18.04 LTS
- Language: Python
- Camera: 8MP HD resolution
- FOV: 160Ā°
- Pixels: 128 x 32
- Wireless: 2.4 GHz / 5.8 GHz dual-band WiFi
- Teleoperation: Gamepad, webpage
- Communication: WiFi
- Protection: overcharge/discharge protection, over current protection, short circuit protection, reverse proof
- Driving Type: Differential 2WD
- Power Supply: 12.6 V, 18650 battery x 3 (connected in series)
- Motor: TT motor | Reduction rate 1:48 | Idle speed 240 RPM
- Chassis: Aluminum alloy chassis
- Program Library: JetBot, ROS
- Weight: 1.135 kg
What's Included:
- 1x Metal box
- 1x Camera holder
- 1x Acrylic camera spacer
- 1x IMX219-160 Camera
- 1x USB WiFi
- 1x JetBot expansion board
- 2x Motor
- 2x Wheel
- 2x Caster
- 1x Power adapter EU head
- 1x 12.6 V battery charger
- 1x Wireless gamepad
- 2x Screwdriver
- 1x 6pin 9 cm cable
- 1x Screws pack
- 1x 4010 cooling fan
- 1x Micro SD card reader
- 3x 18650 3.7V Li-Ion Batteries
- Jetson Nano 4GB Developer Kit is Option
The Robot Operating System (ROS) is a flexible framework for writing robot software. It is a collection of tools, libraries, and conventions that aim to simplify the task of creating complex and robust robot behavior across a wide variety of robotic platforms. The ROS is one of the most popular robot software frameworks in the world.
Ā
8MP 160Ā° FOV Camera -Ā Sony IMX219 Sensor, 3280Ć2464 Resolution
Facial Recognition, Object Classify, Real Time Monitoring
Ā
What is included in the Waveshare JetBot AI Robot Kit and are batteries included?
The kit includes the IMX219 camera, JetBot expansion board, motors, wheels, USB WiFi dongle, power adapter, wireless gamepad, screws, cooling fan, a micro SD card reader, a metal box, and three 18650 Li-Ion batteries. Some listings note that batteries may not be included, so please confirm battery inclusion on your order.
What software and frameworks are supported by this kit?
It runs Ubuntu 18.04 LTS and uses Python. It supports JetBot and ROS and works with popular AI frameworks such as TensorFlow, PyTorch, Caffe / Caffe2, Keras, and MXNet.
What are the camera specifications and what capabilities does it offer?
The system uses an 8MP Sony IMX219 camera with 160 degree field of view and a resolution of 3280 x 2464. It supports facial recognition, object classification, and real time monitoring.
How is the robot powered and what are the power requirements?
It is powered by 12.6 V from three 18650 batteries connected in series, with a 12.6 V battery charger and power adapter included. Please note that battery inclusion may vary by listing, so verify before purchase.
Is the Jetson Nano controller included and how is teleoperation performed?
The Jetson Nano 4GB controller is optional. Teleoperation is supported via a gamepad or a web page.
