Name: Meskernel LDK-40 Small Laser Range Sensor (40m)
Brand: Meskernel
SKU: ELC1164
Price: 7499.99 INR
Availability: InStock

{"id":9478168314173,"title":"Meskernel LDK-40 Small Laser Range Sensor (40m)","handle":"meskernel-ldk-40-small-laser-range-sensor-40m","description":"\u003ch1 class=\"MsoNormal\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e\u003cspan\u003eMeskernel LDK-40 \u003c\/span\u003e\u003c\/h1\u003e\n\u003ch2 class=\"MsoNormal\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e\u003cspan\u003e40m Laser Distance Sensor\u003c\/span\u003e\u003c\/h2\u003e\n\u003ch4 class=\"MsoNormal\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\" data-mce-style=\"color: rgb(194, 0, 0);\"\u003e±2mm Accuracy \u003c\/span\u003e\u003c\/h4\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003eThe high-precision \u003cspan class=\"keywords_replace\"\u003eLaser Ranging Sensor\u003c\/span\u003e LDK60 was developed independently by Chengdu Meskernel Integrated Technology Corporation. Its compact design allows OEM users to easily integrate it into systems and equipment, and its UART communication interface allows users to create and program their own applications. The sensor measures only 45*25*12 mm and weighs about 10g.\u003c\/span\u003e\u003c\/p\u003e\n\u003ch2 class=\"MsoNormal\"\u003e\u003cspan\u003e \u003c\/span\u003e\u003c\/h2\u003e\n\u003ch2 class=\"MsoNormal\"\u003e\u003cspan\u003eSpecifications\u003c\/span\u003e\u003c\/h2\u003e\n\u003ctable style=\"width: 70%;\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 30%;\"\u003e\n\u003cdiv class=\"magic-14\" style=\"text-align: right;\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eIndoor range\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e0.03-60m（90% Rate of reflection）\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\" style=\"text-align: right;\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eOutput frequency\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e3Hz\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\" style=\"text-align: right;\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eAbsolute accuracy\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e±2mm\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\" style=\"text-align: right;\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eResolution\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e1mm\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\" style=\"text-align: right;\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eBlind area\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e3cm\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\" style=\"text-align: right;\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eLight\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e635nm，\u0026lt;1mW，Red laser, class II safety laser\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\" style=\"text-align: right;\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eCommunication interface\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eUART TTL\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\" style=\"text-align: right;\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eSerial level\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eVTTL=3.3V\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\" style=\"text-align: right;\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eOperating temperature\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e-40~60 ℃\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\" style=\"text-align: right;\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eWorking voltage\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eDC+3.3 V\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\" style=\"text-align: right;\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eWorking current\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e80mA\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\" style=\"text-align: right;\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003ePower\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e0.27W\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\" style=\"text-align: right;\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eVolume\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e48*26*13mm\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\" style=\"text-align: right;\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eWeight\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e10g\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003e\u003cbr\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/bsg-i.nbxc.com\/product\/a4\/af\/c3\/0b307c89cca9285102fd2c5b36.png\" alt=\"Laser Distance Module 3\" style=\"float: none;\"\u003e\u003c\/div\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003eThe LDK60 is a classical model with a measurement range of up to 60 meters. Its stable performance, low power consumption, high measurement accuracy, quick measurement speed, and ease of installation have made it a popular choice for use in industrial automation fields, logistics, warehouse automation, and home improvement measurement.\u003c\/span\u003e\u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/bsg-i.nbxc.com\/product\/d4\/32\/06\/71aa96ad25feec681adafbc5eb.png\" alt=\"Laser Distance Module 2\" style=\"float: none;\"\u003e\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/bsg-i.nbxc.com\/product\/dd\/e5\/e5\/e5a5aa11b547c76b3d691781b9.jpg\" alt=\"Laser Distance Module 1\" style=\"float: none;\"\u003e\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg style=\"float: none;\" alt=\"Laser Distance Module 2\" src=\"https:\/\/bsg-i.nbxc.com\/product\/60\/65\/02\/bb29dfa43330ca1bfcec762795.jpg\"\u003e\u003c\/div\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003eIf you have any specific requirements such as measure range, baud rate, frequency, accuracy, communication interface, temperature, etc., please get in touch with our technical team for further details. \u003c\/span\u003e\u003c\/p\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003eNumerous customization options are available with Meskernel, including temperature, baud rate, precision, range measurement, and communication port. Contact our technical staff with any questions you may have.\u003c\/span\u003e\u003c\/p\u003e\n\u003c!----\u003e","published_at":"2024-06-04T23:27:03+05:30","created_at":"2024-06-04T23:10:42+05:30","vendor":"Meskernel","type":"Sensor","tags":["ELC1","Laser","Laser Range Finder","LDK","Lidar","LIDAR-MOD","MKRNL","range","ranger finder","ranging","RPLIDAR"],"price":749999,"price_min":749999,"price_max":899999,"available":true,"price_varies":true,"compare_at_price":829999,"compare_at_price_min":829999,"compare_at_price_max":989999,"compare_at_price_varies":true,"variants":[{"id":48893054779709,"title":"3Hz","option1":"3Hz","option2":null,"option3":null,"sku":"ELC1164","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Meskernel LDK-40 Small Laser Range Sensor (40m) - 3Hz","public_title":"3Hz","options":["3Hz"],"price":749999,"weight":15,"compare_at_price":829999,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":48893054812477,"title":"10Hz","option1":"10Hz","option2":null,"option3":null,"sku":"ELC1167","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Meskernel LDK-40 Small Laser Range Sensor (40m) - 10Hz","public_title":"10Hz","options":["10Hz"],"price":829999,"weight":15,"compare_at_price":899999,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":48893054845245,"title":"20Hz","option1":"20Hz","option2":null,"option3":null,"sku":"ELC1168","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Meskernel LDK-40 Small Laser Range Sensor (40m) - 20Hz","public_title":"20Hz","options":["20Hz"],"price":899999,"weight":15,"compare_at_price":989999,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/thinkrobotics.com\/cdn\/shop\/files\/abf6169bd7bc151b0dbc335185.jpg_4e_500w_500h.src_95Q.webp?v=1717523462","\/\/thinkrobotics.com\/cdn\/shop\/files\/99214b07abffc7188d54386667.png_4e_500w_500h.src_95Q.webp?v=1717523462","\/\/thinkrobotics.com\/cdn\/shop\/files\/53b6a97848a0624081ab65f8de.png_4e_500w_500h.src_95Q.webp?v=1717523462","\/\/thinkrobotics.com\/cdn\/shop\/files\/6c4776c7bc49e0a9ba6750e144.jpg_4e_500w_500h.src_95Q.webp?v=1717523462","\/\/thinkrobotics.com\/cdn\/shop\/files\/07c035cd7e5fc554e0ab0324f4.jpg_4e_500w_500h.src_95Q.webp?v=1717523462","\/\/thinkrobotics.com\/cdn\/shop\/files\/9b10708a6a898440a75f382bcf.png_4e_500w_500h.src_95Q.webp?v=1717523462"],"featured_image":"\/\/thinkrobotics.com\/cdn\/shop\/files\/abf6169bd7bc151b0dbc335185.jpg_4e_500w_500h.src_95Q.webp?v=1717523462","options":["Frequency"],"media":[{"alt":null,"id":38675615678781,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/abf6169bd7bc151b0dbc335185.jpg_4e_500w_500h.src_95Q.webp?v=1717523462"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/abf6169bd7bc151b0dbc335185.jpg_4e_500w_500h.src_95Q.webp?v=1717523462","width":500},{"alt":null,"id":38675615711549,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/99214b07abffc7188d54386667.png_4e_500w_500h.src_95Q.webp?v=1717523462"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/99214b07abffc7188d54386667.png_4e_500w_500h.src_95Q.webp?v=1717523462","width":500},{"alt":null,"id":38675615744317,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/53b6a97848a0624081ab65f8de.png_4e_500w_500h.src_95Q.webp?v=1717523462"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/53b6a97848a0624081ab65f8de.png_4e_500w_500h.src_95Q.webp?v=1717523462","width":500},{"alt":null,"id":38675615777085,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/6c4776c7bc49e0a9ba6750e144.jpg_4e_500w_500h.src_95Q.webp?v=1717523462"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/6c4776c7bc49e0a9ba6750e144.jpg_4e_500w_500h.src_95Q.webp?v=1717523462","width":500},{"alt":null,"id":38675615875389,"position":5,"preview_image":{"aspect_ratio":1.778,"height":720,"width":1280,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/preview_images\/5ec162b521c54a74a53a21d1a0d1ecef.thumbnail.0000000000.jpg?v=1717523482"},"aspect_ratio":1.775,"duration":42000,"media_type":"video","sources":[{"format":"mp4","height":480,"mime_type":"video\/mp4","url":"\/\/thinkrobotics.com\/cdn\/shop\/videos\/c\/vp\/5ec162b521c54a74a53a21d1a0d1ecef\/5ec162b521c54a74a53a21d1a0d1ecef.SD-480p-1.0Mbps-30027594.mp4?v=0","width":852},{"format":"mp4","height":720,"mime_type":"video\/mp4","url":"\/\/thinkrobotics.com\/cdn\/shop\/videos\/c\/vp\/5ec162b521c54a74a53a21d1a0d1ecef\/5ec162b521c54a74a53a21d1a0d1ecef.HD-720p-2.1Mbps-30027594.mp4?v=0","width":1280},{"format":"m3u8","height":720,"mime_type":"application\/x-mpegURL","url":"\/\/thinkrobotics.com\/cdn\/shop\/videos\/c\/vp\/5ec162b521c54a74a53a21d1a0d1ecef\/5ec162b521c54a74a53a21d1a0d1ecef.m3u8?v=0","width":1280}]},{"alt":null,"id":38675615908157,"position":6,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/07c035cd7e5fc554e0ab0324f4.jpg_4e_500w_500h.src_95Q.webp?v=1717523462"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/07c035cd7e5fc554e0ab0324f4.jpg_4e_500w_500h.src_95Q.webp?v=1717523462","width":500},{"alt":null,"id":38675615940925,"position":7,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/9b10708a6a898440a75f382bcf.png_4e_500w_500h.src_95Q.webp?v=1717523462"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/9b10708a6a898440a75f382bcf.png_4e_500w_500h.src_95Q.webp?v=1717523462","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch1 class=\"MsoNormal\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e\u003cspan\u003eMeskernel LDK-40 \u003c\/span\u003e\u003c\/h1\u003e\n\u003ch2 class=\"MsoNormal\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e\u003cspan\u003e40m Laser Distance Sensor\u003c\/span\u003e\u003c\/h2\u003e\n\u003ch4 class=\"MsoNormal\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\" data-mce-style=\"color: rgb(194, 0, 0);\"\u003e±2mm Accuracy \u003c\/span\u003e\u003c\/h4\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003eThe high-precision \u003cspan class=\"keywords_replace\"\u003eLaser Ranging Sensor\u003c\/span\u003e LDK60 was developed independently by Chengdu Meskernel Integrated Technology Corporation. Its compact design allows OEM users to easily integrate it into systems and equipment, and its UART communication interface allows users to create and program their own applications. The sensor measures only 45*25*12 mm and weighs about 10g.\u003c\/span\u003e\u003c\/p\u003e\n\u003ch2 class=\"MsoNormal\"\u003e\u003cspan\u003e \u003c\/span\u003e\u003c\/h2\u003e\n\u003ch2 class=\"MsoNormal\"\u003e\u003cspan\u003eSpecifications\u003c\/span\u003e\u003c\/h2\u003e\n\u003ctable style=\"width: 70%;\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 30%;\"\u003e\n\u003cdiv class=\"magic-14\" style=\"text-align: right;\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eIndoor range\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e0.03-60m（90% Rate of reflection）\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\" style=\"text-align: right;\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eOutput frequency\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e3Hz\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\" style=\"text-align: right;\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eAbsolute accuracy\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e±2mm\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\" style=\"text-align: right;\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eResolution\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e1mm\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\" style=\"text-align: right;\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eBlind area\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e3cm\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\" style=\"text-align: right;\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eLight\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e635nm，\u0026lt;1mW，Red laser, class II safety laser\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\" style=\"text-align: right;\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eCommunication interface\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eUART TTL\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\" style=\"text-align: right;\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eSerial level\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eVTTL=3.3V\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\" style=\"text-align: right;\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eOperating temperature\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e-40~60 ℃\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\" style=\"text-align: right;\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eWorking voltage\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eDC+3.3 V\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\" style=\"text-align: right;\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eWorking current\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e80mA\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\" style=\"text-align: right;\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003ePower\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e0.27W\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\" style=\"text-align: right;\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eVolume\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e48*26*13mm\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\" style=\"text-align: right;\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eWeight\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e10g\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003e\u003cbr\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/bsg-i.nbxc.com\/product\/a4\/af\/c3\/0b307c89cca9285102fd2c5b36.png\" alt=\"Laser Distance Module 3\" style=\"float: none;\"\u003e\u003c\/div\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003eThe LDK60 is a classical model with a measurement range of up to 60 meters. Its stable performance, low power consumption, high measurement accuracy, quick measurement speed, and ease of installation have made it a popular choice for use in industrial automation fields, logistics, warehouse automation, and home improvement measurement.\u003c\/span\u003e\u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/bsg-i.nbxc.com\/product\/d4\/32\/06\/71aa96ad25feec681adafbc5eb.png\" alt=\"Laser Distance Module 2\" style=\"float: none;\"\u003e\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg src=\"https:\/\/bsg-i.nbxc.com\/product\/dd\/e5\/e5\/e5a5aa11b547c76b3d691781b9.jpg\" alt=\"Laser Distance Module 1\" style=\"float: none;\"\u003e\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg style=\"float: none;\" alt=\"Laser Distance Module 2\" src=\"https:\/\/bsg-i.nbxc.com\/product\/60\/65\/02\/bb29dfa43330ca1bfcec762795.jpg\"\u003e\u003c\/div\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003eIf you have any specific requirements such as measure range, baud rate, frequency, accuracy, communication interface, temperature, etc., please get in touch with our technical team for further details. \u003c\/span\u003e\u003c\/p\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003eNumerous customization options are available with Meskernel, including temperature, baud rate, precision, range measurement, and communication port. Contact our technical staff with any questions you may have.\u003c\/span\u003e\u003c\/p\u003e\n\u003c!----\u003e"}

Meskernel LDK-40 Small Laser Range Sensor (40m)

Meskernel LDK-40

40m Laser Distance Sensor

±2mm Accuracy

Specifications

Want to buy in bulk?

Customer Reviews

Custom Requirements?

Download the ThinkRobotics Mobile App

We are here to serve you! Reach us at:

Popular Links

Shopping Cart

Let customers speak for us

Indoor range	0.03-60m（90% Rate of reflection）

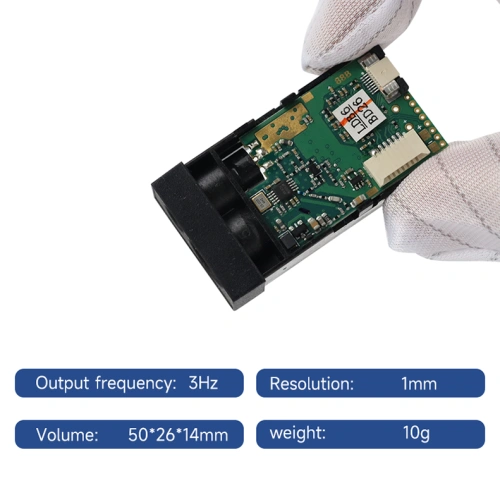

Output frequency	3Hz
Absolute accuracy	±2mm
Resolution	1mm
Blind area	3cm

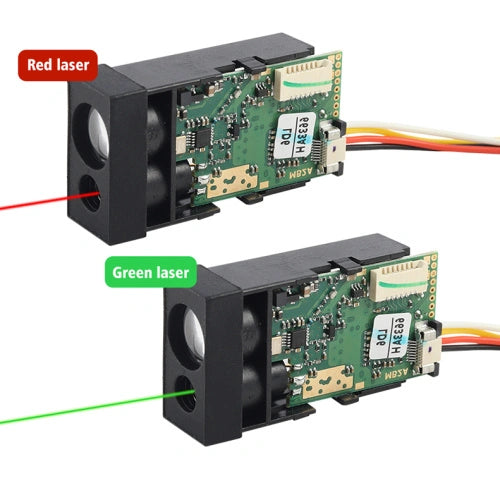

Light	635nm，<1mW，Red laser, class II safety laser
Communication interface	UART TTL
Serial level	VTTL=3.3V
Operating temperature	-40~60 ℃
Working voltage	DC+3.3 V
Working current	80mA
Power	0.27W

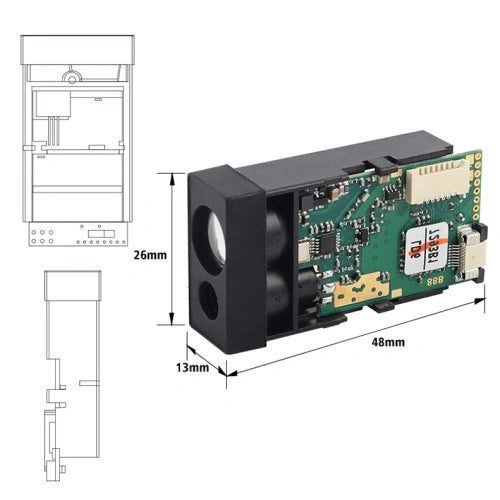

Volume	482613mm
Weight	10g
