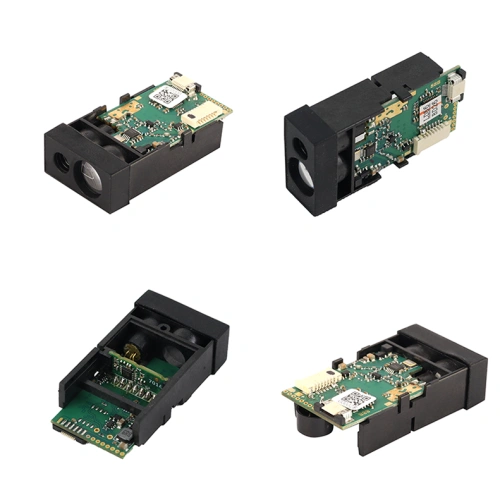

The high-precision Laser Ranging Sensor LDK60 was developed independently by Chengdu Meskernel Integrated Technology Corporation. Its compact design allows OEM users to easily integrate it into systems and equipment, and its UART communication interface allows users to create and program their own applications. The sensor measures only 45*25*12 mm and weighs about 10g.
|
Indoor range
|
0.03-60m（90% Rate of reflection）
|
|

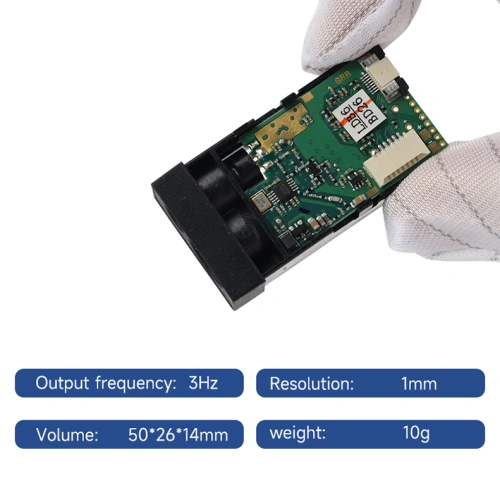

Output frequency
|
3Hz
|
|
Absolute accuracy
|
±2mm
|
|
Resolution
|
1mm
|
|
Blind area
|
3cm
|
|
Light
|

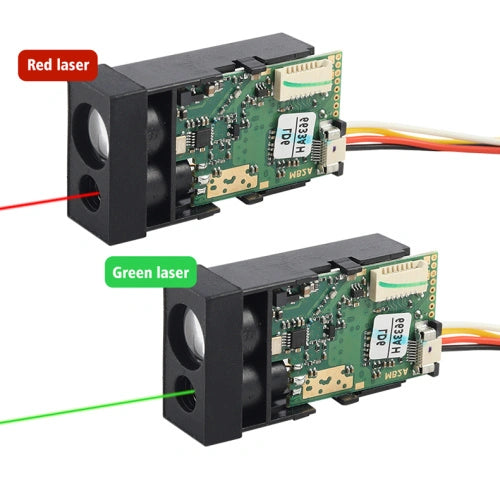

635nm，<1mW，Red laser, class II safety laser
|
|
Communication interface
|
UART TTL
|
|
Serial level
|
VTTL=3.3V
|
|
Operating temperature
|
-40~60 ℃
|
|
Working voltage
|
DC+3.3 V
|
|
Working current
|
80mA
|
|
Power
|
0.27W
|
|

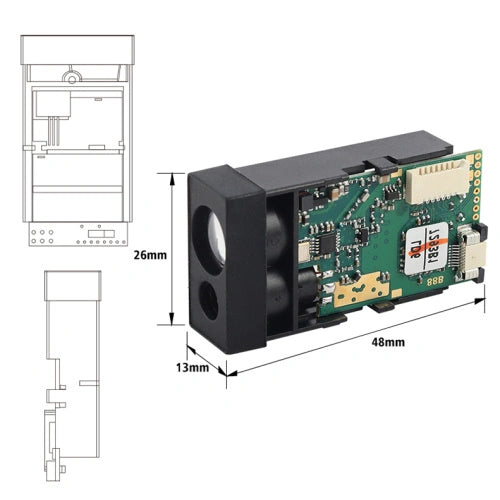

Volume
|
48*26*13mm
|
|
Weight
|
10g
|
The LDK60 is a classical model with a measurement range of up to 60 meters. Its stable performance, low power consumption, high measurement accuracy, quick measurement speed, and ease of installation have made it a popular choice for use in industrial automation fields, logistics, warehouse automation, and home improvement measurement.
If you have any specific requirements such as measure range, baud rate, frequency, accuracy, communication interface, temperature, etc., please get in touch with our technical team for further details.
Numerous customization options are available with Meskernel, including temperature, baud rate, precision, range measurement, and communication port. Contact our technical staff with any questions you may have.
