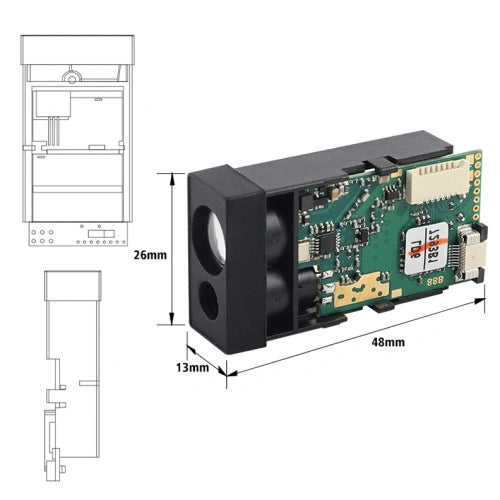

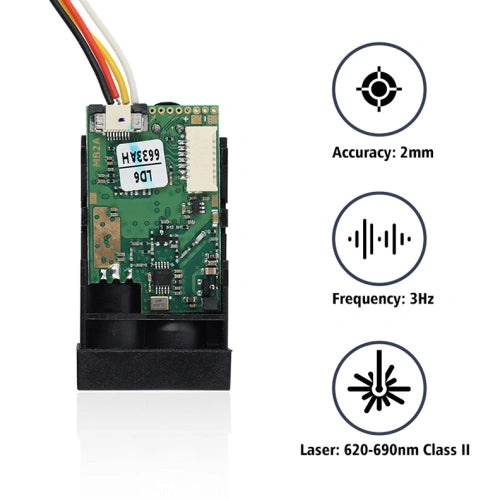

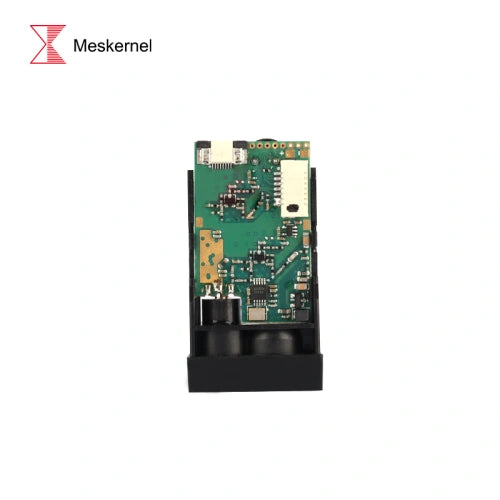

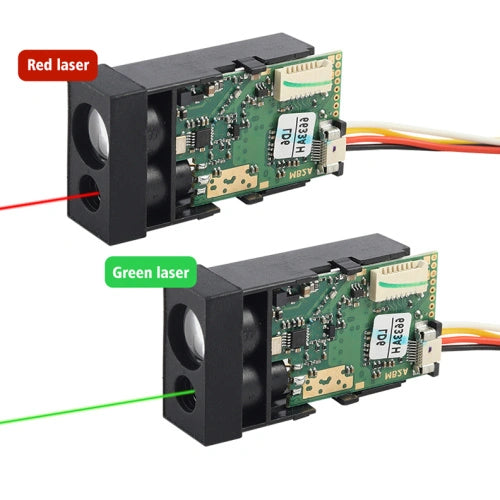

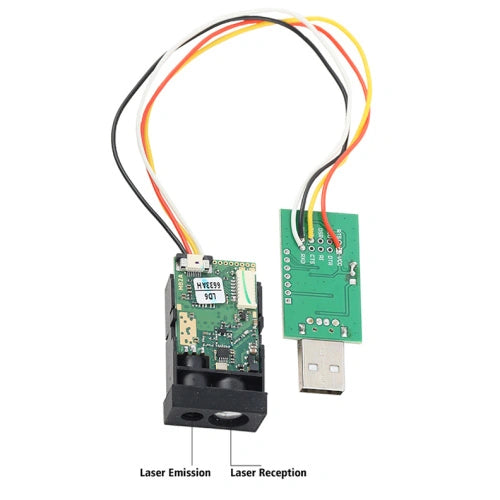

Name: Meskernel LDK-80 Small Laser Range Sensor (80m)
Brand: Meskernel
SKU: ELC1166
Price: 8499.99 INR
Availability: InStock

{"id":9478200197437,"title":"Meskernel LDK-80 Small Laser Range Sensor (80m)","handle":"meskernel-ldk-80-small-laser-range-sensor-80m","description":"\u003ch1 style=\"text-align: center;\" class=\"MsoNormal\" data-mce-style=\"text-align: center;\"\u003e\u003cspan\u003eMeskernel LDK-80\u003c\/span\u003e\u003c\/h1\u003e\n\u003ch2 style=\"text-align: center;\" class=\"MsoNormal\" data-mce-style=\"text-align: center;\"\u003e\u003cspan\u003e80m Laser Distance Sensor\u003c\/span\u003e\u003c\/h2\u003e\n\u003ch4 style=\"text-align: center;\" class=\"MsoNormal\" data-mce-style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\" data-mce-style=\"color: rgb(194, 0, 0);\"\u003e±2mm Accuracy \u003c\/span\u003e\u003c\/h4\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003eStep into a world of unparalleled accuracy and efficiency with LDK \u003cspan class=\"keywords_replace\"\u003ePhase Distance Sensor\u003c\/span\u003e\u003c\/span\u003e\u003cspan\u003e, our \u003cspan class=\"keywords_replace\"\u003eLaser Distance Sensor\u003c\/span\u003e designed to meet the demands of modern measurement challenges. Whether you're in industrial automation, robotics, or consumer electronics, LDK series deliver precise distance sensing capabilities that elevate your projects to new heights.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003e \u003c\/span\u003e\u003c\/p\u003e\n\u003ch2 class=\"MsoNormal\"\u003e\u003cspan\u003eSpecifications\u003c\/span\u003e\u003c\/h2\u003e\n\u003ctable style=\"width:70%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd style=\"width:30%\"\u003e\n\u003cdiv class=\"magic-14\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eIndoor range\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e0.03-80m（90% Rate of reflection）\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eOutput frequency\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e3Hz\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eAbsolute accuracy\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e±2mm\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eResolution\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e1mm\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eBlind area\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e3cm\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eLight\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e635nm，\u0026lt;1mW，Red laser, class II safety laser\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eCommunication interface\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eUART TTL\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eSerial level\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eVTTL=3.3V\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eOperating temperature\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e-40~60 ℃\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eWorking voltage\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eDC+3.3 V\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eWorking current\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e80mA\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003ePower\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e0.27W\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eVolume\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e48*26*13mm\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eWeight\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e10g\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp class=\"MsoNormal\"\u003e \u003c\/p\u003e\n\u003cp class=\"MsoNormal\"\u003eJust as the LDK, Meskernel’s phase ranging sensor is designed for high precision measurement, operating within millimeter ranges depending on different models and specifications.They enable non-contact measurements, eliminating the need for physical contact with the target object, which is especially advantageous in sensitive or hazardous environments. These sensors exhibit rapid response times, facilitating real-time monitoring and control processes. \u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg style=\"float: none;\" alt=\"Laser Distance Module 3\" src=\"https:\/\/bsg-i.nbxc.com\/company\/2b\/9b51823edffd8723a27ae2daef12f6.jpg\"\u003e\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg alt=\"Laser Distance Module 2\" src=\"https:\/\/bsg-i.nbxc.com\/company\/2c\/5de06a28a8bdd8d639b17d4f96a181.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg style=\"float: none;\" alt=\"Laser Distance Module 1\" src=\"https:\/\/bsg-i.nbxc.com\/company\/22\/6cef12b0bdf8da5325849df19a73b2.jpg\"\u003e\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg style=\"float: none;\" alt=\"Laser Distance Module 2\" src=\"https:\/\/bsg-i.nbxc.com\/company\/f3\/b053eb27fe9cfd41cfba44bff4f263.jpg\"\u003e\u003c\/div\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003eIf you have any specific requirements such as measure range, baud rate, frequency, accuracy, communication interface, temperature, etc., please get in touch with our technical team for further details. \u003c\/span\u003e\u003c\/p\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003eWe also have long range laser distance sensor, High precision laser distacne sensor, \u003c\/span\u003e\u003cspan class=\"keywords_replace\"\u003eIP Protection Sensor\u003c\/span\u003e\u003cspan\u003e, \u003c\/span\u003e\u003cspan class=\"keywords_replace\"\u003eIndustrial Laser Distance Sensor\u003c\/span\u003e\u003cspan\u003e, \u003c\/span\u003e\u003cspan class=\"keywords_replace\"\u003e\u003ca href=\"https:\/\/www.meskernel.com\/high-precision-ranging-sensor-module\/\"\u003eTOF Sensor\u003c\/a\u003e\u003c\/span\u003e\u003cspan\u003e, welcome to consult us!\u003c\/span\u003e\u003c\/p\u003e\n\u003c!----\u003e","published_at":"2024-06-04T23:52:02+05:30","created_at":"2024-06-04T23:44:30+05:30","vendor":"Meskernel","type":"Sensor","tags":["ELC1","Laser","Laser Range Finder","LDK","Lidar","LIDAR-MOD","MKRNL","range","ranger finder","ranging","RPLIDAR"],"price":849999,"price_min":849999,"price_max":969999,"available":true,"price_varies":true,"compare_at_price":949999,"compare_at_price_min":949999,"compare_at_price_max":1049999,"compare_at_price_varies":true,"variants":[{"id":48893138010429,"title":"3Hz","option1":"3Hz","option2":null,"option3":null,"sku":"ELC1166","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Meskernel LDK-80 Small Laser Range Sensor (80m) - 3Hz","public_title":"3Hz","options":["3Hz"],"price":849999,"weight":15,"compare_at_price":949999,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":48893138043197,"title":"10Hz","option1":"10Hz","option2":null,"option3":null,"sku":"ELC1171","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Meskernel LDK-80 Small Laser Range Sensor (80m) - 10Hz","public_title":"10Hz","options":["10Hz"],"price":899999,"weight":15,"compare_at_price":999999,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":48893138075965,"title":"20Hz","option1":"20Hz","option2":null,"option3":null,"sku":"ELC1172","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Meskernel LDK-80 Small Laser Range Sensor (80m) - 20Hz","public_title":"20Hz","options":["20Hz"],"price":969999,"weight":15,"compare_at_price":1049999,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/thinkrobotics.com\/cdn\/shop\/files\/cdd5a787b42baa5bb5211a2061.png_4e_500w_500h.src_95Q.webp?v=1717525314","\/\/thinkrobotics.com\/cdn\/shop\/files\/feeb1a5d955d1d46508197ece9.jpg_4e_500w_500h.src_95Q.webp?v=1717525317","\/\/thinkrobotics.com\/cdn\/shop\/files\/2ff9c51ea22802ab28fff218e7.jpg_4e_500w_500h.src_95Q.webp?v=1717525317","\/\/thinkrobotics.com\/cdn\/shop\/files\/45b548ffc08e9dc2eb077b91a8.jpg_4e_500w_500h.src_95Q.webp?v=1717525317","\/\/thinkrobotics.com\/cdn\/shop\/files\/0490b6170eda9ca12dae000c10.jpg_4e_500w_500h.src_95Q.webp?v=1717525317"],"featured_image":"\/\/thinkrobotics.com\/cdn\/shop\/files\/cdd5a787b42baa5bb5211a2061.png_4e_500w_500h.src_95Q.webp?v=1717525314","options":["Frequency"],"media":[{"alt":null,"id":38676063420733,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/cdd5a787b42baa5bb5211a2061.png_4e_500w_500h.src_95Q.webp?v=1717525314"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/cdd5a787b42baa5bb5211a2061.png_4e_500w_500h.src_95Q.webp?v=1717525314","width":500},{"alt":null,"id":38676063584573,"position":2,"preview_image":{"aspect_ratio":1.778,"height":720,"width":1280,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/preview_images\/1560b0c14b30412a95cf05a5ed01bbd8.thumbnail.0000000000.jpg?v=1717525333"},"aspect_ratio":1.775,"duration":42000,"media_type":"video","sources":[{"format":"mp4","height":480,"mime_type":"video\/mp4","url":"\/\/thinkrobotics.com\/cdn\/shop\/videos\/c\/vp\/1560b0c14b30412a95cf05a5ed01bbd8\/1560b0c14b30412a95cf05a5ed01bbd8.SD-480p-1.0Mbps-30028512.mp4?v=0","width":852},{"format":"mp4","height":720,"mime_type":"video\/mp4","url":"\/\/thinkrobotics.com\/cdn\/shop\/videos\/c\/vp\/1560b0c14b30412a95cf05a5ed01bbd8\/1560b0c14b30412a95cf05a5ed01bbd8.HD-720p-2.1Mbps-30028512.mp4?v=0","width":1280},{"format":"m3u8","height":720,"mime_type":"application\/x-mpegURL","url":"\/\/thinkrobotics.com\/cdn\/shop\/videos\/c\/vp\/1560b0c14b30412a95cf05a5ed01bbd8\/1560b0c14b30412a95cf05a5ed01bbd8.m3u8?v=0","width":1280}]},{"alt":null,"id":38676063453501,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/feeb1a5d955d1d46508197ece9.jpg_4e_500w_500h.src_95Q.webp?v=1717525317"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/feeb1a5d955d1d46508197ece9.jpg_4e_500w_500h.src_95Q.webp?v=1717525317","width":500},{"alt":null,"id":38676063486269,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/2ff9c51ea22802ab28fff218e7.jpg_4e_500w_500h.src_95Q.webp?v=1717525317"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/2ff9c51ea22802ab28fff218e7.jpg_4e_500w_500h.src_95Q.webp?v=1717525317","width":500},{"alt":null,"id":38676063519037,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/45b548ffc08e9dc2eb077b91a8.jpg_4e_500w_500h.src_95Q.webp?v=1717525317"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/45b548ffc08e9dc2eb077b91a8.jpg_4e_500w_500h.src_95Q.webp?v=1717525317","width":500},{"alt":null,"id":38676063551805,"position":6,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/0490b6170eda9ca12dae000c10.jpg_4e_500w_500h.src_95Q.webp?v=1717525317"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/0490b6170eda9ca12dae000c10.jpg_4e_500w_500h.src_95Q.webp?v=1717525317","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch1 style=\"text-align: center;\" class=\"MsoNormal\" data-mce-style=\"text-align: center;\"\u003e\u003cspan\u003eMeskernel LDK-80\u003c\/span\u003e\u003c\/h1\u003e\n\u003ch2 style=\"text-align: center;\" class=\"MsoNormal\" data-mce-style=\"text-align: center;\"\u003e\u003cspan\u003e80m Laser Distance Sensor\u003c\/span\u003e\u003c\/h2\u003e\n\u003ch4 style=\"text-align: center;\" class=\"MsoNormal\" data-mce-style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\" data-mce-style=\"color: rgb(194, 0, 0);\"\u003e±2mm Accuracy \u003c\/span\u003e\u003c\/h4\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003eStep into a world of unparalleled accuracy and efficiency with LDK \u003cspan class=\"keywords_replace\"\u003ePhase Distance Sensor\u003c\/span\u003e\u003c\/span\u003e\u003cspan\u003e, our \u003cspan class=\"keywords_replace\"\u003eLaser Distance Sensor\u003c\/span\u003e designed to meet the demands of modern measurement challenges. Whether you're in industrial automation, robotics, or consumer electronics, LDK series deliver precise distance sensing capabilities that elevate your projects to new heights.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003e \u003c\/span\u003e\u003c\/p\u003e\n\u003ch2 class=\"MsoNormal\"\u003e\u003cspan\u003eSpecifications\u003c\/span\u003e\u003c\/h2\u003e\n\u003ctable style=\"width:70%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd style=\"width:30%\"\u003e\n\u003cdiv class=\"magic-14\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eIndoor range\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e0.03-80m（90% Rate of reflection）\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eOutput frequency\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e3Hz\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eAbsolute accuracy\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e±2mm\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eResolution\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e1mm\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eBlind area\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e3cm\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eLight\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e635nm，\u0026lt;1mW，Red laser, class II safety laser\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eCommunication interface\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eUART TTL\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eSerial level\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eVTTL=3.3V\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eOperating temperature\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e-40~60 ℃\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eWorking voltage\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eDC+3.3 V\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eWorking current\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e80mA\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003ePower\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e0.27W\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eVolume\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e48*26*13mm\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-14\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003eWeight\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd colspan=\"1\" rowspan=\"1\"\u003e\n\u003cdiv class=\"magic-15\"\u003e\u003cspan class=\"magic-6\"\u003e\u003cspan\u003e10g\u003c\/span\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp class=\"MsoNormal\"\u003e \u003c\/p\u003e\n\u003cp class=\"MsoNormal\"\u003eJust as the LDK, Meskernel’s phase ranging sensor is designed for high precision measurement, operating within millimeter ranges depending on different models and specifications.They enable non-contact measurements, eliminating the need for physical contact with the target object, which is especially advantageous in sensitive or hazardous environments. These sensors exhibit rapid response times, facilitating real-time monitoring and control processes. \u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg style=\"float: none;\" alt=\"Laser Distance Module 3\" src=\"https:\/\/bsg-i.nbxc.com\/company\/2b\/9b51823edffd8723a27ae2daef12f6.jpg\"\u003e\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg alt=\"Laser Distance Module 2\" src=\"https:\/\/bsg-i.nbxc.com\/company\/2c\/5de06a28a8bdd8d639b17d4f96a181.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg style=\"float: none;\" alt=\"Laser Distance Module 1\" src=\"https:\/\/bsg-i.nbxc.com\/company\/22\/6cef12b0bdf8da5325849df19a73b2.jpg\"\u003e\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg style=\"float: none;\" alt=\"Laser Distance Module 2\" src=\"https:\/\/bsg-i.nbxc.com\/company\/f3\/b053eb27fe9cfd41cfba44bff4f263.jpg\"\u003e\u003c\/div\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003eIf you have any specific requirements such as measure range, baud rate, frequency, accuracy, communication interface, temperature, etc., please get in touch with our technical team for further details. \u003c\/span\u003e\u003c\/p\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003eWe also have long range laser distance sensor, High precision laser distacne sensor, \u003c\/span\u003e\u003cspan class=\"keywords_replace\"\u003eIP Protection Sensor\u003c\/span\u003e\u003cspan\u003e, \u003c\/span\u003e\u003cspan class=\"keywords_replace\"\u003eIndustrial Laser Distance Sensor\u003c\/span\u003e\u003cspan\u003e, \u003c\/span\u003e\u003cspan class=\"keywords_replace\"\u003e\u003ca href=\"https:\/\/www.meskernel.com\/high-precision-ranging-sensor-module\/\"\u003eTOF Sensor\u003c\/a\u003e\u003c\/span\u003e\u003cspan\u003e, welcome to consult us!\u003c\/span\u003e\u003c\/p\u003e\n\u003c!----\u003e"}

Meskernel LDK-80 Small Laser Range Sensor (80m)

Meskernel LDK-80

80m Laser Distance Sensor

±2mm Accuracy

Specifications

Want to buy in bulk?

Customer Reviews

Custom Requirements?

Download the ThinkRobotics Mobile App

We are here to serve you! Reach us at:

Popular Links

Shopping Cart

Let customers speak for us

Indoor range	0.03-80m（90% Rate of reflection）
Output frequency	3Hz
Absolute accuracy	±2mm
Resolution	1mm
Blind area	3cm
Light	635nm，<1mW，Red laser, class II safety laser
Communication interface	UART TTL
Serial level	VTTL=3.3V
Operating temperature	-40~60 ℃
Working voltage	DC+3.3 V
Working current	80mA
Power	0.27W
Volume	482613mm
Weight	10g
