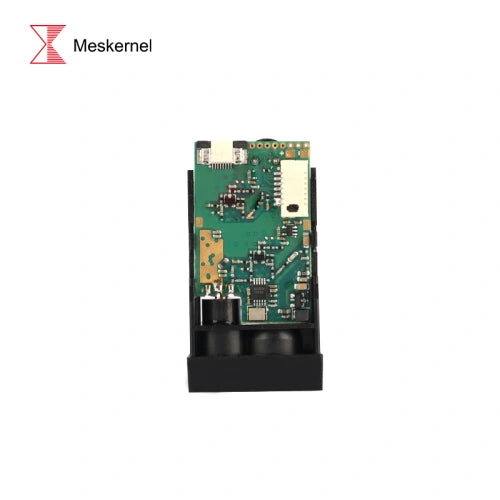

Meskernel LDK-80
80m Laser Distance Sensor
±2mm Accuracy
Step into a world of unparalleled accuracy and efficiency with LDK Phase Distance Sensor, our Laser Distance Sensor designed to meet the demands of modern measurement challenges. Whether you're in industrial automation, robotics, or consumer electronics, LDK series deliver precise distance sensing capabilities that elevate your projects to new heights.
Specifications
|
Indoor range
|
0.03-80m（90% Rate of reflection）
|
|
Output frequency
|
3Hz
|
|
Absolute accuracy
|
±2mm
|
|
Resolution
|
1mm
|
|
Blind area
|
3cm
|
|
Light
|
635nm，<1mW，Red laser, class II safety laser
|
|
Communication interface
|
UART TTL
|
|
Serial level
|
VTTL=3.3V
|
|
Operating temperature
|
-40~60 ℃
|
|
Working voltage
|
DC+3.3 V
|
|
Working current
|
80mA
|
|
Power
|
0.27W
|
|

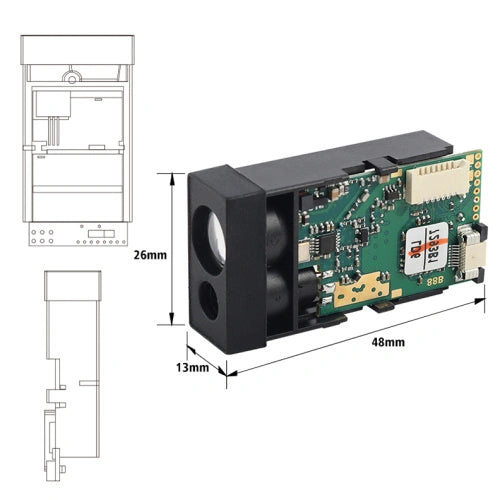

Volume
|
48*26*13mm
|
|
Weight
|
10g
|
Just as the LDK, Meskernel’s phase ranging sensor is designed for high precision measurement, operating within millimeter ranges depending on different models and specifications.They enable non-contact measurements, eliminating the need for physical contact with the target object, which is especially advantageous in sensitive or hazardous environments. These sensors exhibit rapid response times, facilitating real-time monitoring and control processes.
If you have any specific requirements such as measure range, baud rate, frequency, accuracy, communication interface, temperature, etc., please get in touch with our technical team for further details.
We also have long range laser distance sensor, High precision laser distacne sensor, IP Protection Sensor, Industrial Laser Distance Sensor, TOF Sensor, welcome to consult us!
Our team will contact you with bulk pricing!
Want to buy in bulk?
Custom Requirements?
Discussion Forum
Welcome to the discussion thread for Meskernel LDK-80 Small Laser Range Sensor (80m)
Feel free to ask questions, share tips or report issues.
Feel free to ask questions, share tips or report issues.
