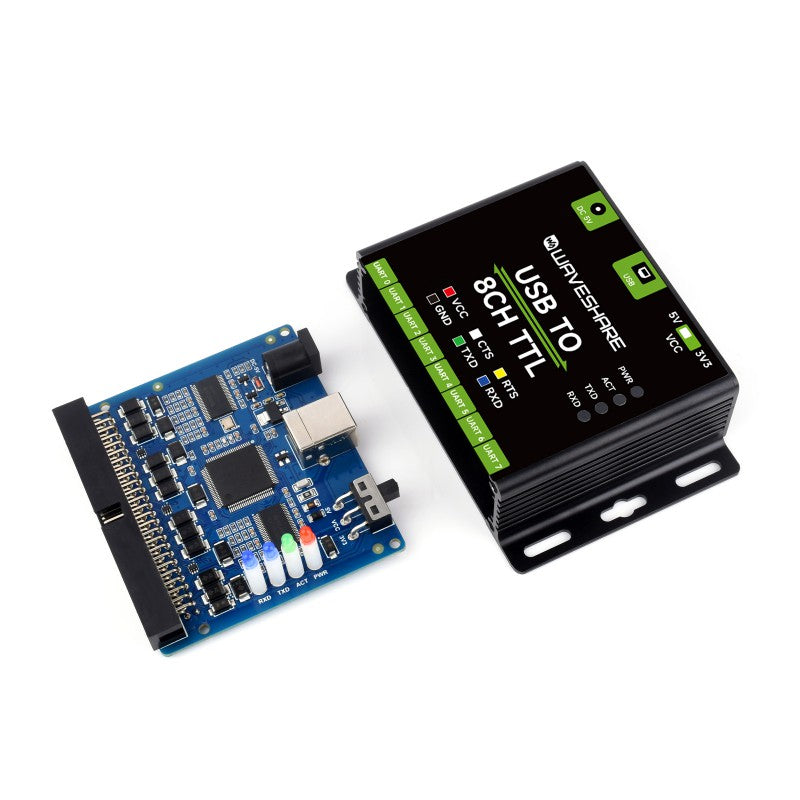

Industrial USB TO 8CH TTL UART CONVERTER
Stable Transmission | Multi Devices | Multi Systems
Features At A Glance
- Extending USB to 8CH TTL (UART) with hardware flow control, allows concurrent and independent communication for each channel
- Onboard self-recovery fuse and protection diodes, ensure the current/voltage stable outputs, provide over-current/over-voltage proof, improve shock proof performance
- Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
- Onboard voltage translator circuit, with surge suppress and ESD protection, safe and stable communication
- Onboard TTL serial port 3.3V and 5V voltage level switch, allows selecting TTL level

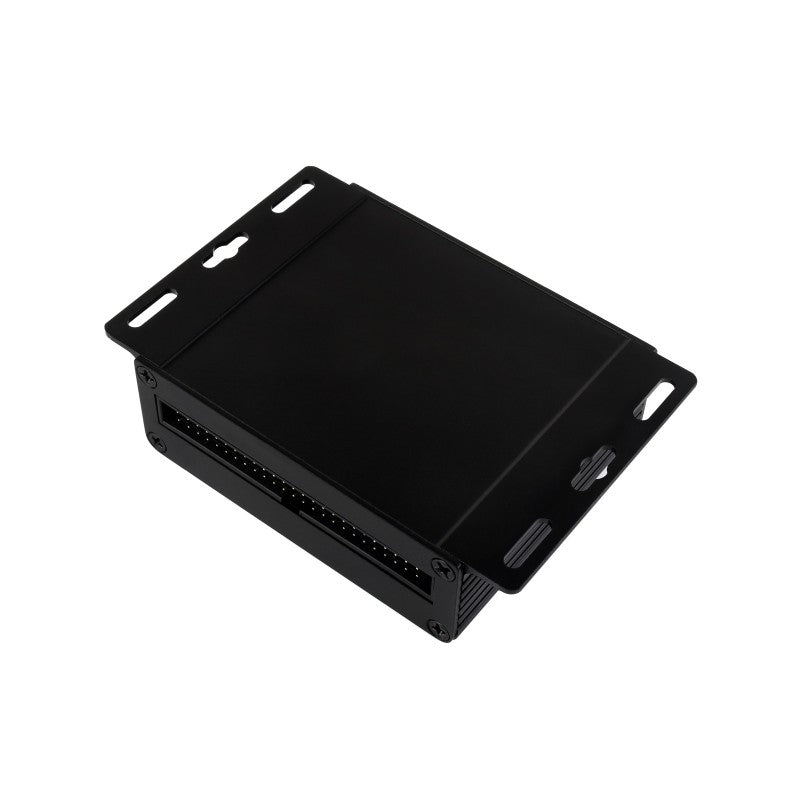

- Aluminium alloy enclosure with oxidation dull-polish surface, CNC process opening, solid and durable, well-crafted
- 4 LEDs for indicating the power and transceiver status
Specifications
| PRODUCT TYPE | Industrial USB to TTL converter | |
|---|---|---|
| HOST PORT | USB | |
| DEVICE PORT | TTL (UART) | |
| BAUDRATE | 1200bps ~ 2M | |
| USB | Operating voltage | 5V |
| Connector | USB-B | |
| Protection | 200mA self-recovery fuse, ESD protection | |
| POWER SUPPLY | Connector | 5V DC power jack |
| Protection | Over-voltage protection and anti-reverse protection | |
| TTL (UART) | Connector | 50PIN anti-reverse header |
| Protection | TVS diode, surge protection & ESD protection | |
| TTL level | 3.3V/5V (configurable) | |
| INDICATORS | PWR | Power indicator, lights up red when there is USB connection and voltage is detected |
| ACT | Status indicator, lights up green when the driver is detected | |
| TXD | TX indicator, lights up when the USB port sends data | |
| RXD | RX indicator, lights up when the device ports send data back | |
| OPERATING ENVIRONMENT | Temperature | -40℃ ~ 85℃ |
| Humidity | 5%RH ~ 95%RH | |
| OPERATING SYSTEM | Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7 | |
Multiple Protection, Safe And Stable
- Onboard self-recovery fuse and protection diodes, provide over-current/over-voltage proof, improve shock proof performance
- Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
- Onboard voltage translator circuit, with surge suppress and ESD protection, safe and stable communication
Multiple Systems Support
Compatible With Popular Systems Like Win7/8/8.1/10/11, Mac, Linux, Android...
Application Examples
Suitable For Industrial/Office Conditions With Strict Requirements For Operating Environment And Devices
Extending USB to 8CH TTL UART |
Small size, easy installation |
Reversed mounting holes |

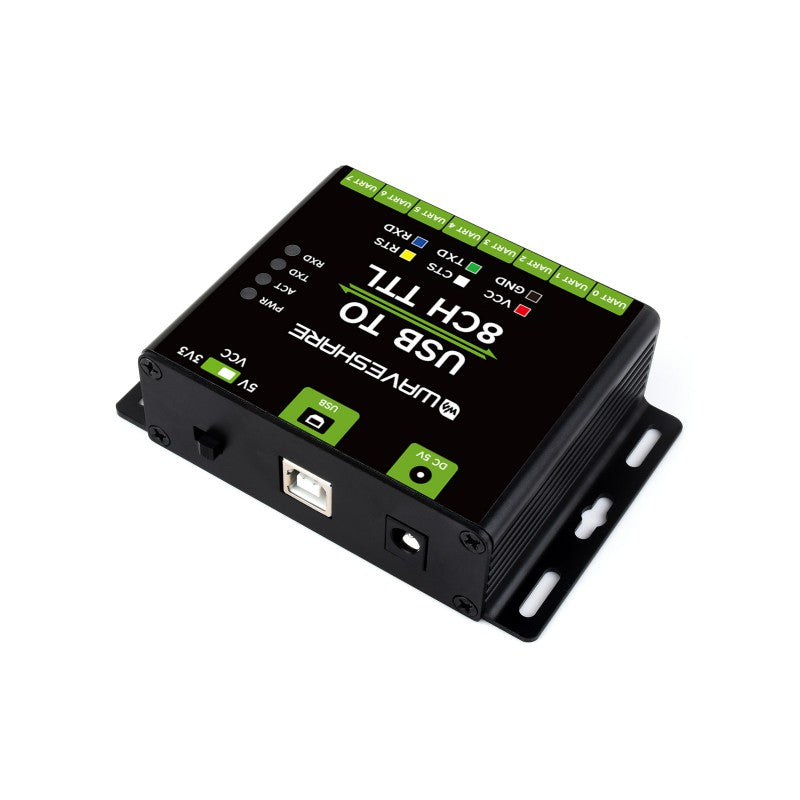

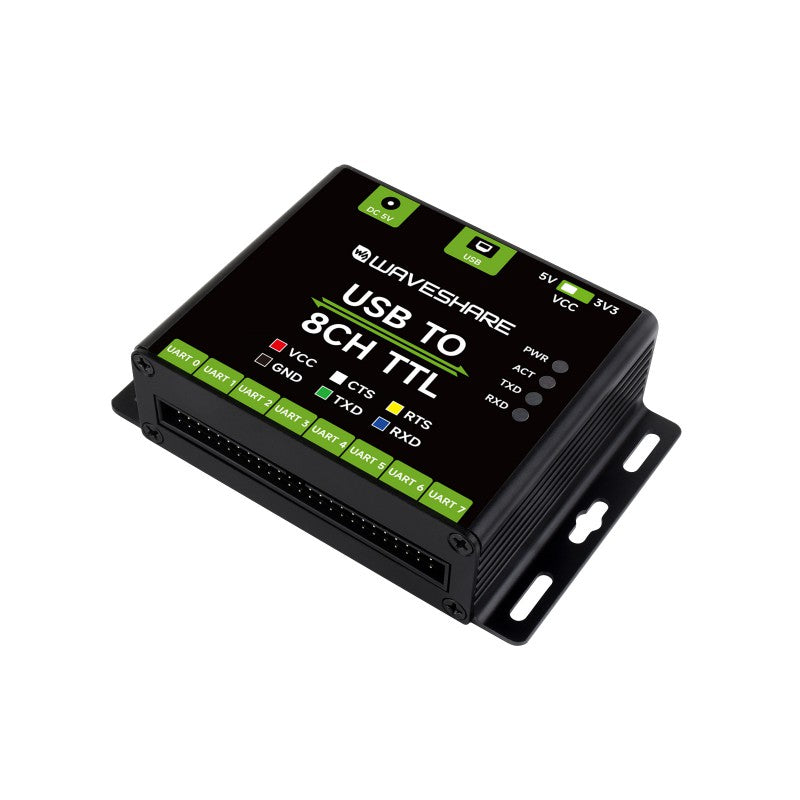

Interface Introduction
Indicators Description
| PWR | Power indicator, lights up red when there is USB connection and voltage is detected |
|---|---|
| ACT | Status indicator, lights up green when the driver is detected |
| TXD | TX indicator, lights up when the USB port sends data |
| RXD | RX indicator, lights up when the device ports send data back |
Pinout Definition
| VCC | 5V or 3.3V output, configured by switch |
|---|---|
| GND | Ground |
| TXD | Connecting to MCU.RXD |
| RXD | Connecting to MCU.TXD |
| RTS | Connecting to MCU.CTS |
| CTS | Connecting to MCU.RTS |
Outline Dimensions
Resources
Wiki: www.waveshare.com/wiki/USB_TO_8CH_TTL
Package Contains:
Weight: 0.215 kg
- USB TO 8CH TTL x1
- USB cable (~1.2m) x1

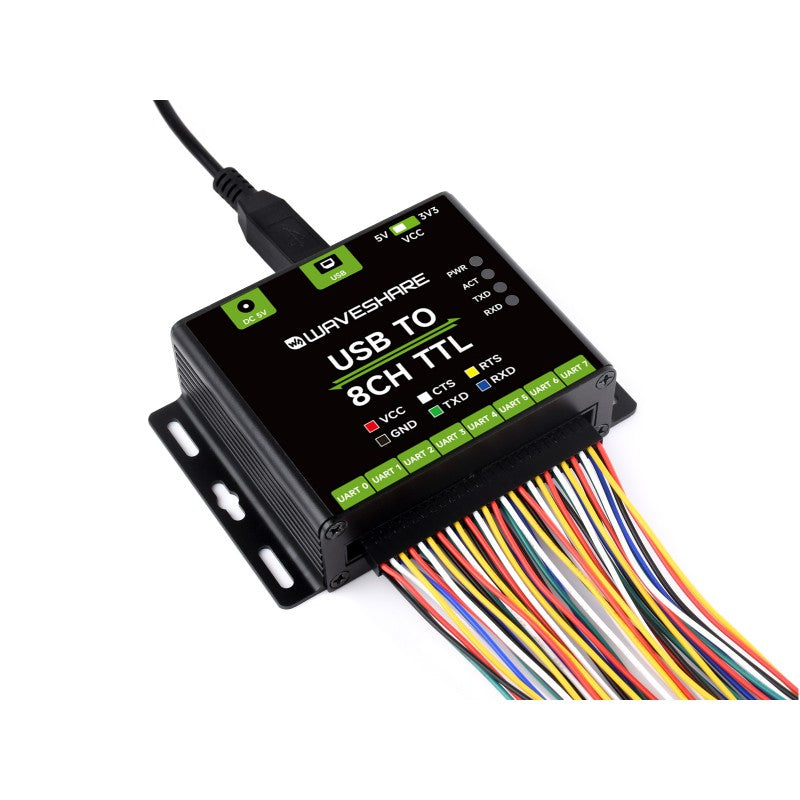

- 50PIN squid wire x1
