Description

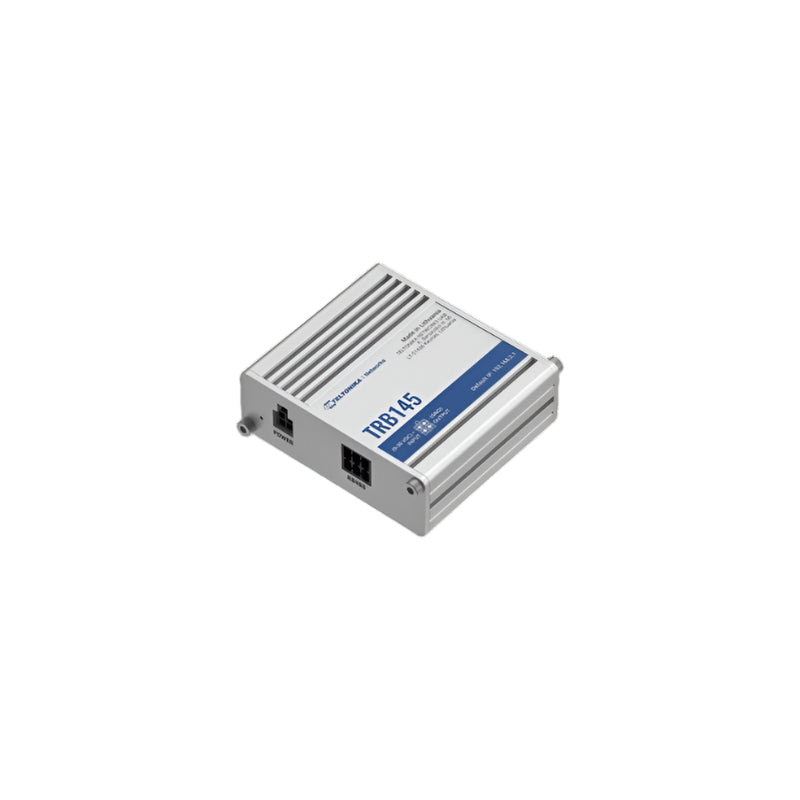

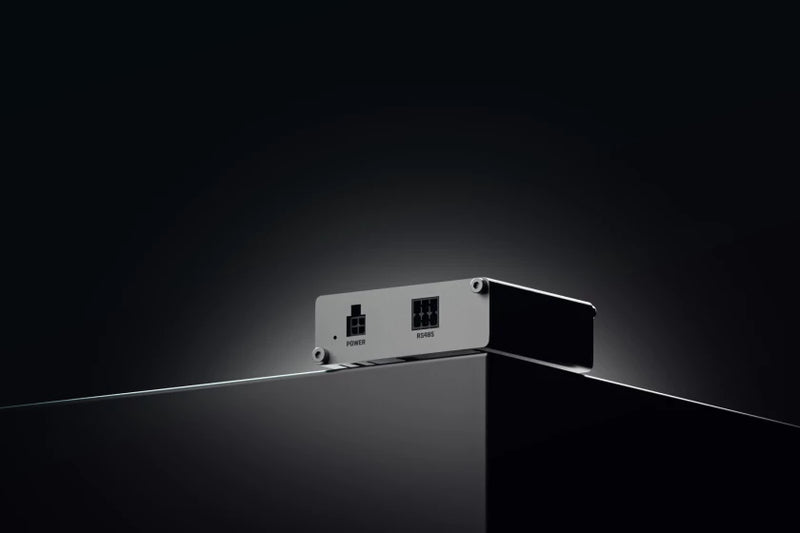

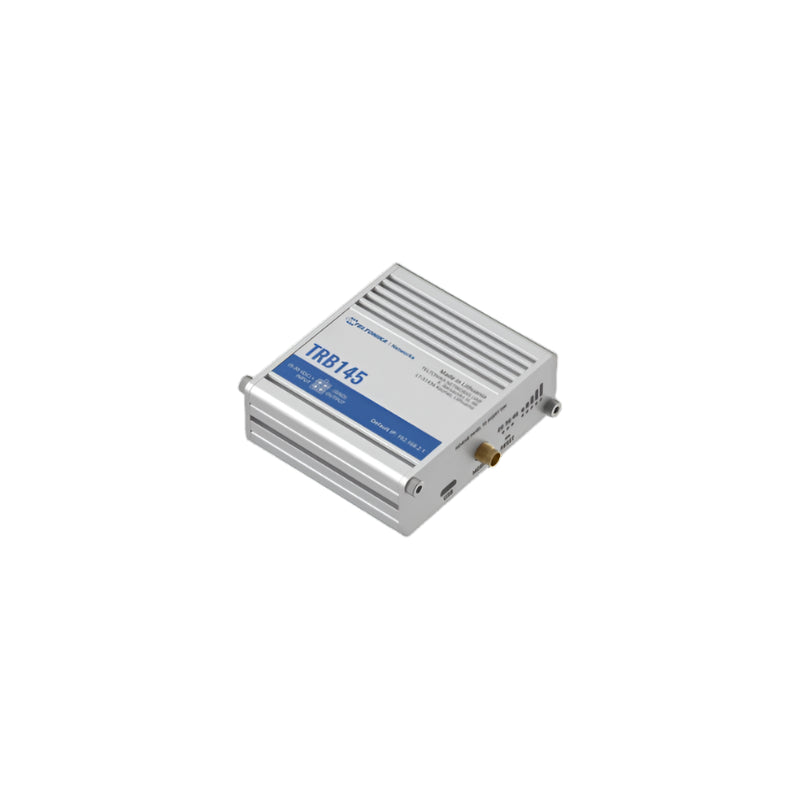

- TRB145 is a mission-critical LTE Cat 1 gateway, equipped with RS485 interface.
- Compact design and easy installation make this gateway perfect for applications, where a sole gadget must be remotely controlled over the RS485 serial interface.
- Just like the rest of TRB products, TRB145 is engineered to be used in industrial applications. Therefore, it has a wide range of software features, such as SMS control, Firewall, Open VPN, IPsec, Teltonika Networks Remote Management System (RMS), and FOTA support.
Standard Package*
- TRB145
- 9 W PSU
- 1x Mobile antenna (magnetic mount, SMA male, 3 m cable)
- Micro-USB cable (0.8 m)
- 1x hex key
- RS485 connector
- QSG (Quick Start Guide)
- Packaging box
*Standard package contents may differ based on standard order codes.
Features
Mobile
| Feature | Description |
|---|---|
| Mobile Module | 4G LTE Cat 1 up to 10 Mbps download / 5 Mbps upload; 3G up to 384 kbps download/upload; 2G up to 296 kbps download / 236.8 kbps upload. |
| 3GPP Release | Release 12. |
| Status Monitoring | IMSI, ICCID, operator details, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC. |
| SMS Capabilities | SMS status, configuration, send/read via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, autoreply, SMPP. |
| USSD Support | Sending and reading Unstructured Supplementary Service Data messages. |
| Operator Lists | Operator black/white list (by country or individual operators). |
| Multiple PDN | Use of different PDNs for multiple network access and services. |
| Band Management | Band lock, used band status display. |
| SIM PIN Management | Setting, changing, or disabling the SIM card's PIN. |
| APN Configuration | Auto APN. |
| Bridge Mode | Direct connection between mobile ISP and device on LAN. |
| Passthrough Mode | Gateway assigns its mobile WAN IP address to another device on LAN. |
Network
| Feature | Description |
|---|---|
| Routing | Static routing. |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT. |
| VoIP Passthrough Support | H.323 and SIP-alg protocol NAT helpers for proper routing of VoIP packets. |
| Connection Monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection. |
| Firewall | Port forward, traffic rules, custom rules, TTL target customization. |
| Firewall Status Page | View all firewall statistics, rules, and rule counters. |
| Ports Management | View device ports, enable/disable each, toggle auto-configuration, change transmission speed. |
| Network Topology | Visual representation of the network, showing device connections. |
| DHCP | Static and dynamic IP allocation, DHCP relay, server configuration, status, static leases with MAC wildcards. |
| QoS / SQM | Traffic priority queuing by source/destination, service, protocol, or port; WMM, 802.11e. |
| DDNS | Support for over 25 service providers; manual configuration for others. |
| DNS over HTTPS | Proxy enabling secure DNS resolution by routing queries over HTTPS. |
| Network Backup | Mobile, VRRP, wired options for automatic failover. |
| SSHFS | Mount remote file system via SSH protocol. |
| Traffic Management | Real-time monitoring, wireless signal charts, traffic usage history. |
Security
| Feature | Description |
|---|---|
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, internal & external RADIUS user authentication, IP & login attempts block, time-based login blocking, built-in random password generator. |
| Firewall | Preconfigured rules via WebUI, unlimited configuration via CLI, DMZ, NAT, NAT-T, NAT64. |
| Attack Prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks). |
| VLAN | Port and tag-based VLAN separation. |
| Mobile Quota Control | Mobile data limit, customizable period, start time, warning limit, phone number. |
| Web Filter | Blacklist for blocking unwanted websites, whitelist for specifying allowed sites. |
| Access Control | Flexible control of SSH, web interface, CLI, and Telnet access. |
| SSL Certificate Generation | Let's Encrypt and SCEP certificate generation methods. |
VPN
| Feature | Description |
|---|---|
| OpenVPN | Multiple clients and a server can run simultaneously; 27 encryption methods. |
| IPsec | XFRM, IKEv1, IKEv2 with 14 encryption methods (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16). |
| GRE | GRE tunnel, GRE tunnel over IPsec support. |
| PPTP, L2TP | Client/Server instances can run simultaneously; L2TPv3, L2TP over IPsec support. |
| Stunnel | Proxy designed to add TLS encryption functionality to existing clients and servers without code changes. |
| DMVPN | Method of building scalable IPsec VPNs; Phase 2 and Phase 3, Dual Hub support. |
| SSTP | SSTP client instance support. |
| ZeroTier | ZeroTier VPN client support. |
| WireGuard | WireGuard VPN client and server support. |
| Tinc | Tinc offers encryption, authentication, and compression in its tunnels; client and server support. |
Remote Management
| Feature | Description |
|---|---|
| RMS (Teltonika Remote Management System) | Fully compatible for remote management, configuration, and monitoring of devices. |
| Cloud-based Monitoring | Accessible via WebUI, ensuring real-time device monitoring and management. |
| Device Security Monitoring | Track system events, signal strength, connected clients, and network status remotely. |
| Bulk Configuration | Manage large-scale deployments with bulk configuration and update capabilities. |
Input/Output
| Feature | Description |
|---|---|
| Digital Input | Configurable for digital input or counter functionality. |
| Digital Output | Configurable for open-collector control. |
Power
| Feature | Description |
|---|---|

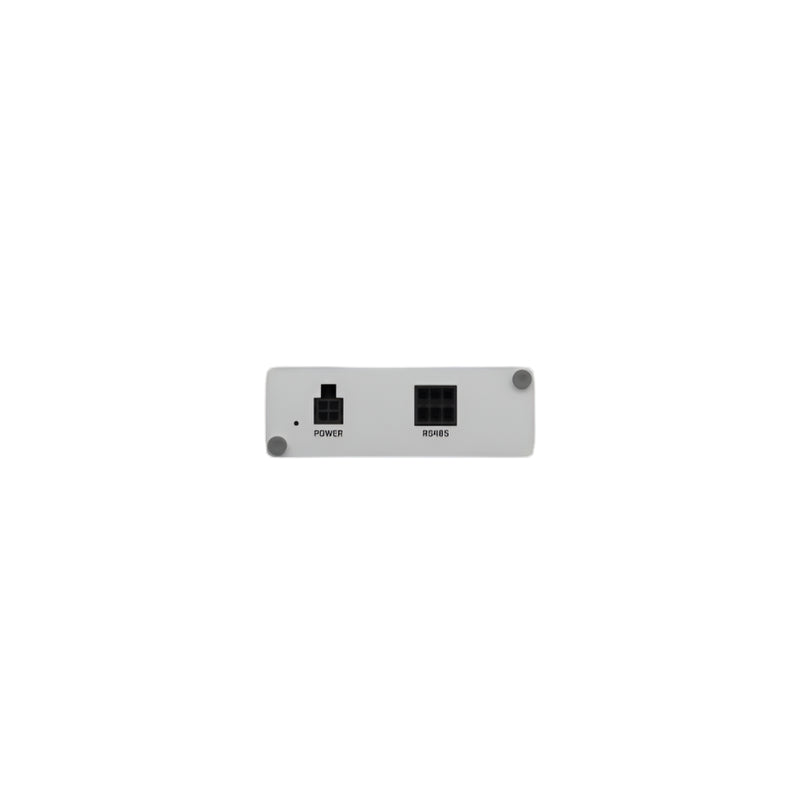

| Power Connector | 2-pin industrial DC power socket. |

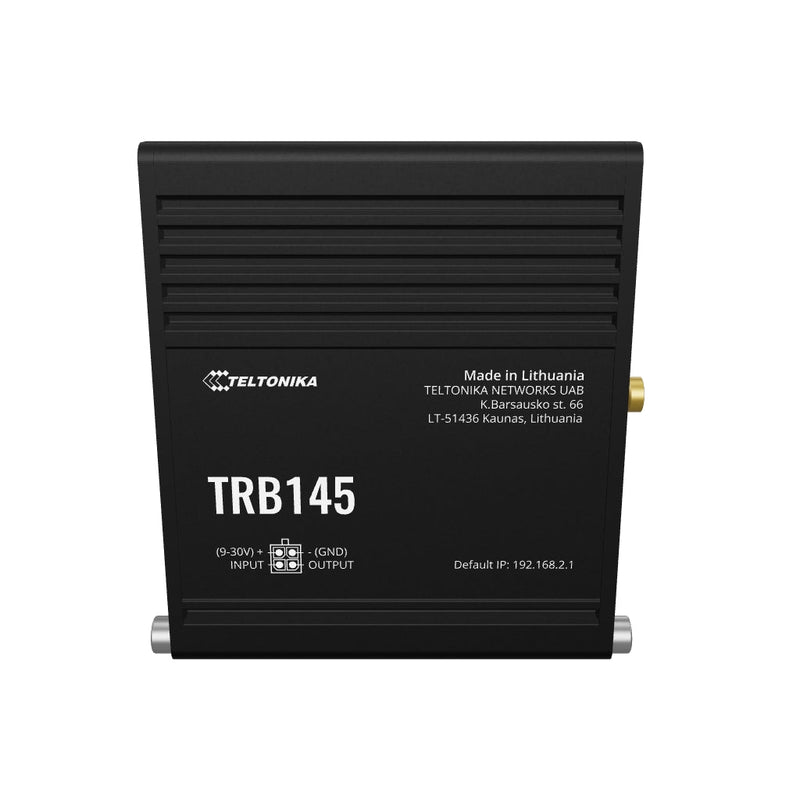

| Input Voltage Range | 9-30 VDC. |
| Power Consumption | Idle: < 1 W; Maximum: < 2.5 W. |
| Ignition Detection | Detect ignition state for automotive use. |
