Supports USB to 8CH RS485, convenient for expanding multiple RS485 industrial serial devices
Supports direct power supply via Type-C port, with reserved 5V~36V DC wide voltage screw terminal for auxiliary power input
Onboard unibody power supply isolation, provides stable isolated voltage
Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
Built-in 120R terminal resistor on the RS485 ports, configurable via jumper for flexible switching
LEDs for indicating the power, device configuration status and transceiver status
Rail-mount case design, support stackable combination, easy to install and safer to use
Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
Baud rate
1200bps ~ 921600bps
LED INDICATORS
PWR
Red power indicator, lights up when there is USB connection and voltage is detected
ACT
Status indicator, lights up green when the driver is detected.
TXD
Green TX indicator, lights up when the USB port sends data
RXD
Blue RX indicator, lights up when the device ports send data back
OPERATING ENVIRONMENT
Temperature
-15℃ ~ 70℃
Humidity
5%RH ~ 95%RH
OPERATING SYSTEM
macOS, Linux, Android, Windows 11/10/8.1/8/7
Safer Isolated Design
Onboard unibody power supply isolation, provides stable isolated voltage
Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
Multiple Protection, Safe And Stable
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance.
Multi System Support
Supports Win11/10/8.1/8/7, MacOS, Linux, Android, Etc.
Transmission Distance Up To 1.2km
The USB Signal Can Be Converted Into 8 Balanced Differential RS485 Signals And The Transmission Rate Is Stable. The Transmission Distance Is About 1.2km For RS485, And About 5 Meters For USB.

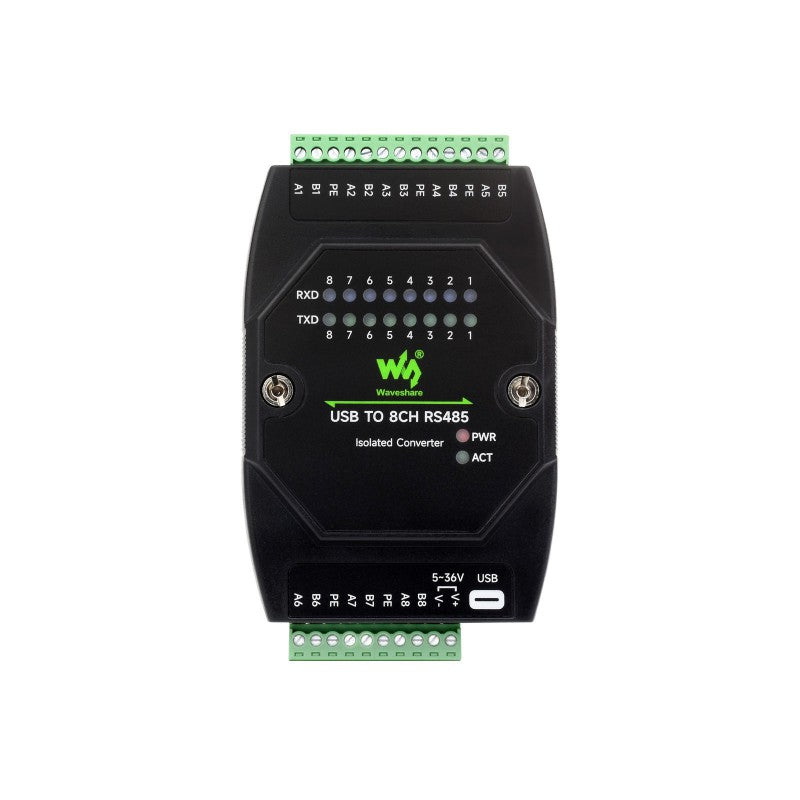

Interface Introduction
Note: using USB Type-C port for power supply by default, auxiliary power supply input is optional.

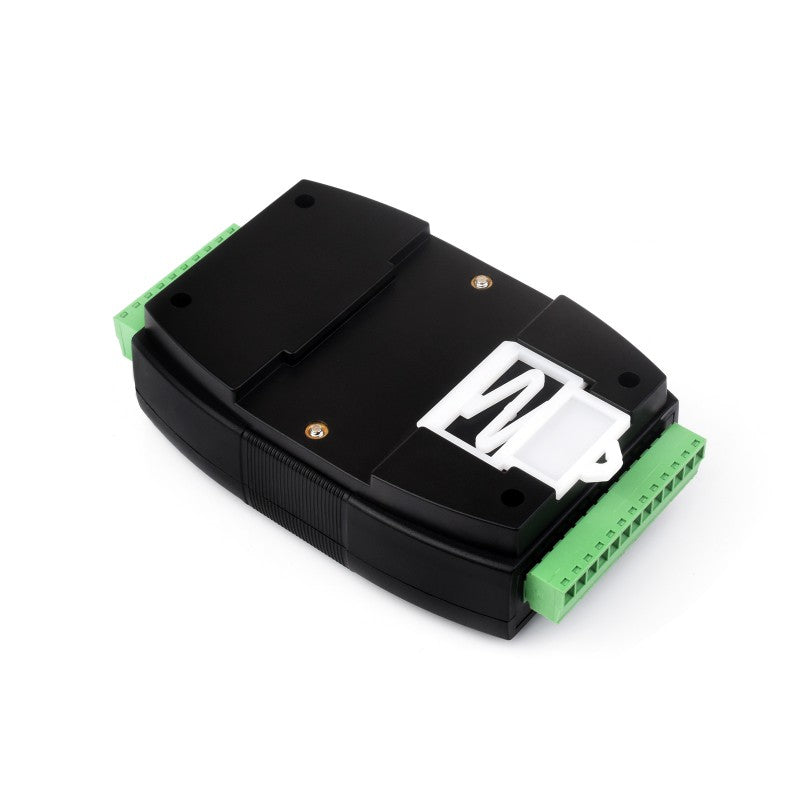

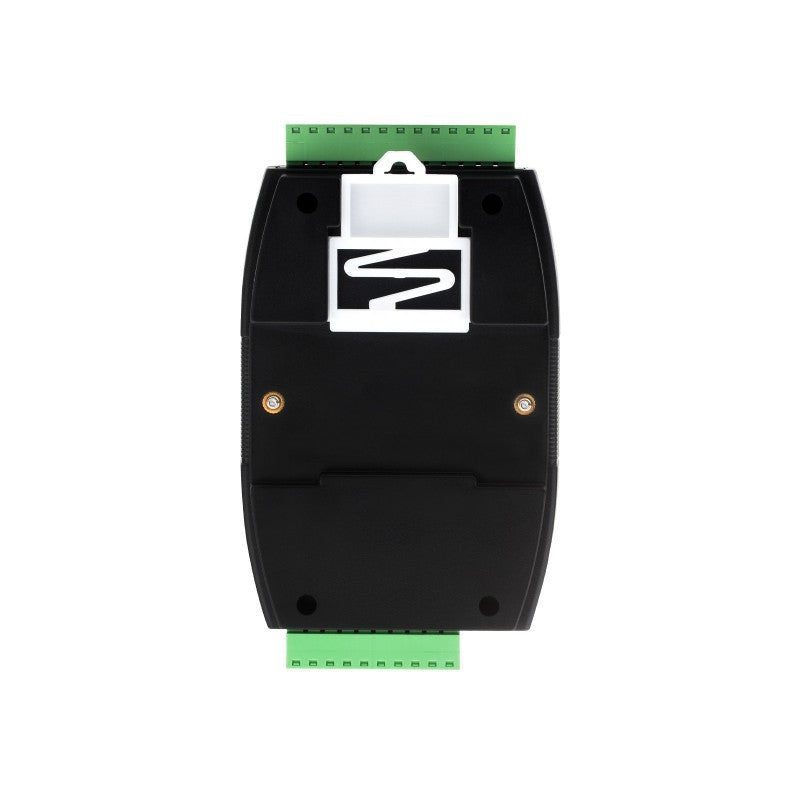

Rail-Mount Support
Supports 35mm Standard Guide Rail, With Rail-Mount Buckle, Easy To Install.
Supports Stackable Installation
* for reference only, please refer to the Package Content for detailed part list
