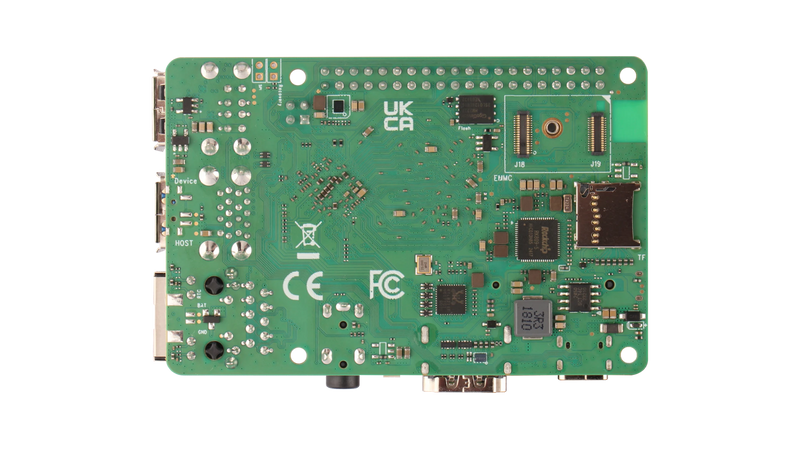

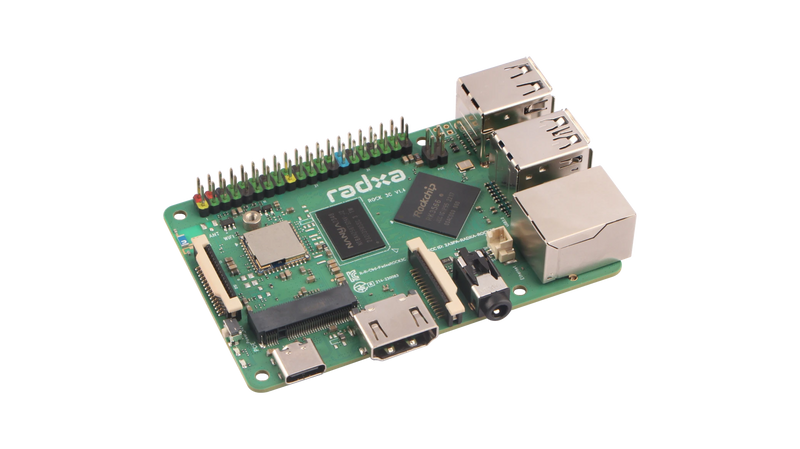

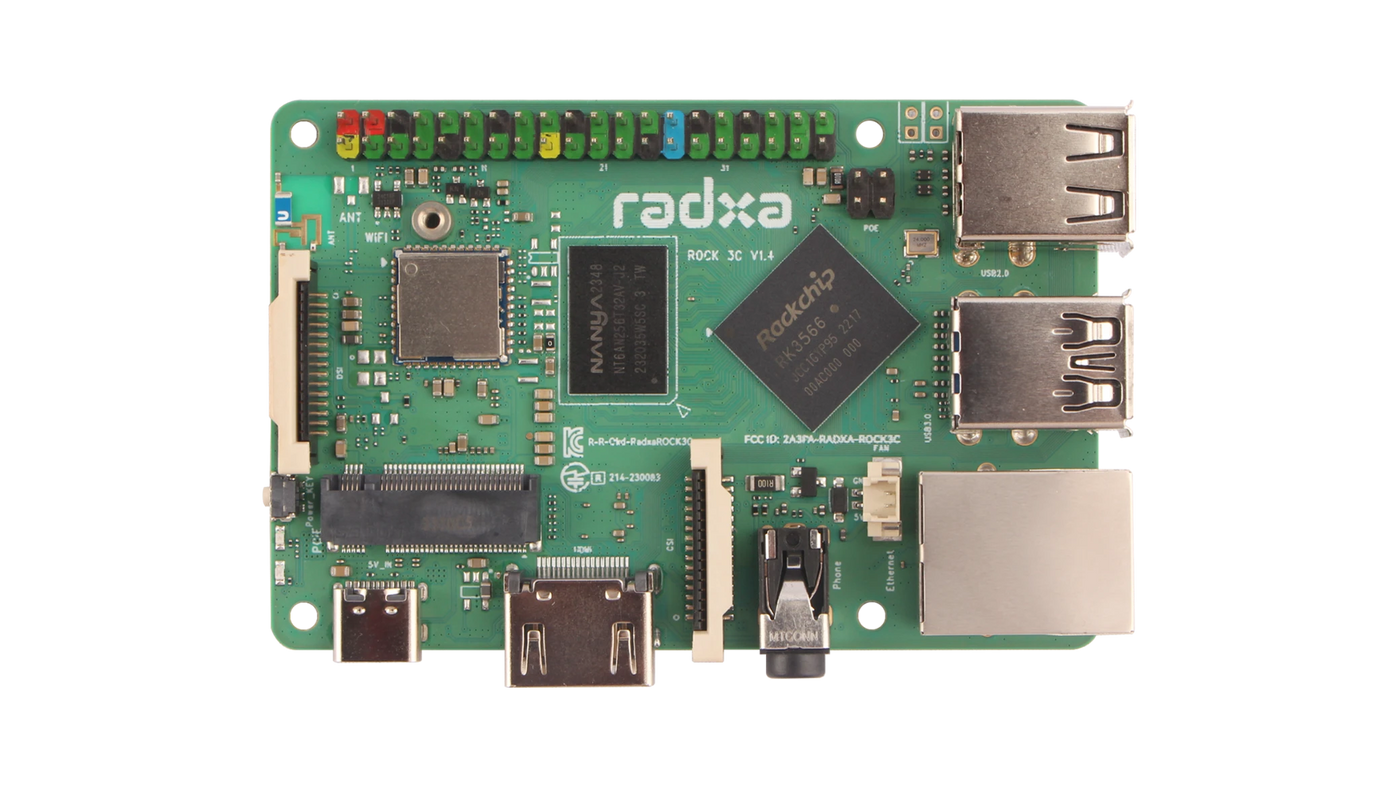

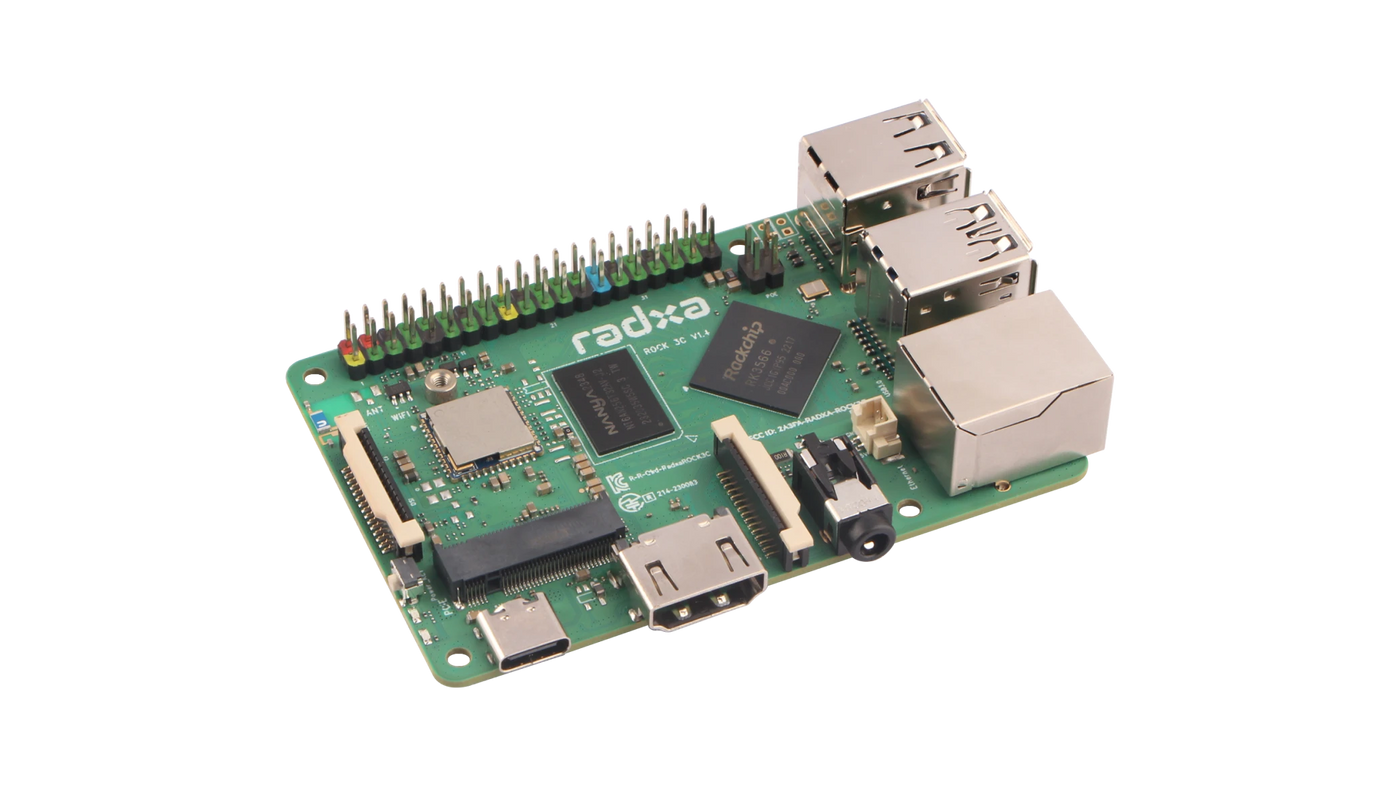

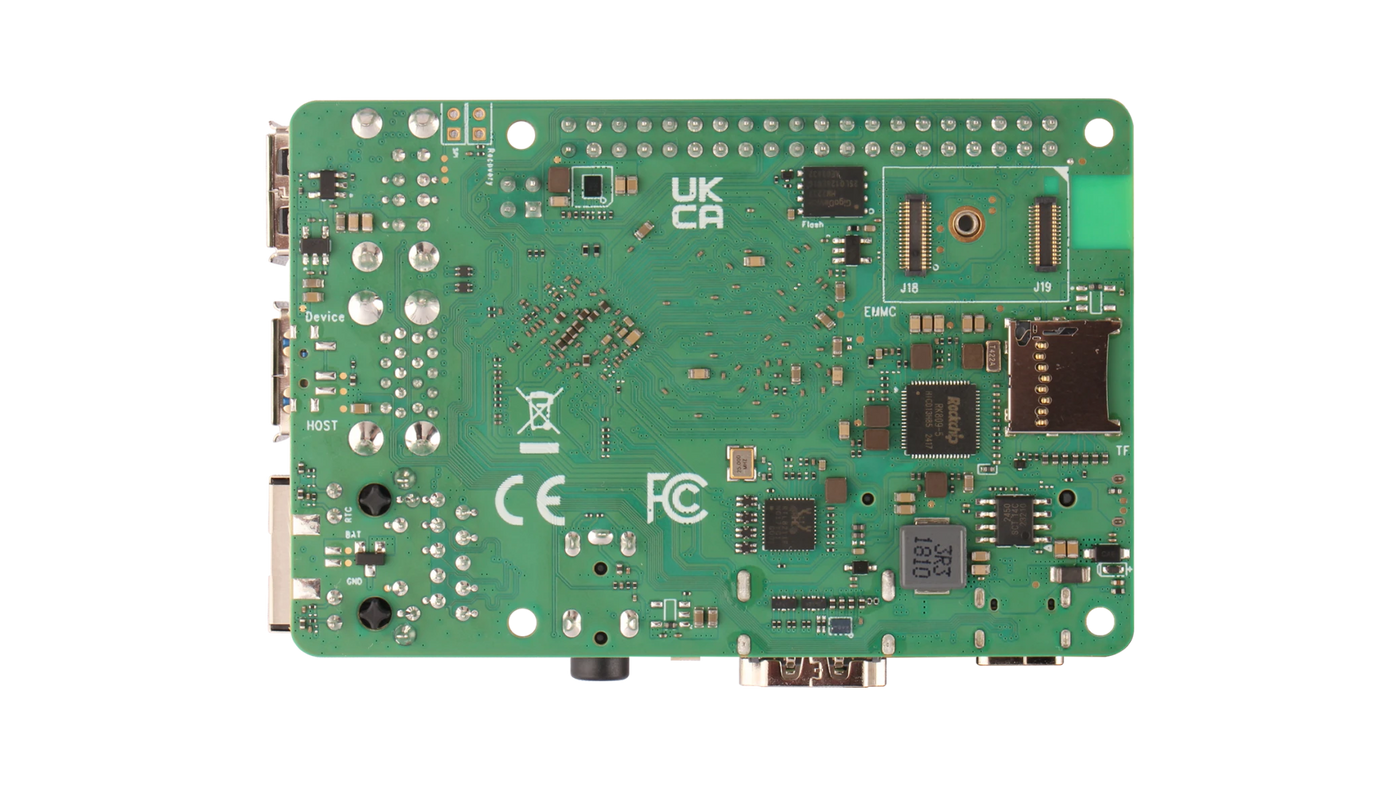

ROCK 3C
High-Performance, Low-Cost, RK3566 Inside!
Rockchip RK3566
A high-performance and low power quad-core application processor
Multiple Memory Options
LPDDR4 RAM
Onboard WiFi & BT
WiFi5 & BT5 OR WiFi6 & BT5.4
Support for Multiple Systems
Supporting a Variety of Accessories to Create a Complete Ecosystem
Radxa Accessories
Third Party Accessories
Application Scenarios
Interfaces
Tech Specs
| Radxa ROCK 3C Specifications | |
|---|---|
| SoC | Rockchip RK3566 |
| CPU | Quad-core Arm® Cortex®-A55 (Armv8) 64-bit @ 1.6GHz |
| GPU | Arm® Mali™-G52-2EE - OpenGL® ES 1.1 / 2.0 / 3.0 / 3.1 / 3.2 - Vulkan® 1.1, OpenCL™ 2.1 |
| NPU | 1 TOPs @ INT8 Supports INT8, INT16, FP16, BFP16 Frameworks: TensorFlow, Caffe, TF Lite, Pytorch, Onnx, Android™ NN |
| RAM | 32-bit LPDDR4: - 1GB - 2GB - 4GB |
| Storage | - eMMC via eMMC connector - MicroSD Card Slot - NVMe SSD via M.2 M Key (2230) or Extension Board (2242/2260/2280) - SATA via Radxa Penta SATA HAT |
| Multimedia | - H.264 / H.265 decoder up to 4K@60fps - H.264 / H.265 encoder up to 1080p@60fps |
| USB | - 2x USB 2.0 HOST - 1x USB 2.0 OTG / HOST - 1x USB 3.0 HOST |
| Audio | 1x 4-ring 3.5mm Headphone Jack with MIC input |
| Display | - HDMI - MIPI DSI *Note: HDMI and MIPI DSI cannot work simultaneously |
| Camera | 1x 2-lane MIPI CSI |
| Ethernet | 1x Gigabit Ethernet (PoE via HAT supported) |
| Wireless | - WiFi 5 & Bluetooth 5 - WiFi 6 & Bluetooth 5.4 |
| Connectivity | 40-pin GPIO Header: - Up to 5x UART - 1x SPI - Up to 2x I2C - 1x PCM/I2S - Up to 6x PWM - Up to 28x GPIO - 2x 5V DC in - 2x 3.3V power pins |
| Power | - USB Type‑C® 5V input - 5V via GPIO Pin 2 & 4 |
| Operating Conditions | - Temperature: 0 ~ 50°C recommended - Throttles above 80°C, use heatsinks or fans for full performance |
| Dimensions | 85 mm x 56 mm |
| Certifications | FCC / CE / RCM / IMDA / WPC |
Download
Documentation
| Getting Started | Download |
| Radxa OS | Download |
| Configuration |
Download |
| Accessories | Download |
| Compliance | Download |
Product Information
| Product Brief | Download |
| 2D Drawings | Download |
| 3D Drawings | Download |
| Schematic V1.31 | Download |
| Components Placement Map (SMD V1.31) | Download |
| Schematic V1.332 | Download |
| Components Placement Map (SMD V1.332) | Download |
| Schematic V1.4 | Download |
| Components Placement Map (SMD V1.4) | Download |
Official Images
| Debian OS | Download |
