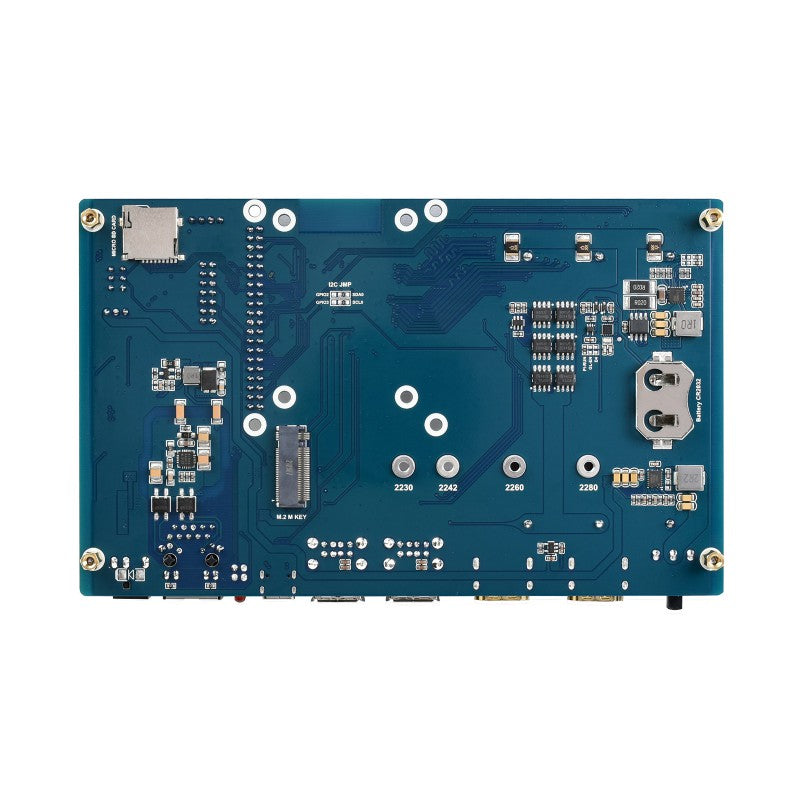

M.2 M KEY slot, for connecting NVME SSD, or communication module with PCIE M.2 M KEY interface
DISPLAY
MIPI DSI port × 1 (22pin 0.5mm FPC connector)
CAMERA
MIPI CSI-2 port × 2 (22pin 0.5mm FPC connector)
VIDEO
HDMI × 2, supports 4K 30fps output
RTC
Real-time clock with battery socket and ability to wake Compute Module 4
STORAGE
MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
FAN
allows speed adjustment and measurement, 5V / 12V
INDICATOR
M.2 status LED CM4 status LED
POWER INPUT
7-36V
DIMENSIONS
175.0 × 108.0mm
Connecting With Compute Module 4
Standard CM4 Socket And Color-Coded Raspberry Pi 40PIN GPIO Header Suitable For Compute Module 4 Lite/EMMC Series Module
* for reference only, CM4 is NOT included

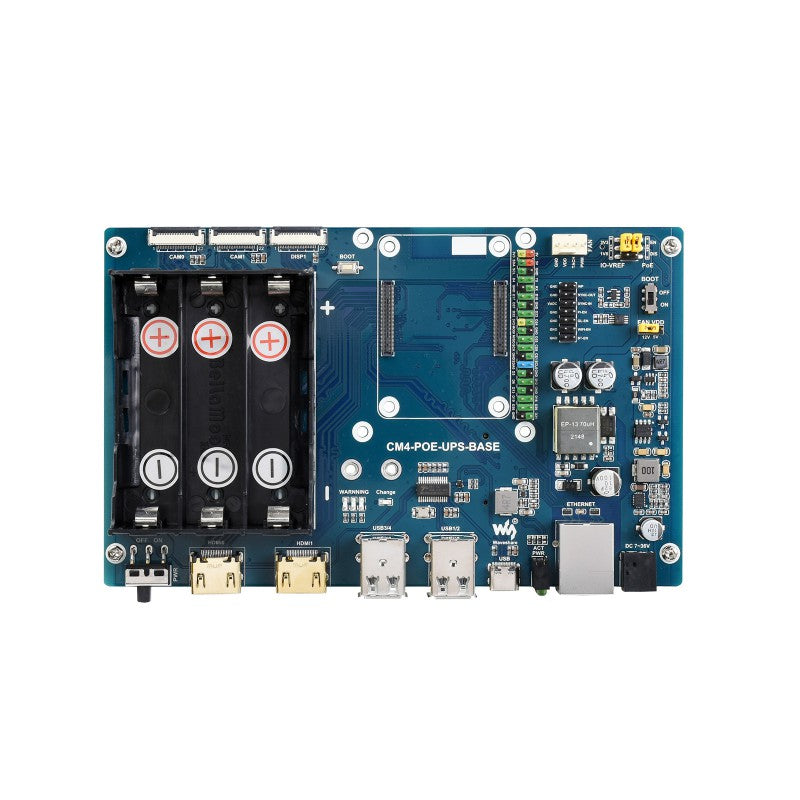

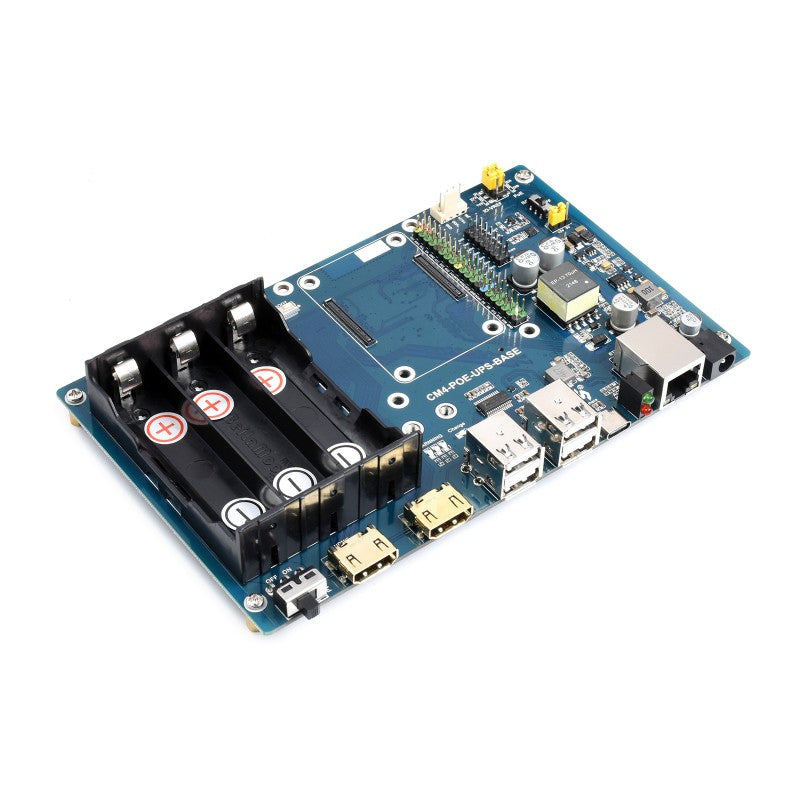

Uninterruptible Power
It is able to charge the batteries and provide power output for the system at the same time from external power supply Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble
The onboard CSI and DSI connectors are 22PIN 0.5mm pitch, it is recommended to buy CSI adapter and DSI adapter for using with camera and display with 15PIN 1mm pitch connectors
Image for reference only, the CM4, display, and camera are NOT included
Multi Power Supply Options
Dynamic Path Management, More Stable Power Supply
Three external power supply options: USB interface, wide voltage DC, and PoE
When connected to the external power supply, the system will be powered and the battery will be charged at the same time, and the battery will be in a disconnected status after being fully charged, so as to avoid battery life damaging caused by frequently charging and discharging
When the external power supply is insufficient, the battery will provide power output together with the external power supply at the same time to ensure system normal operation
When the external power supply is connected, the system will keep running normally even when the battery fails or is taken out. When the external power supply is disconnected, it will automatically switch over to batteries output without interrupting the system operation
Safe And Stable Circuit Design
Protection Circuits For Over Charge/Discharge, Over Current, Short Circuit, And Reverse-Proof Along With The Standalone Resettable Fuse For Each Battery, More Safe And Stable
Real Time Monitoring
Monitoring The Batteries Voltage, Current, Power, And Remaining Capacity Via I2C
When the voltage dips too low, it is possible to save files properly and then shutdown the system by software, to avoid any data loss
Extensive Interfaces
* for reference only, the SSD is NOT included.

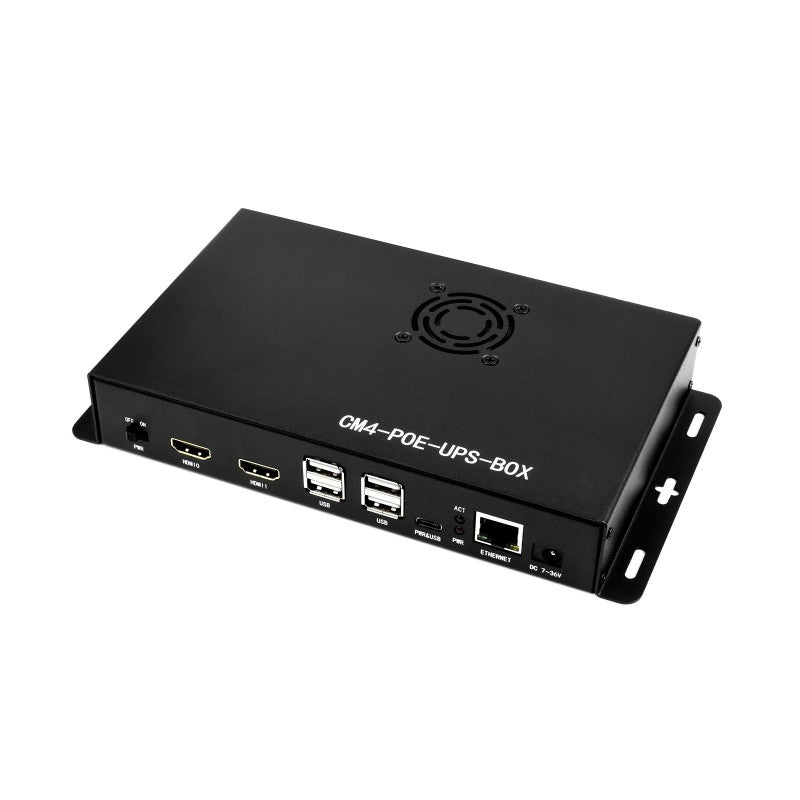

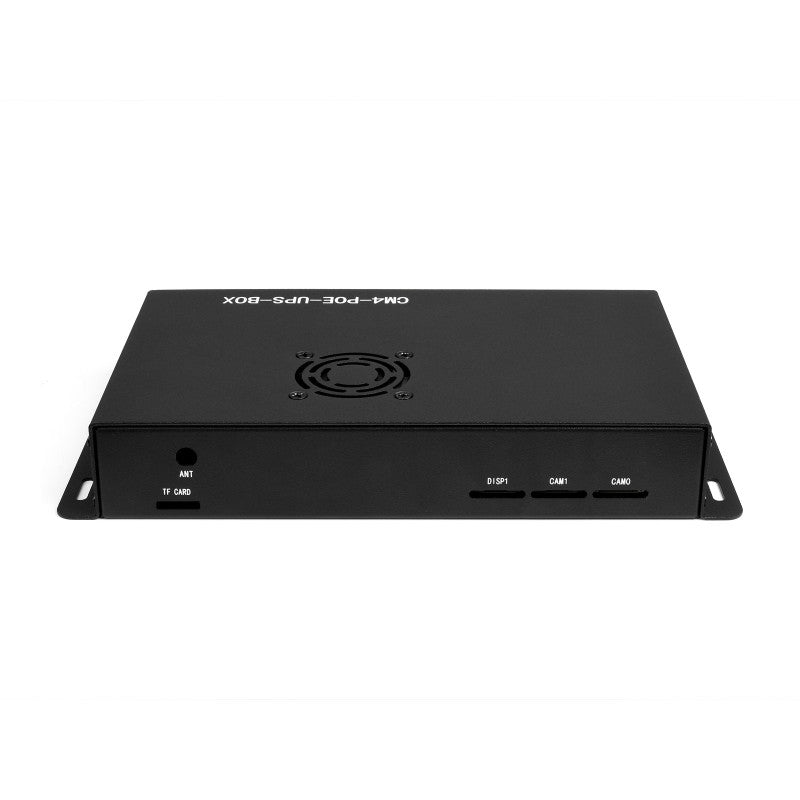

Precise Cut-Out With Clear Label
Each Cut-Out Is Completely Aligned With The Connector

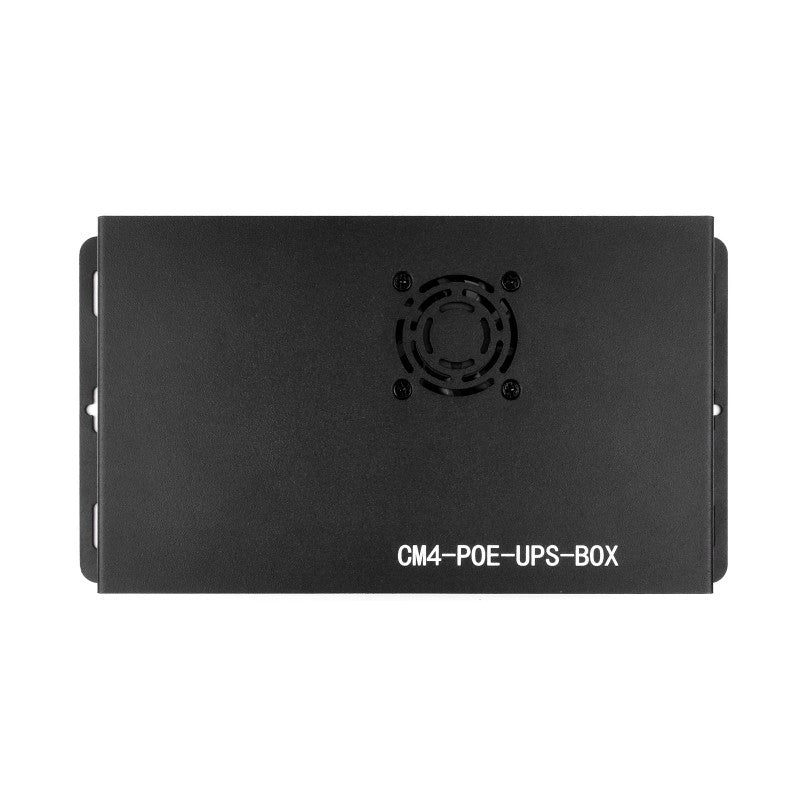

Cooling Fan Included
Comes With Cooling Fan, Combined With The Airflow Vent, Better Heat Dissipation

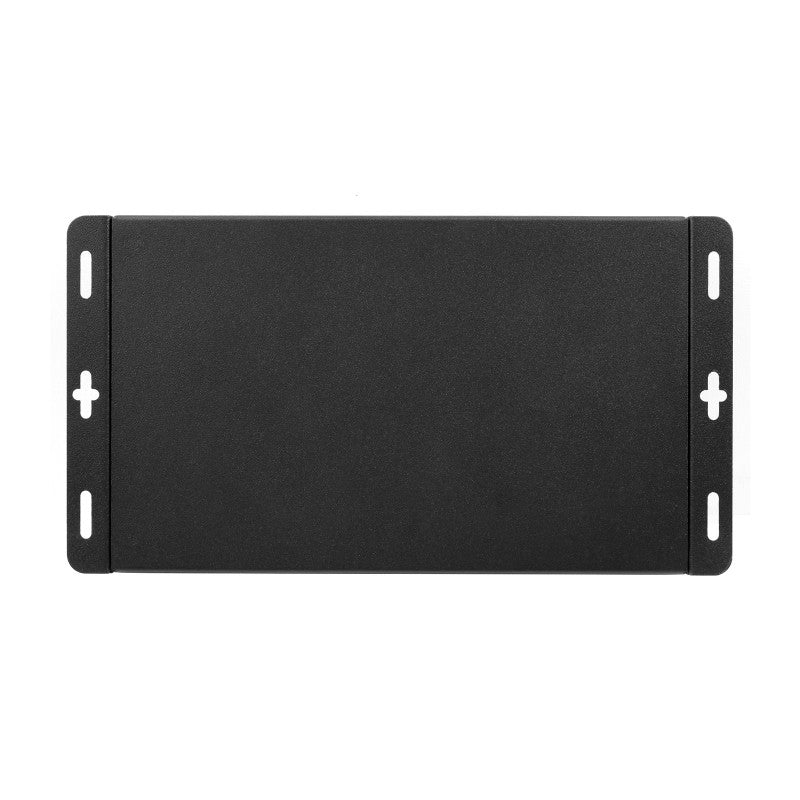

Wall Mount Support
Wall Mount Holes On Two Sides, Handy For Mounting
Application Examples
Suitable For Raspberry Pi Applications Requiring Binocular Vision Or Other Industrial Context
**for reference only, display, cameras, and antenna are NOT included.
