Kikobot C1 – 6 Axis Robotic Arm for Education & Research

SKU: KIKO10001

₹ 70,799.99

Available in 2-4 weeks

Select variant

ESP32
📦 Min order 1

Enter your email or your WhatsApp number.
Chat with us on WhatsApp We reply quickly! Contact Us
Kikobot C1 – 6 Axis Robotic Arm for Education & ResearchESP32₹ 70,799.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

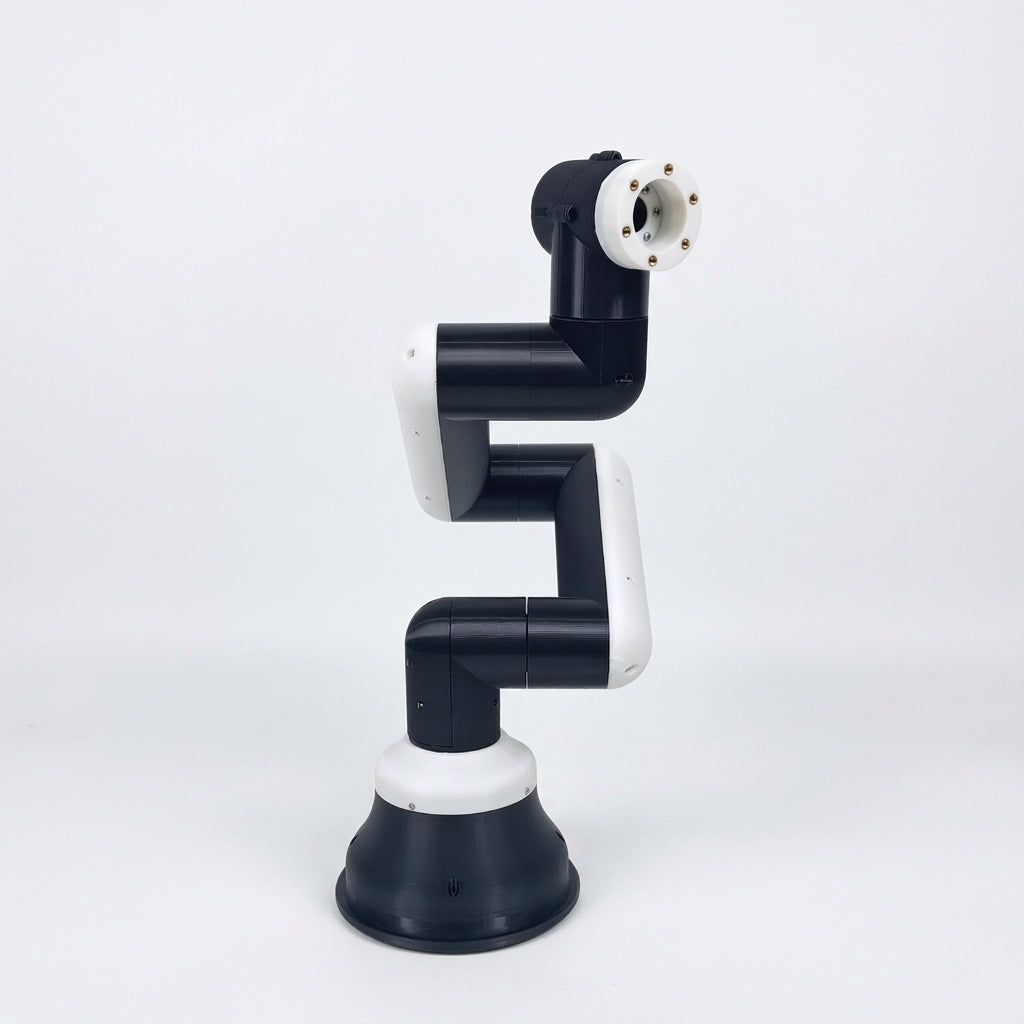

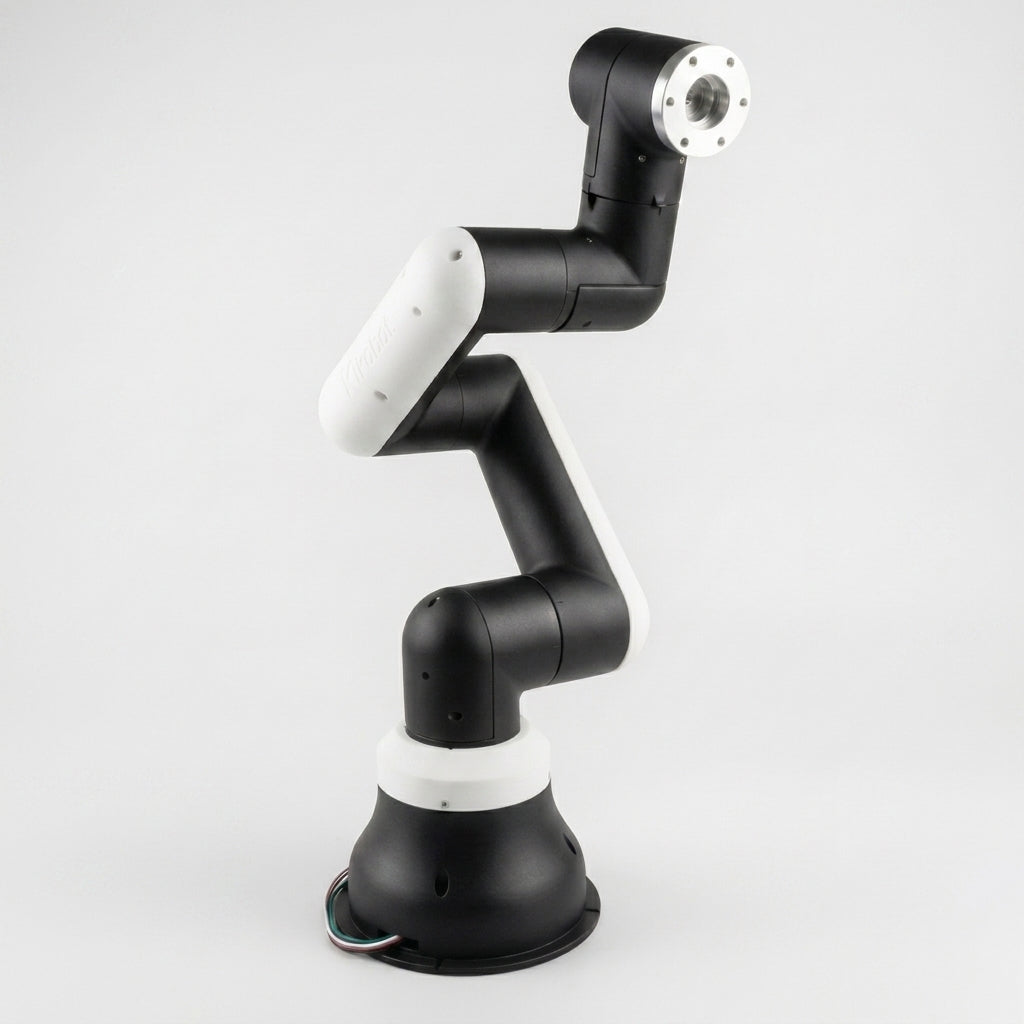

Kikobot C1 - 6 DOF Collaborative Robotic Arm

The Kikobot C1 is a compact, programmable 6-axis collaborative robot arm designed for robotics education, research, and desktop automation. Available in three compute variants ESP32, Raspberry Pi 5, and NVIDIA Jetson Orin Nano. It supports Python, ROS2, Arduino, and OpenCV out of the box.



What Is The C1


One Arm. Three Compute Platforms.



Key Features



Multiplatform Support

Kikobot works seamlessly with a variety of platforms.



Specifications

Weight 950 g
Number of axes 6
Max payload 250 g
Working radius 330 mm
Repeatability ±1.0 mm
Range of joints J1 ±165° · J2 ±125° · J3 ±140° · J4 ±140° · J5 ±140° · J6 ±175°
Max joint speed 150°/s
Power input 100V–240V AC, 50/60 Hz
Nominal voltage / power 12V DC, 10A · 120W
Communication Serial USB Type-C
Control software Kikobot C1 Studio (Ubuntu 22.04 LTS)
End effectors Parallel gripper · Vacuum gripper · Electromagnetic gripper
Working temperature 0°C – 50°C · Indoor use
Base dimensions 110 × 110 × 93 mm
Material ABS
Installation Desktop / floor mounting


Documents

User Maual View
Product Information Download


Package Includes

C1 Robot x1
Robot Controller with ESP32 / Raspberry Pi / Jetson Orin Nano Options x1
Power Supply x1
User Manuals x1

What controller options are available and how do I choose one?
The package offers a robot controller with options for ESP32, Raspberry Pi, or Jetson Nano; you can select the controller option when ordering.
What are the main mechanical specifications such as payload, reach, and repeatability?
Maximum payload is 250 g, maximum working radius is 360 mm, and repeatability is about 1.0 mm.
Is the system compatible with ROS and what software is used to control it?
It supports ROS integration and ships with Kikobot C1 Studio for navigation and programming.
What are the power, connectivity and environment requirements?
Power input is 100 to 240 V AC at 50 or 60 Hz with a nominal 12 V DC 10 A supply and about 120 W. Communication methods are Serial and USB Type C. Operating temperature is 0 to 50 C and it is designed for indoor use.
What is included in the package and how does the warranty work?
The package includes the C1 robot, a robot controller with the selected option, a power supply, and user manuals. Warranty details are provided by Kikobot under the Kikobot warranty policy.
A
Admin
Welcome to the discussion thread for Kikobot C1 – 6 Axis Robotic Arm for Education & Research
Feel free to ask questions, share tips or report issues.
Add Post

For more discussion Click Here

Discover More In:

Jetson Robot Kits → NVIDIA Jetson → Raspberry Pi →

Category: View all Robotic Arm Kit

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Kikobot C1 - 6 DOF Collaborative Robotic Arm

The Kikobot C1 is a compact, programmable 6-axis collaborative robot arm designed for robotics education, research, and desktop automation. Available in three compute variants ESP32, Raspberry Pi 5, and NVIDIA Jetson Orin Nano. It supports Python, ROS2, Arduino, and OpenCV out of the box.



What Is The C1


One Arm. Three Compute Platforms.



Key Features



Multiplatform Support

Kikobot works seamlessly with a variety of platforms.



Specifications

Weight 950 g
Number of axes 6
Max payload 250 g
Working radius 330 mm
Repeatability ±1.0 mm
Range of joints J1 ±165° · J2 ±125° · J3 ±140° · J4 ±140° · J5 ±140° · J6 ±175°
Max joint speed 150°/s
Power input 100V–240V AC, 50/60 Hz
Nominal voltage / power 12V DC, 10A · 120W
Communication Serial USB Type-C
Control software Kikobot C1 Studio (Ubuntu 22.04 LTS)
End effectors Parallel gripper · Vacuum gripper · Electromagnetic gripper
Working temperature 0°C – 50°C · Indoor use
Base dimensions 110 × 110 × 93 mm
Material ABS
Installation Desktop / floor mounting


Documents

User Maual View
Product Information Download


Package Includes

C1 Robot x1
Robot Controller with ESP32 / Raspberry Pi / Jetson Orin Nano Options x1
Power Supply x1
User Manuals x1

FAQ
What controller options are available and how do I choose one?
The package offers a robot controller with options for ESP32, Raspberry Pi, or Jetson Nano; you can select the controller option when ordering.
What are the main mechanical specifications such as payload, reach, and repeatability?
Maximum payload is 250 g, maximum working radius is 360 mm, and repeatability is about 1.0 mm.
Is the system compatible with ROS and what software is used to control it?
It supports ROS integration and ships with Kikobot C1 Studio for navigation and programming.
What are the power, connectivity and environment requirements?
Power input is 100 to 240 V AC at 50 or 60 Hz with a nominal 12 V DC 10 A supply and about 120 W. Communication methods are Serial and USB Type C. Operating temperature is 0 to 50 C and it is designed for indoor use.
What is included in the package and how does the warranty work?
The package includes the C1 robot, a robot controller with the selected option, a power supply, and user manuals. Warranty details are provided by Kikobot under the Kikobot warranty policy.
