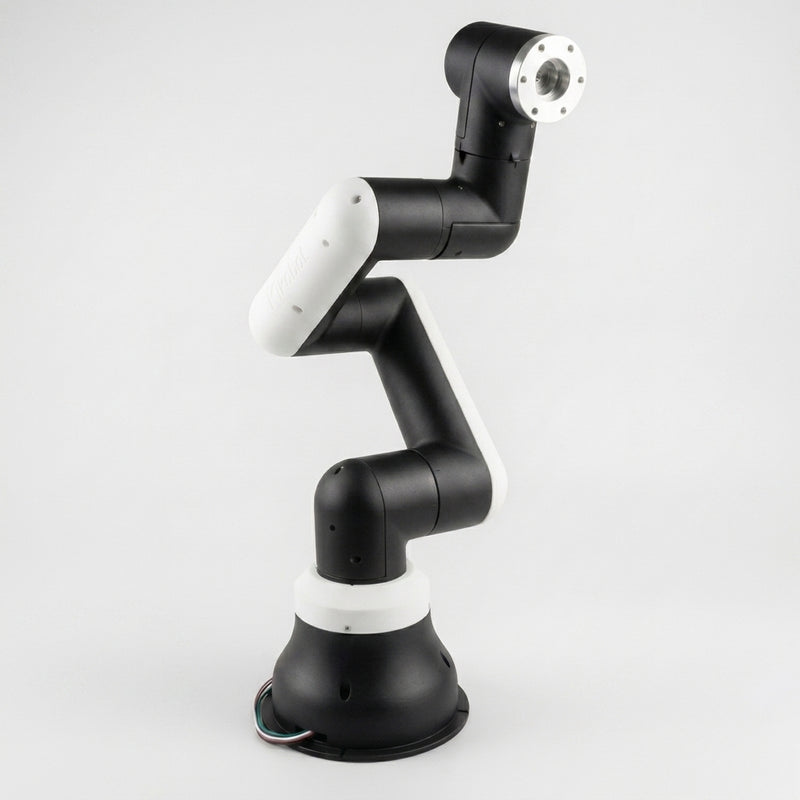

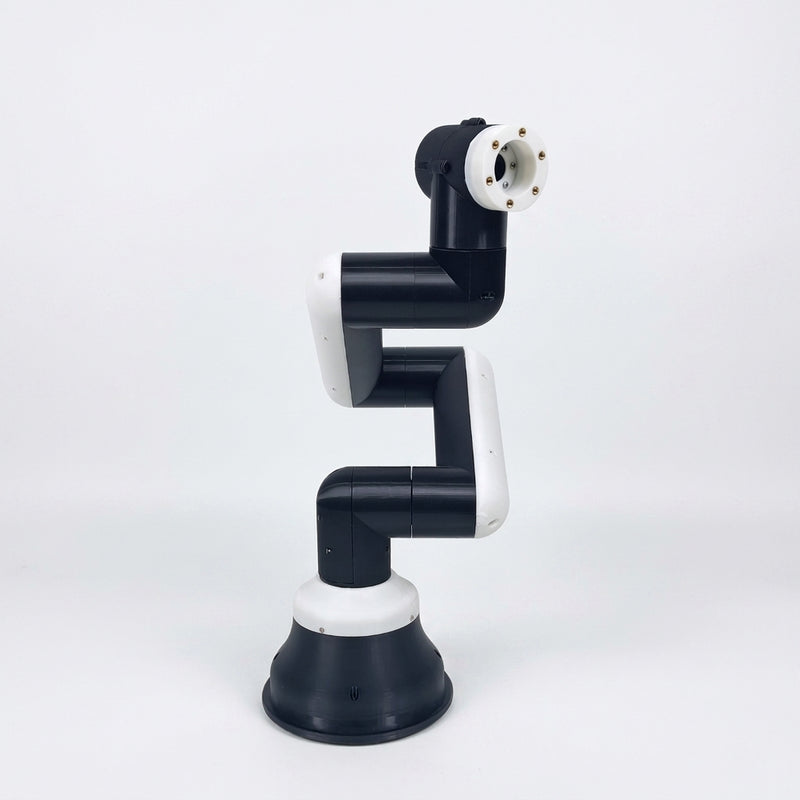

Kikobot C1 - 6 DOF Collaborative Robotic Arm
The Kikobot C1 is a compact, programmable 6-axis collaborative robot arm designed for robotics education, research, and desktop automation. Available in three compute variants ESP32, Raspberry Pi 5, and NVIDIA Jetson Orin Nano. It supports Python, ROS2, Arduino, and OpenCV out of the box.
What Is The C1
One Arm. Three Compute Platforms.
Key Features
Multiplatform Support
Kikobot works seamlessly with a variety of platforms.
Specifications
| Weight | 950 g |
| Number of axes | 6 |
| Max payload | 250 g |
| Working radius | 330 mm |
| Repeatability | ±1.0 mm |
| Range of joints | J1 ±165° · J2 ±125° · J3 ±140° · J4 ±140° · J5 ±140° · J6 ±175° |
| Max joint speed | 150°/s |
| Power input | 100V–240V AC, 50/60 Hz |
| Nominal voltage / power | 12V DC, 10A · 120W |
| Communication | Serial USB Type-C |
| Control software | Kikobot C1 Studio (Ubuntu 22.04 LTS) |
| End effectors | Parallel gripper · Vacuum gripper · Electromagnetic gripper |
| Working temperature | 0°C – 50°C · Indoor use |
| Base dimensions | 110 × 110 × 93 mm |
| Material | ABS |
| Installation | Desktop / floor mounting |
Documents
| User Maual | View |
| Product Information | Download |
Package Includes
| C1 Robot | x1 |
| Robot Controller with ESP32 / Raspberry Pi / Jetson Orin Nano Options | x1 |
| Power Supply | x1 |
| User Manuals | x1 |
