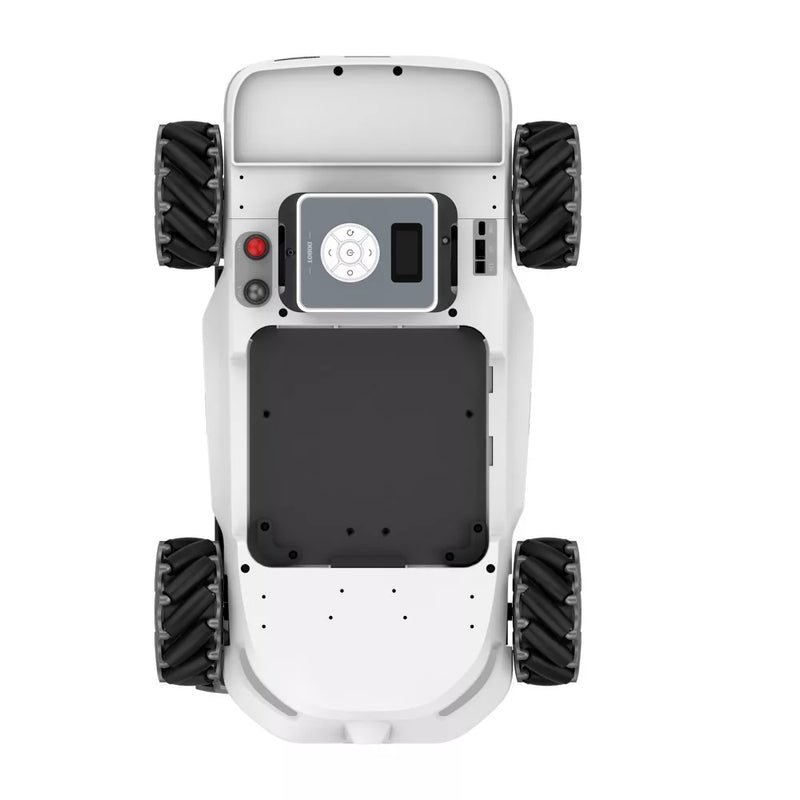

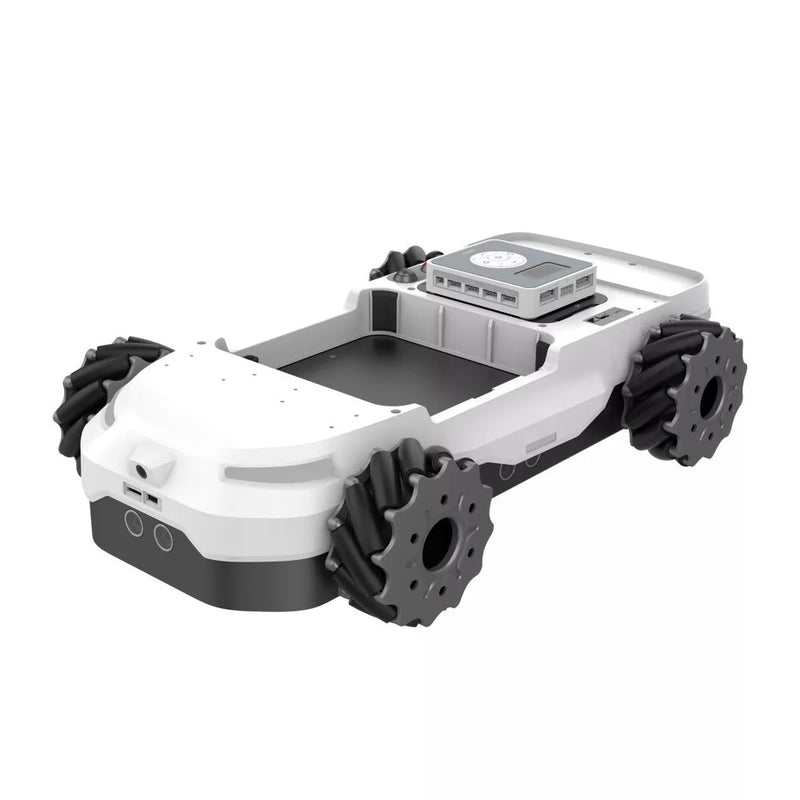

Magician Go
Omnidirectional Mobile Platform with AI

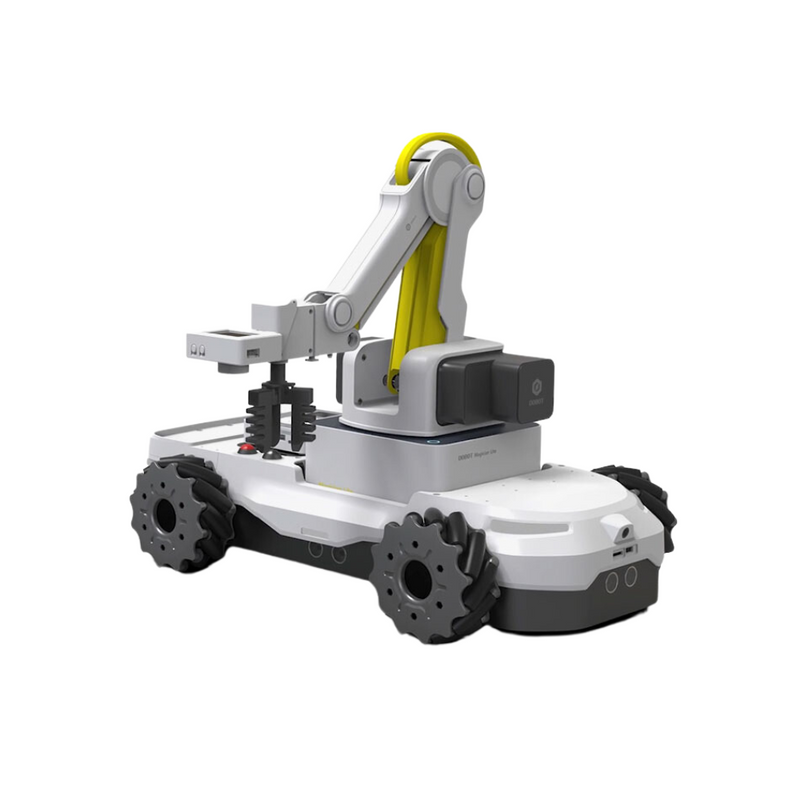

The Magician Go is an advanced mobile platform designed to add intelligent mobility to the Dobot Magician Lite robotic arm. With omnidirectional movement and AI-powered vision, it expands the robot’s capabilities across education, research, and automation scenarios.
The platform integrates two AI cameras—one mounted at the front of the chassis and another positioned on the robotic arm—enabling advanced perception, navigation, and interaction in dynamic environments.
Omnidirectional Mobility
The Magician Go is equipped with mecanum wheels, allowing it to move freely in all directions including sideways, diagonal, and rotational motion without steering adjustments. This enables smooth operation in confined spaces and complex layouts.
Smart Navigation
A built-in odometer continuously transmits real-time position data. Combined with dynamic environment simulation, users can monitor movement paths, track positioning, and plan navigation routes with high accuracy.
Autonomous Driving with AI
The Magician Go runs AI algorithms locally, eliminating the need for a network connection. It supports image recognition, text detection, facial recognition, road detection, pedestrian tracking, and robotic arm operation while the platform is in motion.
Specifications
| Weight | 5 kg |
| Communication Interface | 2.4GHz remote control, USB serial, Bluetooth |
| Control Mode | 2.4G remote controller, Bluetooth, wired control, script control |
| Dimensions | 463 mm × 293 mm × 125 mm |
| Maximum Load | 5 kg |
| Rated Power | 60 W |
| Time of Endurance | 150 min |
| Maximum Speed | 1 m/s |
| Rated Voltage | 12 V |
| Working Temperature | 0–45 °C |
| Software | DobotLab (Python / Blockly) |
Package Contents
| Category | Contents | Quantity |
|---|---|---|
| Main Unit | Magician Go | 1 pcs |
| Integrated Power | Power Box (built into Magician Go) | 2 pcs |
| Control & Connectivity | Joystick, Joystick Charging Cable, Bluetooth Dongle | 1 set |
| Vision System | AI Camera, Camera Calibration Card | 1 set |
| Power & Cables | Power Adapter, USB Cable, USB Connector | 1 set |
| Enclosures | Magic Box | 1 pcs |
| Tools & Fasteners | Allen Keys (1.5 mm, 2.0 mm, 2.5 mm), M2×25 Screws, M3×6 Screws, M3×8 Screws, M2 Hex Nuts | 1 set |
| Tools & Fasteners | M2×25 Screws, M3×6 Screws, M3×8 Screws, M2 Hex Nuts | 2 set |
| Documentation | Quick Start Guide | 1 pcs |
Resources
| User Manual | Download |
