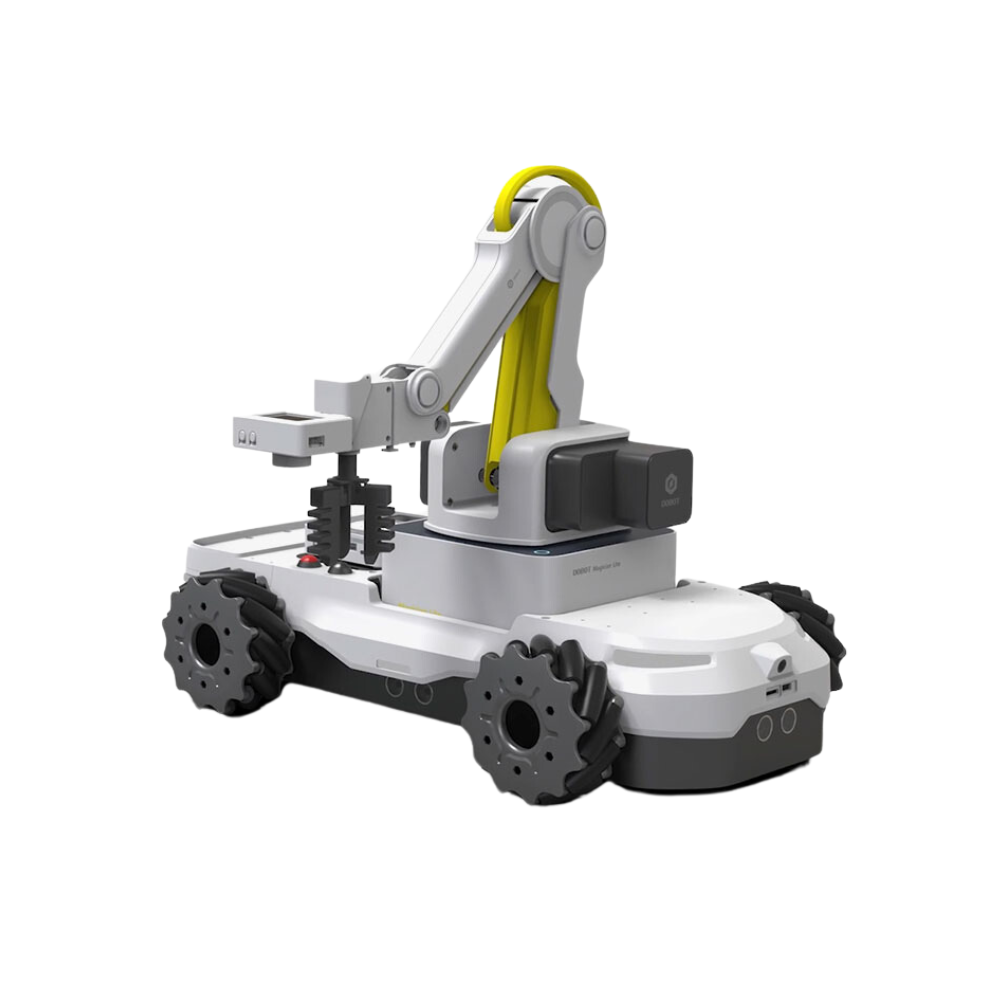

The Magician Go is an advanced mobile platform designed to add intelligent mobility to the Dobot Magician Lite robotic arm. With omnidirectional movement and AI-powered vision, it expands the robot’s capabilities across education, research, and automation scenarios.
The platform integrates two AI cameras—one mounted at the front of the chassis and another positioned on the robotic arm—enabling advanced perception, navigation, and interaction in dynamic environments.
Omnidirectional Mobility

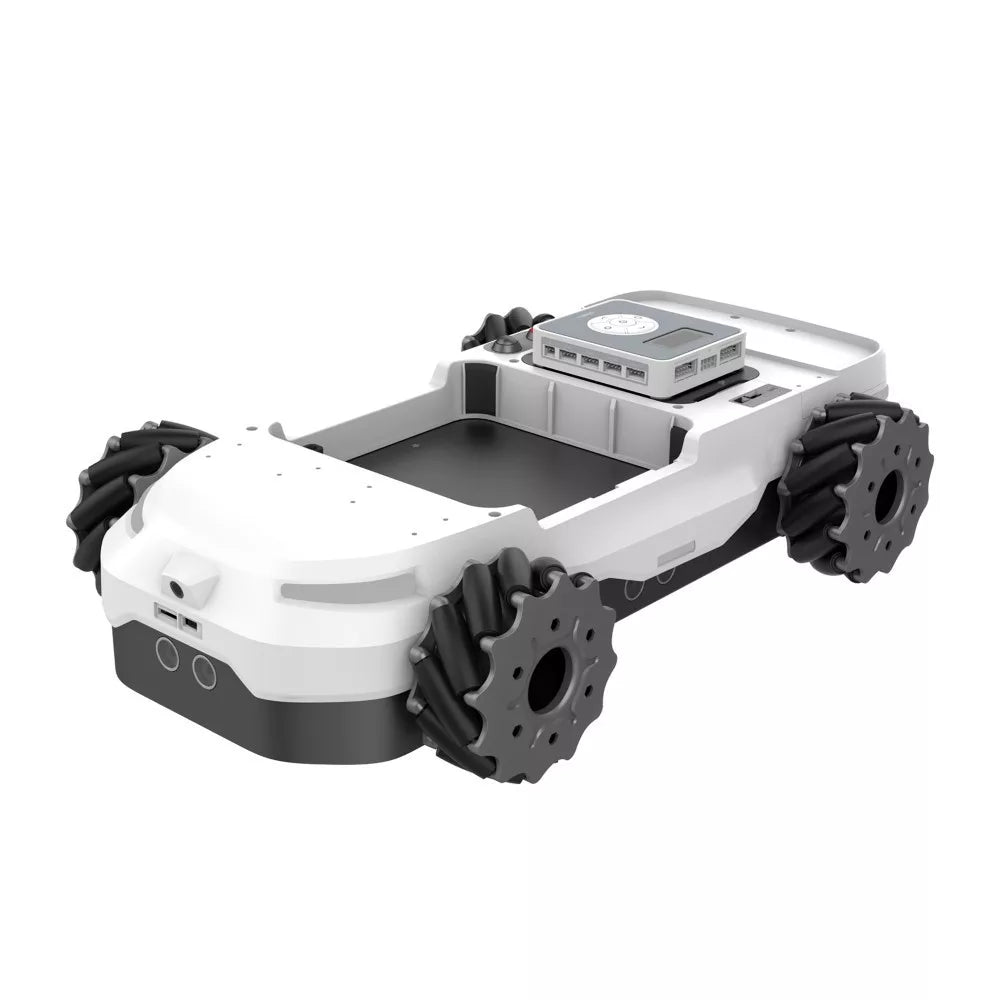

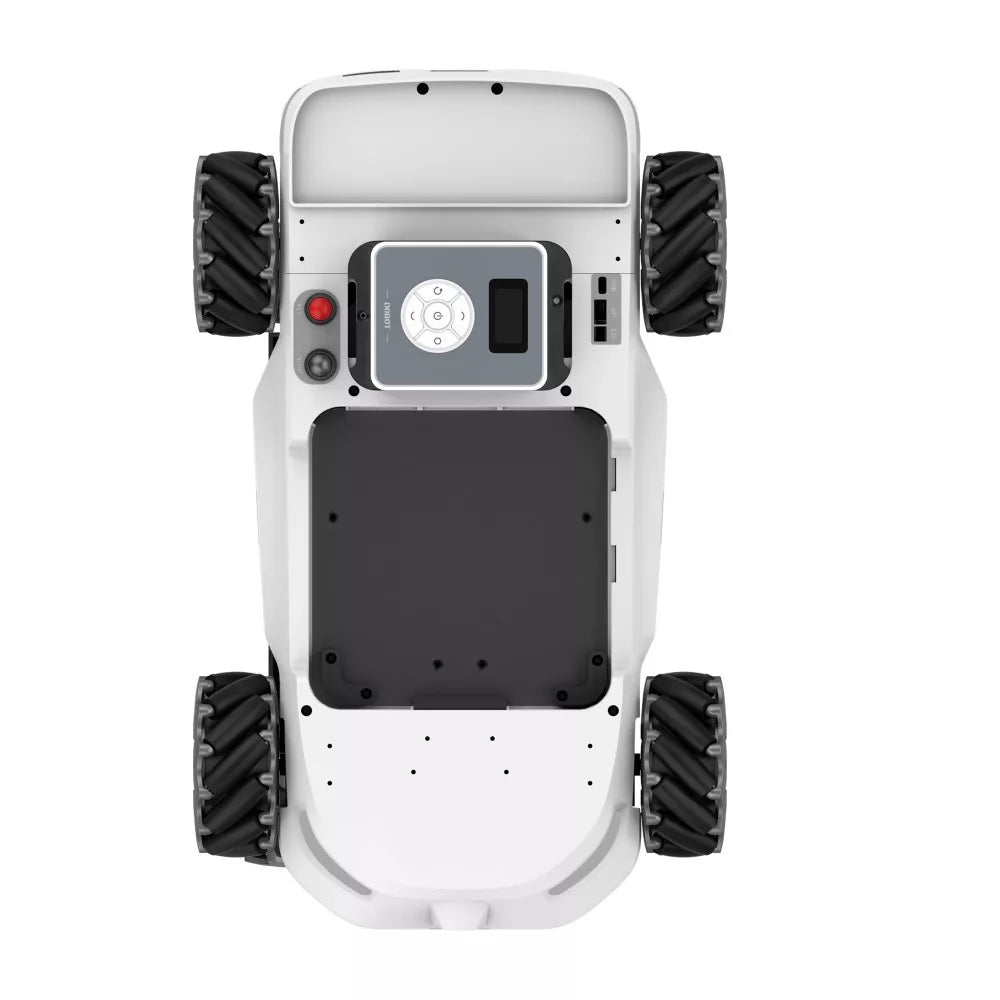

The Magician Go is equipped with mecanum wheels, allowing it to move freely in all directions including sideways, diagonal, and rotational motion without steering adjustments. This enables smooth operation in confined spaces and complex layouts.
Smart Navigation
A built-in odometer continuously transmits real-time position data. Combined with dynamic environment simulation, users can monitor movement paths, track positioning, and plan navigation routes with high accuracy.
Autonomous Driving with AI
The Magician Go runs AI algorithms locally, eliminating the need for a network connection. It supports image recognition, text detection, facial recognition, road detection, pedestrian tracking, and robotic arm operation while the platform is in motion.
Specifications
Weight
5 kg
Communication Interface
2.4GHz remote control, USB serial, Bluetooth
Control Mode
2.4G remote controller, Bluetooth, wired control, script control
Dimensions
463 mm × 293 mm × 125 mm
Maximum Load
5 kg
Rated Power
60 W
Time of Endurance
150 min
Maximum Speed
1 m/s
Rated Voltage
12 V
Working Temperature
0–45 °C
Software
DobotLab (Python / Blockly)
Package Contents
Category
Contents
Quantity
Main Unit
Magician Go
1 pcs
Integrated Power
Power Box (built into Magician Go)
2 pcs
Control & Connectivity
Joystick, Joystick Charging Cable, Bluetooth Dongle
1 set
Vision System
AI Camera, Camera Calibration Card
1 set
Power & Cables
Power Adapter, USB Cable, USB Connector
1 set
Enclosures
Magic Box
1 pcs
Tools & Fasteners
Allen Keys (1.5 mm, 2.0 mm, 2.5 mm), M2×25 Screws, M3×6 Screws, M3×8 Screws, M2 Hex Nuts
It is designed to add intelligent mobility to the Dobot Magician Lite robotic arm.
How does the AI and perception system operate during movement?
The platform runs AI algorithms locally for image and text recognition, facial recognition, road detection, and pedestrian tracking while in motion, including robotic arm control.
What control options are available?
Control is possible via 2.4 GHz remote, USB serial, Bluetooth, or script control.
What are the main movement and payload specifications?
It uses mecanum wheels for omnidirectional movement, with a maximum speed of 1 m per second and a maximum load of 5 kg.
What is included in the package?
The package includes the Magician Go main unit, integrated power box, joystick and charging accessories, AI camera with calibration card, power adapter and cables, enclosure parts, screws and nuts, quick start guide and user manual.
