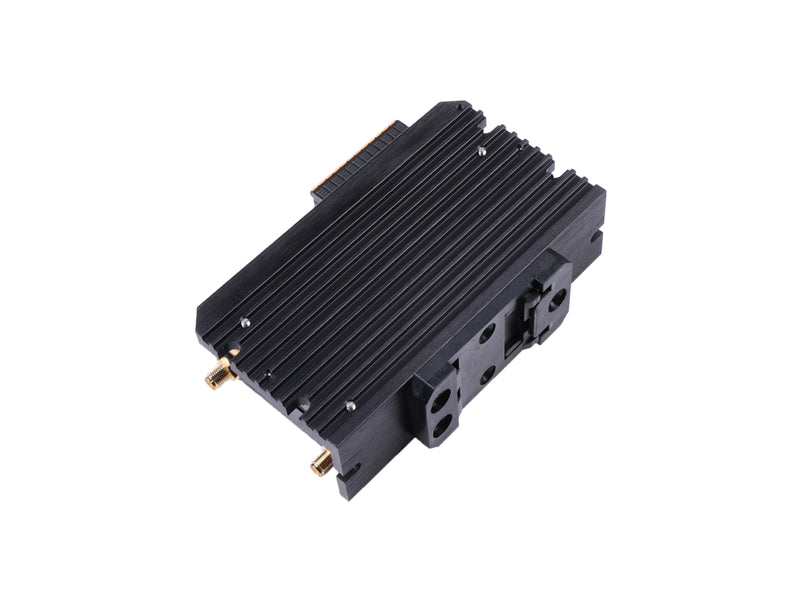

Load image into Gallery viewer, EdgeBox-ESP-100-Industrial Edge Controller Online

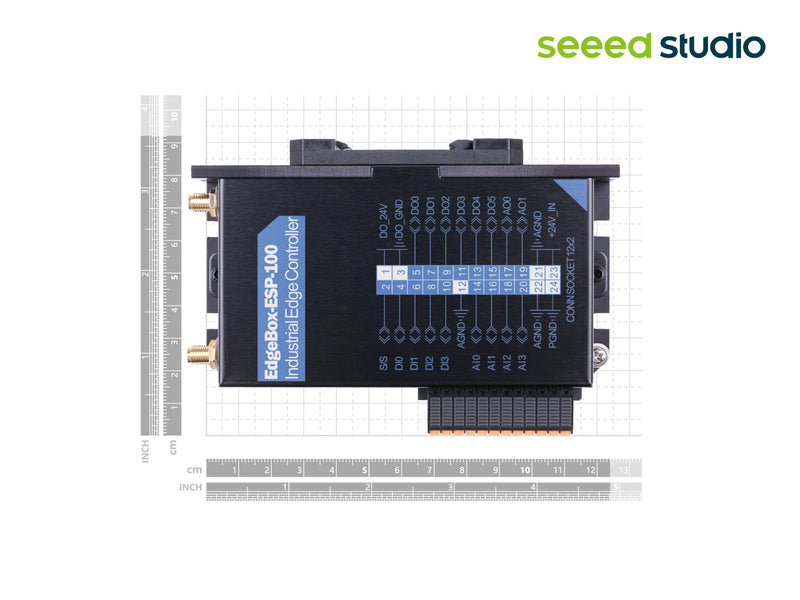

Load image into Gallery viewer, EdgeBox-ESP-100-Industrial Edge Controller Online

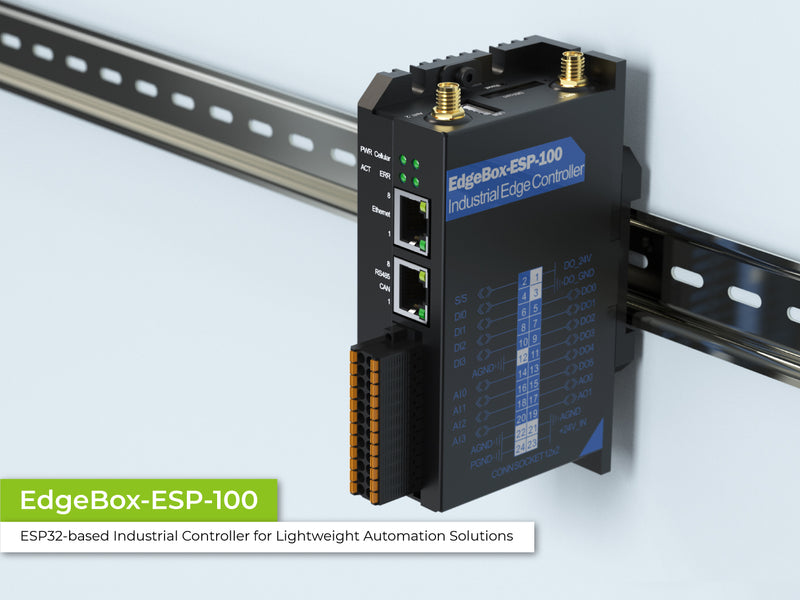

Load image into Gallery viewer, EdgeBox-ESP-100-Industrial Edge Controller Online

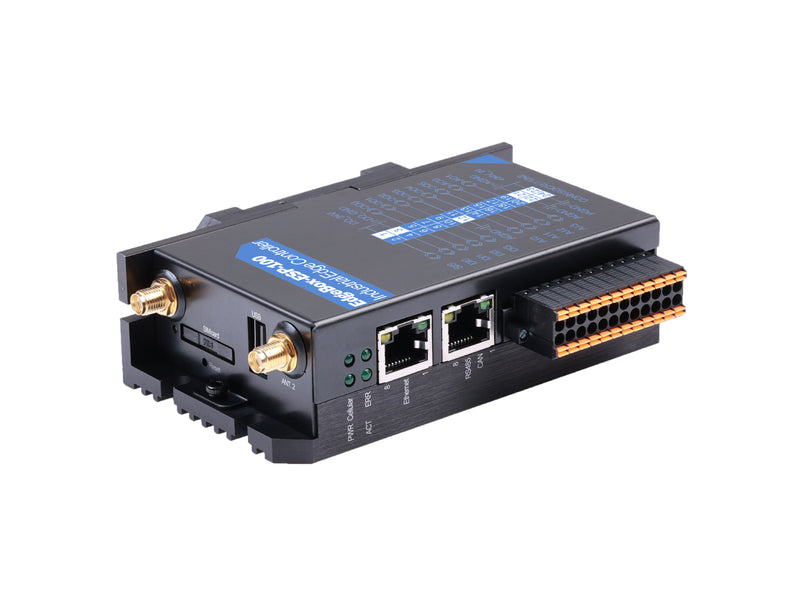

Load image into Gallery viewer, EdgeBox-ESP-100-Industrial Edge Controller Online

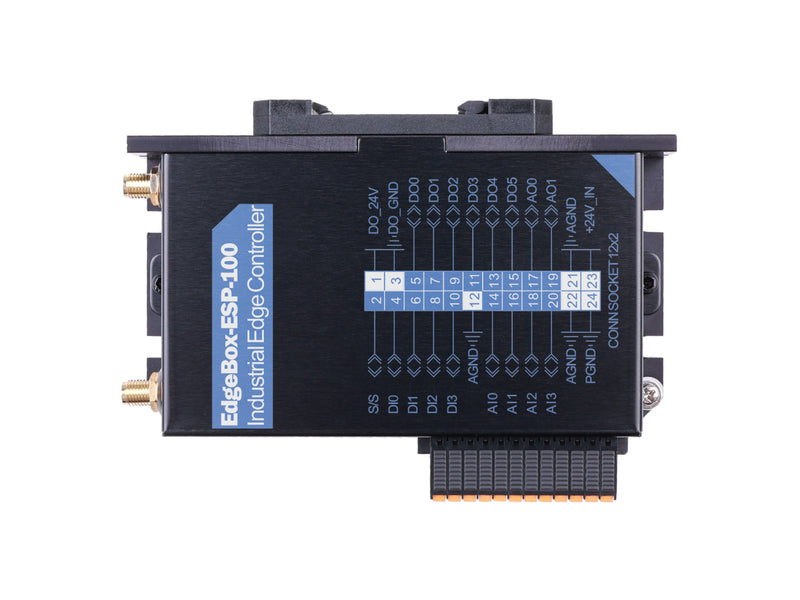

Load image into Gallery viewer, EdgeBox-ESP-100-Industrial Edge Controller Online

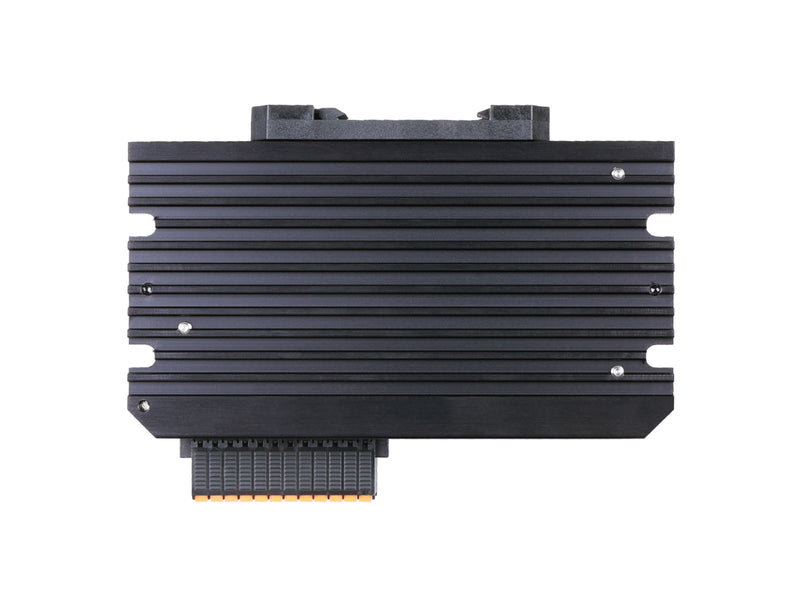

Load image into Gallery viewer, EdgeBox-ESP-100-Industrial Edge Controller Online

EdgeBox-ESP-100-Industrial Edge Controller

SKU: SBC1034

Regular price ₹ 22,599.99
Sale price ₹ 22,599.99 Regular price ₹ 30,999.99
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

EdgeBox-ESP-100-Industrial Edge Controller, WiFi, BLE, 4G LTE, DIO, AIO, Ethernet, CAN, RS485

EdgeBox-ESP-100 represents the lightweight, multi-functional controller. It carries various wireless capabilities and multiple Fieldbus, which makes it an independent PLC for field automation applications, or enables it as an industrial gateway for offering the original PLC the communicated ability to network and cloud.

Feature

  • Multi-Fieldbus Support: CAN, RS485, Ethernet
  • Multi-wireless Capability: On-chip Wifi, BLE connectivity; built-in Cellular 4G LTE module
  • Reliable Hardware Design: Rugged, maintenance-reduced structure
  • Reliable Electrical Design: High isolation, High surge, and short circuit protection
  • IEC 61131-3 compliant programs support (under development)
  • Programmable with ESP-IDF



Description

EdgeBox-ESP-100 is an ESP32-based controller designed for lightweight automation solutions. It supports analog input, effectively monitoring and controlling in a remote environment, ideal for PID control loops, logic sequencing control, or a gateway with flexible wireless and field sensors expansion.

Besides EdgeBox-ESP-100, We also have the other 2 Edge products for different solutions in the Edge family, powered by Raspberry Pi. To help you understand the differences deeply and choose the most suitable part for your projects, please refer to the Seeed Studio Edge Series Page

It offers isolated CAN, RS485 Fieldbus connections, and rich IO resources for extensive facilities and sensors input, for both digital and analog signals. It is perfectly satisfactory to the PLC and field automation applications.

Since it contains on-chip Wi-Fi and BLE functions, and also includes a 4G LTE module Cellular, EdgeBox-ESP-100 can be utilized to establish an industrial gateway, enabling the original PLC to connect the network or cloud.

This portable box comes with rugged hardware, an electrical design, and an aluminum alloy enclosure, by which it maintains its function in a wide temperature range and provides high surge and short circuit protection, for diverse deployment methods based on your business.



Specification

Parameters

Detail

Basic

CPU

ESP32S3

Memory

512KB + 8MB RAM

Storage

16MB Flash

Wireless

WiFi

on-chip 2.4 GHz

Bluetooth

on-chip Bluetooth 5.0, BLE

Cellular

4G - A7670G SIMCom LTE Cat 1 module

LoRa

Supported*

Interface

Ethernet

100M RJ45 *1

USB

USB2.0 A*1

CAN BUS

CAN BUS *1 (Isolated)

RS Serial

RS485 *1 (Isolated)

Digital Input

4 (Isolated) onboard

DC input Voltage - 24V

Digital Output

6 (isolated)

Recommended Voltage - 24V

Analog Input

4 (Isolated)

Input: 0 ~ 20 mA default, 0-10V optional

Analog Output

2 (Isolated)

Output: 0 ~ 5 V

Power Supply

10.8 ~ 36 V

Extra features

RTC

RTC

Encryption Chip

Atecc608a(optional)

Operation temperature

-20 to +60 °C

Certification

RoHS, CE, FCC, UKCA

Warranty

2 Years



The box supports LoRaWAN® communication but requires soldering to replace the 4G module. If you want to customize it in LoRaWAN® communicating or customize features marked as 'Optional' , feel free to email us at produce@seeed.cc.



Application

  • SCADA
  • Industrial Controller
  • Proportional, Integral, and Derivative (PID) control loops;
  • Logic Sequencing Control
  • Industrial Gateway



Part List



EdgeBox-ESP-100



x1



FAQ

What is the maximum operating voltage?

The maximum operating voltage is 60V.
