reComputer Mini Carrier Board for Jetson Orin™ Nano/Orin™ NX
It is a compact-sized carrier board designed for NVIDIA Jetson Orin Nano/Orin NX modules. It is equipped with PCIe ports at the bottom to provide rich expansion capabilities, which can also be customized flexibly. The carrier board along with NVIDIA Jetson module is designed to be embedded into autonomous machines such as drones, patrol robots, delivering robots, etc. It can be directly connected to max 54V DC input and can be used in 48V battery-powered systems.
Feature
Compact Size
Suitable for robotics and drone applications
48V Compatible
Can be used in 48V battery power systems (max 54V input)
Rich IO Capabilities
Includes USB, UART, CAN, I2C; RJ45 expandable at the bottom
Orin Compatibility
Compatible with Jetson Orin™ NX and Orin™ Nano
Connectivity
Provides M.2 Key E slot for Wi-Fi/Bluetooth NIC
Specification
Parameter
Specification
Product
reComputer Mini Carrier Board
Storage
1x M.2 Key M PCIe (supports M.2 NVMe 2242 SSD 128GB, not included)
Networking
1x M.2 Key E for WiFi/Bluetooth module
USB Ports
2x USB 3.2 Type-A (10Gbps) 1x USB 2.0 Micro-B (Device Mode) 1x USB 3.2 Type-C (Host Mode) 1x USB 2.0 JST-5pin (Host Mode)
UART
1x UART, 1x Debug UART
Display
1x DP 1.4 (via Type-C connector)
Fan Connector
1x 4-pin Fan Connector (5V PWM)
Buttons
1x Reset Button, 1x Recovery Button
Extension Ports
2x 60-pin High Speed Connectors (for extension board) 1x 10-pin Power Connector (for extension board)
RTC
1x RTC 2-pin
Power
1x XT30 Connector (12–54V DC)

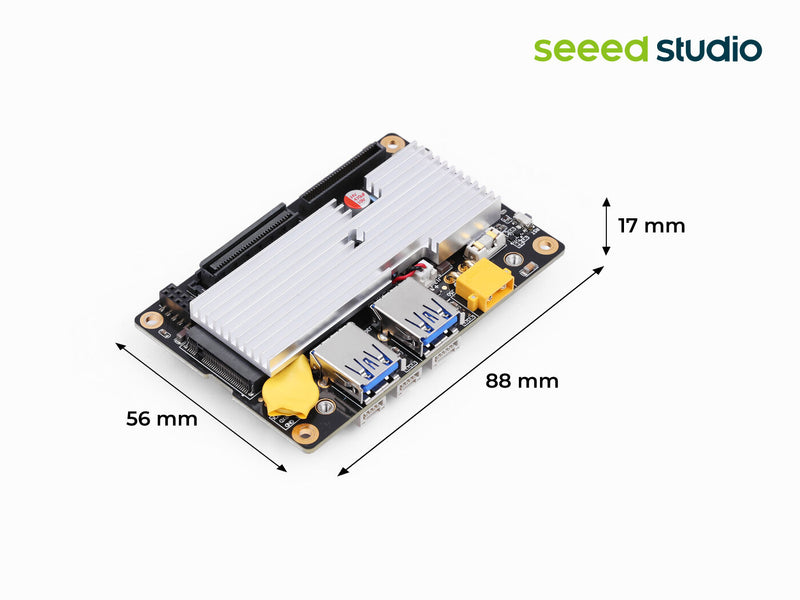

Dimensions
56mm x 88mm x 17mm
Weight
80g (without extension)
Installation
Desk or wall-mounting
Operating Temperature
-10℃ to 50℃
Warranty
1 Year

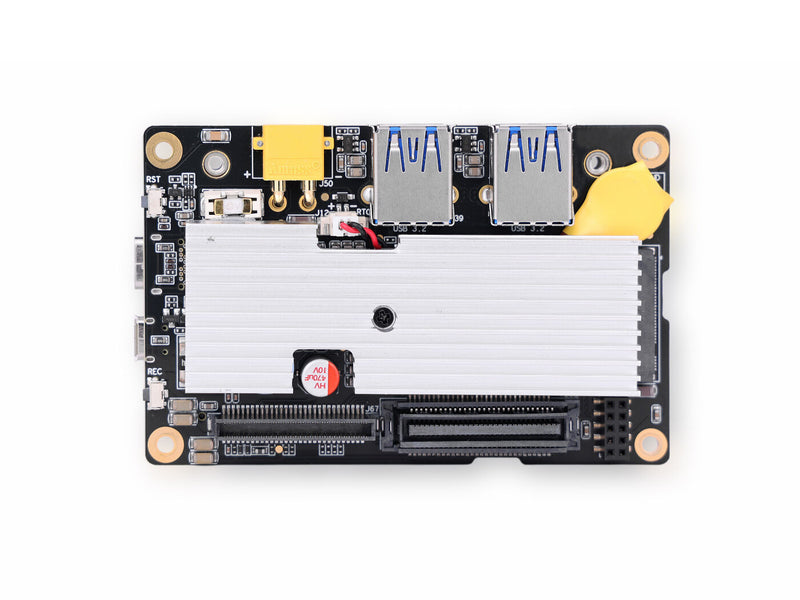

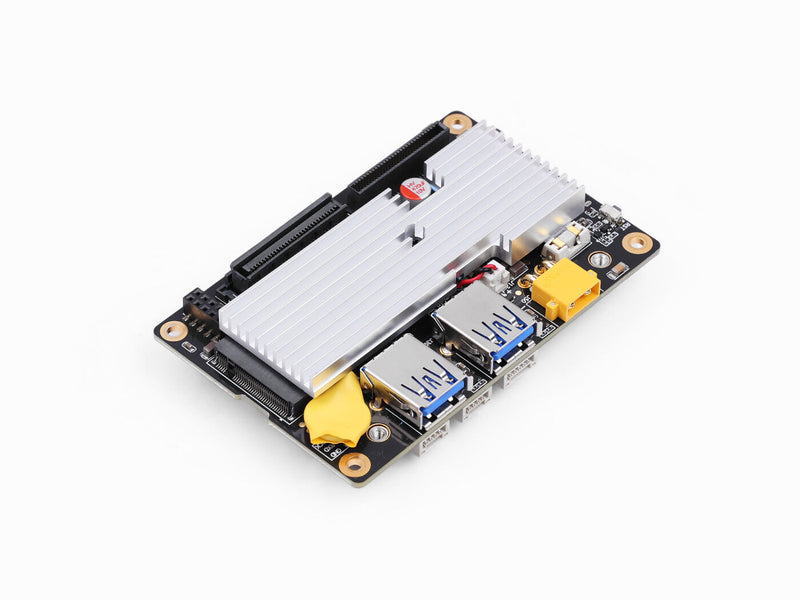

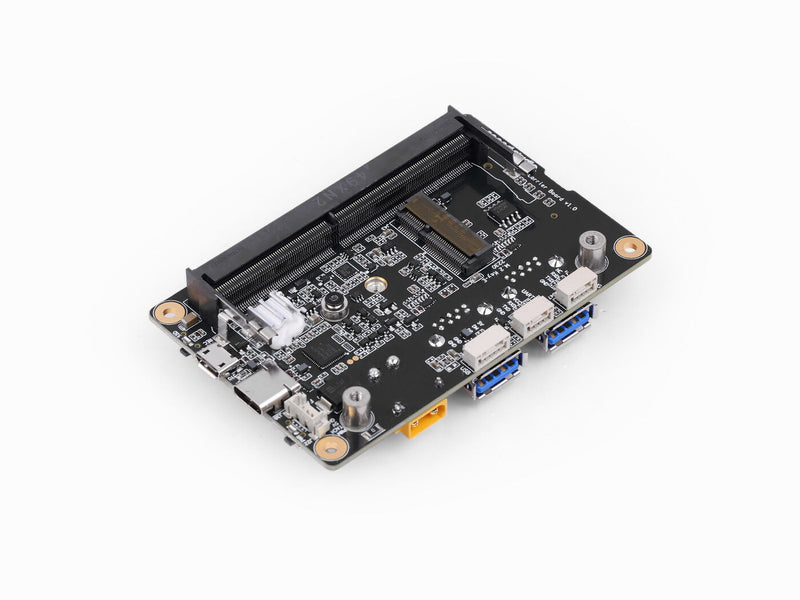

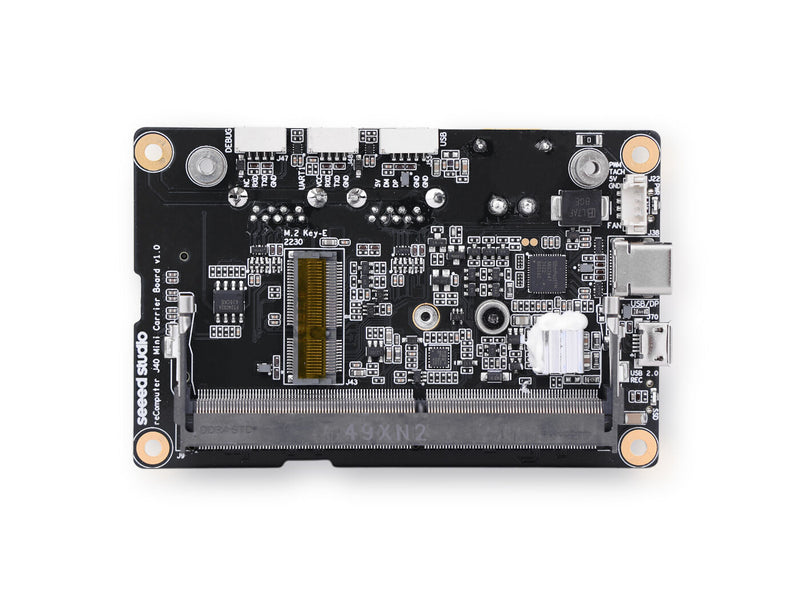

Hardware Overview
Application

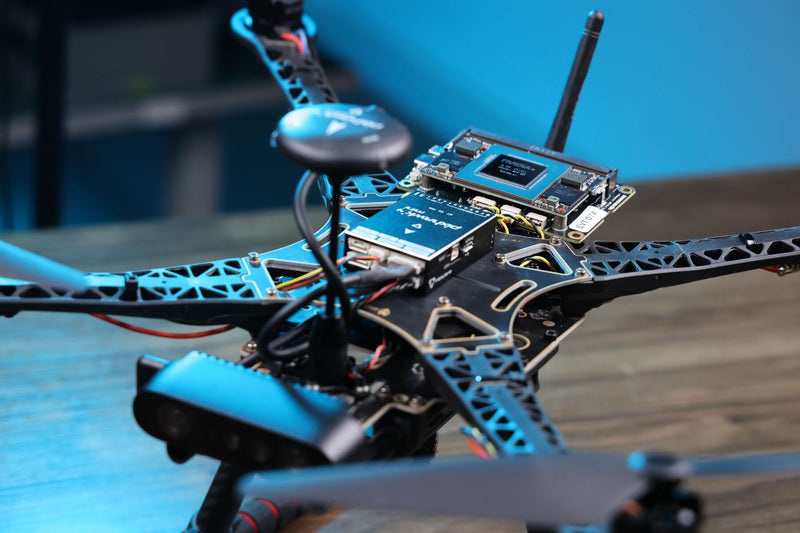

● Robotic Control
● Capable of Bringing Generative AI to the Edge
Now you can build AI agents capable of processing large amounts of live or archived videos and images with Vision-Language Models (VLM) such as LLaVA, this new AI agents help nearly every industry summarize, search, and extract actionable insights from video using natural language.
● Build Multi-streams AI Video Analytics
For building video analytics, Jetson Orin NX incorporates the NVIDIA Multi-Standard Video Decoder. This video decoder accelerates video decode, supporting low resolution mobile content, Standard Definition (SD), High Definition (HD) and UltraHD (8K, 4K, etc.) reComputer J4012 can take 18x1080p30 streams. See our tested YOLOv8 performance using NVIDIA Deep stream of single model and multi model on multi streams.
● Fastest Way to Deploy Generative AI and Computer Vision Models
We have jetson-example prepared for you! It offers one-line deploy projects edge AI applications of generative AI including Ollama, Llama3; computer vision including YOLOv8; and others. We have configured all environment for you to provides single command deployment of projects.
First of all, I appreciate the nice packing. The product served its purpose. But there is no response IF we ring up the number given by you is not at all responsive. which puts us in tension.
