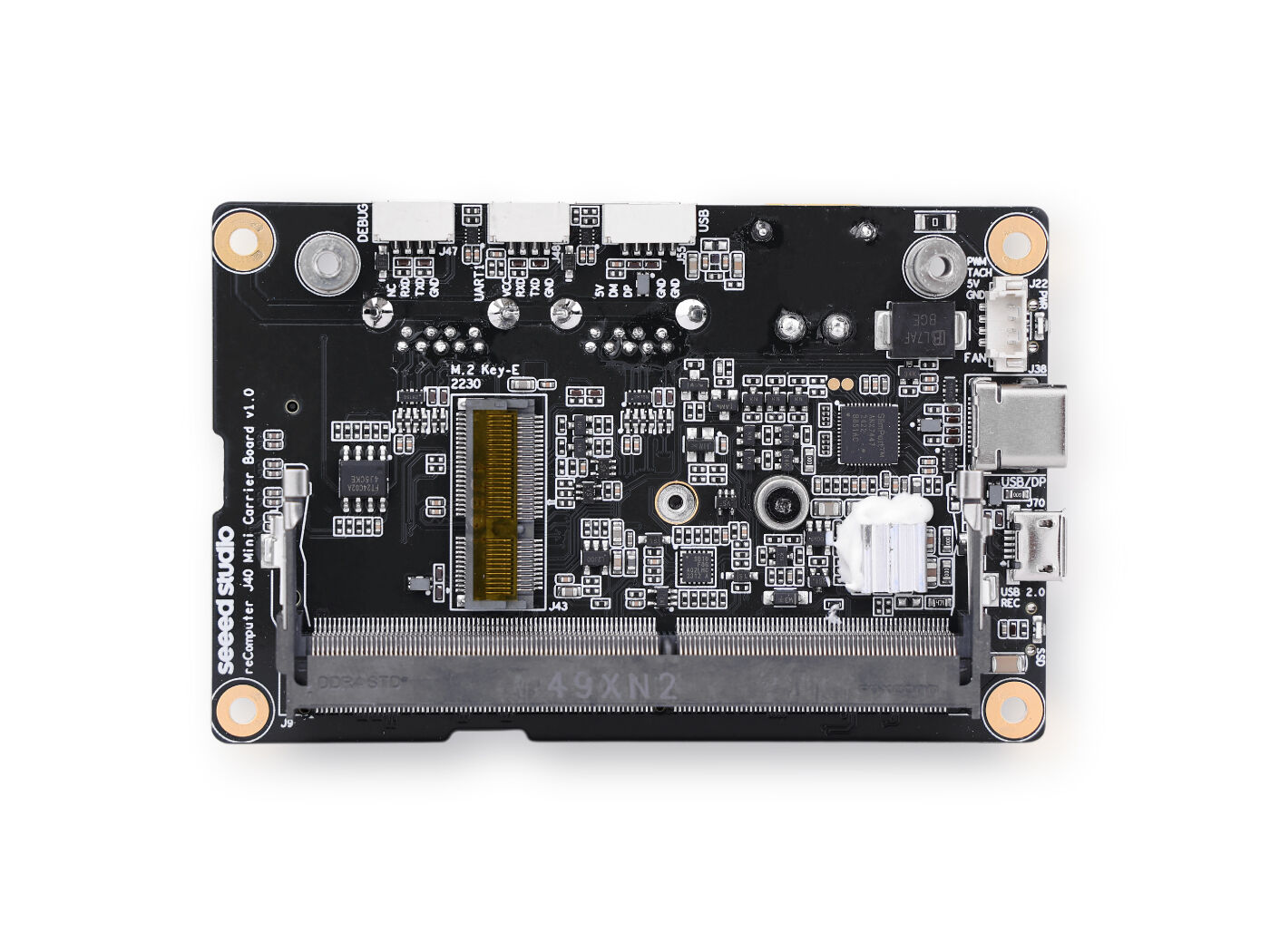

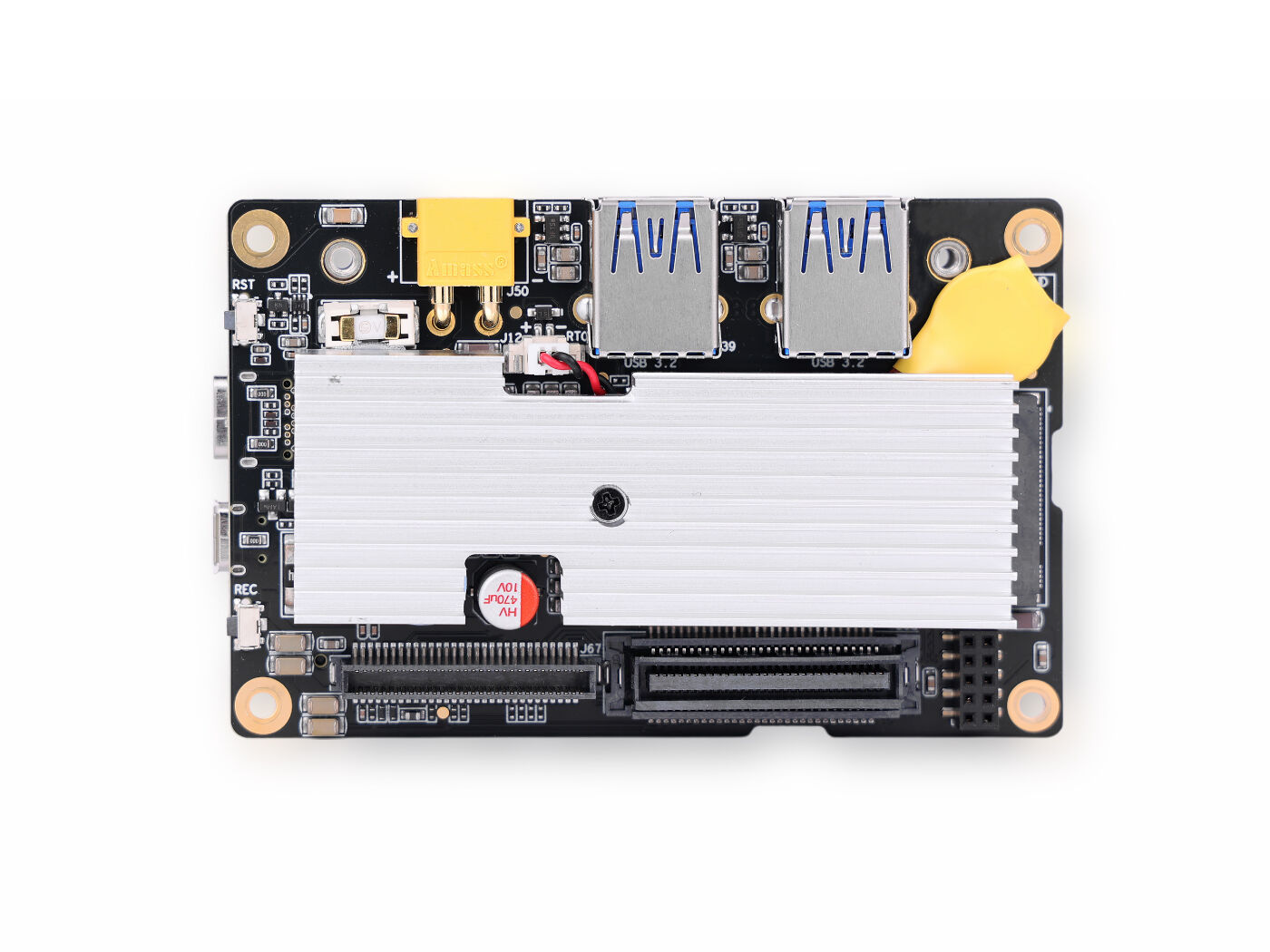

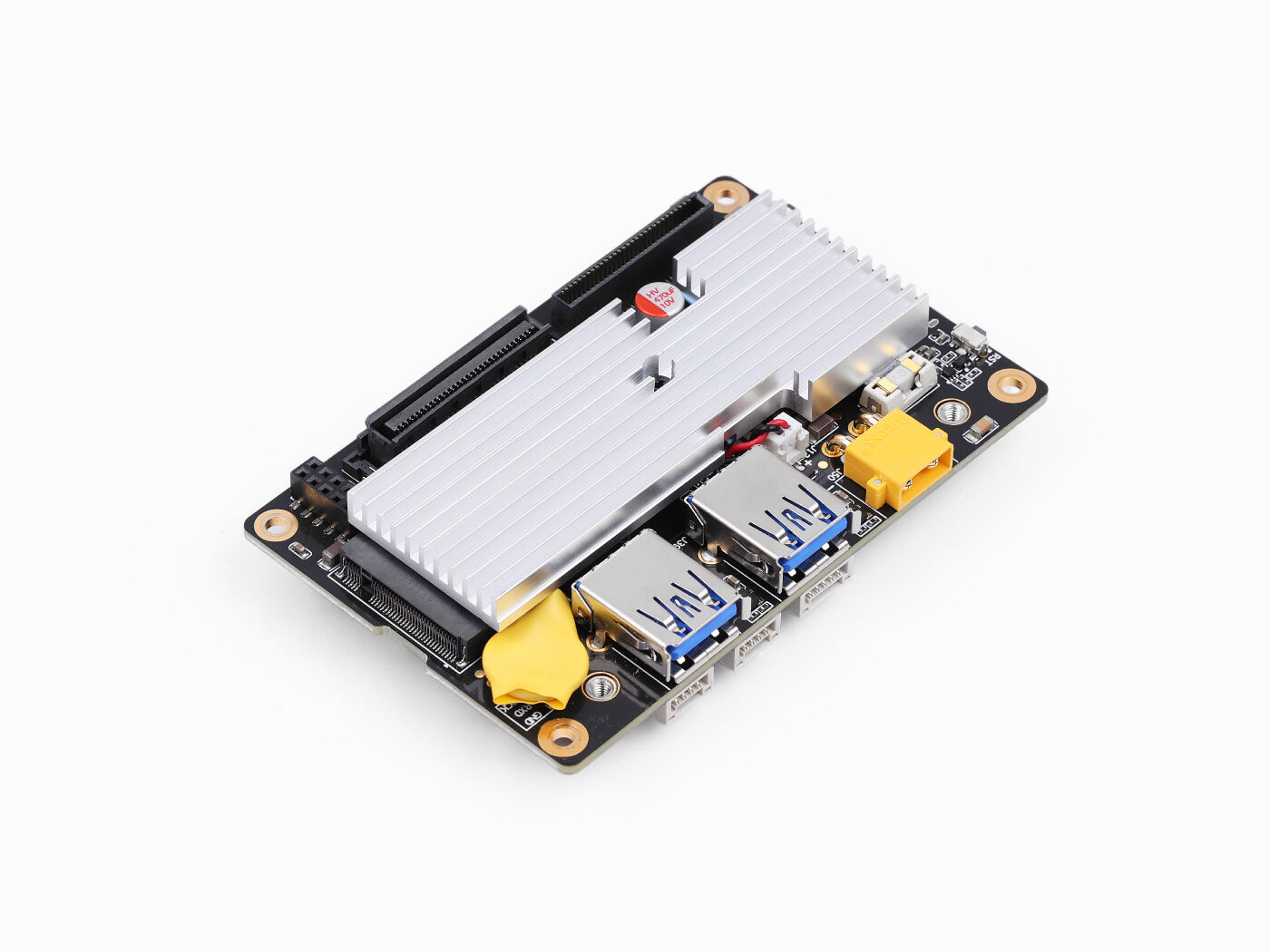

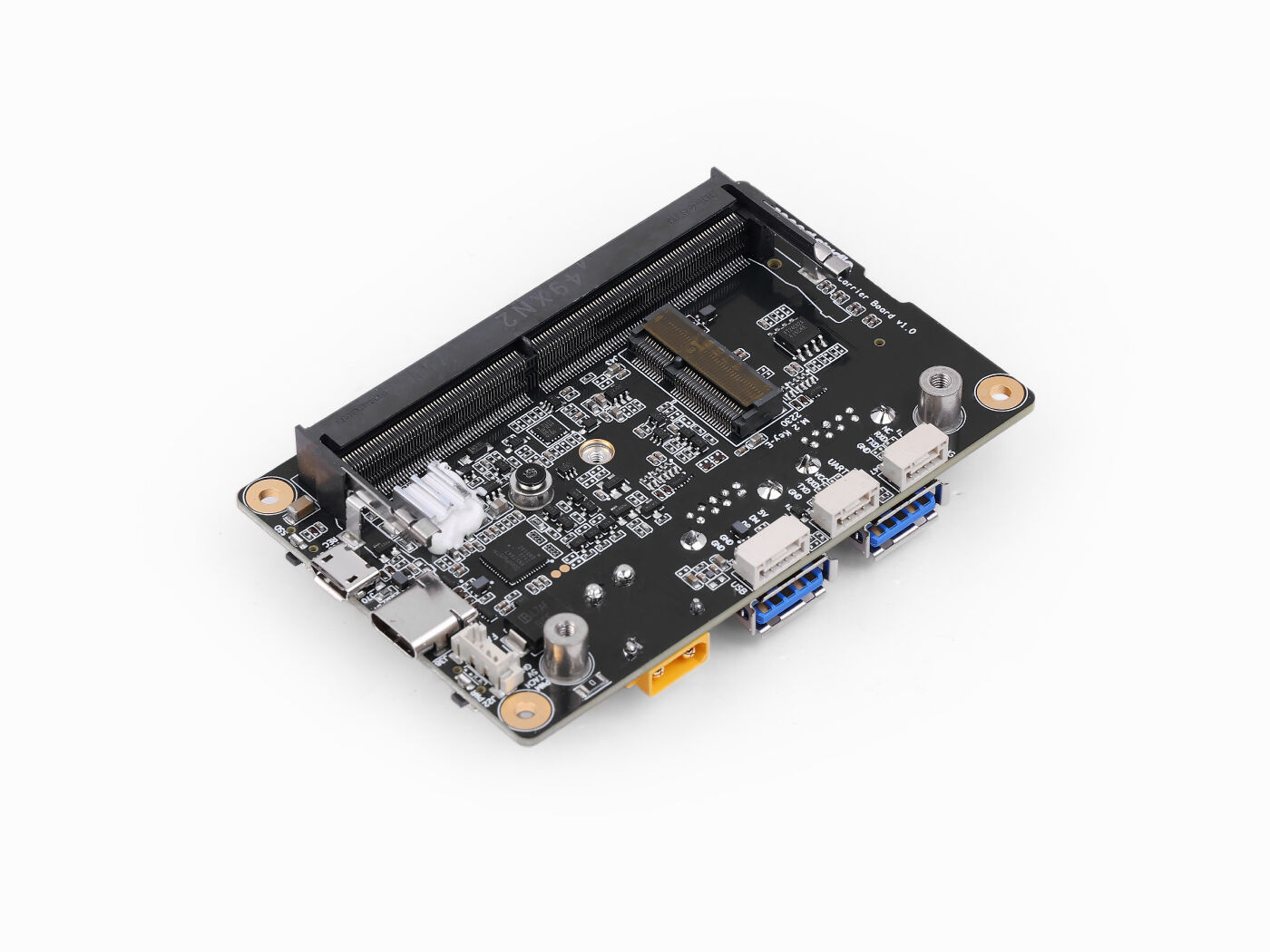

It is a compact-sized carrier board designed for NVIDIA Jetson Orin Nano/Orin NX modules. It is equipped with PCIe ports at the bottom to provide rich expansion capabilities, which can also be customized flexibly. The carrier board along with NVIDIA Jetson module is designed to be embedded into autonomous machines such as drones, patrol robots, delivering robots, etc. It can be directly connected to max 54V DC input and can be used in 48V battery-powered systems.
| Compact Size | Suitable for robotics and drone applications |
| 48V Compatible | Can be used in 48V battery power systems (max 54V input) |
| Rich IO Capabilities | Includes USB, UART, CAN, I2C; RJ45 expandable at the bottom |
| Orin Compatibility | Compatible with Jetson Orin™ NX and Orin™ Nano |
| Connectivity | Provides M.2 Key E slot for Wi-Fi/Bluetooth NIC |
| Parameter | Specification |
|---|---|
| Product | reComputer Mini Carrier Board |
| Storage | 1x M.2 Key M PCIe (supports M.2 NVMe 2242 SSD 128GB, not included) |
| Networking | 1x M.2 Key E for WiFi/Bluetooth module |
| USB Ports | 2x USB 3.2 Type-A (10Gbps) 1x USB 2.0 Micro-B (Device Mode) 1x USB 3.2 Type-C (Host Mode) 1x USB 2.0 JST-5pin (Host Mode) |
| UART | 1x UART, 1x Debug UART |
| Display | 1x DP 1.4 (via Type-C connector) |
| Fan Connector | 1x 4-pin Fan Connector (5V PWM) |
| Buttons | 1x Reset Button, 1x Recovery Button |
| Extension Ports | 2x 60-pin High Speed Connectors (for extension board) 1x 10-pin Power Connector (for extension board) |
| RTC | 1x RTC 2-pin |
| Power | 1x XT30 Connector (12–54V DC) |

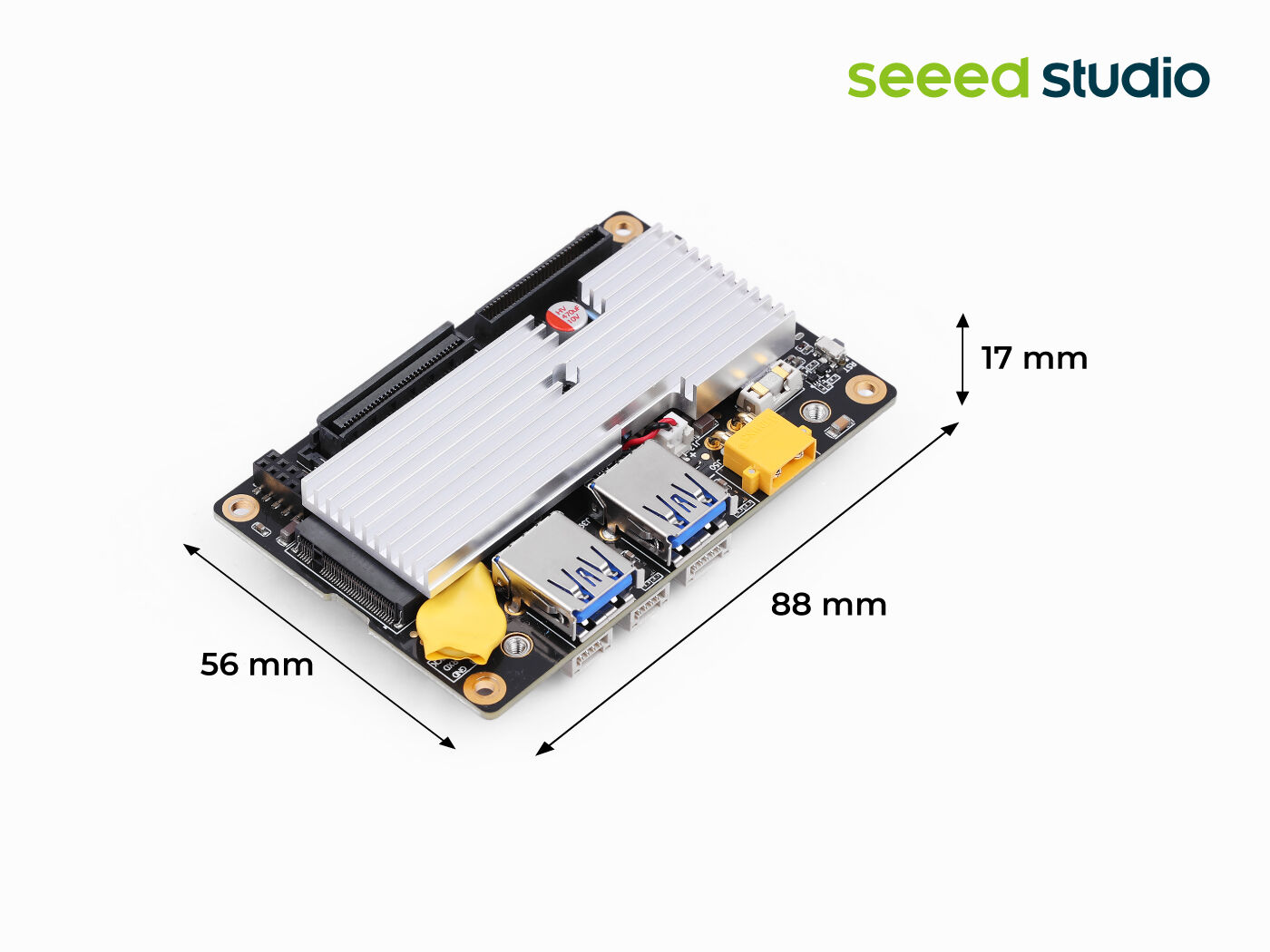

| Dimensions | 56mm x 88mm x 17mm |
| Weight | 80g (without extension) |
| Installation | Desk or wall-mounting |
| Operating Temperature | -10℃ to 50℃ |
| Warranty | 1 Year |
● Robotic Control
● Capable of Bringing Generative AI to the Edge
Now you can build AI agents capable of processing large amounts of live or archived videos and images with Vision-Language Models (VLM) such as LLaVA, this new AI agents help nearly every industry summarize, search, and extract actionable insights from video using natural language.
● Build Multi-streams AI Video Analytics
For building video analytics, Jetson Orin NX incorporates the NVIDIA Multi-Standard Video Decoder. This video decoder accelerates video decode, supporting low resolution mobile content, Standard Definition (SD), High Definition (HD) and UltraHD (8K, 4K, etc.) reComputer J4012 can take 18x1080p30 streams. See our tested YOLOv8 performance using NVIDIA Deep stream of single model and multi model on multi streams.
● Fastest Way to Deploy Generative AI and Computer Vision Models
We have jetson-example prepared for you! It offers one-line deploy projects edge AI applications of generative AI including Ollama, Llama3; computer vision including YOLOv8; and others. We have configured all environment for you to provides single command deployment of projects.
Seeed Nvidia Jetson Product Catalog
Nvidia Jetson Product Comparison
Seeed Nvidia Jetson Success Cases

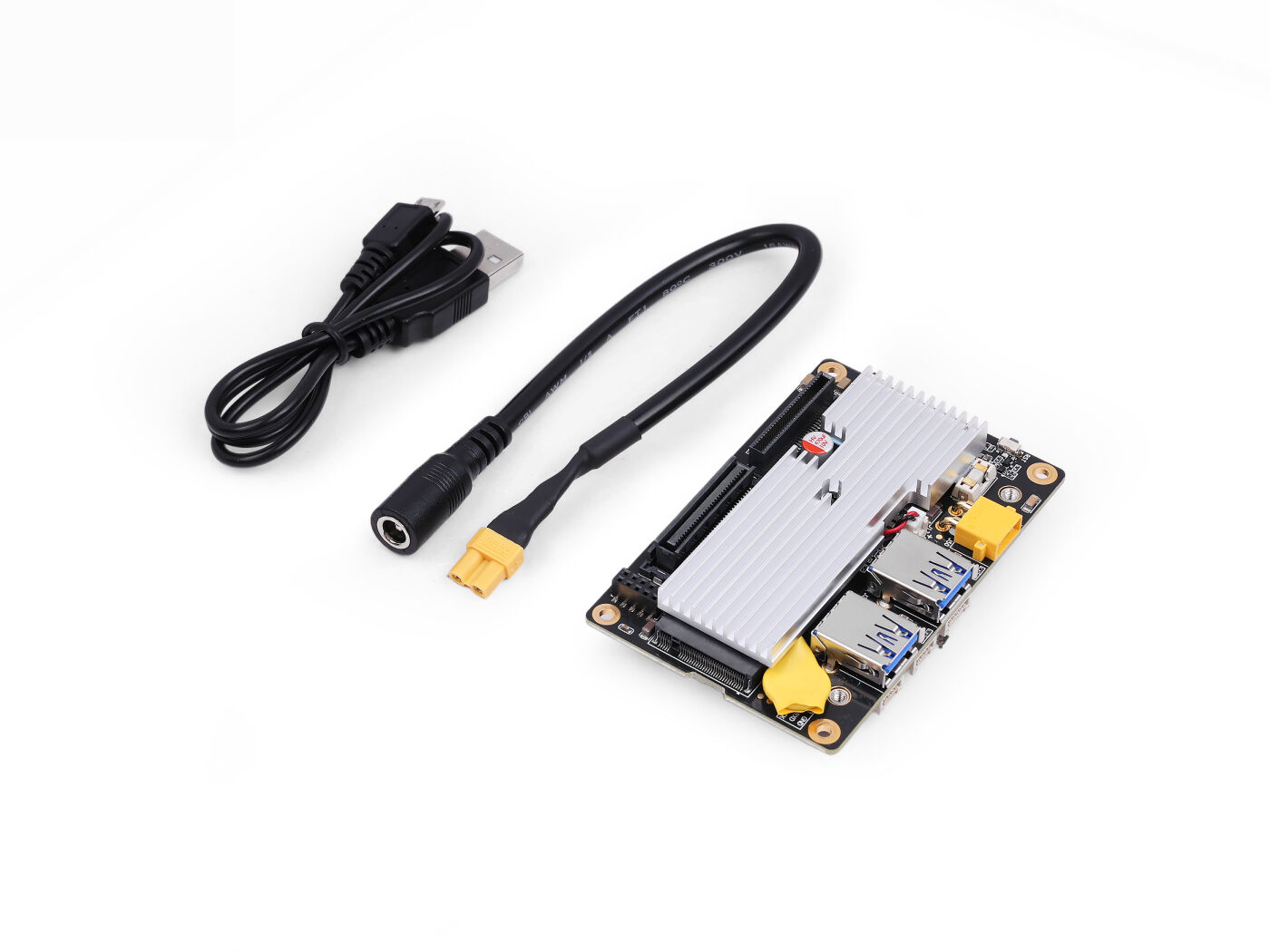

Seeed Carrier Board (reComputer Mini) x1
XT30 to DC power connector x1
Micro USB cable x1
