Plug & Play Far-field microphone array for your application! Not a bare dev board, but an out-of-the-box device.
Feature
Plug & Play (No driver required), compatible with Windows 10/8/7, Mac, Linux and Android that support OTG.
Far-field voice capture
Support USB Audio Class 1.0 (UAC 1.0)
Four microphones array
12 programmable RGB LED indicators
Speech algorithms and features
Voice Activity Detection
Direction of Arrival
Beamforming
Noise Suppression
De-reverberation
Acoustic Echo Cancellation
Specification
Specification
Details

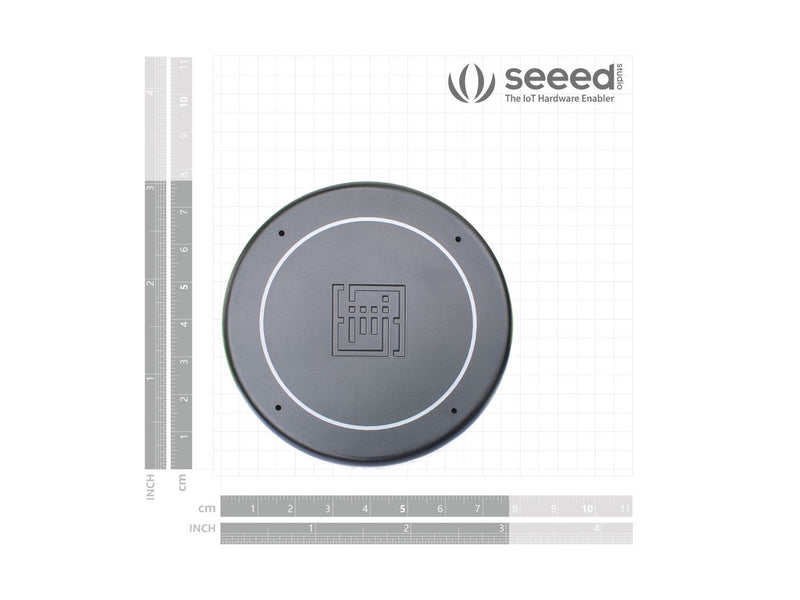

Dimensions
77mm (Diameter)
Weight (N.W.)
43.6g
Weight (G.W.)
104.2g
Battery
Exclude
Hardware Overview
XMOS XVF-3000: It integrates advanced DSP algorithms that include Acoustic Echo Cancellation (AEC), beamforming, dereverberation, noise suppression and gain control.
Digital Microphone: The MP34DT01-M is an ultra-compact, low power, omnidirectional, digital MEMS microphone built with a capacitive sensing element and an IC interface.
RGB LED: Three-color RGB LED.

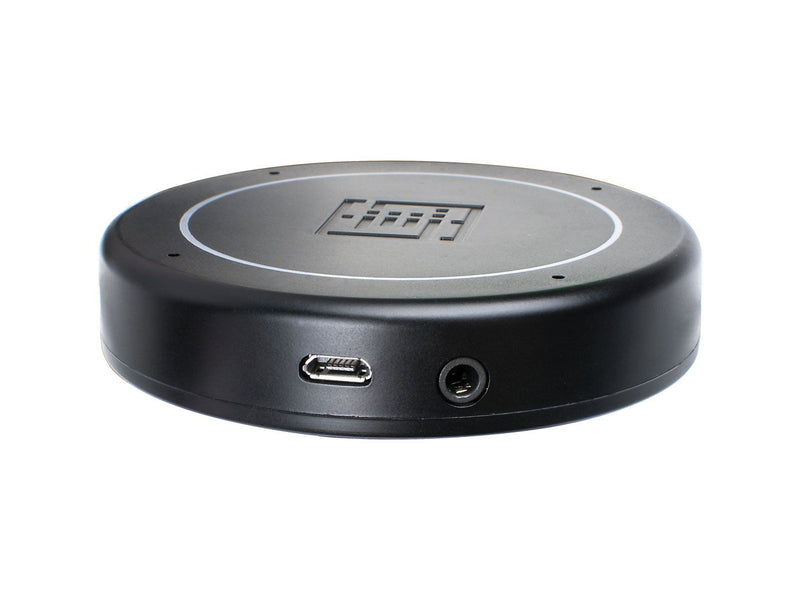

USB Port: Provide the power and control the mic array.
3.5mm Headphone jack: Output audio, we can plug active speakers or Headphones into this port.
TLV320AIC3104: The TLV320AIC3104 is a low-power stereo audio codec with stereo headphone amplifier, as well as multiple inputs and outputs that are programmable in single-ended or fully differential configurations.
Application
When it comes to development, we believe you should have as many options as possible. The ReSpeaker USB Mic Array is able to work with most modern Linux, macOS, and Windows systems.
