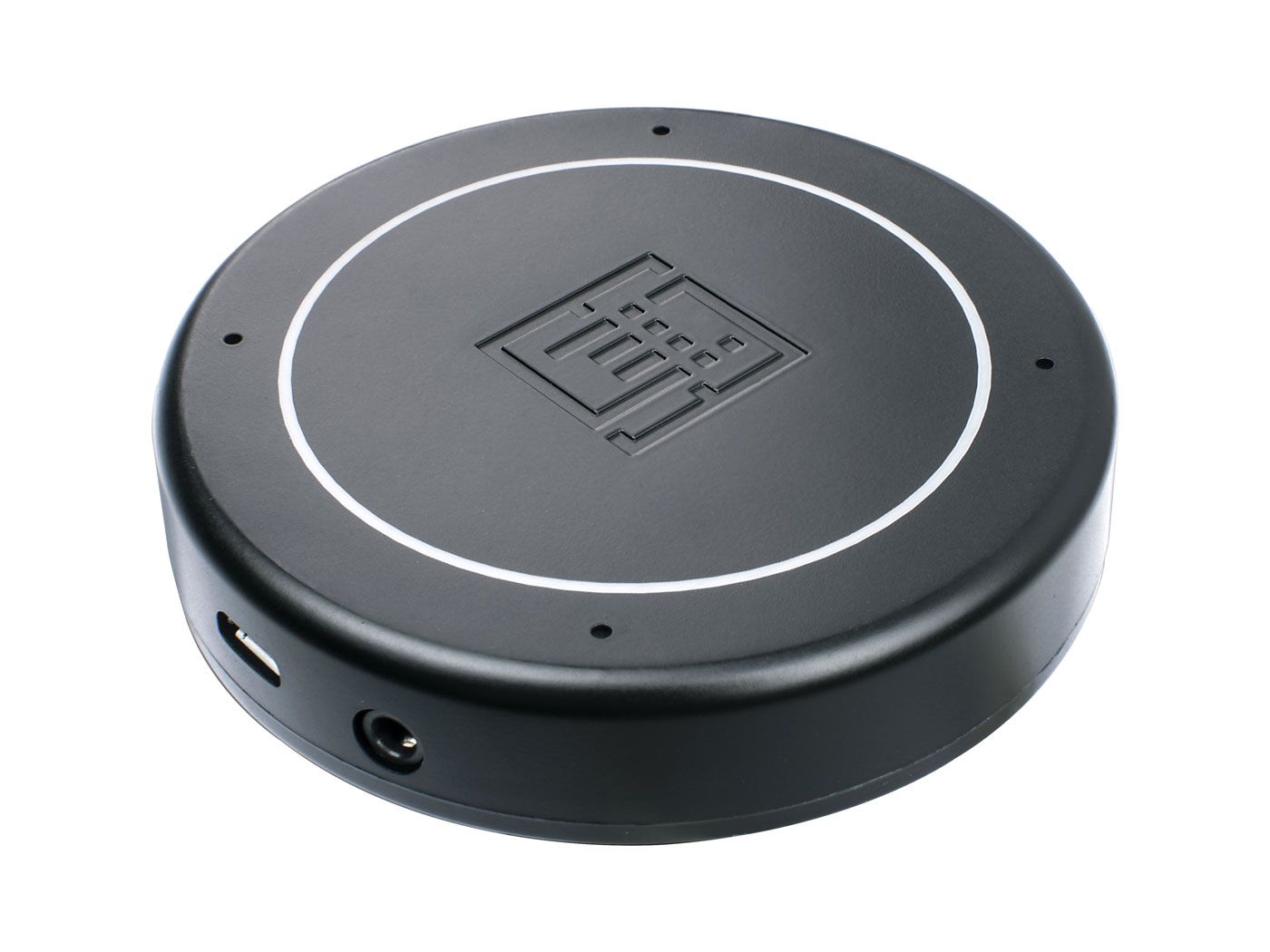

Plug & Play Far-field microphone array for your application! Not a bare dev board, but an out-of-the-box device.
Ā
| Plug & Play (No driver required), compatible with Windows 10/8/7, Mac, Linux and Android that support OTG. |
| Far-field voice capture |
| Support USB Audio Class 1.0 (UAC 1.0) |
| Four microphones array |
| 12 programmable RGB LED indicators |
| Speech algorithms and features |
| Voice Activity Detection |
| Direction of Arrival |
| Beamforming |
| Noise Suppression |
| De-reverberation |
| Acoustic Echo Cancellation |
Ā
| Specification | Details |
|---|---|

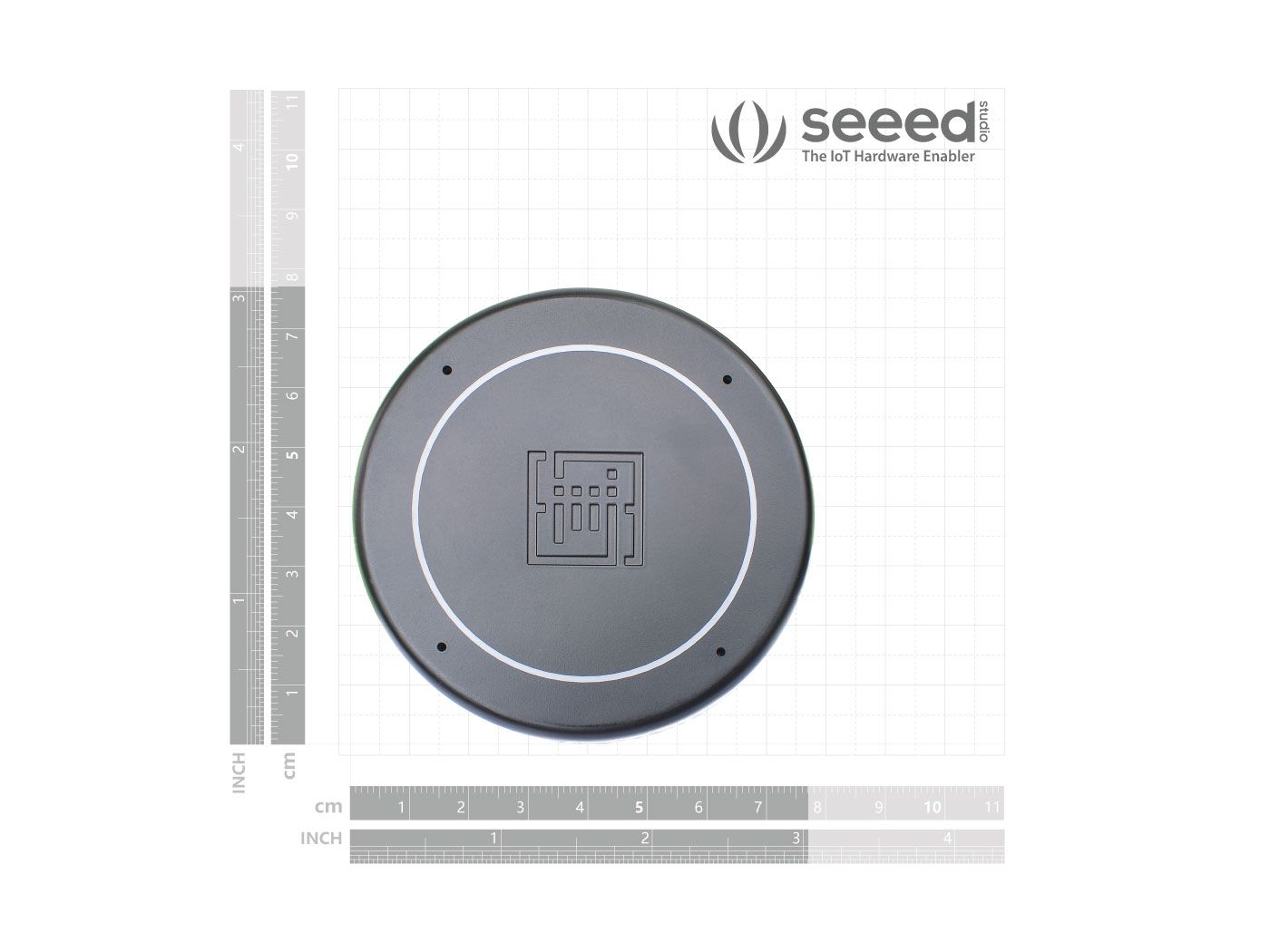

| Dimensions | 77mm (Diameter) |
| Weight (N.W.) | 43.6g |
| Weight (G.W.) | 104.2g |
| Battery | Exclude |
Ā
XMOS XVF-3000: It integrates advanced DSP algorithms that include Acoustic Echo Cancellation (AEC), beamforming, dereverberation, noise suppression and gain control.
Digital Microphone: The MP34DT01-M is an ultra-compact, low power, omnidirectional, digital MEMS microphone built with a capacitive sensing element and an IC interface.
RGB LED: Three-color RGB LED.

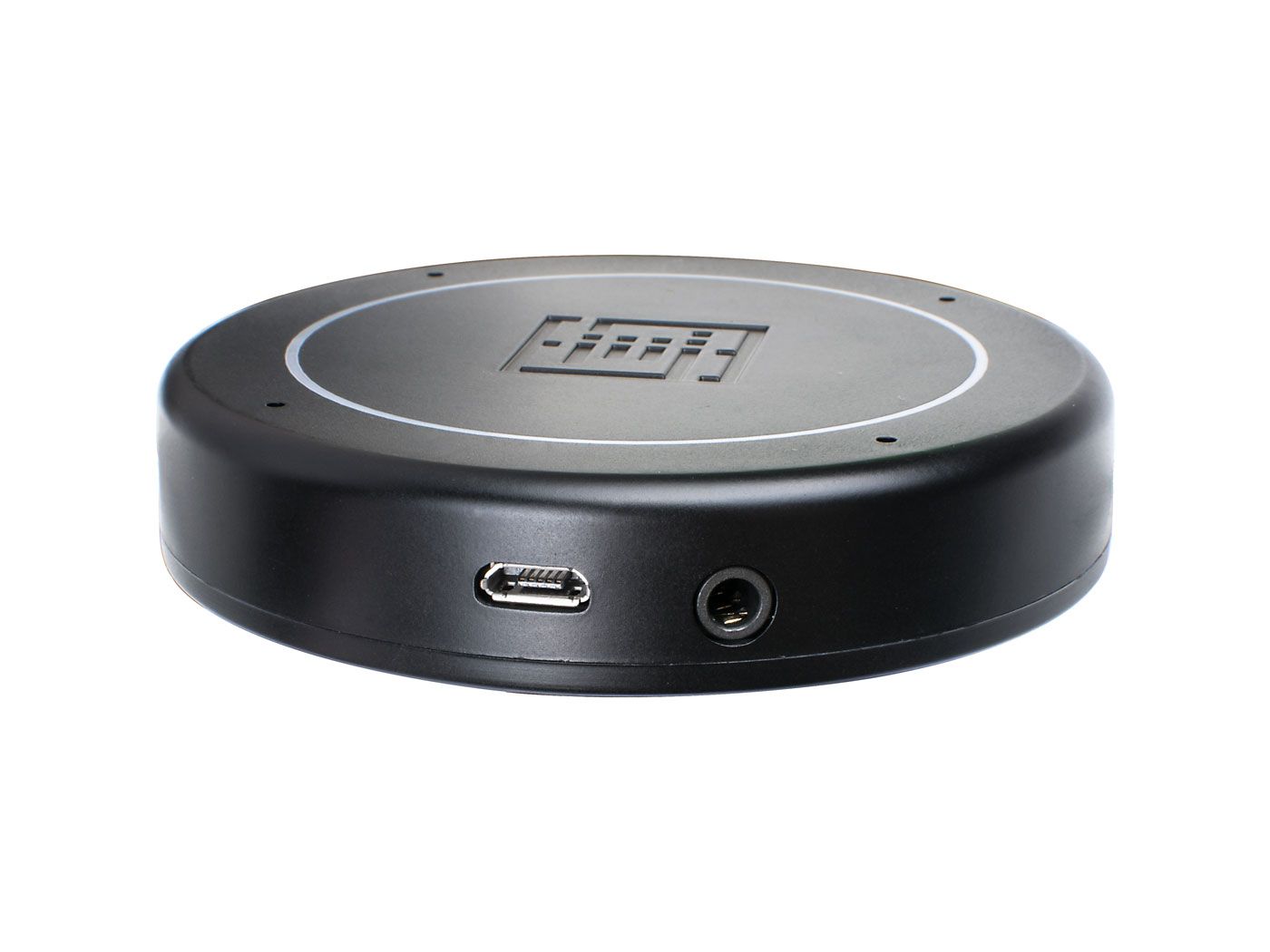

USB Port: Provide the power and control the mic array.
3.5mm Headphone jack: Output audio, we can plug active speakers or Headphones into this port.
TLV320AIC3104: The TLV320AIC3104 is a low-power stereo audio
codec with stereo headphone amplifier, as well as
multiple inputs and outputs that are programmable in
single-ended or fully differential configurations.
Ā
When it comes to development, we believe you should have as many options as possible. The ReSpeaker USB Mic Array is able to work with most modern Linux, macOS, and Windows systems.
Ā
ReSpeaker USB Mic Array | Seeed Studio Wiki
[Blog] Home Assistant Speaker: Enhance Your Smart Home with the Right Devices
Ā
| Item | Quantity |
|---|---|
| ReSpeaker USB Mic Array | x1 |
| USB Type A to Micro USB cable | x1 |
| Instruction Card | x1 |
