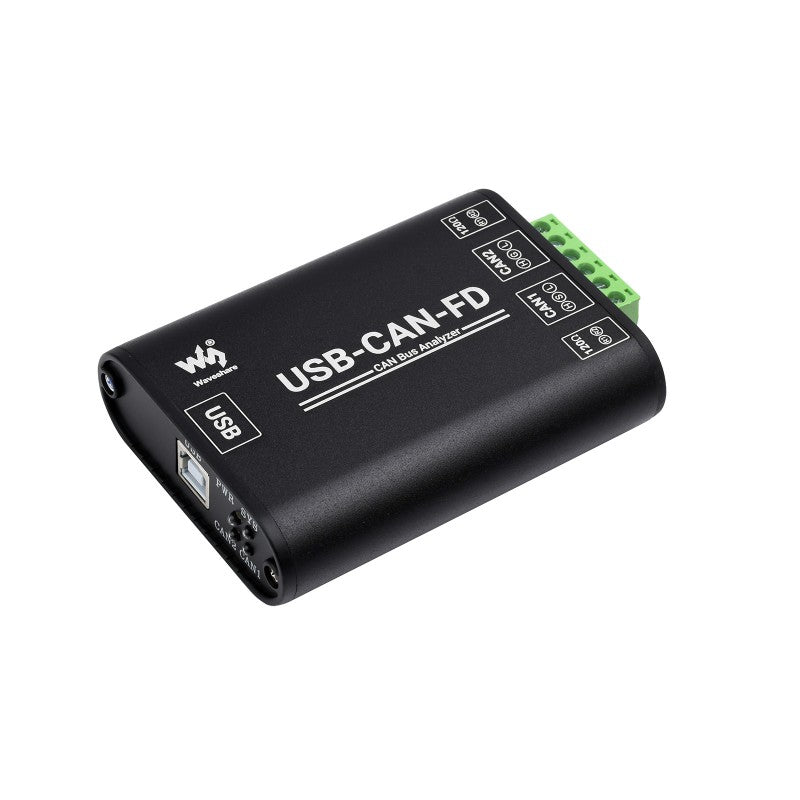

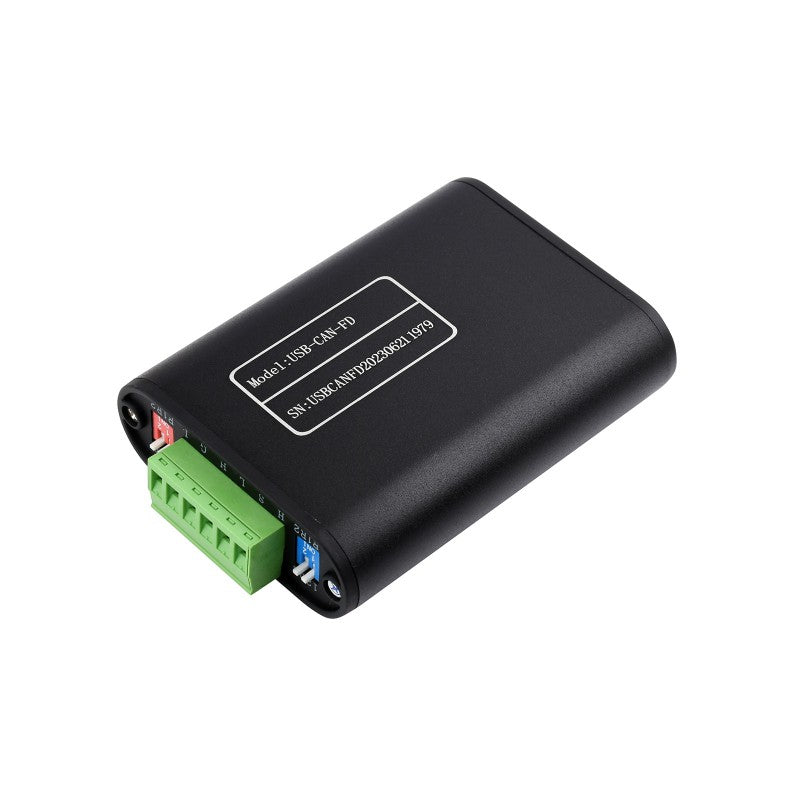

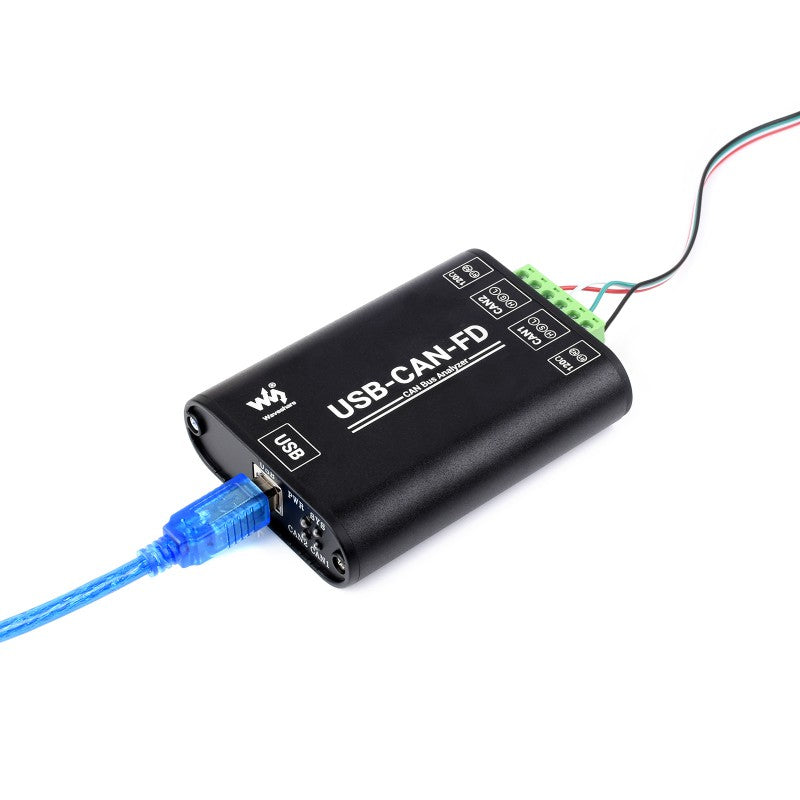

Name: Industrial Grade CAN/CAN FD Bus Data Analyzer
Brand: ThinkRobotics.in
SKU: ELC3047
Price: 7999.99 INR
Availability: InStock

{"id":8630494462269,"title":"Industrial Grade CAN\/CAN FD Bus Data Analyzer","handle":"industrial-grade-can-can-fd-bus-data-analyzer","description":"\u003cp\u003e \u003c\/p\u003e\n\u003cdiv data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"pdT\"\u003e\n\u003ch1 data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"richTitle\"\u003eIndustrial Grade CAN FD Bus Adapter\u003c\/h1\u003e\n\u003ch3 data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"hilitBlock2 round1234\"\u003e\u003cspan style=\"color: #c20000;\"\u003eSupports high-speed CAN FD and CAN2.0A\/B data communication\u003c\/span\u003e\u003c\/h3\u003e\n\u003cimg data-mce-fragment=\"1\" style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-1.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-1.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"pdT\"\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\"\u003eFeatures At A Glance\u003c\/h2\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"alignl pdTRBL\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eThe \u003cstrong data-mce-fragment=\"1\"\u003eUSB-CAN-FD\u003c\/strong\u003e is an industrial-grade high-performance USB to CAN FD adapter, CAN\/CAN-FD bus communication interface card, and CAN\/CAN-FD protocol data analyzer. Onboard dual independent CAN FD interfaces with electrical isolation and multiple protection circuits. Supports Windows XP\/7\/8\/10\/11 system, comes with drivers, CAN FD Tools related software, secondary development examples, and tutorials.\u003c\/p\u003e\n\u003cp data-mce-fragment=\"1\"\u003eIt can be connected to the PC or industrial control host via a USB port to realize transceiver control, data analysis, collection and monitoring of CAN\/CAN FD bus network. It is compact in size and easy to use, which can be used for learning and debugging of CAN\/CAN FD bus, as well as for secondary development and integration into various industrial, power communication, and intelligent control applications that require CAN\/CAN FD bus communication.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\"\u003eSpecifications\u003c\/h2\u003e\n\u003ctable data-mce-fragment=\"1\" class=\"tabSty-2 mgnTB subBlock alignl\"\u003e\n\u003ctbody data-mce-fragment=\"1\"\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth data-mce-fragment=\"1\"\u003ePRODUCT TYPE\u003c\/th\u003e\n\u003ctd data-mce-fragment=\"1\" colspan=\"2\"\u003eIndustrial grade: USB to CAN FD interface converter, CAN\/CAN FD bus communication interface card, CAN\/CAN FD protocol data analyzer\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth data-mce-fragment=\"1\" rowspan=\"2\"\u003eUSB\u003c\/th\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eOperating voltage\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e5V (directly powered by USB port without external power supply)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eConnector\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eUSB-B\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth data-mce-fragment=\"1\" rowspan=\"7\"\u003eCAN\/CAN FD INTERFACE\u003c\/th\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eCAN\/CAN FD channel\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eDual-channel: CAN1 and CAN2 (independent and full-isolated, isolated voltage: 3000V DC)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eConnector\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eCAN bus screw terminal (OPEN6 5.08mm pitch)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eTerminal resistor\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eEach CAN\/CAN FD channel has two built-in 120Ω terminal resistors, which can be enabled by switch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eBaud Rate\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e100Kbps~5Mbps (Configurable via software)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eProtocol Support\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eCAN2.0A, CAN2.0B, and ISO 11898-1 CAN FD protocol V.1.0\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eTransfer speed\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eThe receiving and sending speed of each CAN\/CAN FD channel can reach 20000 frames\/s and 5000 frames\/s\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eTransmit buffer\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e1500 frames receiving buffer and 64 frames sending buffer per channel (automatically retransmit when the transmission fails)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth data-mce-fragment=\"1\" rowspan=\"4\"\u003eINDICATORS\u003c\/th\u003e\n\u003ctd data-mce-fragment=\"1\"\u003ePWR\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003ePower indicator\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eSYS\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eSystem status indicator, normally off; keeps on when there is a bus error\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eCAN1\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eCAN1 channel indicator (blinking when sending and receiving data)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eCAN2\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eCAN2 channel indicator (blinking when sending and receiving data)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth data-mce-fragment=\"1\"\u003eSYSTEM SUPPORT\u003c\/th\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eWindows\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eWindows XP\/7\/8\/10\/11 (32\/64 bits); Does Not support the Linux system now, and the related drivers are under development.\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth data-mce-fragment=\"1\"\u003eOPERATING TEMPERATURE\u003c\/th\u003e\n\u003ctd data-mce-fragment=\"1\" colspan=\"2\"\u003e-40~85℃\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth data-mce-fragment=\"1\"\u003eCASE MATERIAL\u003c\/th\u003e\n\u003ctd data-mce-fragment=\"1\" colspan=\"2\"\u003eAluminum alloy case + 3D flame-retardant insulating sheets on both sides (This design can provide better protection against metal tip discharge, also improves product safety, and extends service life)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth data-mce-fragment=\"1\"\u003eDIMENSIONS\u003c\/th\u003e\n\u003ctd data-mce-fragment=\"1\" colspan=\"2\"\u003e104 × 70 × 25 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cbr data-mce-fragment=\"1\"\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" style=\"text-align: center;\"\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\" style=\"text-align: center;\"\u003eSupports Protocol Conversion \u003cbr data-mce-fragment=\"1\"\u003eBetween USB And CAN\/CAN FD Bus\u003c\/h2\u003e\n\u003cp data-mce-fragment=\"1\" class=\"richDesc\" style=\"text-align: center;\"\u003e\u003cspan style=\"color: #c20001;\"\u003eOnboard High-Speed USB2.0 Interface And 2-Ch CAN\/CAN FD Bus Interfaces, Support Bi-Directional Transmission, Can Work Independently Without Interfering With Each Other\u003c\/span\u003e\u003c\/p\u003e\n\u003cimg data-mce-fragment=\"1\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-3.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-3.jpg\"\u003e\n\u003c\/div\u003e\n\u003ch2\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\"\u003eProgrammable Baud Rate, Automatic Detection\u003c\/h2\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"pdT\" style=\"text-align: center;\"\u003e\n\u003cp data-mce-fragment=\"1\" class=\"richDesc\" style=\"text-align: center;\"\u003e\u003cspan style=\"color: #c20000;\"\u003eCAN Baud Rate Is Configurable In The Range Of 100Kbps~5Mbps\u003c\/span\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003cspan style=\"color: #c20000;\"\u003eSupports Baud Rate Calculation, Auto-Detection, And Setting Via The Configuration Tool\u003c\/span\u003e\u003c\/p\u003e\n\u003cimg data-mce-fragment=\"1\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-5.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-5.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"pdT\" style=\"text-align: center;\"\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\" style=\"text-align: center;\"\u003eSupports Decoding And Analyzing For\u003cbr data-mce-fragment=\"1\"\u003eMultiple CAN Protocols\u003c\/h2\u003e\n\u003cp data-mce-fragment=\"1\" class=\"richDesc\" style=\"text-align: center;\"\u003e\u003cspan style=\"color: #c20001;\"\u003eSupports CAN 2.0A, CAN 2.0B, ISO11898-1, And CAN FD Protocol Specification V.1.0, Supports Standard And Extended Frames\u003c\/span\u003e\u003c\/p\u003e\n\u003cimg data-mce-fragment=\"1\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-7.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-7.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"pdT\" style=\"text-align: center;\"\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\" style=\"text-align: center;\"\u003eSupports Multi Development Environments\u003c\/h2\u003e\n\u003cp data-mce-fragment=\"1\" class=\"richDesc\" style=\"text-align: center;\"\u003eProvides Examples For Secondary Development Projects On Various Mainstream Development Platforms: C#, VC, Delphi, Qt, LabVIEW, Python\/Python-Can\u003c\/p\u003e\n\u003cimg data-mce-fragment=\"1\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-9.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-9.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"pdT\" style=\"text-align: center;\"\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\" style=\"text-align: center;\"\u003eHigh-Performance Hardware Solution\u003c\/h2\u003e\n\u003cp data-mce-fragment=\"1\" class=\"richDesc\" style=\"text-align: center;\"\u003eAdopts Microchip Original Controller And 32-Bit MIPS M4K® Core, Up To 80MHz Frequency. High Performance, Stable And Reliable\u003c\/p\u003e\n\u003cimg data-mce-fragment=\"1\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-13.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-13.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" data-mce-fragment=\"1\" class=\"pdT\"\u003e\n\u003ch2 data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"richTitle\"\u003eWith Electrical Isolation And Multiple \u003cbr data-mce-fragment=\"1\"\u003eProtection Circuits\u003c\/h2\u003e\n\u003cp data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"richDesc\"\u003eAdopts High-Speed Signal Isolators, DC-DC Dual Power Isolation, USB, CAN1 And CAN2 Three-Terminal Full Isolation, Higher Communication Security And Stability\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" data-mce-fragment=\"1\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-15.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-15.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"pdT\"\u003e\n\u003ch2 data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"richTitle\"\u003eOne PC With Multiple Devices\u003c\/h2\u003e\n\u003cp data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"alignl pdTRBL\"\u003eSupports one PC to run multiple CAN FD analyzers at the same time without interfering with each other, up to 128 devices after testing. It is suitable for monitoring multiple CAN networks at the same time with one monitoring device, or for data comparison and verification and so on.\u003c\/p\u003e\n\u003cimg data-mce-fragment=\"1\" style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-17.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-17.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" style=\"text-align: center;\"\u003e\n\u003ch2 data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"richTitle\"\u003eInterface\u003c\/h2\u003e\n\u003cimg data-mce-fragment=\"1\" style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-19.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-19.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"pdT\"\u003e\n\u003ch2 data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"richTitle\"\u003eApplications\u003c\/h2\u003e\n\u003cimg data-mce-fragment=\"1\" style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-21.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-21.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"pdT\"\u003e\n\u003ch2 data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"richTitle\"\u003eApplication Example\u003c\/h2\u003e\n\u003cimg data-mce-fragment=\"1\" style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-23.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-23.jpg\"\u003e\n\u003cp data-mce-fragment=\"1\" style=\"text-align: left;\" class=\"note\"\u003e\u003cem\u003e\u003cspan style=\"color: #c20000;\"\u003e* for reference only, the Raspberry Pi 4B and 2-CH CAN FD HAT are Not included.\u003c\/span\u003e\u003c\/em\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"pdT\"\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"richTitle\"\u003eDimensions\u003cbr\u003e\n\u003c\/h2\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" style=\"text-align: center;\"\u003e\u003cimg data-mce-fragment=\"1\" style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-size.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-size.jpg\"\u003e\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\"\u003eResources \u0026amp; Services\u003c\/h2\u003e\n\u003cp data-mce-fragment=\"1\" class=\"bgGrey\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eWiki: \u003c\/strong\u003e\u003ca data-mce-fragment=\"1\" href=\"http:\/\/www.waveshare.com\/wiki\/USB-CAN-FD\" data-mce-href=\"http:\/\/www.waveshare.com\/wiki\/USB-CAN-FD\" target=\"_blank\"\u003ewww.waveshare.com\/wiki\/USB-CAN-FD\u003c\/a\u003e\u003c\/p\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"bgGrey\"\u003e \u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"bgGrey\"\u003ePackage Content:\u003c\/h2\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"bgGrey\"\u003e\n\u003cmeta charset=\"UTF-8\"\u003e\n\u003cp\u003e\u003cstrong\u003eWeight: \u003c\/strong\u003e\u003cspan\u003e0.231 kg\u003c\/span\u003e\u003c\/p\u003e\n\u003cdiv class=\"std\"\u003e\n\u003col\u003e\n\u003cli\u003eUSB-CAN-FD x1\u003c\/li\u003e\n\u003cli\u003eUSB type A plug to type B plug cable x1\u003c\/li\u003e\n\u003cli\u003e4pin cable x1\u003c\/li\u003e\n\u003cli\u003eScrewdriver x1\u003c\/li\u003e\n\u003c\/ol\u003e\n\u003cdiv\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-pack.jpg\"\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e","published_at":"2023-08-27T04:39:04+05:30","created_at":"2023-08-27T04:30:41+05:30","vendor":"ThinkRobotics.in","type":"","tags":["25029","Analyszer","Analyzer","BUS","CAN","CAN FD","CAN-BUS","CANBed","card","communication","Data","dev","dev kit","Development","ELC3","Grade","INDSTRL","interface","Kit","MCP2515","SEEED","UART-MOD","USB","WaveSH","Waveshare","WVSH"],"price":799999,"price_min":799999,"price_max":799999,"available":true,"price_varies":false,"compare_at_price":999999,"compare_at_price_min":999999,"compare_at_price_max":999999,"compare_at_price_varies":false,"variants":[{"id":46577811980605,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"ELC3047","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Industrial Grade CAN\/CAN FD Bus Data Analyzer","public_title":null,"options":["Default Title"],"price":799999,"weight":200,"compare_at_price":999999,"inventory_management":"shopify","barcode":"46577811980605","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-can-fd-1.jpg?v=1693091337","\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-can-fd-2.jpg?v=1693091337","\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-can-fd-3.jpg?v=1693091337","\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-can-fd-7.jpg?v=1693091337","\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-can-fd-6.jpg?v=1693091337","\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-can-fd-5.jpg?v=1693091337","\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-can-fd-4.jpg?v=1693091337"],"featured_image":"\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-can-fd-1.jpg?v=1693091337","options":["Title"],"media":[{"alt":null,"id":34673055891773,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-can-fd-1.jpg?v=1693091337"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-can-fd-1.jpg?v=1693091337","width":800},{"alt":null,"id":34673055859005,"position":2,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-can-fd-2.jpg?v=1693091337"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-can-fd-2.jpg?v=1693091337","width":800},{"alt":null,"id":34673055826237,"position":3,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-can-fd-3.jpg?v=1693091337"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-can-fd-3.jpg?v=1693091337","width":800},{"alt":null,"id":34673055695165,"position":4,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-can-fd-7.jpg?v=1693091337"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-can-fd-7.jpg?v=1693091337","width":800},{"alt":null,"id":34673055727933,"position":5,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-can-fd-6.jpg?v=1693091337"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-can-fd-6.jpg?v=1693091337","width":800},{"alt":null,"id":34673055760701,"position":6,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-can-fd-5.jpg?v=1693091337"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-can-fd-5.jpg?v=1693091337","width":800},{"alt":null,"id":34673055793469,"position":7,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-can-fd-4.jpg?v=1693091337"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-can-fd-4.jpg?v=1693091337","width":800}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003e \u003c\/p\u003e\n\u003cdiv data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"pdT\"\u003e\n\u003ch1 data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"richTitle\"\u003eIndustrial Grade CAN FD Bus Adapter\u003c\/h1\u003e\n\u003ch3 data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"hilitBlock2 round1234\"\u003e\u003cspan style=\"color: #c20000;\"\u003eSupports high-speed CAN FD and CAN2.0A\/B data communication\u003c\/span\u003e\u003c\/h3\u003e\n\u003cimg data-mce-fragment=\"1\" style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-1.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-1.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"pdT\"\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\"\u003eFeatures At A Glance\u003c\/h2\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"alignl pdTRBL\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eThe \u003cstrong data-mce-fragment=\"1\"\u003eUSB-CAN-FD\u003c\/strong\u003e is an industrial-grade high-performance USB to CAN FD adapter, CAN\/CAN-FD bus communication interface card, and CAN\/CAN-FD protocol data analyzer. Onboard dual independent CAN FD interfaces with electrical isolation and multiple protection circuits. Supports Windows XP\/7\/8\/10\/11 system, comes with drivers, CAN FD Tools related software, secondary development examples, and tutorials.\u003c\/p\u003e\n\u003cp data-mce-fragment=\"1\"\u003eIt can be connected to the PC or industrial control host via a USB port to realize transceiver control, data analysis, collection and monitoring of CAN\/CAN FD bus network. It is compact in size and easy to use, which can be used for learning and debugging of CAN\/CAN FD bus, as well as for secondary development and integration into various industrial, power communication, and intelligent control applications that require CAN\/CAN FD bus communication.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\"\u003eSpecifications\u003c\/h2\u003e\n\u003ctable data-mce-fragment=\"1\" class=\"tabSty-2 mgnTB subBlock alignl\"\u003e\n\u003ctbody data-mce-fragment=\"1\"\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth data-mce-fragment=\"1\"\u003ePRODUCT TYPE\u003c\/th\u003e\n\u003ctd data-mce-fragment=\"1\" colspan=\"2\"\u003eIndustrial grade: USB to CAN FD interface converter, CAN\/CAN FD bus communication interface card, CAN\/CAN FD protocol data analyzer\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth data-mce-fragment=\"1\" rowspan=\"2\"\u003eUSB\u003c\/th\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eOperating voltage\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e5V (directly powered by USB port without external power supply)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eConnector\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eUSB-B\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth data-mce-fragment=\"1\" rowspan=\"7\"\u003eCAN\/CAN FD INTERFACE\u003c\/th\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eCAN\/CAN FD channel\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eDual-channel: CAN1 and CAN2 (independent and full-isolated, isolated voltage: 3000V DC)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eConnector\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eCAN bus screw terminal (OPEN6 5.08mm pitch)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eTerminal resistor\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eEach CAN\/CAN FD channel has two built-in 120Ω terminal resistors, which can be enabled by switch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eBaud Rate\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e100Kbps~5Mbps (Configurable via software)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eProtocol Support\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eCAN2.0A, CAN2.0B, and ISO 11898-1 CAN FD protocol V.1.0\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eTransfer speed\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eThe receiving and sending speed of each CAN\/CAN FD channel can reach 20000 frames\/s and 5000 frames\/s\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eTransmit buffer\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e1500 frames receiving buffer and 64 frames sending buffer per channel (automatically retransmit when the transmission fails)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth data-mce-fragment=\"1\" rowspan=\"4\"\u003eINDICATORS\u003c\/th\u003e\n\u003ctd data-mce-fragment=\"1\"\u003ePWR\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003ePower indicator\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eSYS\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eSystem status indicator, normally off; keeps on when there is a bus error\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eCAN1\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eCAN1 channel indicator (blinking when sending and receiving data)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eCAN2\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eCAN2 channel indicator (blinking when sending and receiving data)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth data-mce-fragment=\"1\"\u003eSYSTEM SUPPORT\u003c\/th\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eWindows\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eWindows XP\/7\/8\/10\/11 (32\/64 bits); Does Not support the Linux system now, and the related drivers are under development.\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth data-mce-fragment=\"1\"\u003eOPERATING TEMPERATURE\u003c\/th\u003e\n\u003ctd data-mce-fragment=\"1\" colspan=\"2\"\u003e-40~85℃\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth data-mce-fragment=\"1\"\u003eCASE MATERIAL\u003c\/th\u003e\n\u003ctd data-mce-fragment=\"1\" colspan=\"2\"\u003eAluminum alloy case + 3D flame-retardant insulating sheets on both sides (This design can provide better protection against metal tip discharge, also improves product safety, and extends service life)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth data-mce-fragment=\"1\"\u003eDIMENSIONS\u003c\/th\u003e\n\u003ctd data-mce-fragment=\"1\" colspan=\"2\"\u003e104 × 70 × 25 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cbr data-mce-fragment=\"1\"\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" style=\"text-align: center;\"\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\" style=\"text-align: center;\"\u003eSupports Protocol Conversion \u003cbr data-mce-fragment=\"1\"\u003eBetween USB And CAN\/CAN FD Bus\u003c\/h2\u003e\n\u003cp data-mce-fragment=\"1\" class=\"richDesc\" style=\"text-align: center;\"\u003e\u003cspan style=\"color: #c20001;\"\u003eOnboard High-Speed USB2.0 Interface And 2-Ch CAN\/CAN FD Bus Interfaces, Support Bi-Directional Transmission, Can Work Independently Without Interfering With Each Other\u003c\/span\u003e\u003c\/p\u003e\n\u003cimg data-mce-fragment=\"1\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-3.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-3.jpg\"\u003e\n\u003c\/div\u003e\n\u003ch2\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\"\u003eProgrammable Baud Rate, Automatic Detection\u003c\/h2\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"pdT\" style=\"text-align: center;\"\u003e\n\u003cp data-mce-fragment=\"1\" class=\"richDesc\" style=\"text-align: center;\"\u003e\u003cspan style=\"color: #c20000;\"\u003eCAN Baud Rate Is Configurable In The Range Of 100Kbps~5Mbps\u003c\/span\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003cspan style=\"color: #c20000;\"\u003eSupports Baud Rate Calculation, Auto-Detection, And Setting Via The Configuration Tool\u003c\/span\u003e\u003c\/p\u003e\n\u003cimg data-mce-fragment=\"1\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-5.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-5.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"pdT\" style=\"text-align: center;\"\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\" style=\"text-align: center;\"\u003eSupports Decoding And Analyzing For\u003cbr data-mce-fragment=\"1\"\u003eMultiple CAN Protocols\u003c\/h2\u003e\n\u003cp data-mce-fragment=\"1\" class=\"richDesc\" style=\"text-align: center;\"\u003e\u003cspan style=\"color: #c20001;\"\u003eSupports CAN 2.0A, CAN 2.0B, ISO11898-1, And CAN FD Protocol Specification V.1.0, Supports Standard And Extended Frames\u003c\/span\u003e\u003c\/p\u003e\n\u003cimg data-mce-fragment=\"1\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-7.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-7.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"pdT\" style=\"text-align: center;\"\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\" style=\"text-align: center;\"\u003eSupports Multi Development Environments\u003c\/h2\u003e\n\u003cp data-mce-fragment=\"1\" class=\"richDesc\" style=\"text-align: center;\"\u003eProvides Examples For Secondary Development Projects On Various Mainstream Development Platforms: C#, VC, Delphi, Qt, LabVIEW, Python\/Python-Can\u003c\/p\u003e\n\u003cimg data-mce-fragment=\"1\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-9.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-9.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"pdT\" style=\"text-align: center;\"\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\" style=\"text-align: center;\"\u003eHigh-Performance Hardware Solution\u003c\/h2\u003e\n\u003cp data-mce-fragment=\"1\" class=\"richDesc\" style=\"text-align: center;\"\u003eAdopts Microchip Original Controller And 32-Bit MIPS M4K® Core, Up To 80MHz Frequency. High Performance, Stable And Reliable\u003c\/p\u003e\n\u003cimg data-mce-fragment=\"1\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-13.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-13.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" data-mce-fragment=\"1\" class=\"pdT\"\u003e\n\u003ch2 data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"richTitle\"\u003eWith Electrical Isolation And Multiple \u003cbr data-mce-fragment=\"1\"\u003eProtection Circuits\u003c\/h2\u003e\n\u003cp data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"richDesc\"\u003eAdopts High-Speed Signal Isolators, DC-DC Dual Power Isolation, USB, CAN1 And CAN2 Three-Terminal Full Isolation, Higher Communication Security And Stability\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" data-mce-fragment=\"1\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-15.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-15.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"pdT\"\u003e\n\u003ch2 data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"richTitle\"\u003eOne PC With Multiple Devices\u003c\/h2\u003e\n\u003cp data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"alignl pdTRBL\"\u003eSupports one PC to run multiple CAN FD analyzers at the same time without interfering with each other, up to 128 devices after testing. It is suitable for monitoring multiple CAN networks at the same time with one monitoring device, or for data comparison and verification and so on.\u003c\/p\u003e\n\u003cimg data-mce-fragment=\"1\" style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-17.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-17.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" style=\"text-align: center;\"\u003e\n\u003ch2 data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"richTitle\"\u003eInterface\u003c\/h2\u003e\n\u003cimg data-mce-fragment=\"1\" style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-19.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-19.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"pdT\"\u003e\n\u003ch2 data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"richTitle\"\u003eApplications\u003c\/h2\u003e\n\u003cimg data-mce-fragment=\"1\" style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-21.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-21.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"pdT\"\u003e\n\u003ch2 data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"richTitle\"\u003eApplication Example\u003c\/h2\u003e\n\u003cimg data-mce-fragment=\"1\" style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-23.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-23.jpg\"\u003e\n\u003cp data-mce-fragment=\"1\" style=\"text-align: left;\" class=\"note\"\u003e\u003cem\u003e\u003cspan style=\"color: #c20000;\"\u003e* for reference only, the Raspberry Pi 4B and 2-CH CAN FD HAT are Not included.\u003c\/span\u003e\u003c\/em\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"pdT\"\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" style=\"text-align: center;\" class=\"richTitle\"\u003eDimensions\u003cbr\u003e\n\u003c\/h2\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\" style=\"text-align: center;\"\u003e\u003cimg data-mce-fragment=\"1\" style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-size.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-size.jpg\"\u003e\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"richTitle\"\u003eResources \u0026amp; Services\u003c\/h2\u003e\n\u003cp data-mce-fragment=\"1\" class=\"bgGrey\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eWiki: \u003c\/strong\u003e\u003ca data-mce-fragment=\"1\" href=\"http:\/\/www.waveshare.com\/wiki\/USB-CAN-FD\" data-mce-href=\"http:\/\/www.waveshare.com\/wiki\/USB-CAN-FD\" target=\"_blank\"\u003ewww.waveshare.com\/wiki\/USB-CAN-FD\u003c\/a\u003e\u003c\/p\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"bgGrey\"\u003e \u003c\/h2\u003e\n\u003ch2 data-mce-fragment=\"1\" class=\"bgGrey\"\u003ePackage Content:\u003c\/h2\u003e\n\u003cdiv data-mce-fragment=\"1\" class=\"bgGrey\"\u003e\n\u003cmeta charset=\"UTF-8\"\u003e\n\u003cp\u003e\u003cstrong\u003eWeight: \u003c\/strong\u003e\u003cspan\u003e0.231 kg\u003c\/span\u003e\u003c\/p\u003e\n\u003cdiv class=\"std\"\u003e\n\u003col\u003e\n\u003cli\u003eUSB-CAN-FD x1\u003c\/li\u003e\n\u003cli\u003eUSB type A plug to type B plug cable x1\u003c\/li\u003e\n\u003cli\u003e4pin cable x1\u003c\/li\u003e\n\u003cli\u003eScrewdriver x1\u003c\/li\u003e\n\u003c\/ol\u003e\n\u003cdiv\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-CAN-FD\/USB-CAN-FD-details-pack.jpg\"\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e"}

Industrial Grade CAN/CAN FD Bus Data Analyzer

Industrial Grade CAN FD Bus Adapter

Supports high-speed CAN FD and CAN2.0A/B data communication

Features At A Glance

Specifications

Supports Protocol Conversion
Between USB And CAN/CAN FD Bus

Programmable Baud Rate, Automatic Detection

Supports Decoding And Analyzing For
Multiple CAN Protocols

Supports Multi Development Environments

High-Performance Hardware Solution

With Electrical Isolation And Multiple
Protection Circuits

One PC With Multiple Devices

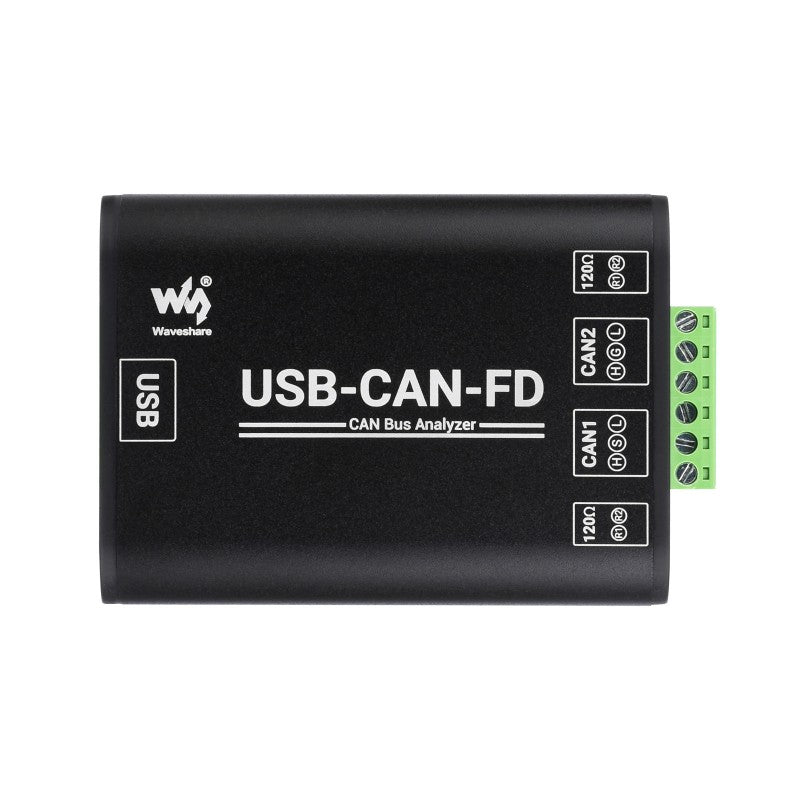

Interface

Applications

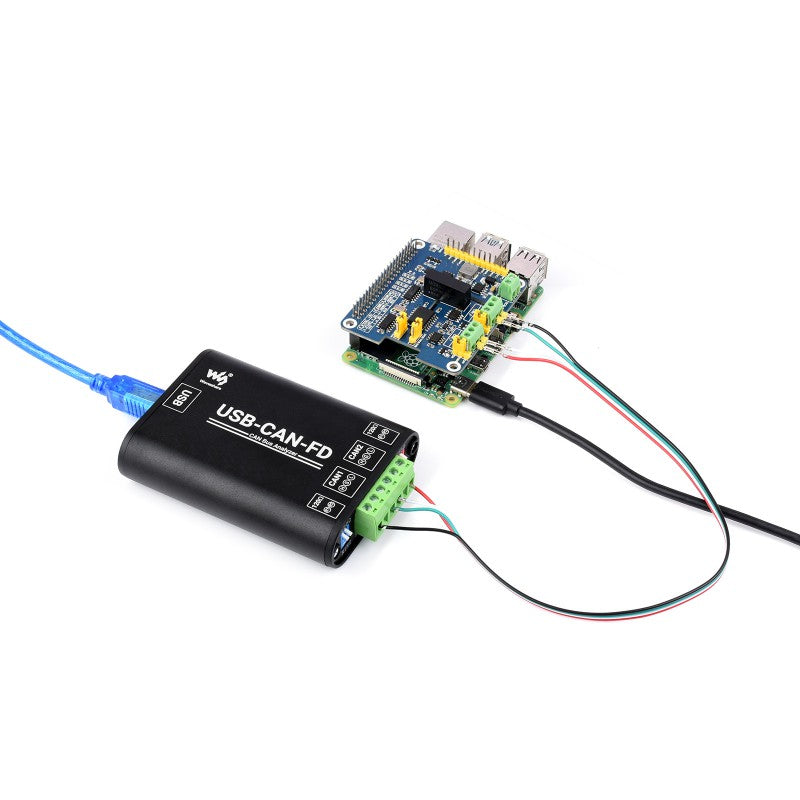

Application Example

Dimensions

Resources & Services

Package Content:

Want to buy in bulk?

Customer Reviews

Custom Requirements?

Download the ThinkRobotics Mobile App

We are here to serve you! Reach us at:

Popular Links

Shopping Cart

Let customers speak for us

PRODUCT TYPE	Industrial grade: USB to CAN FD interface converter, CAN/CAN FD bus communication interface card, CAN/CAN FD protocol data analyzer
USB	Operating voltage	5V (directly powered by USB port without external power supply)
USB	Connector	USB-B
CAN/CAN FD INTERFACE	CAN/CAN FD channel	Dual-channel: CAN1 and CAN2 (independent and full-isolated, isolated voltage: 3000V DC)

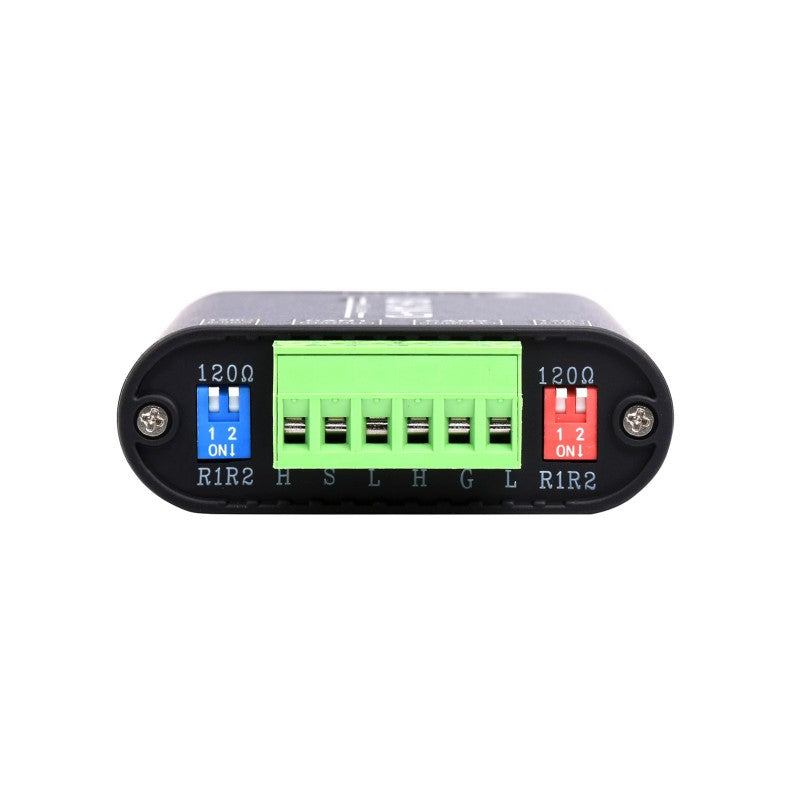

	Connector	CAN bus screw terminal (OPEN6 5.08mm pitch)
	Terminal resistor	Each CAN/CAN FD channel has two built-in 120Ω terminal resistors, which can be enabled by switch
	Baud Rate	100Kbps~5Mbps (Configurable via software)
	Protocol Support	CAN2.0A, CAN2.0B, and ISO 11898-1 CAN FD protocol V.1.0
	Transfer speed	The receiving and sending speed of each CAN/CAN FD channel can reach 20000 frames/s and 5000 frames/s
	Transmit buffer	1500 frames receiving buffer and 64 frames sending buffer per channel (automatically retransmit when the transmission fails)

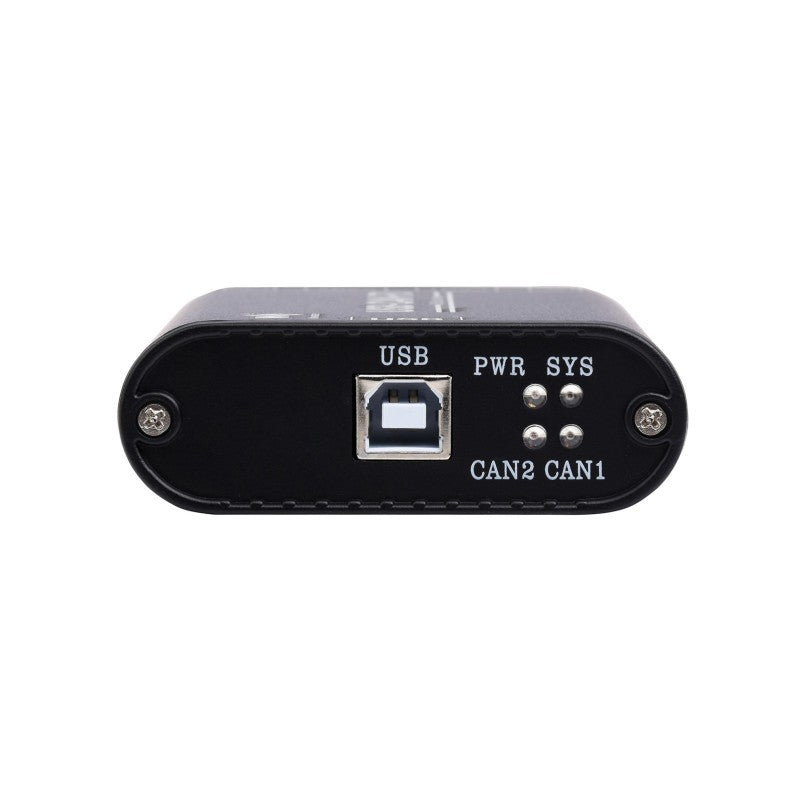

INDICATORS	PWR	Power indicator
	SYS	System status indicator, normally off; keeps on when there is a bus error
	CAN1	CAN1 channel indicator (blinking when sending and receiving data)
	CAN2	CAN2 channel indicator (blinking when sending and receiving data)
SYSTEM SUPPORT	Windows	Windows XP/7/8/10/11 (32/64 bits); Does Not support the Linux system now, and the related drivers are under development.
OPERATING TEMPERATURE	-40~85℃
CASE MATERIAL	Aluminum alloy case + 3D flame-retardant insulating sheets on both sides (This design can provide better protection against metal tip discharge, also improves product safety, and extends service life)
DIMENSIONS	104 × 70 × 25 mm
