08-56-0110
Product Overview

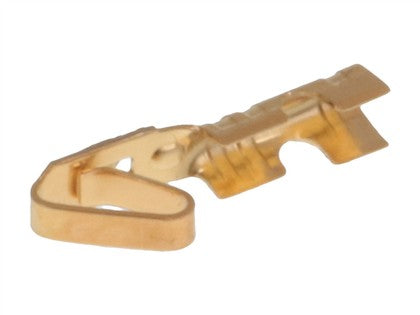

The MOLEX Headers & Wire Housings CRIMP TERMINAL (Part Number: 08-56-0110) is a high-quality connector designed for reliable signal connections in electronic applications. Manufactured in India, this component adheres to RoHS compliance standards and is suitable for various wiring and signal transmission needs.
Key Features
Part Number: 08-56-0110
Manufacturer: MOLEX
Country of Origin: India (IN)
Product Type: Connector
Category: Headers & Wire Housings
Packaging: Bag (BAG)
Unit of Measure: Each (EA)
ECCN: EAR99
RoHS Compliant: Yes
Product Specifications
Series
2759
Description
KK 254 Crimp Terminal, 30-22 AWG, Gold (Au), Nickel (Ni) Under Plating
Wire Size (AWG)
22, 24, 26, 28, 30
Wire Insulation Diameter
1.57mm max.
Material - Metal
Brass
Plating - Mating & Termination
Gold
Plating Thickness - Mating
0.381µm (min.)
Plating Thickness - Termination
0.051µm (min.)
Termination Interface Style
Crimp or Compression
Net Weight
0.064 g
Application & Compatibility
Designed for signal applications requiring reliable crimp connections.
Compatible with KK 254 Single Row Crimp Housings and KK 2.50mm Pitch Receptacle Housings (Part Numbers: 2695 and 5051).
Use with specific tooling: Extraction Tool (Part Number: 11030022), Premium Hand Crimp Tool (Part Number: 638118200), and Insertion Tool (Part Number: 638120000).
Additional Details
Product Category: Crimp Terminals
Status: Active
Packaging Type: Bag
Part Description: Headers & Wire Housings CRIMP TERM 22-30 GLD
Datasheet: Download Datasheet
Compliance & Certifications
This product complies with multiple industry standards including EU RoHS, REACH SVHC, and Low-Halogen requirements. For detailed compliance information, refer to the provided datasheet and certification links.
Note
Datasheet was not processed, please search the internet for the part number 08-56-0110 for more details.
