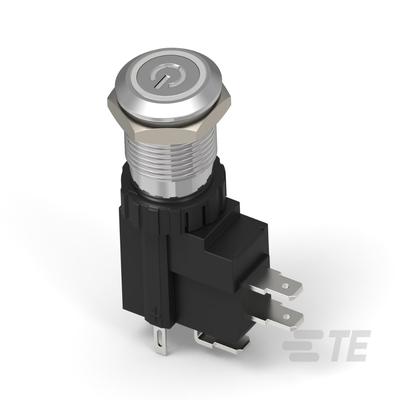

TE CONNECTIVITY/AMP BRAND Pushbutton Switch SPDT 16A Solder Terminal Panel
Introducing the TE CONNECTIVITY/AMP BRAND Pushbutton Switch, part number 1-2364572-7, designed for high-current applications requiring reliable and durable switching performance. This SPDT (Single Pole Double Throw) pushbutton switch is suitable for panel mounting and features solder terminal connections for secure and stable installation.
Key Features:
High current capacity: 16A (also available in 26A)
Panel mount with solder terminals for robust electrical connection
Anti-vandal design suitable for demanding environments
Available in multiple bushing sizes: 19mm, 22mm, and 25mm
Momentary and locking actuation options
Independent LED control with 7 color options (LEDs sold separately)
UL Recognized and RoHS compliant
Sealed with silicone for ingress protection (IP67, IK08)
Operational temperature range: -25°C to 85°C
Mechanical life: up to 1,000,000 cycles
Electrical life: up to 50,000 cycles at 16A
Designed for applications in machinery, automotive, electronics, access control systems, shipping equipment, medical equipment, horticulture, and bath accessories.
For detailed technical specifications and application instructions, please refer to the datasheet.
Note: The datasheet content is based on available extracted information. For the most accurate and comprehensive details, please review the linked datasheet.
