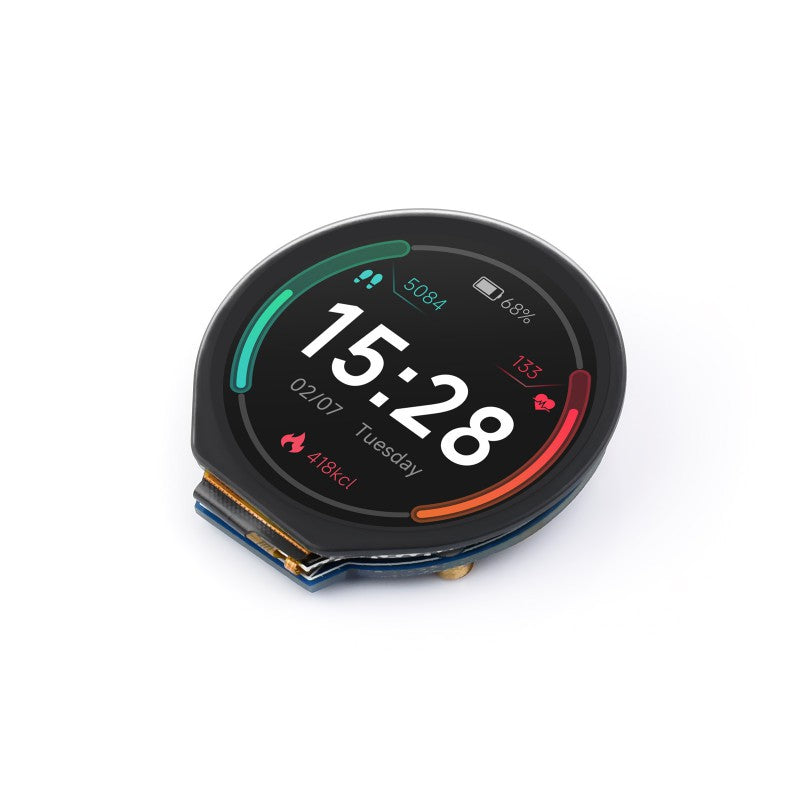

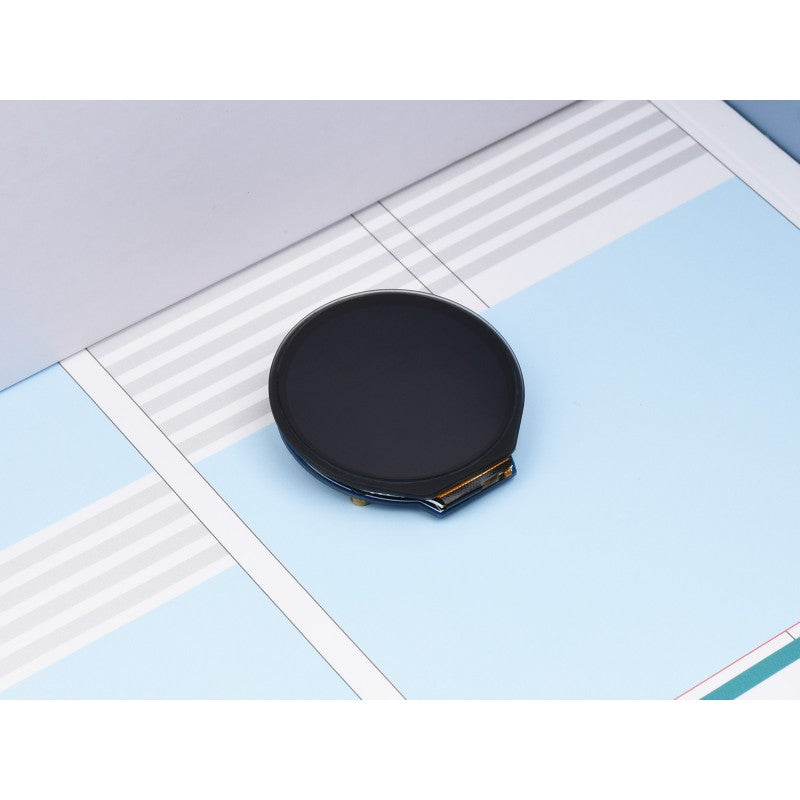

1.28inch Round LCD Display Touch Module

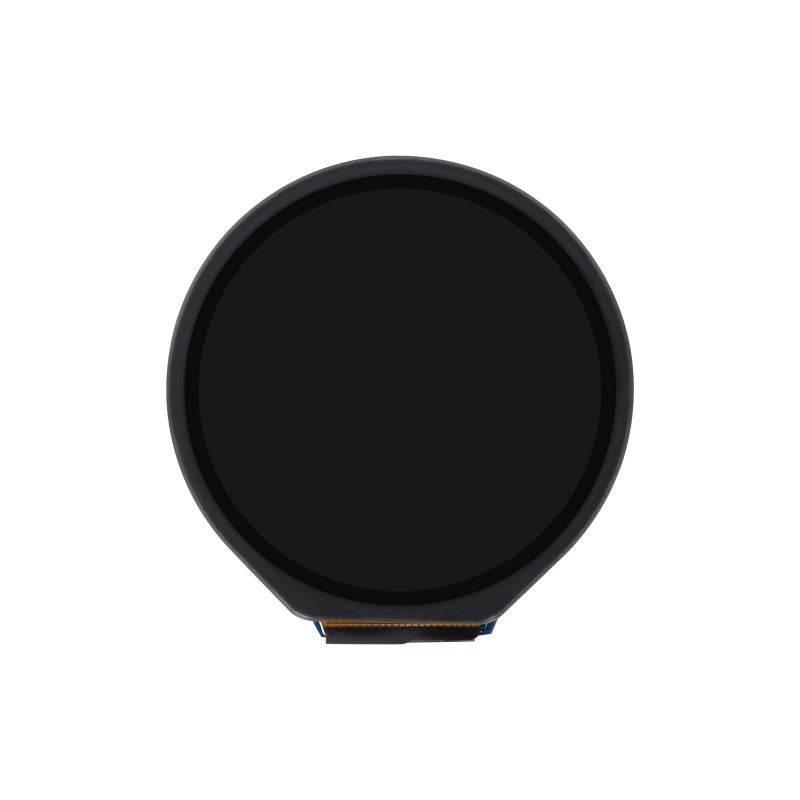

1.28inch Touch LCD Display Module
Embedded GC9A01 Driver And CST816S Capacitive Touch Control Chip - Using SPI And I2C Communication Respectively
Comes with examples for Raspberry Pi, Raspberry Pi Pico, Arduino, STM32, etc.
Size
1.28"
Resolution
240×240
Display Color
65K
Display Panel
IPS
Display Driver
GC9A01
Display Interface
SPI
Touch Driver
CST816S
Touch Interface
I2C
Features At A Glance
240×240 resolution, 65K colors, clear and colorful displaying effect
High touch screen transmittance, fast response and long lifetime
Embedded GC9A01 driver chip and CST816S capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins, supports controller boards like Raspberry Pi/Raspberry Pi Pico/Arduino/STM32
Comes with online development resources and manual (examples for Raspberry Pi/Raspberry Pi Pico/Arduino/STM32)
Specifications
OPERATING VOLTAGE 3.3V / 5V
RESOLUTION 240 × 240 pixels
DISPLAY DRIVER GC9A01
DISPLAY INTERFACE 4-wire SPI
TOUCH DRIVER CST816S
TOUCH INTERFACE I2C
DISPLAY PANEL IPS
TOUCH TYPE Capacitive
DISPLAY SIZE Φ32.4mm
PIXEL SIZE 0.135 × 0.135 mm
MODULE SIZE 39.89 × 38.50mm Φ38.50mm

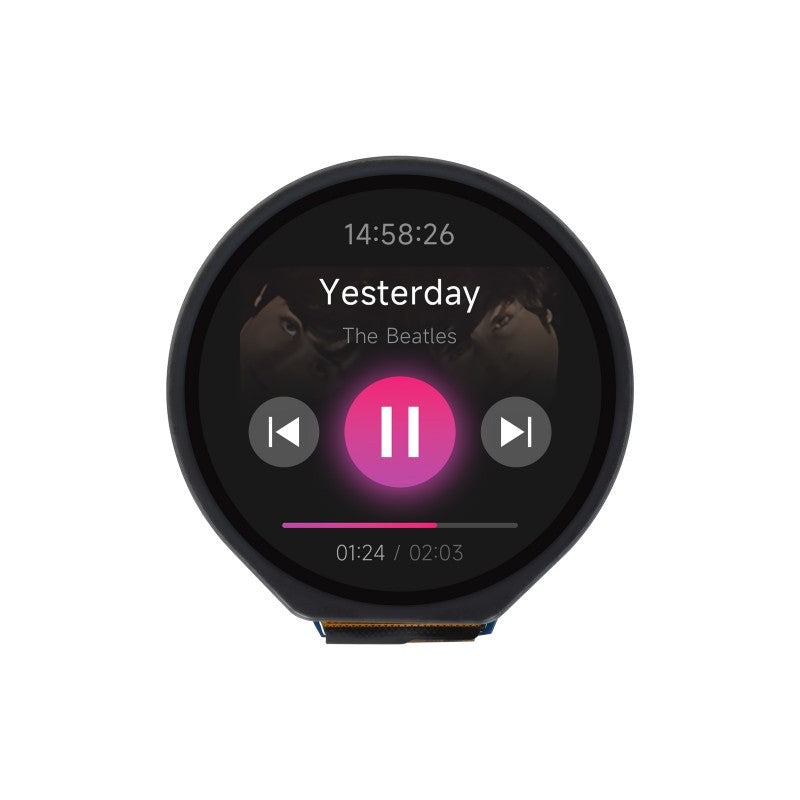

Small Size, Touch More Possibilities
Suitable For Various Smart Devices Development, Can Realize Human-Computer
Control Interfaces
For Use With Controller Boards Like Raspberry Pi / Raspberry Pi Pico / Arduino / STM32

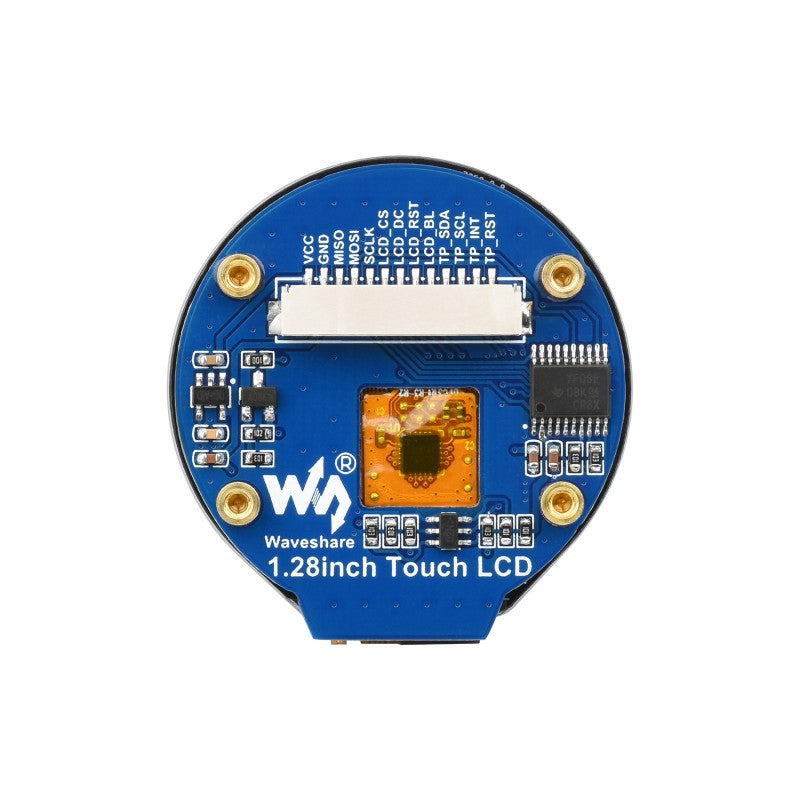

VCC
Power (3.3V / 5V input)
GND
Ground
MISO
SPI MISO pin
MOSI
SPI MOSI pin
SCLK
SPI Clock pin
LCS_CS
LCD Chip Selection, low active
LCS_DC
LCD Data/Command selection (high for data, low for command)
LCS_RST
LCD Reset, low active
LCS_BL
LCD Backlight
TP_SDA
TP Data pin
TP_SCL
TP Clock pin
TP_INT
TP Interrupt pin
TP_RST
TP Reset, low active

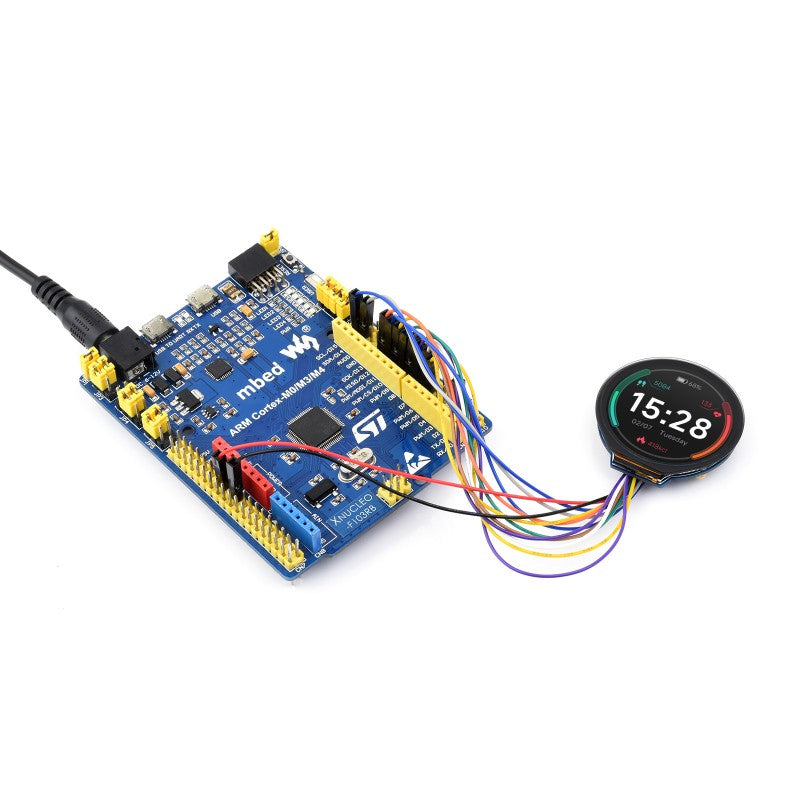

Pin Connection Reference
1.28" TOUCH LCD
RASPBERRY PI (BCM)
PICO
ARDUINO
STM32
VCC
3.3V
3.3V
5V
3.3V
GND
GND
GND
GND
GND
MISO
9
GP12
12
PA6
MOSI
10
GP11
11
PA7
SCLK
11
GP10
13
PA5
LCS_CS
8
GP9
10
PB6
LCS_DC
25
GP14
7
PA8
LCS_RST
27
GP8
8
PA9
LCS_BL
18
GP15
9
PC7
TP_SDA
2
GP6
SDA
PB9
TP_SCL
3
GP7
SCL
PB8
TP_INT
4
GP17
3
PB10
TP_RST
17
GP16
4
PA10
Usage Example
Dimensions
