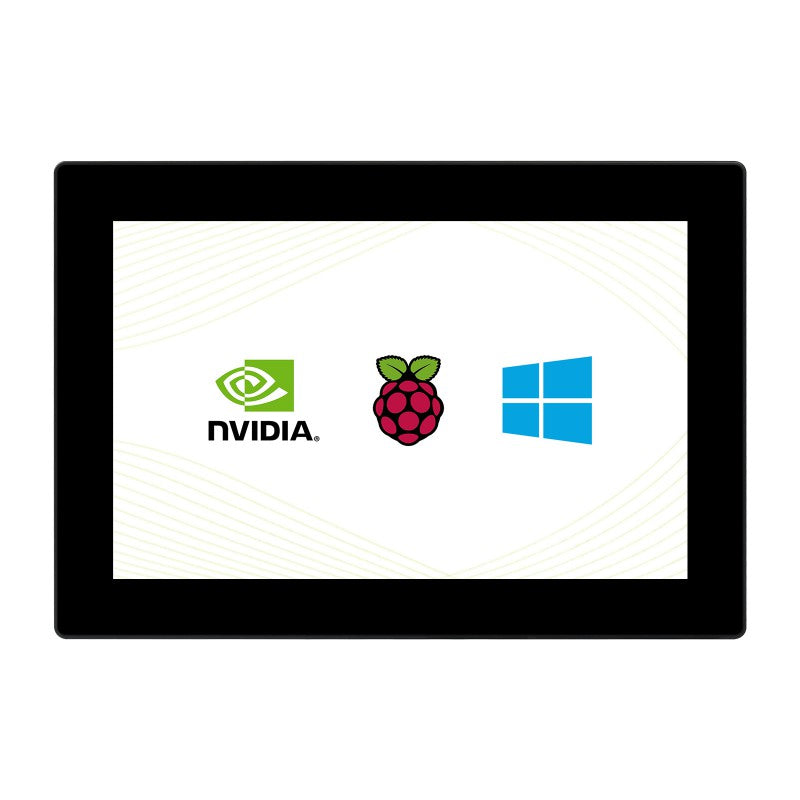

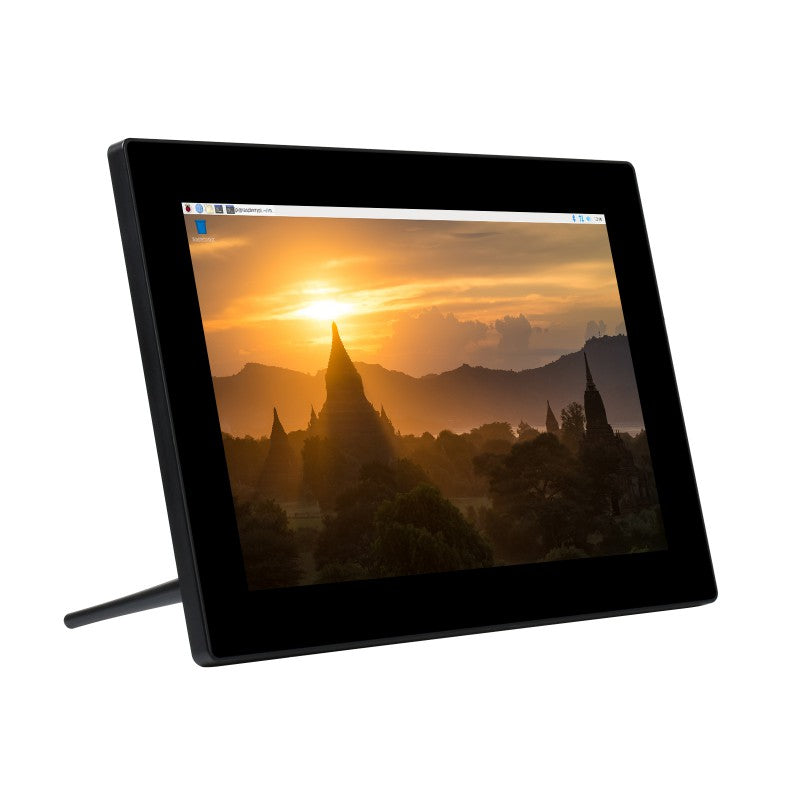

10.1″ HDMI Touch Display HD with Case
Size 10.1"
|
Resolution 1920×1200
|
Display Interface HDMI
|
Display Panel IPS
|
Viewing Angle 160°
|
Touch Type Capacitive
|
Touch Points 10-Points
|
Touch Port USB C
|
Touch Panel Toughened Glass
|
Touch Panel Tech Optical Bonding
|
OSD Menu Brightness/Contrast
|
Audio Output 3.5mm Jack
|
Sound HiFi Speakers
|
Enclosure ABS
|
Device & System Support
 |
Raspberry PiSupports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free Supports Retropie, driver free Supports all versions of Raspberry Pi Jetson NanoSupports Ubuntu, single point touch, driver free
PCSupports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
|
Connection Examples
Working With Raspberry Pi 4, Allows Powering The Pi Via LCD USB Power Out
Working With Raspberry Pi Zero W, Allows Powering The Pi Via LCD USB Power Out
Working With AI Computer Jetson Nano
Working With Mini PC
Display
IPS Panel
Touch Control
1) up to 10-point touch, depending on the operating system. 2) up to 6H hardness toughened glass panel.
Enjoy Gaming
Audio Features

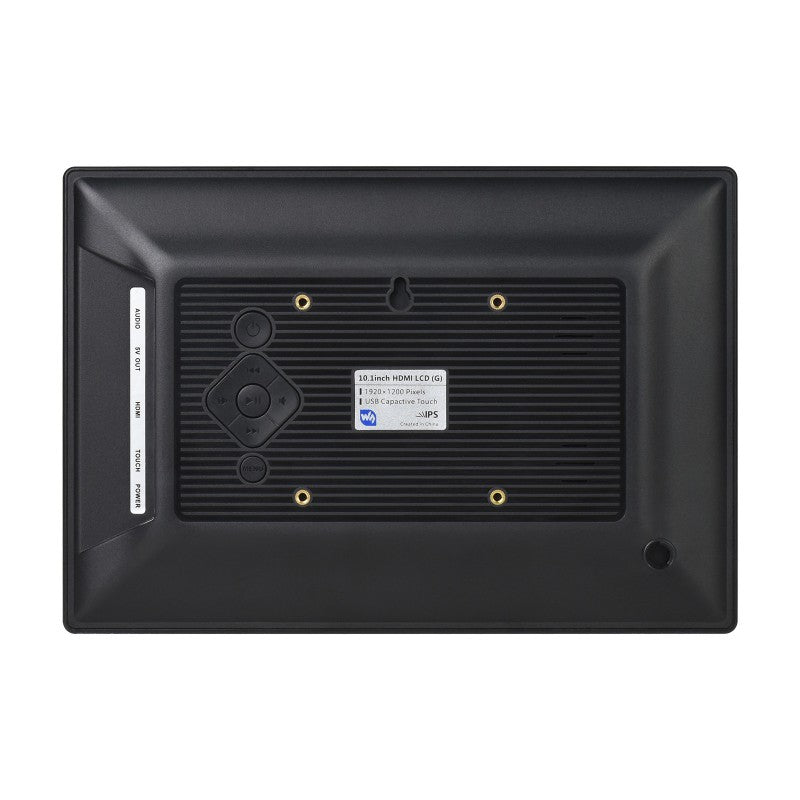

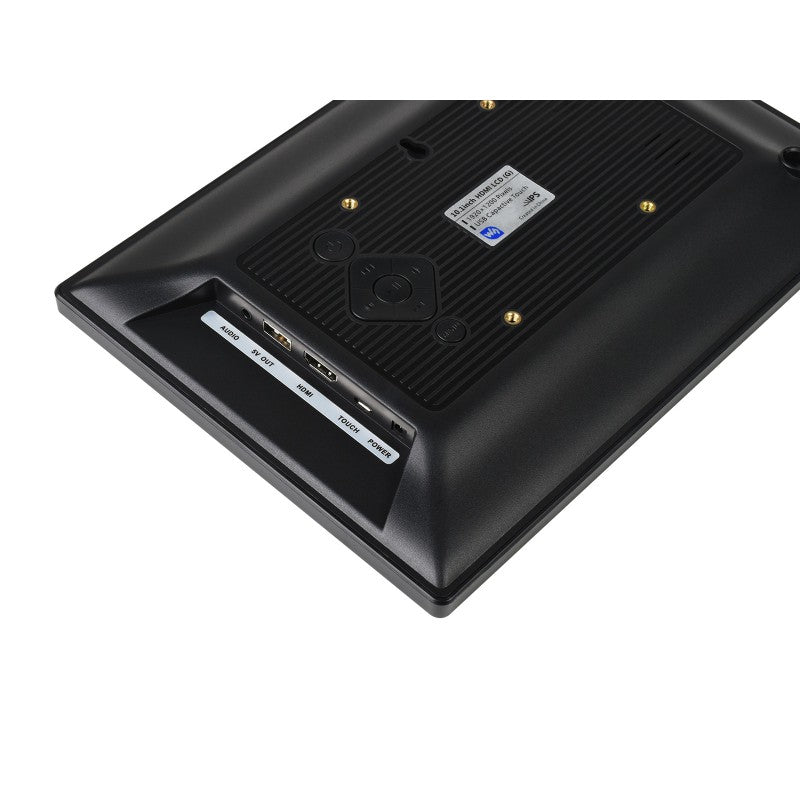

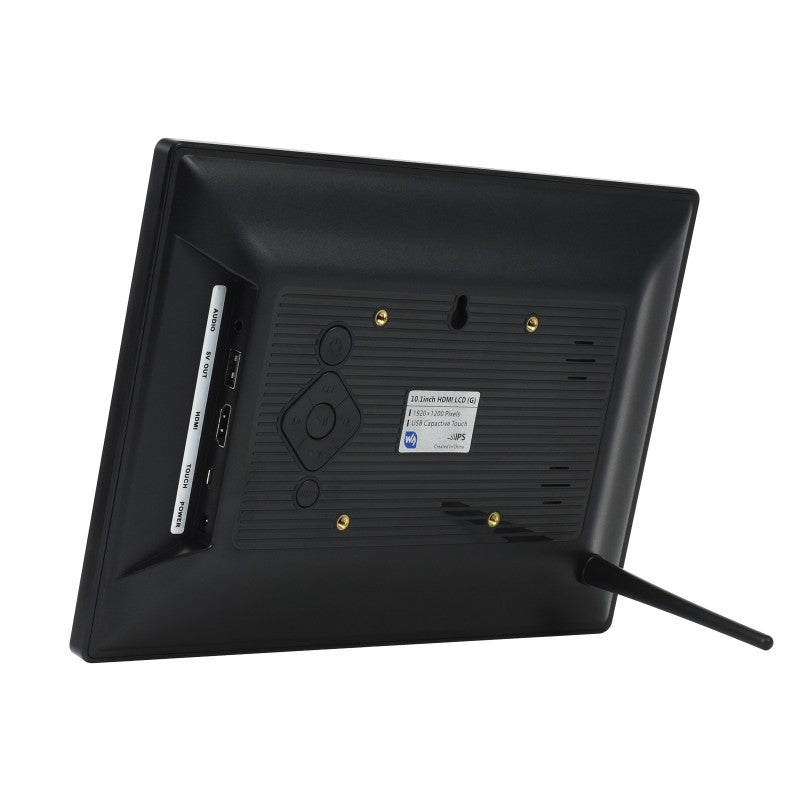

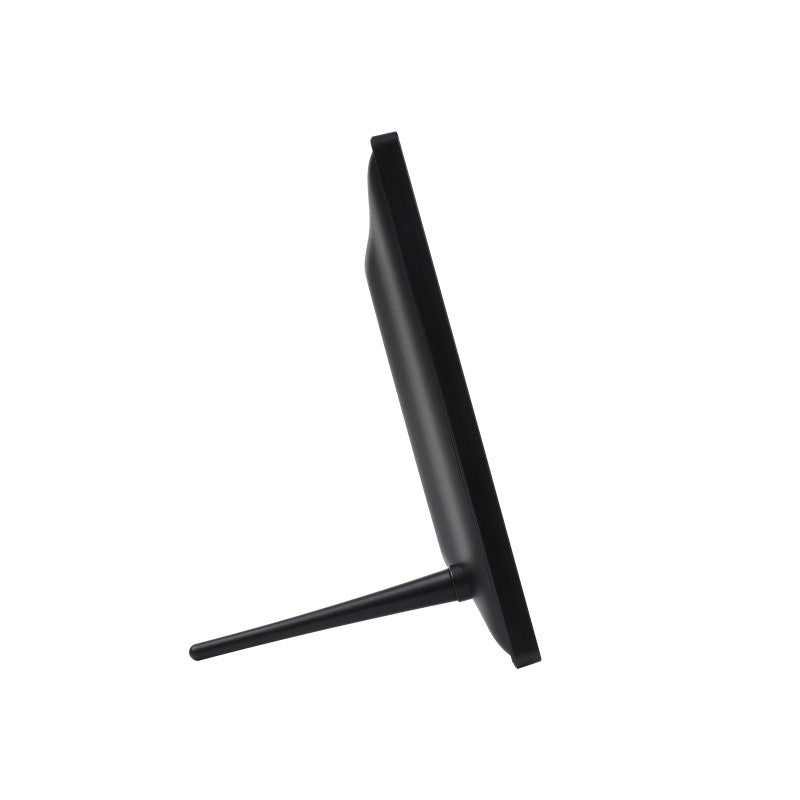

Appearance And Dimensions
Resources
Wiki: www.waveshare.com/wiki/10.1inch_HDMI_LCD_(G)_(with_case)
Package Contains:
Weight: 1.119 kg
- 10.1inch HDMI LCD (G) (with case) x1
- 12V power adapter x1
- HDMI cable x1
- HDMI to Micro HDMI Adapter x1
- USB-A to Micro-B cable x1
- Back stand x1
